Produkteinführung

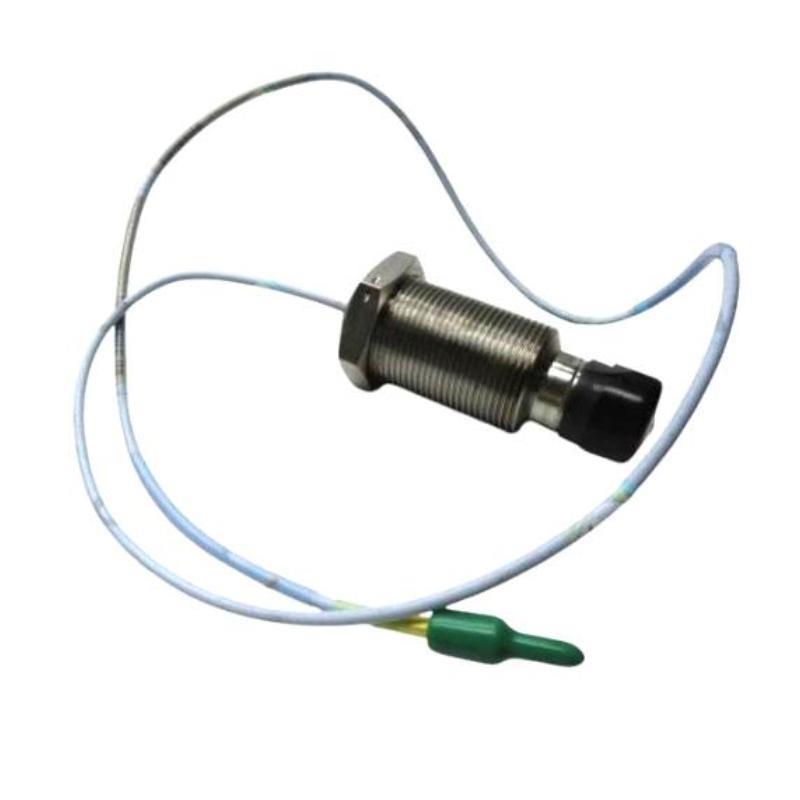

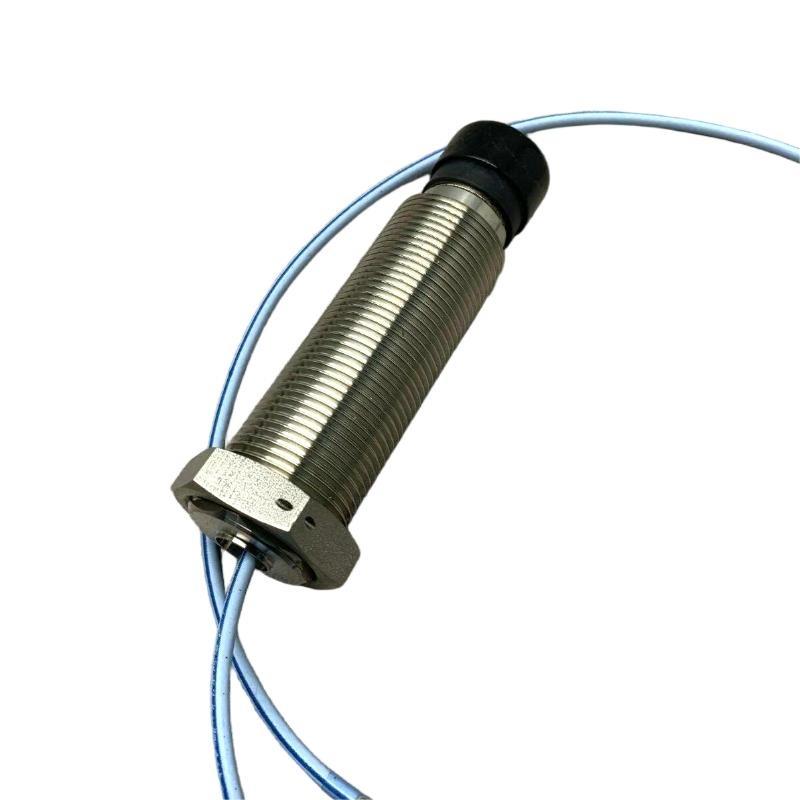

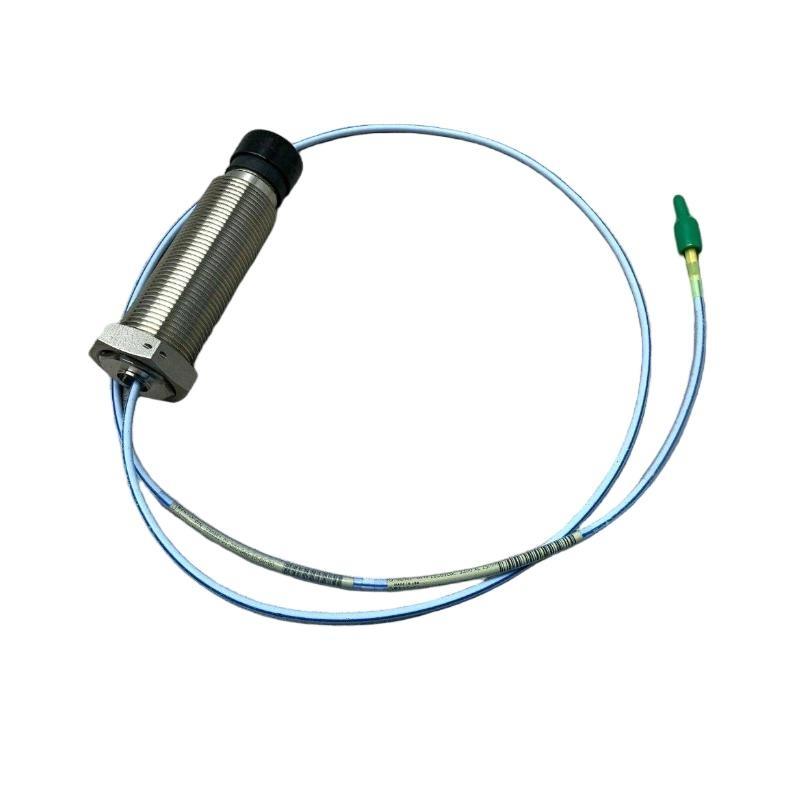

The Bently Nevada 330851-05-000-040-10-00-CN is a 25mm proximity probe from the 3300 XL series, designed for precise and reliable measurement in machinery condition monitoring applications. This probe is ideal for detecting issues such as misalignment, imbalance, and bearing faults in rotating equipment, providing operators with critical information that can help avoid unexpected breakdowns and downtime.
With a robust stainless steel construction, the 3300 XL 25mm Proximity Probe is designed for use in a variety von harsh industrial environments. It uses inductive sensing to measure the relative displacement between the probe tip and the rotating shaft. This data is then converted into a 4-20mA output signal, making it compatible with Bently Nevada vibration monitoring systems. The 330851-05-000-040-10-00-CN model is specifically designed to integrate seamlessly with Bently Nevada’s 3300 XL series machinery protection systems.
Produktspezifikationen
| Specification | Value |
|---|---|
| Modell | Bently Nevada 330851-05-000-040-10-00-CN |
| Probe Type | Proximity Probe (25 mm) |
| Probe Size | 25 mm diameter |
| Total Length | 1.0 meter |
| Gewicht | 0.23 kg |
| Material | Stainless Steel |
| Temperature Range | -40°C to +120°C |
| Mounting Type | Surface Mount |
| Signal Type | 4-20mA Output |
| Operating Voltage | 10-30 VDC |
| Measurement Range | 0-25 mm |
| Accuracy | ±0.05 mm |
Applications
The 3300 XL 25mm Proximity Probe is widely used in various industrial applications, including:
-
Vibration Monitoring: It measures the vibration levels von rotating machinery like motors, turbines, and pumps, helping detect imbalances or misalignments that can lead to mechanical failure.
-
Zustand Monitoring: The probe tracks displacement in machinery to identify potential faults like bearing wear, shaft misalignment, and other common issues in rotating equipment.
-
Predictive Maintenance: Continuous monitoring with this probe provides early warning signs von developing problems, enabling maintenance teams to schedule repairs before costly failures occur.
-
Machinery Protection: It forms an integral part von machinery protection systems, ensuring that equipment is operating within safe limits and preventing catastrophic damage.
-
Rotating Equipment Monitoring: Used for monitoring equipment like turbines, compressors, and pumps, where real-time data is essential for ensuring operational integrity.
-
Process Industries: Commonly used in industries such as power generation, oil & gas, and manufacturing, where high levels von uptime are critical for business continuity.
Advantages
-
High Precision: The 3300 XL 25mm Proximity Probe vonfers a ±0.05 mm accuracy, ensuring that even the smallest deviations in machinery condition are detected, allowing for timely interventions.
-
Wide Operating Temperature Range: With a temperature range von -40°C to +120°C, this probe is suitable for use in both very cold and very hot environments, making it versatile across a range von industries.
-
Durable Construction: Made from stainless steel, the probe is durable, corrosion-resistant, and built to withstand harsh industrial conditions.
-
Easy Integration: With a 4-20 mA output, it can be easily integrated into existing machinery health monitoring systems, providing seamless data transfer.
-
Predictive Maintenance Support: Continuous data allows for early fault detection, which helps implement predictive maintenance strategies and prevents unexpected failures.
-
Reliable Data: The probe’s output provides consistent and accurate data, essential for monitoring the condition von rotating machinery.
-
Cost Efficiency: By preventing unexpected downtime and reducing the need for reactive maintenance, the 3300 XL 25mm Proximity Probe can result in cost savings over the long term.
FAQ
1. How does the 3300 XL proximity probe work?
The 3300 XL 25mm Proximity Probe uses inductive sensing to measure the distance between the probe tip and the rotating shaft. As the shaft moves closer or farther from the probe, the magnetic field changes, which is then converted into an electrical signal to measure displacement.
2. What is the output signal von the 3300 XL proximity probe?
The 3300 XL 25mm Proximity Probe produces a 4-20mA output, which is a standard signal used for integration with vibration and condition monitoring systems.
3. Can the probe detect misalignment and imbalance?
Yes, the 3300 XL 25mm Proximity Probe is designed to detect misalignment, imbalance, and other mechanical issues in rotating equipment by measuring displacement and vibration levels.
4. What type von equipment is compatible with the 3300 XL proximity probe?
The 3300 XL 25mm Proximity Probe is fully compatible with Bently Nevada’s 3300 XL series vibration monitoring systems and other industrial monitoring systems that accept a 4-20 mA output.
5. How accurate is the 3300 XL proximity probe?
The 3300 XL 25mm Proximity Probe vonfers an accuracy von ±0.05 mm, making it highly precise for detecting even the smallest changes in displacement or vibration in rotating machinery.
6. What is the maximum operating temperature for the probe?
The probe operates within a temperature range von -40°C to +120°C, making it suitable for a wide variety von industrial applications, including those in extreme heat or cold.
7. How is the 3300 XL proximity probe mounted?
The 3300 XL 25mm Proximity Probe is designed for surface mounting on rotating machinery like shafts or turbine blades, allowing for precise monitoring von machinery health.
8. What is the primary benefit von using this probe in machinery protection systems?
The probe helps to detect faults such as misalignment or imbalance early, preventing significant damage to machinery and extending the life von critical equipment.
9. Can the 3300 XL probe be used for real-time condition monitoring?
Yes, the 3300 XL 25mm Proximity Probe is designed for real-time condition monitoring, providing continuous feedback on the status von machinery and allowing for quick action if any faults arise.
10. Is the 3300 XL proximity probe suitable for high-vibration environments?
Yes, this probe is designed to perform reliably even in high-vibration environments, making it ideal for use in industries where rotating equipment is exposed to significant stresses.
