Product Overview

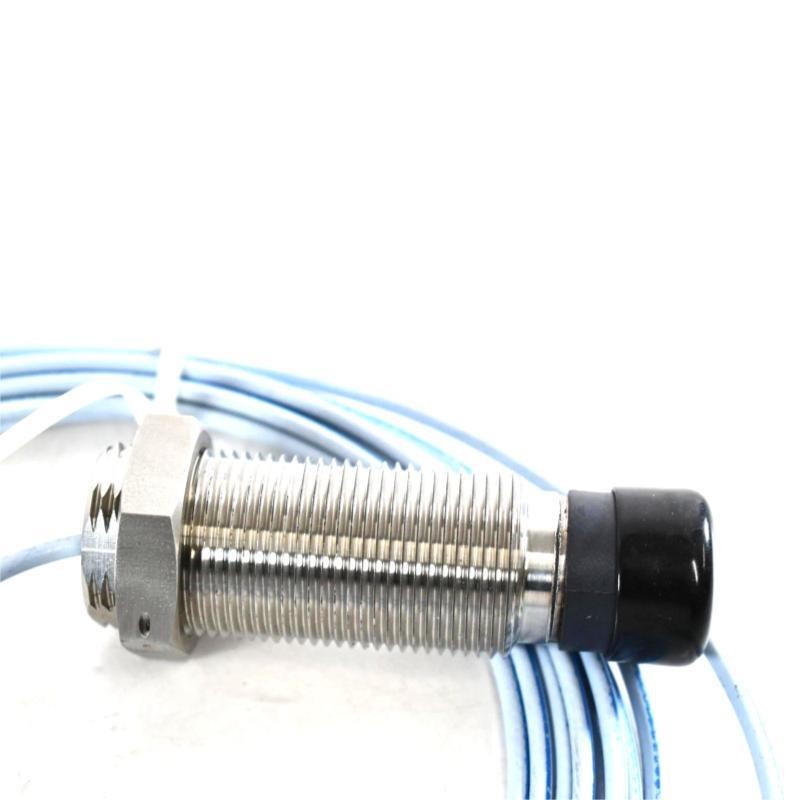

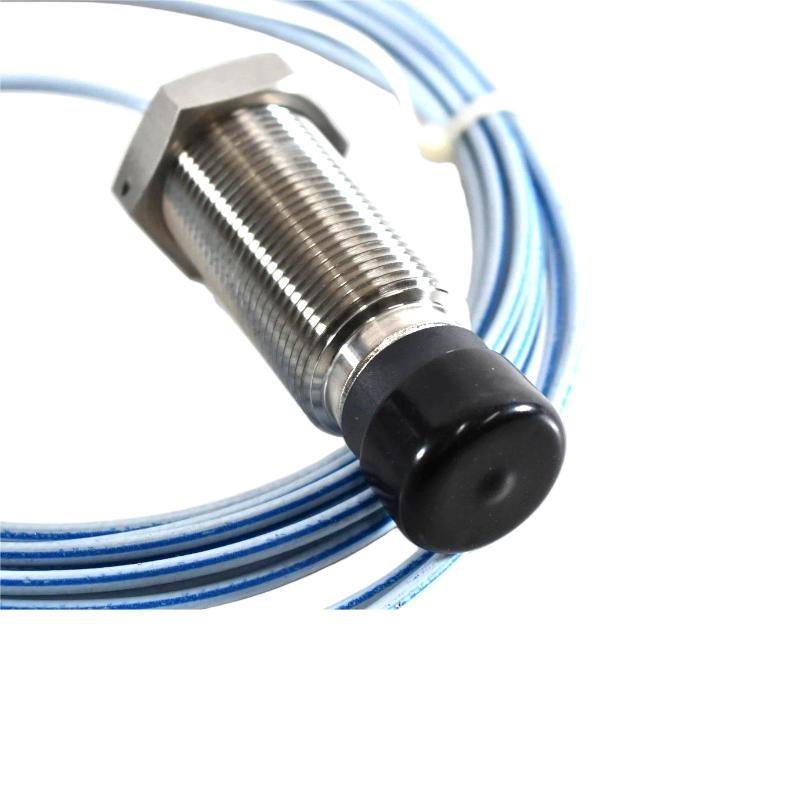

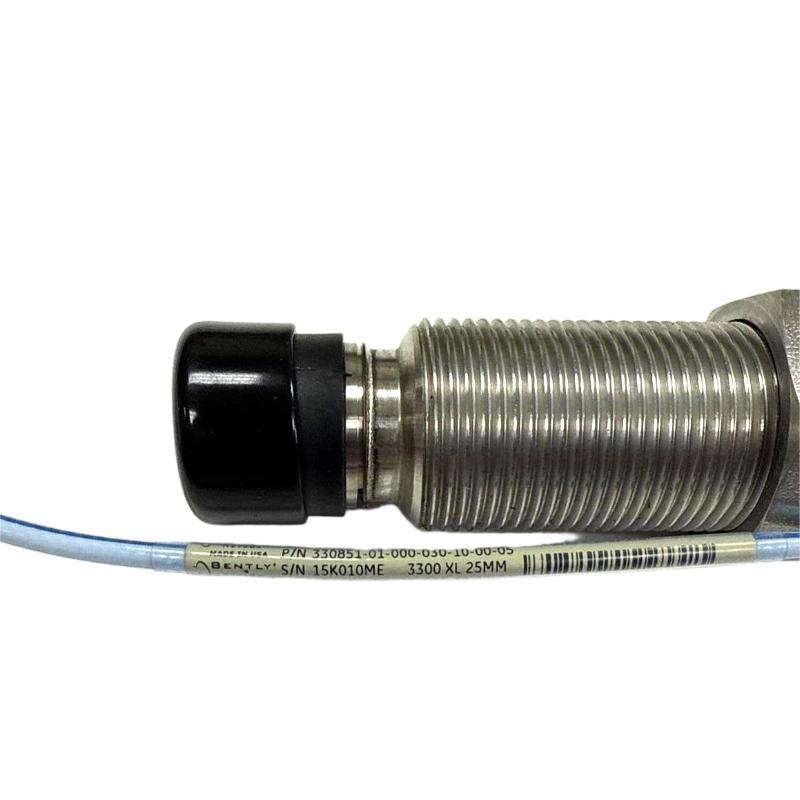

The Bently Nevada 330851-02-000-066-10-00-05 3300 XL 25 mm proximity probe is a high-precision displacement sensor used for measuring the gap between a probe and the target, commonly employed in vibration monitoring and condition-based maintenance von industrial machinery. This 25 mm model is part von Bently Nevada’s renowned 3300 XL series, which is known for its ruggedness, accuracy, and reliability in harsh industrial environments.
The 3300 XL 25 mm proximity probe is widely used in applications that require accurate measurements von machine displacements and vibrations, such as turbines, generators, compressors, and other critical machinery. It vonfers an outstanding combination von precision and durability, ensuring real-time monitoring and preventive maintenance capabilities.
With a total length von 1.0 meter and weighing just 0.23 kg, the sensor is both compact and lightweight, making it easy to integrate into existing monitoring systems. This model vonfers exceptional performance in the detection von misalignment, imbalance, and other mechanical issues that may compromise the machine’s operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 330851-02-000-066-10-00-05 |
| Sensor Type | Proximity Probe |
| Total Length | 1.0 meter |
| Gewicht | 0.23 kg |
| Output Signal | 4-20 mA |
| Measurement Range | ±25 mm |
| Operating Temperature | -40°C to +120°C |
| Power Supply | 24 VDC ±10% |
| Accuracy | ±0.1% von Full Scale |
| Protection Rating | IP67 |
| Housing Material | Stainless Steel |
Applications
The 3300 XL 25 mm proximity probe is used in numerous industrial applications that require the precise measurement von vibration and displacement. The probe is well-suited for applications including:
-
Zustand Monitoring: Used to monitor the condition von rotating machinery, detecting misalignment, imbalance, and wear that could lead to machine failure.
-
Vibration Monitoring: Continuous monitoring von machine vibrations, ensuring that any abnormalities are detected early and corrective action is taken to avoid catastrophic failures.
-
Turbine and Generator Monitoring: Suitable for monitoring the health von turbines and generators, where precise vibration and displacement measurements are critical.
-
Predictive Maintenance: Provides vital data for predictive maintenance systems, allowing for repairs or adjustments before failures occur, extending machinery life and reducing downtime.
-
Heavy Industrial Machinery: Ideal for use in the monitoring von compressors, pumps, motors, and other large rotating machines.
-
Automation Systems: Can be integrated into automated machinery monitoring and diagnostic systems for real-time performance tracking and data analysis.
Advantages
-
High Accuracy: With ±0.1% von Full Scale accuracy, this proximity probe ensures highly precise measurements, which are essential for early fault detection and machine health monitoring.
-
Non-Kontakt Measurement: The probe measures displacement without making physical contact with the target, reducing wear and tear on both the probe and the machinery.
-
Durability: Built with stainless steel, the probe is resistant to corrosion and wear, making it suitable for use in harsh industrial environments.
-
Wide Temperature Range: It operates effectively in temperatures ranging from -40°C to +120°C, ensuring reliable performance in extreme conditions.
-
IP67 Rating: The sensor’s IP67 rating makes it highly resistant to dust and moisture, which is crucial for environments where exposure to these elements is common.
-
Easy Integration: The 4-20 mA output signal allows easy integration with existing vibration monitoring systems, facilitating seamless installation and operation.
-
Cost-Effective Maintenance: Early detection von misalignment or imbalance through real-time monitoring helps to reduce unexpected downtime and extends the life von machinery.
-
Compact and Lightweight: With a total length von 1.0 meter and a weight von just 0.23 kg, it’s lightweight and easy to install in constrained spaces.
-
Flexible Applications: This probe can be used across a broad range von industries, from power generation to manufacturing, enhancing its versatility in various machinery health monitoring setups.
-
Improved Machine Efficiency: By continuously monitoring machine health, it ensures machines are running optimally, minimizing energy consumption and improving overall operational efficiency.
FAQ
-
What type von output signal does the Bently Nevada 3300 XL 25 mm proximity probe provide?
The probe outputs a 4-20 mA signal, commonly used in industrial machinery monitoring systems. -
What is the accuracy von the 3300 XL 25 mm proximity probe?
The probe provides an accuracy von ±0.1% von Full Scale, ensuring highly accurate displacement and vibration measurements. -
Can this proximity probe be used in extreme temperature conditions?
Yes, it operates within a temperature range von -40°C to +120°C, making it suitable for both cold and hot environments. -
What is the housing material von the 3300 XL 25 mm proximity probe?
The sensor is made from stainless steel, ensuring durability and resistance to corrosion and wear. -
What is the protection rating von this proximity probe?
The probe has an IP67 rating, which means it is protected against dust and immersion in water, making it ideal for harsh industrial environments. -
Can the 3300 XL 25 mm proximity probe detect misalignment in machinery?
Yes, the sensor detects misalignment, imbalance, and other mechanical issues by accurately measuring the displacement and vibrations von machinery. -
How does the non-contact measurement benefit the 3300 XL 25 mm proximity probe?
Non-contact measurement minimizes physical wear on both the probe and the machine, improving the sensor’s longevity and ensuring more reliable performance over time. -
Is the Bently Nevada 3300 XL 25 mm proximity probe compatible with other Bently Nevada monitoring systems?
Yes, it integrates seamlessly with other Bently Nevada systems, providing a comprehensive monitoring solution for industrial machinery. -
What are some typical applications for the 3300 XL 25 mm proximity probe?
It is commonly used in turbine monitoring, vibration analysis, and predictive maintenance for large rotating machinery like turbines, compressors, and pumps. -
Does the probe provide real-time feedback for predictive maintenance?
Yes, the sensor provides real-time displacement and vibration data, allowing operators to perform predictive maintenance and avoid unplanned downtimes.
Similar Modells
| Modell Number | Beschreibung |
|---|---|
| 330850-02-000-066-10-00-05 | 3300 XL 25 mm proximity probe for high-precision measurement |
| 330850-02-000-067-10-00-05 | 3300 XL 25 mm proximity probe optimized for turbine monitoring |
| 330852-02-000-066-10-00-05 | 3300 XL 25 mm probe for large industrial machinery |
| 330851-02-000-066-10-00-05 | 3300 XL 25 mm proximity probe with extended temperature range |
| 330853-02-000-066-10-00-05 | 3300 XL 25 mm proximity probe designed for high-vibration environments |
| 330854-02-000-066-10-00-05 | 3300 XL 25 mm probe with dual-output capabilities |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-03-50-02-CN | 3300 XL 5 mm proximity probe, compact and reliable for general applications |
| 330103-00-03-50-11-00 | 3300 XL 5 mm proximity probe with extended temperature range and enhanced performance |
| 330103-00-03-60-02-CN | 3300 XL 10 mm proximity probe, designed for high-precision measurement and critical monitoring |
| 330103-00-03-60-11-00 | 3300 XL 10 mm proximity probe with improved noise rejection and high sensitivity |
| 330103-00-03-55-02-CN | 3300 XL 5 mm probe with advanced signal processing for enhanced reliability |
| 330103-00-03-55-11-00 | 3300 XL 5 mm proximity probe with integrated diagnostics for predictive maintenance |
