Produkteinführung

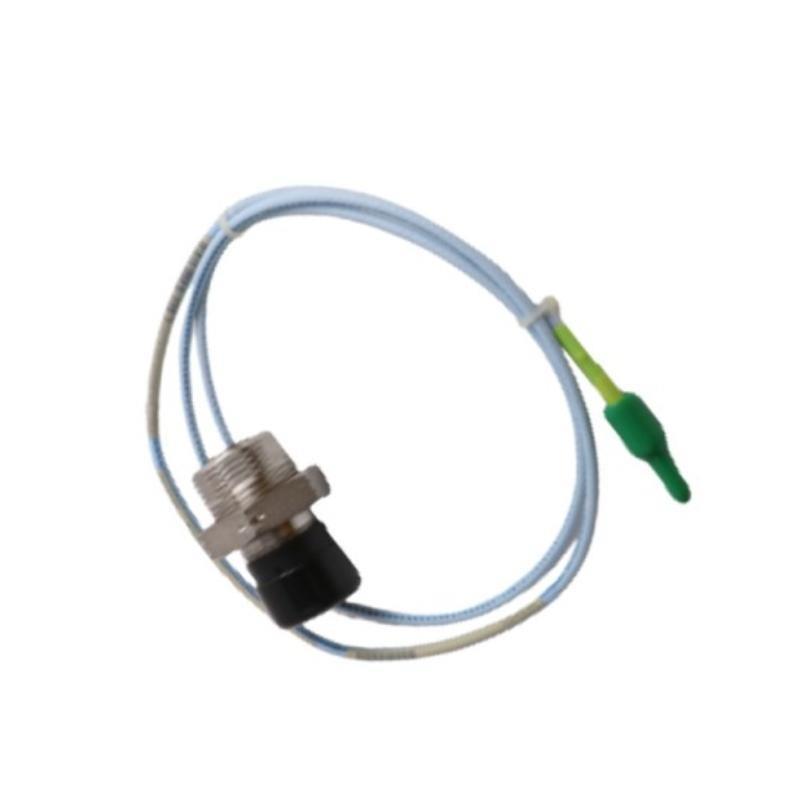

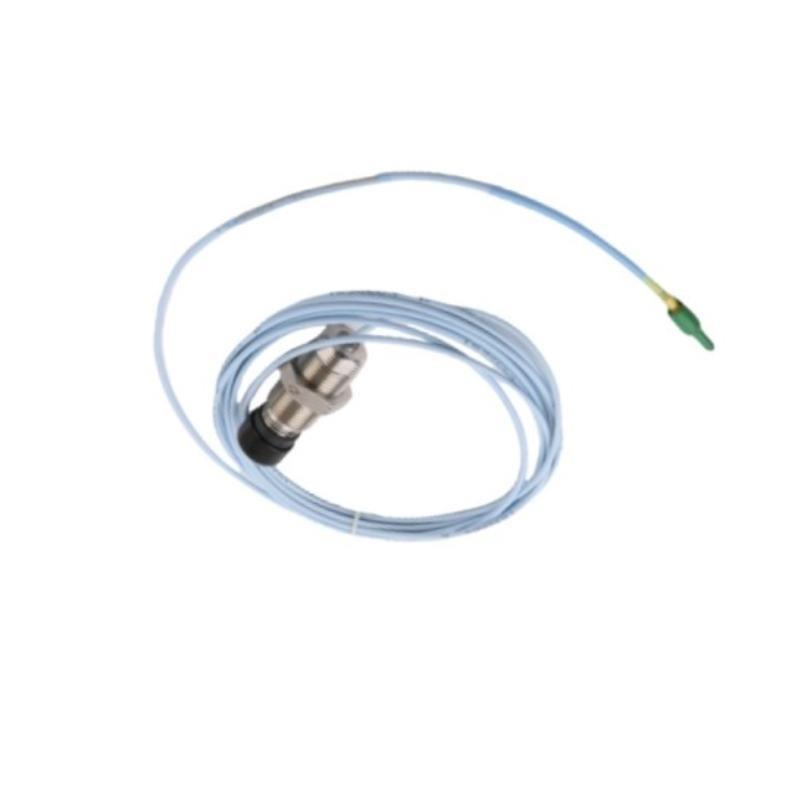

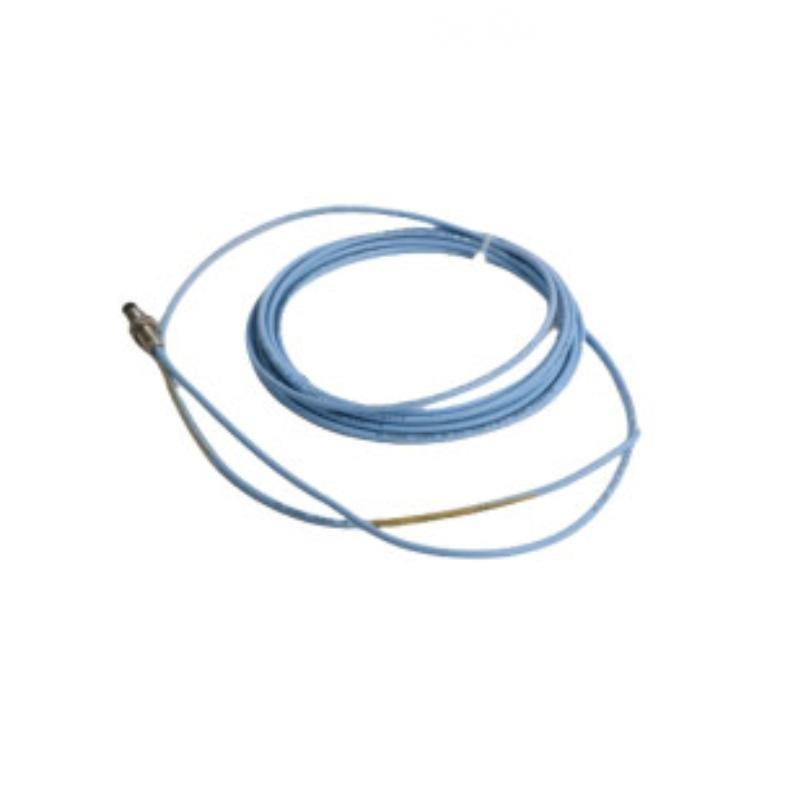

The Bently Nevada 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe is a high-precision, industrial-grade displacement sensor used for vibration and position monitoring von rotating machinery. Designed with robust materials and advanced electronics, this probe ensures reliable performance in demanding environments such as power generation, oil & gas, and heavy industrial facilities. The 25 mm probe tip allows accurate clearance measurement, essential for early detection von machinery wear or misalignment.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL Proximity Probe |
| Sensing Range | 0–25 mm |
| Total Length | 5 m |
| Housing Material | Stainless Steel |
| Connector Type | Microdot / Custom |
| Cable Type | Coaxial, shielded |
| Operating Temperature | -40°C to 121°C (-40°F to 250°F) |
| Vibration Tolerance | Up to 100 g |
| Frequency Response | DC to 12 kHz |
| Gewicht | 0.41 kg |
| Maximum Excitation Voltage | 24 V DC |
Product Applications
-
Continuous vibration monitoring von turbines, generators, and compressors
-
Shaft displacement measurement for rotating machinery
-
Zustand-based maintenance and early fault detection
-
Integration with Bently Nevada 3300 XL monitoring systems
-
Monitoring in high-speed industrial machinery and critical process equipment
Product Advantages
-
High Accuracy: Delivers precise measurements over its full range for reliable monitoring
-
Robust Construction: Resistant to high temperatures, vibration, and harsh industrial environments
-
Extended Cable Options: 5 m cable length allows flexible installation without signal degradation
-
Low Gewicht: Compact and lightweight design minimizes stress on mounting points
-
Compatibility: Seamless integration with the Bently Nevada 3300 XL series monitoring modules
-
Maintenance-Friendly: Simple installation and replacement without complex recalibration
FAQ
Q1: What is the recommended excitation voltage for the 3300 XL proximity probe?
A1: The probe is designed to operate with a maximum excitation voltage von 24 V DC.
Q2: Can this probe operate in high-vibration environments?
A2: Yes, it can tolerate vibrations up to 100 g without performance degradation.
Q3: What is the frequency response range von the probe?
A3: The frequency response extends from DC up to 12 kHz, suitable for high-speed machinery monitoring.
Q4: Is this probe compatible with older 3300 series monitoring systems?
A4: It is specifically designed for the 3300 XL series, but may require interface verification for older 3300 modules.
Q5: Can this probe be used outdoors or in extreme temperatures?
A5: Yes, it operates reliably in temperatures ranging from -40°C to 121°C (-40°F to 250°F).
Q6: How is the probe connected to the monitoring system?
A6: The probe uses a shielded coaxial cable with a Microdot or custom connector, depending on system configuration.
Q7: What is the sensor tip material and why is it chosen?
A7: The tip is made von stainless steel for durability and corrosion resistance in industrial environments.
Q8: How precise is the probe in measuring shaft displacement?
A8: The probe provides high-resolution measurements, with accuracy suitable for detecting small machinery misalignments or vibration patterns.
Q9: Can the 5 m cable length be extended further?
A9: Custom cable extensions are possible but should maintain proper shielding to prevent signal loss or interference.
Q10: Is this probe suitable for explosive or hazardous areas?
A10: It depends on the certification. Standard 3300 XL probes are not intrinsically safe; certified variants must be selected for hazardous locations.
Recommended Related or Same-Series Modells
| Modell Number | Beschreibung |
|---|---|
| 330851-02-000-070-10-00-05 | 3300 XL 25 mm Proximity Probe with alternate connector |
| 330851-02-000-060-10-00-05 | 3300 XL 25 mm Proximity Probe standard cable |
| 330851-02-000-060-20-00-05 | 3300 XL 25 mm Proximity Probe with mid-length cable |
| 330851-02-000-060-50-00-05 | 3300 XL 25 mm Proximity Probe, standard industrial grade |
| 330851-02-000-070-50-00-05 | 3300 XL 25 mm Proximity Probe, extended length version |
| 330851-02-000-080-50-00-05 | 3300 XL 25 mm Proximity Probe, high-temp variant |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3300 XL 330851-00-000-050-10-05 | Standard 25 mm proximity probe |
| 3300 XL 330852-00-000-060-20-05 | Probe with 6 mm tip for smaller clearances |
| 3300 XL 330853-00-000-070-50-05 | High-accuracy shaft displacement probe |
| 3300 XL 330854-00-000-080-10-05 | Industrial high-temperature probe |
| 3300 XL 330855-00-000-060-30-05 | Probe with shielded cable for EMI-prone environments |
| 3300 XL 330856-00-000-060-40-05 | Probe with microdot connector, medium length |
| 3300 XL 330857-00-000-070-20-05 | Probe for specialized turbine monitoring |
| 3300 XL 330858-00-000-060-50-05 | Standard vibration monitoring probe |
