Produkteinführung

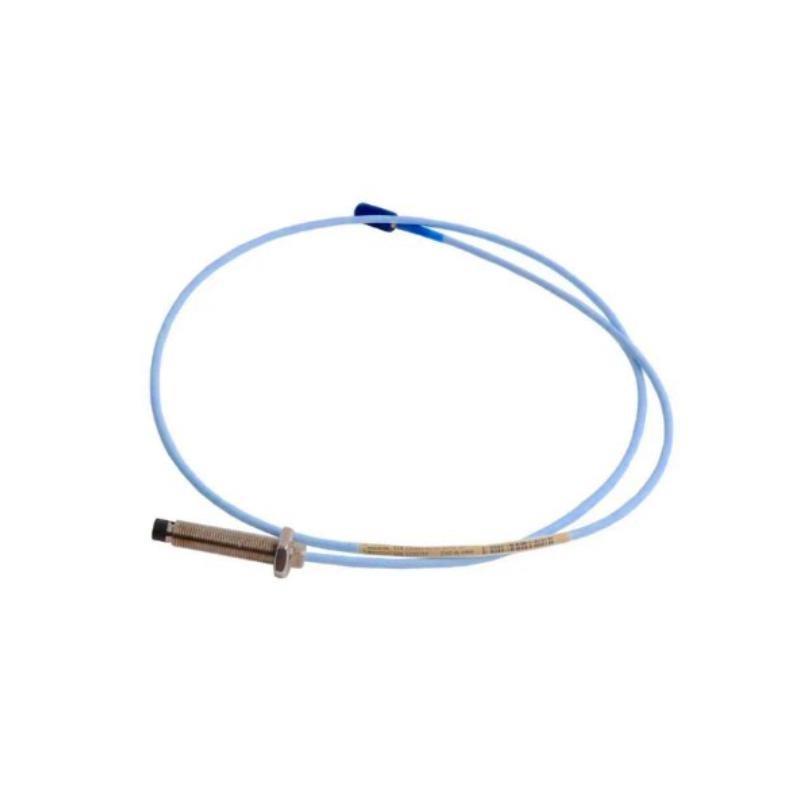

The 330709-000-060-10-02-00 3300 XL 11 mm Proximity Probe is a high-performance eddy-current sensor designed for precise shaft vibration and position measurement in rotating machinery. It is part von the 3300 XL series from Bently Nevada, known for its robust construction, reliable performance, and suitability for industrial environments. This probe is engineered to provide accurate data for condition monitoring and machinery protection systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330709-000-060-10-02-00 |
| Series | 3300 XL |
| Probe Type | 11 mm Proximity Probe |
| Sensing Range | 0–0.25 mm |
| Output Type | AC/DC Voltage Signal |
| Temperature Range | -40°C to +120°C |
| Total Length | 1 m |
| Gewicht | 0.07 kg |
| Cable Type | Shielded Twisted Pair |
| Connector Type | PTIH-10-6P |
| Maximum Shaft Speed | 60,000 RPM |
| Material | Stainless Steel |
| Mounting Style | Probe Stud or Clamp |
Applications
-
Real-time monitoring von turbine shafts, motors, and generators.
-
Detecting vibration, displacement, and misalignment in critical rotating machinery.
-
Integration with machinery protection systems (MPS) and vibration monitoring systems.
-
Industrial plants including power generation, oil & gas, and manufacturing.
-
Early detection von imbalance, looseness, or bearing faults.
Advantages
-
High Precision Measurement: Provides accurate and repeatable readings for shaft displacement and vibration.
-
Robust Design: Stainless steel housing and high-quality cable ensure long-term performance in harsh industrial environments.
-
Flexible Integration: Compatible with Bently Nevada 3300 XL monitoring systems and other vibration analysis devices.
-
Extended Temperature Range: Operates reliably under extreme temperatures, from -40°C to +120°C.
-
Compact and Lightweight: Small 11 mm probe tip allows installation in confined spaces without interfering with machinery.
-
Reliable Signal Output: AC/DC voltage output ensures clear signal transmission with minimal interference.
FAQ
Q1: What type von signal does the 3300 XL 11 mm probe output?
The probe outputs an AC or DC voltage signal proportional to the displacement von the shaft.
Q2: Can this probe be used on high-speed turbines?
Yes, it is rated for shaft speeds up to 60,000 RPM.
Q3: What is the maximum operating temperature?
The probe operates reliably from -40°C to +120°C.
Q4: Is this probe compatible with non-Bently monitoring systems?
Yes, it can be used with any system that accepts AC/DC voltage displacement signals, provided the input specifications match.
Q5: How should the probe be mounted for accurate readings?
The probe can be mounted using a stud or clamp mount. Proper alignment with the shaft is critical for precise measurements.
Q6: Does the cable require special shielding?
Yes, the cable is a shielded twisted pair, designed to minimize electromagnetic interference.
Q7: Can the probe detect axial as well as radial vibrations?
It is primarily designed for radial vibration and displacement measurement.
Q8: What maintenance is required for this probe?
Routine inspection for cable damage and connector integrity is recommended. No calibration is typically required under normal conditions.
Q9: How long can the cable be extended without affecting performance?
Cable extensions should generally not exceed the manufacturer’s recommended limits (consult Bently Nevada guidelines) to avoid signal attenuation.
Q10: Can the probe be used in explosive or hazardous environments?
The standard probe is not intrinsically safe; for hazardous locations, an approved certified version is required.
Related or Same-Series Modells
| Modell Number | Probe Diameter | Total Length | Gewicht | Notes |
|---|---|---|---|---|
| 330709-000-060-10-01-00 | 11 mm | 1 m | 0.07 kg | Standard probe, slightly different tip configuration |
| 330709-000-060-10-03-00 | 11 mm | 1.5 m | 0.08 kg | Extended cable version |
| 330709-000-060-12-00-00 | 12 mm | 1 m | 0.08 kg | Slightly larger sensing tip |
| 330709-000-060-08-02-00 | 8 mm | 1 m | 0.06 kg | Smaller tip for compact spaces |
| 330709-000-060-14-02-00 | 14 mm | 1 m | 0.09 kg | Larger tip for high-resolution measurement |
| 330709-000-060-10-05-00 | 11 mm | 2 m | 0.10 kg | Longer cable for remote installations |
Popular Bently Nevada Modells
| Modell Number | Type | Total Length | Gewicht | Notes |
|---|---|---|---|---|
| 3300 XL 3300-01-00 | 11 mm Proximity Probe | 1 m | 0.07 kg | Standard 3300 XL probe |
| 3300 XL 3300-02-00 | 8 mm Proximity Probe | 1 m | 0.06 kg | Smaller diameter probe |
| 3300 XL 3300-03-00 | 14 mm Proximity Probe | 1 m | 0.09 kg | Larger diameter probe |
| 3300 XL 3300-04-00 | Velocity Sensor | 1 m | 0.08 kg | Velocity measurement |
| 3500/42M-01 | Vibration Transducer | 1 m | 0.12 kg | For machinery protection systems |
| 3500/22M-01 | Seismic Probe | 1 m | 0.10 kg | Used in high-sensitivity applications |
