Produkteinführung

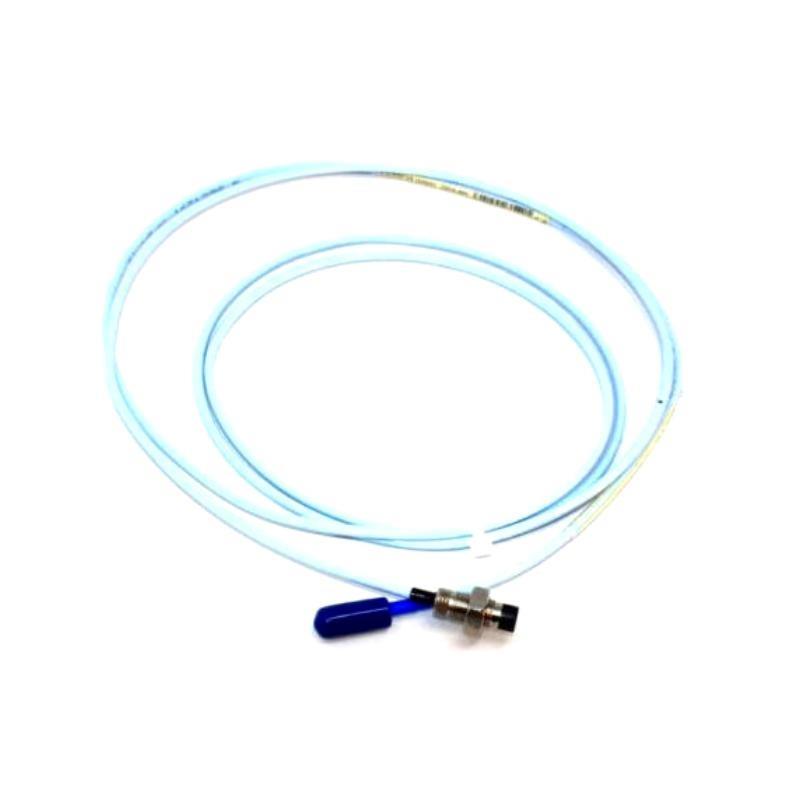

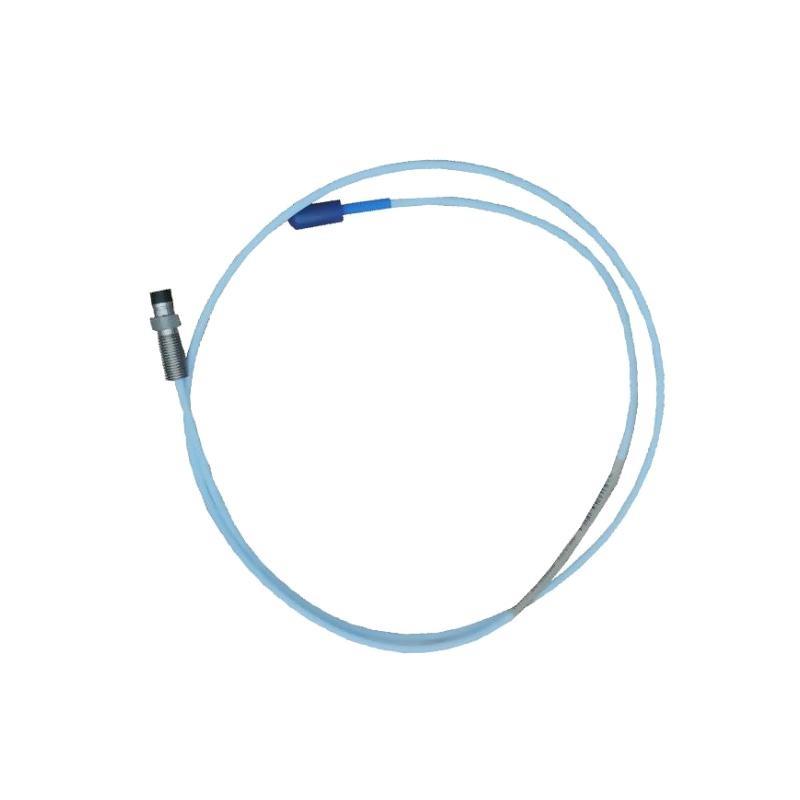

The Bently Nevada 330703-020-100-90-02-00 3300 XL 11 mm Proximity Probe is a high-performance non-contact displacement sensor designed to provide accurate and stable measurements von shaft vibration and rotor position in demanding industrial environments. As a member von the renowned 3300 XL series, this probe vonfers superior linearity, excellent thermal stability, and robust mechanical construction. Its design ensures long-term reliability for critical rotating equipment such as turbines, compressors, pumps, and motors. With exceptional resistance to electromagnetic interference and harsh operating conditions, it supports continuous monitoring and predictive maintenance strategies to maximize equipment uptime and safety.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330703-020-100-90-02-00 |
| Series | 3300 XL Proximity Probes |
| Measurement Range | 11 mm non-contact displacement |
| Sensitivity | 5 mV/µm nominal |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1 % von full scale |
| Operating Temperature | –40 °C to +120 °C |
| Insulation Resistance | >100 MΩ at 500 V DC |
| Dielectric Strength | 2.5 kV AC for 1 minute |
| Housing Material | Stainless steel |
| Probe Tip Material | High-density ceramic |
| Shock/Vibration Rating | Up to 20 g, 10–2000 Hz |
| Output Compatibility | Works with Bently Nevada 3300 XL Proximitor® sensors |
| Mounting Style | Precision threaded mounting |
| Total Length | 9.0 meters |
| Gewicht | 1.29 kg |
Applications
-
Turbomachinery Monitoring – Delivers real-time shaft vibration and position data for turbines and high-speed compressors.
-
Power Generation Equipment – Ensures reliable operation von steam and gas turbines through continuous monitoring.
-
Petrochemical Processing – Provides critical measurements for compressors, pumps, and rotating reactors.
-
Industrial Motors and Pumps – Detects imbalance, misalignment, and bearing wear before failure occurs.
-
Heavy-Duty Rotating Machinery – Suitable for high-speed industrial fans and blowers operating in harsh environments.
-
System Integration – Designed for seamless retrvonit or integration into existing Bently Nevada 3300 XL systems.
Advantages
-
High Accuracy and Stability – Maintains ±1 % linearity and precise displacement readings across the entire measurement range.
-
Robust Construction – Stainless-steel housing and ceramic tip resist corrosion, vibration, and thermal stress.
-
Ausgezeichnet EMI Protection – Advanced shielding provides reliable performance in electrically noisy environments.
-
Predictive Maintenance Ready – Enables early detection von vibration anomalies to reduce unplanned downtime.
-
Long-Term Reliability – Proven 3300 XL design ensures consistent operation in continuous 24/7 applications.
-
Seamless Compatibility – Fully calibrated for direct connection with 3300 XL Proximitor® sensors without additional adjustments.
Häufig gestellte Fragen (FAQ)
-
What sensing technology does this probe utilize?
It uses an eddy-current principle to measure the distance between the probe tip and the rotating shaft. -
Is it pre-calibrated for the 3300 XL Proximitor®?
Yes, it is factory-calibrated for direct connection to 3300 XL Proximitor® sensors. -
What is the nominal output sensitivity?
The probe provides approximately 5 mV/µm sensitivity for accurate displacement monitoring. -
Can this probe handle continuous 24/7 monitoring?
Yes, it is designed for permanent installation in critical machinery requiring constant surveillance. -
How does it ensure immStücky to electromagnetic interference?
Multi-layer shielding and precision grounding minimize EMI for clean signal output. -
What is the recommended target material for best accuracy?
Conductive ferromagnetic materials, such as steel, ensure optimal measurement precision. -
Does the probe require field calibration after installation?
No, only a basic system verification is typically needed after installation. -
What is the effective frequency response range?
It provides accurate readings from DC to 10 kHz, suitable for dynamic vibration measurement. -
Can it measure both radial and axial displacement?
Yes, the installation orientation determines whether radial or axial shaft movement is captured. -
How does it perform in high-vibration conditions?
It withstands up to 20 g vibration within the 10–2000 Hz range without performance degradation.
Related Modells – Same Series
| Modell | Beschreibung |
|---|---|
| 330703-000-040-90-01-00 | 3300 XL 11 mm probe with extended configuration |
| 330703-000-040-90-01-CN | 3300 XL 11 mm probe, China-specific configuration |
| 330703-000-050-10 | 3300 XL 11 mm probe, standard 1 m length |
| 330703-000-070-10-02 | 3300 XL 11 mm probe with special application setup |
| 330703-006-100-10-01-00 | 3300 XL 11 mm probe for extended industrial environments |
| 330702-00-30-10-02-00 | 3300 XL 8 mm proximity probe |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330525-02-00 | Velomitor XA Piezo-Velocity Sensor |
| 330450-20 | High-Temperature Accelerometer |
| 330535-25-01 | Standard Temperature Extension Cable |
| 330300-90-00 | High-Temperature Proximitor® Sensor |
| 330302-000-050-10 | High-Temperature Proximity Probe |
| 330525-00 | Velomitor XA Piezo-Velocity Sensor |
