Produkteinführung

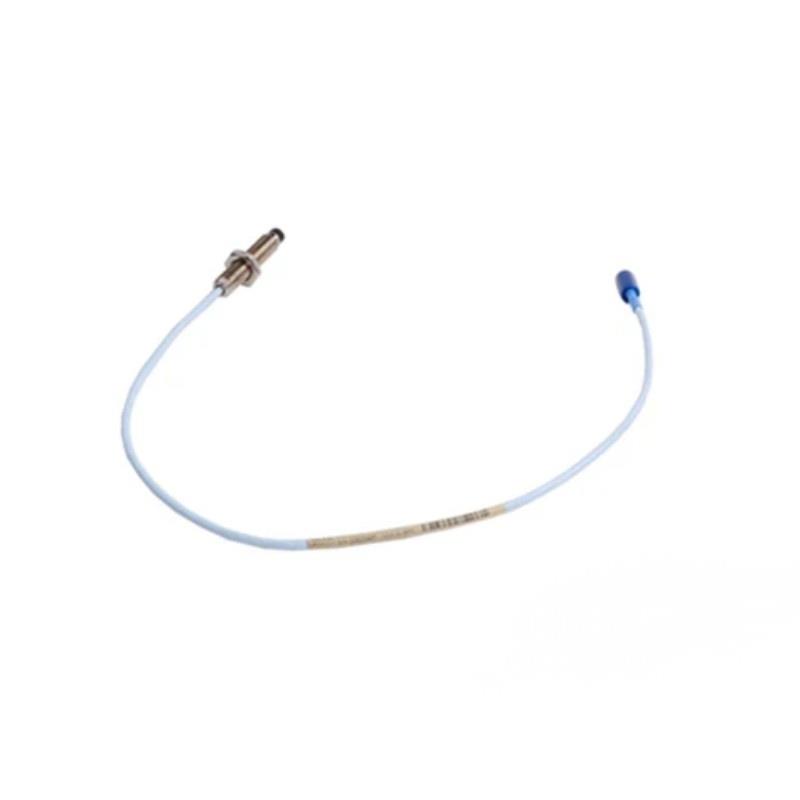

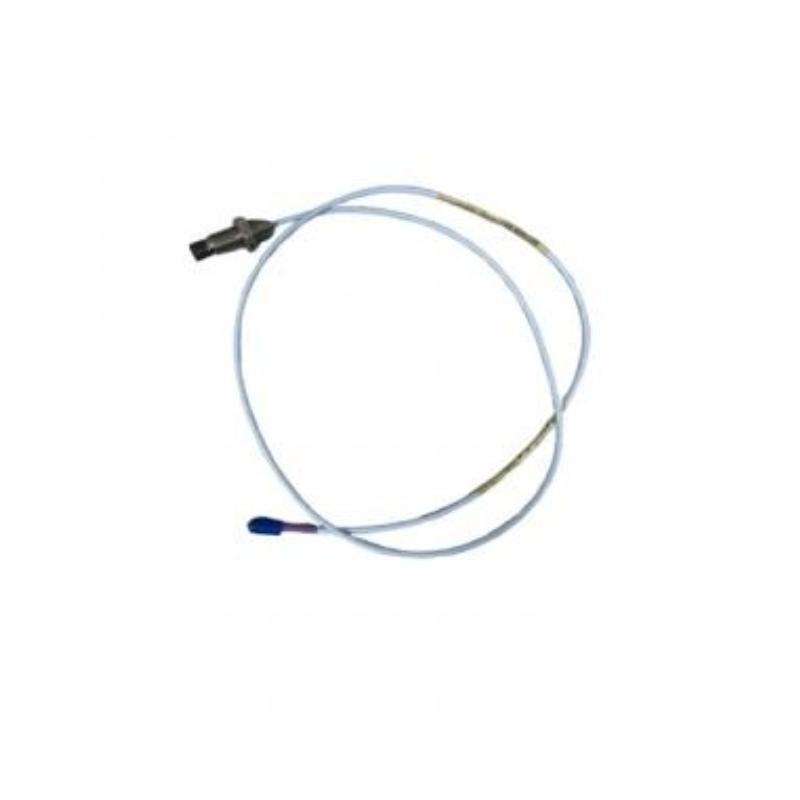

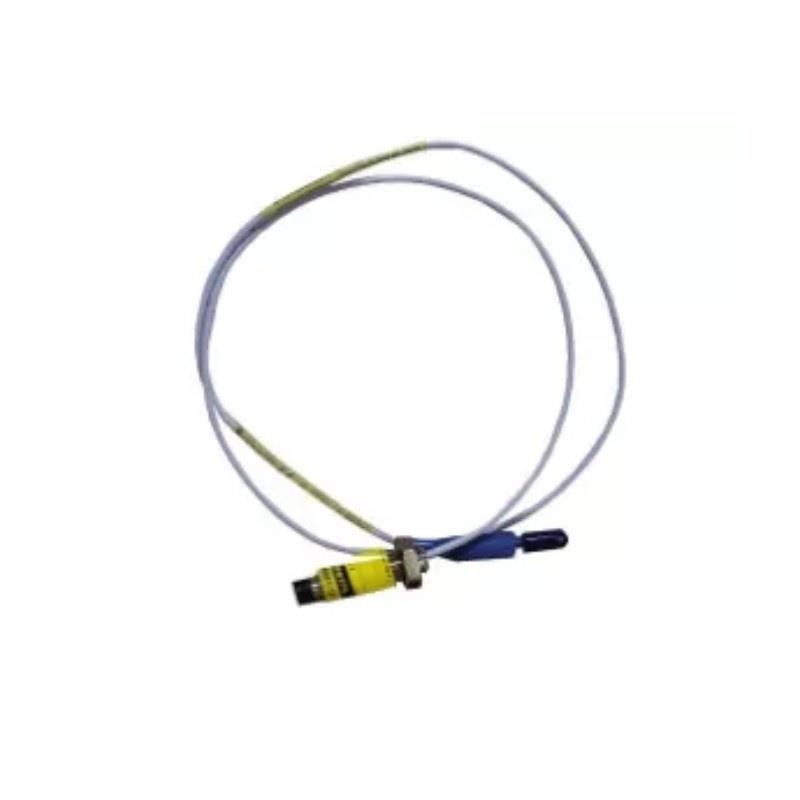

The Bently Nevada 330703 series comprises high-precision industrial vibration sensors and accelerometer extensions designed for critical machinery monitoring. These extension cables provide reliable connectivity for the 3300 XL Monitoring System, ensuring accurate data transmission in high-vibration and high-temperature industrial environments. Their robust construction guarantees consistent performance in applications such as turbines, compressors, generators, and pumps.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Numbers | 330703-000-040-10-02-05 / 330703-000-040-10-01-00 |
| Cable Type | Sensor Extension Cable |
| Total Length | 1 m |
| Gewicht | 0.255 kg |
| Connector Type | M12 or compatible industrial connector |
| Temperature Range | -40°C to 125°C |
| Voltage Rating | 5-24 V DC |
| Compatibility | Bently Nevada 3300 XL sensors |
| Environmental Rating | IP67 |
| Cable Shielding | Braided shield for EMI/RFI protection |
Applications
-
Turbines and generator systems for vibration monitoring.
-
Pumps and compressors requiring extended sensor placement.
-
Industrial rotating machinery with critical operational monitoring.
-
Harsh environmental conditions where durable, shielded connections are required.
Product Advantages
-
High Reliability: Maintains signal integrity over distance, minimizing measurement errors.
-
Robust Design: Resistant to EMI, RFI, and harsh environmental conditions.
-
Compatibility: Fully compatible with the Bently Nevada 3300 XL monitoring system.
-
Ease von Installation: Pre-terminated connectors ensure rapid deployment.
-
Lightweight and Flexible: Facilitates routing in tight or constrained spaces.
-
Maintenance-Friendly: Reduces downtime by simplifying sensor extension replacement.
FAQ
Q1: What is the maximum operational voltage for this extension cable?
A1: The extension cable operates safely between 5-24 V DC.
Q2: Can this cable be used with non-Bently sensors?
A2: It is optimized for 3300 XL sensors; compatibility with other sensors is not guaranteed.
Q3: How resistant is the cable to electromagnetic interference?
A3: The cable features braided shielding, providing excellent EMI and RFI protection.
Q4: Can this cable be routed in high-vibration environments?
A4: Yes, it is designed to maintain signal integrity in high-vibration machinery.
Q5: Is this cable rated for outdoor installation?
A5: Yes, it has an IP67 rating for dust and water resistance.
Q6: What connector types are used on this cable?
A6: The cable uses M12 connectors compatible with Bently Nevada sensors.
Q7: Can multiple extension cables be daisy-chained?
A7: Yes, but the total cable length must comply with sensor signal limits to maintain accuracy.
Q8: What temperature range can the cable withstand?
A8: The cable is rated for -40°C to 125°C.
Q9: Is the cable shielded against ground loops?
A9: Yes, the braided shield reduces the risk von ground loop interference.
Q10: How should the cable be installed to avoid signal degradation?
A10: Avoid sharp bends, maintain minimum bend radius, and keep the cable separated from high-power lines where possible.
Recommended Same-Series or Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330703-000-040-10-03-00 | 1 m sensor extension cable |
| 330703-000-040-10-04-00 | 2 m sensor extension cable |
| 330703-000-040-10-05-00 | 3 m sensor extension cable |
| 330703-000-040-10-06-00 | 5 m sensor extension cable |
| 330703-000-040-10-07-00 | 0.5 m sensor extension cable |
| 330703-000-040-10-08-00 | 1.5 m high-temperature extension |
Recommended Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3300 XL Proximity Sensor | Shaft vibration and position sensor |
| 3300 XL Accelerometer | Vibration monitoring sensor |
| 3300 XL Monitor Module | Signal processing Stück |
| 3300 XL Keyphasor | Rotational speed sensor |
| 3300 XL 8-Channel Monitor | Multi-channel vibration monitor |
| 3300 XL Proximitor Cable | Sensor interconnection cable |
