Produkteinführung

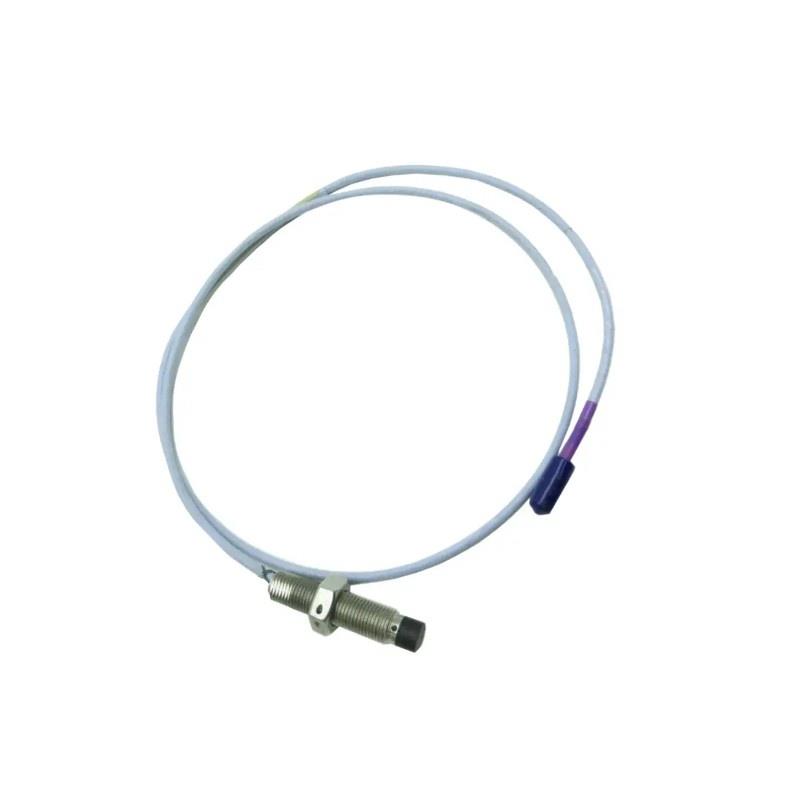

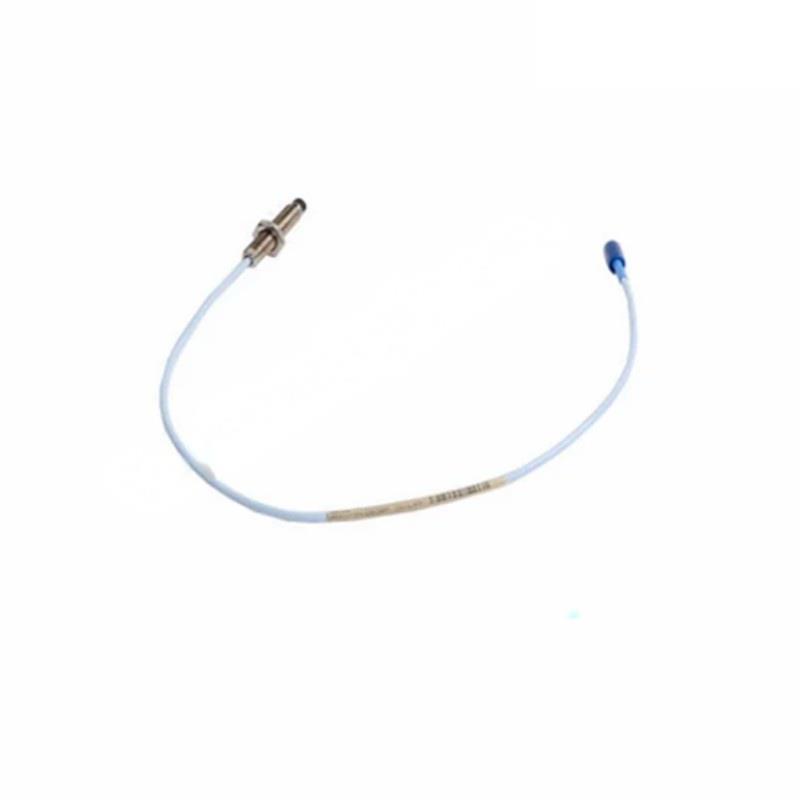

The Bently Nevada 330703-000-040-10-01 series is a high-performance extension cable designed for use with the 3300 XL vibration monitoring system. Engineered for reliability and precision, this cable ensures seamless signal transmission between sensors and monitoring equipment, maintaining signal integrity in demanding industrial environments. Verfügbar in multiple terminations, it allows flexible integration into existing monitoring setups.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330703-000-040-10-01-05 |
| Total Length | 1 m |
| Gewicht | 0.255 kg |
| Connector Type | M12 / M8 (depending on variant) |
| Conductor Material | High-purity copper |
| Insulation Material | PTFE / Fluoropolymer |
| Shielding | Braided shield for EMI/RFI protection |
| Operating Temperature Range | -40°C to 85°C |
| Maximum Voltage | 250 V AC |
| Compatible System | Bently Nevada 3300 XL |
| Signal Type | Analog / 4-20 mA / Vibration signal |
Product Applications
-
Connecting proximity probes or velocity sensors to the 3300 XL monitoring system
-
Industrial machinery vibration monitoring in power plants, refineries, and turbines
-
Zustand monitoring in critical rotating equipment
-
Signal transmission in harsh or high-electrical-noise environments
Product Advantages
-
High Signal Integrity: Shielded design minimizes electrical noise interference.
-
Durable Construction: Resistant to extreme temperatures, chemicals, and mechanical stress.
-
Compatibility: Fully integrated with the 3300 XL system for seamless operation.
-
Flexibility: Multiple terminations allow adaptation to various sensor types.
-
Lightweight and Compact: Easy to route and install in constrained spaces.
FAQ
Q1: What types von signals can this cable transmit?
A1: The cable supports analog signals, 4-20 mA, and vibration sensor outputs compatible with the 3300 XL system.
Q2: Can this cable be used outdoors in harsh conditions?
A2: Yes, it is rated for -40°C to 85°C and has robust insulation suitable for industrial outdoor environments.
Q3: Does the cable provide EMI/RFI protection?
A3: Yes, it features a braided shield to minimize electromagnetic and radio-frequency interference.
Q4: What types von connectors are available?
A4: Depending on the variant, the cable comes with M12 or M8 connectors.
Q5: Can it be extended with additional cables?
A5: Yes, extension is possible, but it is recommended to maintain proper shielding and signal integrity.
Q6: Is this cable compatible with other Bently Nevada systems?
A6: It is designed primarily for the 3300 XL system; compatibility with other systems should be verified.
Q7: How should the cable be routed to avoid signal degradation?
A7: Route the cable away from high-power electrical lines and ensure the shield remains grounded.
Q8: Can the cable handle high-frequency vibration signals?
A8: Yes, it is designed to transmit high-frequency signals from proximity probes without loss von accuracy.
Q9: Are there any special grounding requirements?
A9: The braided shield should be connected to system ground at one end to prevent ground loops.
Q10: Is the cable resistant to chemical exposure?
A10: Yes, the insulation is made from PTFE/fluoropolymer materials that resist most industrial chemicals.
Related or Same-Series Modells
| Modell Number | Beschreibung |
|---|---|
| 330703-000-040-10-01-01 | Standard 1 m extension cable |
| 330703-000-040-10-01-02 | 2 m extension cable |
| 330703-000-040-10-01-03 | 5 m extension cable |
| 330703-000-040-10-01-04 | M12 connector version |
| 330703-000-040-10-01-06 | High-temperature variant |
| 330703-000-040-10-01-07 | Shielded and armored cable |
Popular Modells from Bently Nevada
| Modell Number | Beschreibung |
|---|---|
| 330103-00-10-05 | Proximity Probe |
| 330103-00-10-10 | Velocity Sensor |
| 330100-00-01 | 3300 XL Monitor |
| 330103-00-05-01 | Non-contact Sensor |
| 330130-085-13-00 | Standard Extension Cord |
| 330703-000-040-10-01-08 | 3 m Extension Cable |
