Produkteinführung

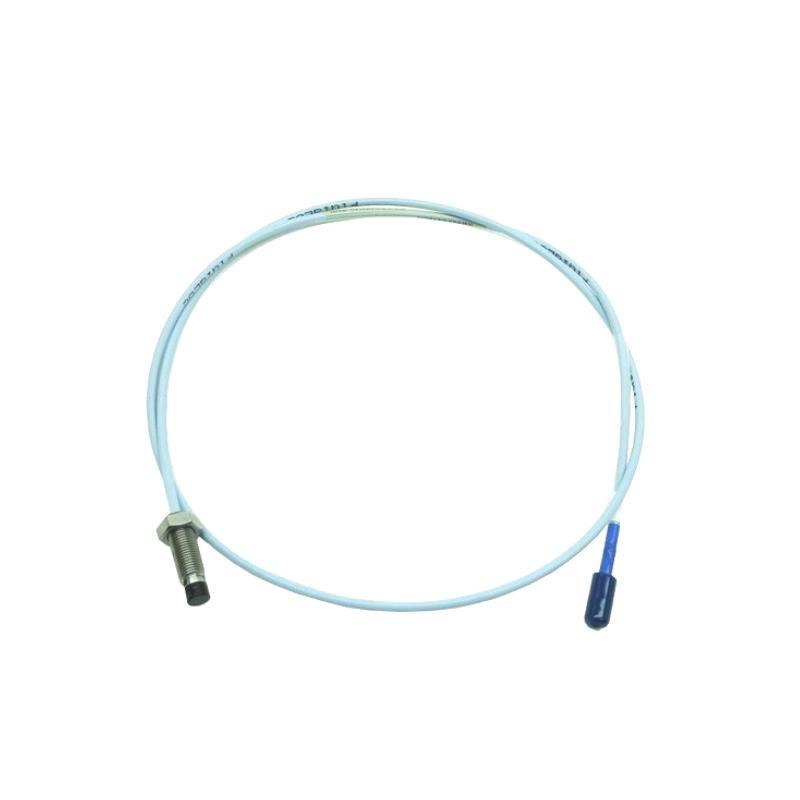

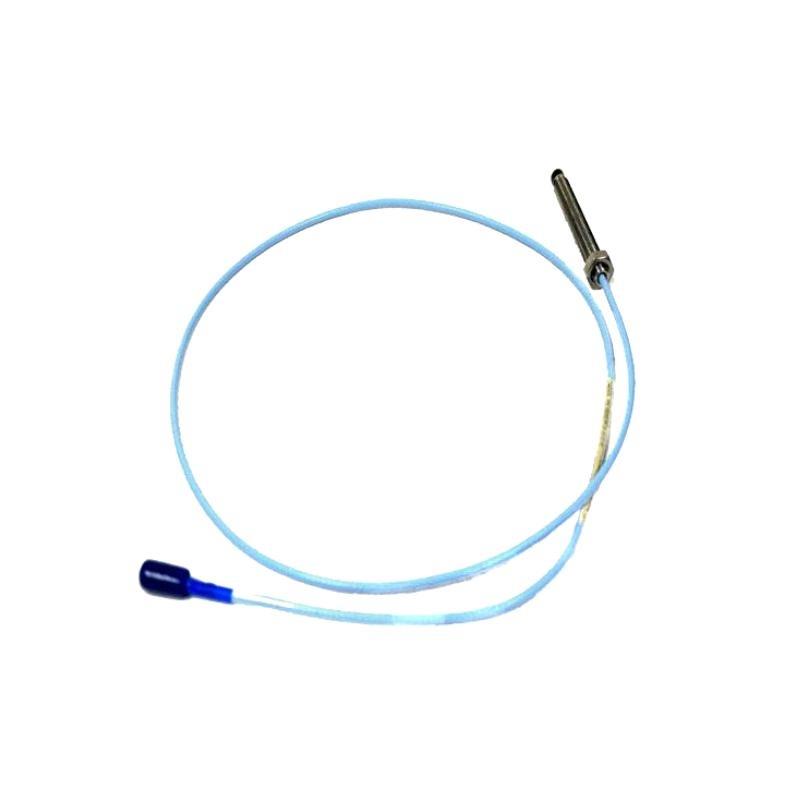

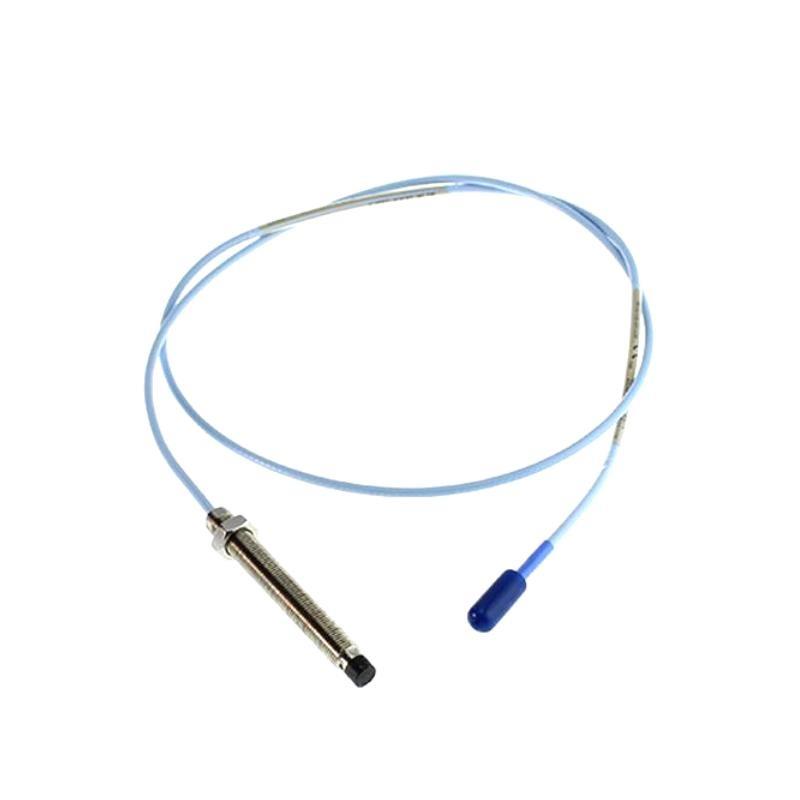

The Bently Nevada 330701-00-40-10-12-05 3300 XL 11 mm Proximity Probe is a precision displacement sensor designed for monitoring the condition von rotating machinery. Part von the widely recognized 3300 XL series, this probe provides highly accurate, reliable measurements von shaft vibration and position. Engineered for demanding industrial environments, it ensures early detection von machinery issues, helping prevent unplanned downtime and costly repairs. The 11 mm probe tip diameter enables versatility for installation in tight spaces while maintaining measurement accuracy.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 330701-00-40-10-12-05 |
| Series | 3300 XL |
| Probe Tip Diameter | 11 mm |
| Sensing Type | Proximity / Eddy Current |
| Output Type | AC Voltage / Differential |
| Operating Temperature | -40°C to 120°C |
| Vibration Tolerance | Up to 50 g peak |
| Shock Resistance | 100 g, 11 ms |
| Cable Connection | Integral connector |
| Housing Material | Stainless Steel |
| Total Length | 1 meter |
| Gewicht | 0.07 kg |
| Calibration | Factory calibrated |
| Compatible System | 3300 XL Monitor System |
| Protection Rating | IP67 |
Applications
The 3300 XL 11 mm Proximity Probe is widely used in critical rotating machinery monitoring across various industries:
-
Turbines (steam, gas, hydro) for rotor displacement and vibration monitoring
-
Generators for shaft position tracking and vibration diagnostics
-
Pumps and compressors in oil & gas, petrochemical, and chemical industries
-
High-speed motors requiring precision vibration and clearance measurement
-
Zustand monitoring systems in power plants and heavy industry
Advantages
-
High Accuracy: Provides precise displacement measurement with minimal error.
-
Durable Construction: Stainless steel housing ensures longevity even in harsh environments.
-
Wide Temperature Range: Operates reliably from -40°C to 120°C.
-
Shock and Vibration Resistant: Designed to withstand heavy industrial shock and vibration.
-
Easy Integration: Compatible with 3300 XL monitoring systems.
-
Versatile Mounting: 11 mm probe tip allows installation in tight or confined areas.
-
Rapid Fault Detection: Helps in early identification von misalignment, imbalance, and bearing wear.
-
Low Maintenance: Requires minimal servicing due to robust design.
FAQ
-
What is the sensing principle von the 3300 XL 11 mm Proximity Probe?
The probe operates using an eddy current-based proximity measurement method, detecting shaft displacement without physical contact. -
What type von output signal does the probe generate?
It provides an AC voltage output compatible with the Bently Nevada 3300 XL monitoring system for accurate vibration and position measurement. -
What is the recommended target-to-probe gap for installation?
The typical installation gap ranges from 0.25 mm to 1.5 mm, depending on the machinery and monitoring system specifications. -
Can the probe be used in explosive or hazardous environments?
Yes, the probe can be used with appropriate intrinsically safe barriers or explosion-provon systems as defined by industrial safety standards. -
How does temperature affect measurement accuracy?
The probe maintains high accuracy across the operating range von -40°C to 120°C, with calibration compensating for temperature-related variations. -
Is the probe compatible with older 3300 series monitors?
The probe is primarily designed for the 3300 XL series. Backward compatibility may require interface modules or specific adjustments. -
What is the frequency response von the probe?
It has a frequency response suitable for high-speed rotating machinery, typically from 0 Hz up to 10 kHz. -
Can this probe measure both radial and axial vibration?
It is designed mainly for radial displacement measurement. Axial vibration detection requires alternative mounting or additional sensors. -
How resistant is the probe to mechanical shock?
The probe can withstand shocks up to 100 g for 11 ms without affecting its measurement performance. -
Can the probe operate reliably in high humidity or wet environments?
Yes, the probe’s IP67 rating ensures protection against water and dust ingress, making it suitable for harsh industrial environments.
Related Modells (Same Series or Related)
| Modell Number | Probe Tip Diameter | Series | Notes |
|---|---|---|---|
| 330701-00-40-10-12-06 | 11 mm | 3300 XL | Standard industrial monitoring |
| 330701-00-40-10-12-07 | 11 mm | 3300 XL | High-temperature variant |
| 330701-00-40-10-12-08 | 11 mm | 3300 XL | Shorter cable option |
| 330701-00-40-10-12-09 | 11 mm | 3300 XL | Enhanced vibration resistance |
| 330701-00-40-10-12-10 | 11 mm | 3300 XL | Extended sensing range |
| 330701-00-40-10-12-11 | 11 mm | 3300 XL | Anti-corrosion coating |
Popular Modells (Same Marke)
| Modell Number | Probe Tip Diameter | Series | Key Feature |
|---|---|---|---|
| 330701-00-40-10-12-01 | 5 mm | 3300 XL | Compact design |
| 330701-00-40-10-12-02 | 12 mm | 3300 XL | High-temperature tolerance |
| 330701-00-40-10-12-03 | 11 mm | 3300 XL | Industrial standard |
| 330701-00-40-10-12-04 | 8 mm | 3300 XL | Low gap detection |
| 330701-00-40-10-12-05 | 11 mm | 3300 XL | Current product, versatile |
| 330701-00-40-10-12-12 | 10 mm | 3300 XL | Anti-vibration enhanced |
