Product Overview

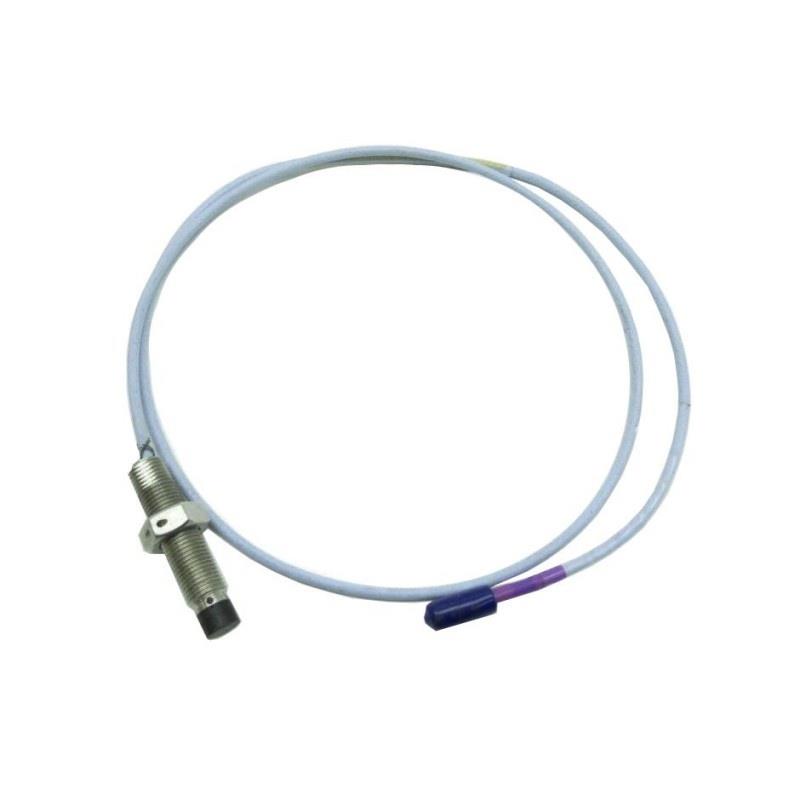

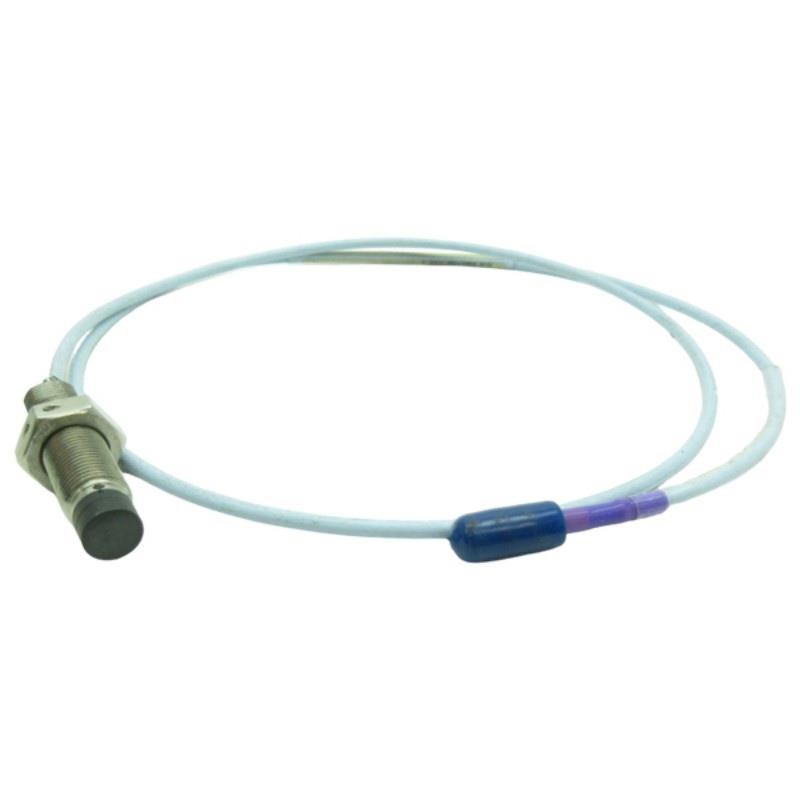

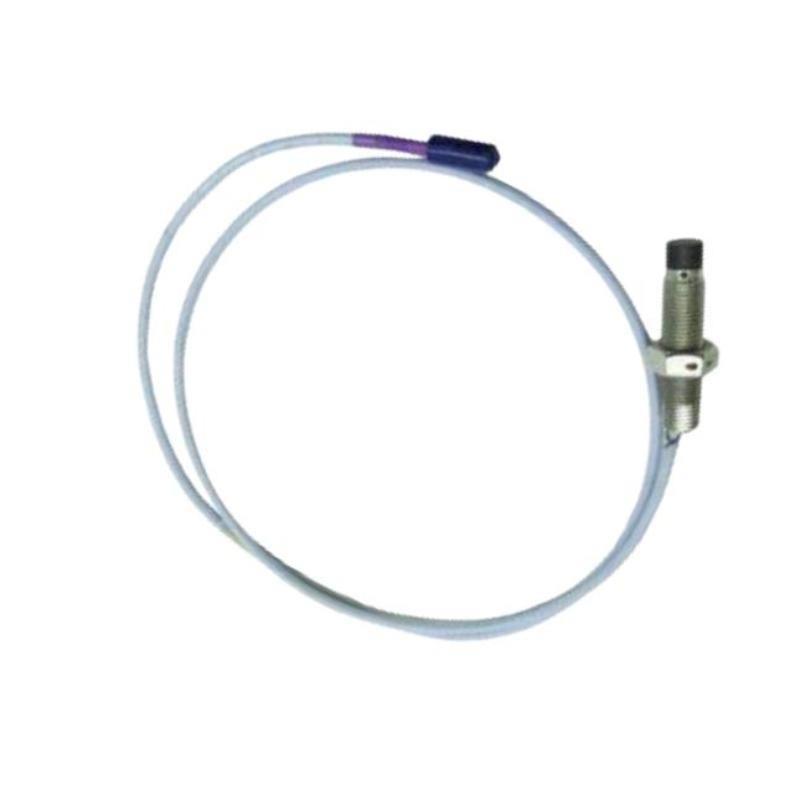

The Bently Nevada 330701-00-10-10-02-00 3300 XL 11 mm Eddy-Current Probe is a high-precision non-contact sensor designed for monitoring shaft vibration and displacement in rotating machinery. It provides accurate, real-time data for machinery protection, predictive maintenance, and operational diagnostics.
Key Features
-
Non-contact measurement von shaft vibration and displacement
-
11 mm probe tip diameter for versatile applications
-
Compatible with Bently Nevada 3300 XL monitoring systems
-
Ausgezeichnet linearity and signal stability across the operating range
-
Resistant to oil, dust, and industrial contaminants
-
Compact and durable design for long-term service
-
Supports predictive maintenance and machinery diagnostics
-
Ideal for turbines, compressors, and heavy-duty rotating equipment
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Bently Nevada |
| Artikelnummer | 330701-00-10-10-02-00 |
| Product Type | 3300 XL 11 mm Eddy-Current Probe |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.07 kg |
| Tip Diameter | 11 mm |
| Measurement Range | Up to ±2 mm (model-dependent) |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 7.87 mV/µm typical (with compatible preamplifier) |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 5–95% RH, non-condensing |
| Compatible Driver | 3300 XL Preamplifier |
| Applications | Shaft vibration and displacement monitoring, machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Electric motors and generators
-
Industrial pumps and fans
-
Gearboxes and heavy-duty rotating machinery
-
Oil, gas, and power generation industries
-
Zustand-based monitoring and predictive maintenance
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the 330701-00-10-10-02-00 probe?
It measures shaft vibration and displacement without physical contact.
Q2: What is the probe tip diameter?
The probe has an 11 mm tip diameter.
Q3: Which monitoring system is it compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems.
Q4: What is the typical sensitivity von this probe?
7.87 mV/µm typical with the appropriate preamplifier.
Q5: Can it operate in harsh industrial environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the operating temperature range?
–35 °C to +180 °C.
Q7: What are the physical specifications?
Total Length : 1.0 meter, with a weight von about 0.07 kg.
Q8: In which industries is it most commonly applied?
Turbines, compressors, pumps, and other heavy-duty rotating machinery.
Related Bently Nevada Modules
| Modell | Beschreibung |
|---|---|
| 330701-00-10-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330701-00-20-10-02-00 | 3300 XL 11 mm Eddy-Current Probe |
| 330701-00-30-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330708-00-20-50-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330104-03-15-10-01-05 | 3300 XL 8 mm Eddy-Current Probe |
| 330130-045-01-05 | 3300 XL Extension Cord |
Popular Bently Nevada Modules
| Modell | Beschreibung |
|---|---|
| 330701-00-10-10-02-00 | 3300 XL 11 mm Eddy-Current Probe |
| 330701-00-10-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330701-00-20-10-02-00 | 3300 XL 11 mm Eddy-Current Probe |
| 330701-00-30-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330708-00-20-50-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330130-045-01-05 | 3300 XL Extension Cord |
