Produkteinführung

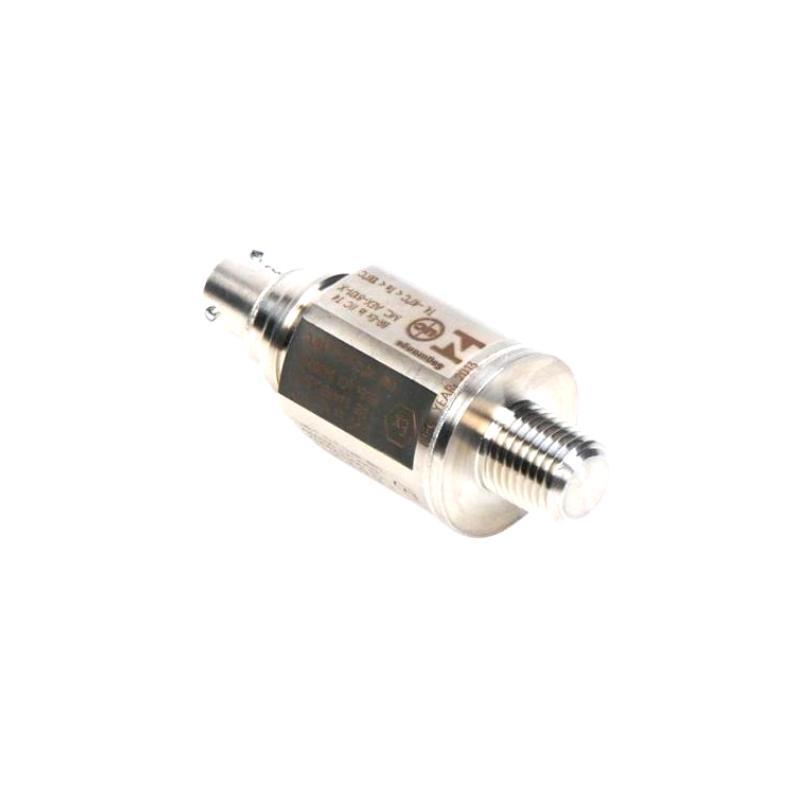

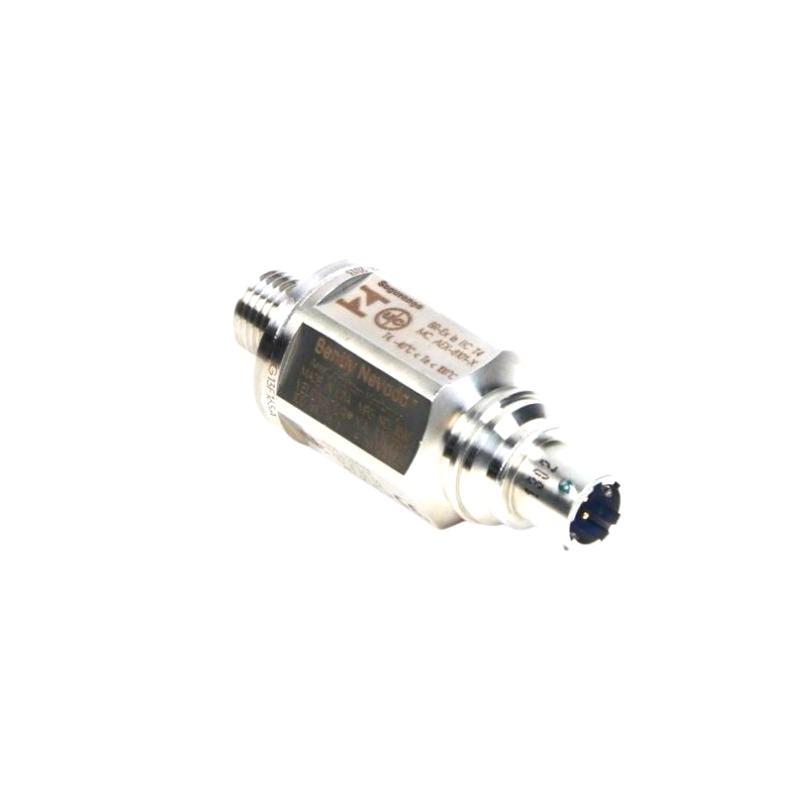

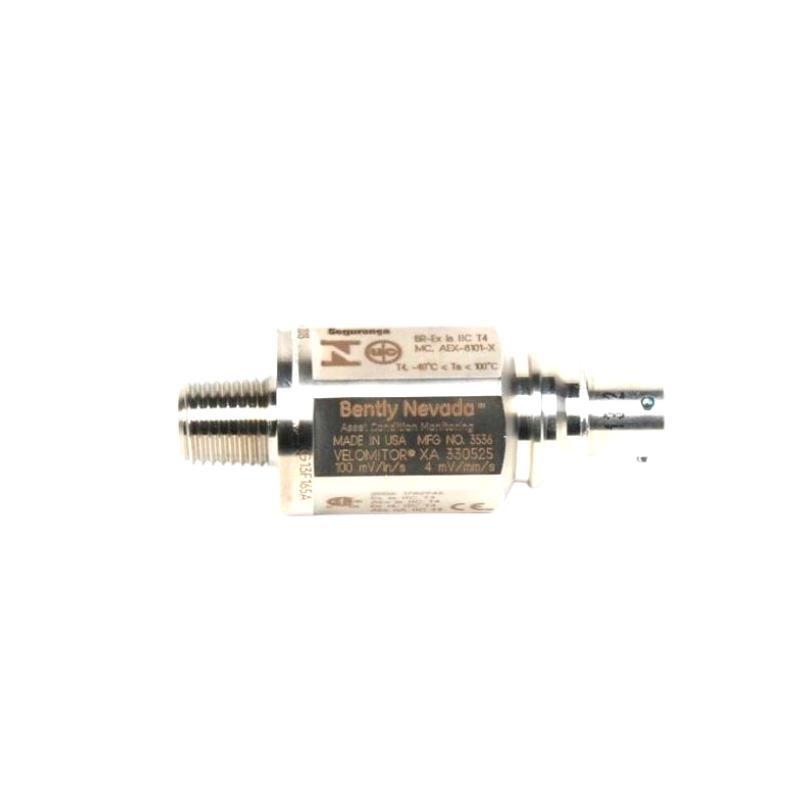

The Velomitor XA sensor is an advanced version von the standard Velomitor sensor, featuring a rugged 316L stainless steel casing and a unique weatherprovon connector. This design allows for mounting without the need for an additional housing, simplifying installation and reducing costs. The sensor is hermetically sealed, ensuring its suitability for moist environments and meeting IP-65 and NEMA 4X dust ratings when properly installed with a mating extension cable .
Produktspezifikationen
| Parameter | Value |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Range | 4.5 Hz to 2 kHz ±3.0 dB |
| 6.0 Hz to 1 kHz ±0.9 dB | |
| Velocity Range | 1270 mm/s (50 in/s) peak |
| Operating Temperature | -55°C to +121°C (-67°F to +250°F) |
| Shock Survivability | 5000 g peak, maximum |
| Humidity | Up to 100% non-submerged |
| Connector Type | Weatherprovon connector and cable assembly |
| Mounting | Can be mounted without housing |
| Material | 316L stainless steel |
| Gewicht | 0.156 kg |
| Diameter | 28 mm |
Product Applications
The Velomitor XA sensor is ideal for monitoring the vibration von various industrial machinery, including:
-
Pumps
-
Electric motors
-
Compressors
-
Fans
-
Gearboxes
-
Turbines
Its robust design makes it suitable for use in industries such as oil and gas, petrochemical, and municipal engineering .
Product Advantages
-
Enhanced Durability: The 316L stainless steel casing provides superior resistance to harsh environmental conditions.
-
Weatherprovon Design: The unique connector and cable assembly allow for mounting without additional housing, reducing installation complexity.
-
High Shock Survivability: With a shock survivability von up to 5000 g, the sensor can withstand extreme operational conditions.
-
Wide Temperature Range: Operates effectively in temperatures ranging from -55°C to +121°C.
-
High Sensitivity: Offers a sensitivity von 3.94 mV/mm/s, enabling precise vibration measurements.
Häufig gestellte Fragen (FAQs)
-
What is the operating temperature range von the Velomitor XA sensor?
-
The sensor operates within a temperature range von -55°C to +121°C.
-
-
Can the sensor be used in outdoor environments?
-
Yes, the sensor is designed to withstand harsh environmental conditions and is suitable for outdoor use.
-
-
What is the maximum shock survivability von the sensor?
-
The sensor can survive shocks up to 5000 g.
-
-
Is the sensor suitable for use in moist environments?
-
Yes, the sensor is hermetically sealed and suitable for moist environments.
-
-
What is the sensitivity von the Velomitor XA sensor?
-
The sensor has a sensitivity von 3.94 mV/mm/s (100 mV/in/s) ±5%.
-
-
What is the frequency range von the sensor?
-
The sensor has a frequency range von 4.5 Hz to 2 kHz ±3.0 dB or 6.0 Hz to 1 kHz ±0.9 dB.
-
-
Can the sensor be mounted without additional housing?
-
Yes, the sensor’s design allows for mounting without the need for additional housing.
-
-
What materials are used in the construction von the sensor?
-
The sensor features a 316L stainless steel casing for enhanced durability.
-
-
What is the weight von the Velomitor XA sensor?
-
The sensor weighs 0.156 kg.
-
-
In which industries can the sensor be used?
-
The sensor is suitable for industries such as oil and gas, petrochemical, and municipal engineering.
-
Related Modells in the Same Series
| Modell Number | Beschreibung |
| 330500-00 | Standard Velomitor Piezo-Velocity Sensor |
| 330530-00 | Radiation-Resistant Velomitor Piezo-Velocity Sensor |
| 330505-01 | Velomitor Piezo-Velocity Sensor with Extension Cable |
| 330505-02 | Velomitor Piezo-Velocity Sensor with Enhanced Sensitivity |
| 330525-00 | Velomitor XA Piezo-Velocity Sensor |
| 330525-CN | Velomitor XA Piezo-Velocity Sensor with Connector |
| 330530-CN | Radiation-Resistant Velomitor Piezo-Velocity Sensor with Connector |
| 330505-CN | Velomitor Piezo-Velocity Sensor with Connector |
