Produkteinführung

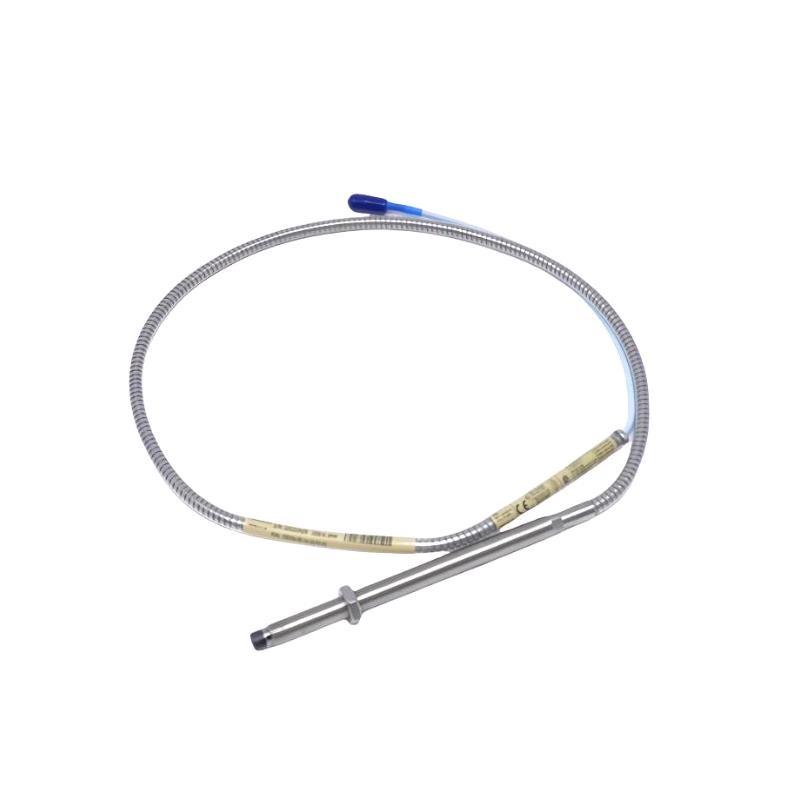

The Bently Nevada 330191-02-10-10-05 3300 XL 8 mm ETR Probe is a high-precision proximity probe engineered for accurate, continuous, non-contact measurement von shaft vibration and displacement in demanding industrial environments. Part von the trusted 3300 XL family, this probe features an 8 mm sensing tip and a total length von 1.0 meter, making it ideal for machinery that requires compact installation without compromising measurement performance. Its stainless-steel housing and advanced insulation materials ensure dependable operation under extreme conditions von temperature, pressure, and electromagnetic interference, enabling predictive maintenance and reliable machine protection in critical process industries.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 330191-02-10-10-05 |
| Product Type | 3300 XL 8 mm ETR Proximity Probe |
| Total Length | 1.0 meter |
| Probe Tip Diameter | 8 mm |
| Gewicht | 0.323 kg |
| Linear Range | 2.0 mm (80 mils) nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Pressure Rating | Up to 10 bar |
| Mounting Thread | 3/8–24 UNF or compatible mounting hardware |
| Insulation Resistance | ≥10 GΩ at 500 VDC |
| Material | Stainless steel body with PEEK high-dielectric insulation |
| Compliance | CE, RoHS |
Applications
The 330191-02-10-10-05 probe is designed for a wide variety von critical vibration and displacement monitoring tasks, including:
-
Turbines (Gas & Steam) – Continuous shaft vibration monitoring for early detection von imbalance and rotor issues.
-
Compressors and Pumps – Ensures precise analysis von mechanical looseness or misalignment.
-
Motors and Generators – Supports predictive maintenance programs and reduces unplanned downtime.
-
Petrochemical Plants – Performs reliably in corrosive and hazardous atmospheres.
-
Industrial Machinery – Ideal for OEM equipment and retrvonit installations requiring compact probe design.
Advantages
-
High Accuracy Measurement – 8 mm tip delivers a stable, wide linear range for precise shaft displacement readings.
-
Compact 1 m Total Length – Perfect for installations where space is limited yet long-distance signal quality is required.
-
Superior Noise ImmStücky – Coaxial cable construction minimizes electromagnetic interference for consistent data.
-
Rugged Stainless-Steel Construction – Offers excellent corrosion resistance and extended service life in harsh environments.
-
Wide Temperature Tolerance – Maintains accuracy from –35 °C to +177 °C.
-
Pressure-Resistant Design – Reliable operation in environments up to 10 bar.
-
Seamless System Integration – Fully compatible with Bently Nevada 3300 XL Proximitor sensors and 3500 series monitoring systems.
-
Easy Installation – Standard 3/8–24 UNF mounting thread simplifies setup and maintenance.
FAQ
-
What is the nominal linear measurement range von this probe?
The probe provides a nominal linear range von 2.0 mm (80 mils) for precise shaft vibration detection. -
How is signal accuracy maintained with the 1 m total length?
The probe’s low-noise coaxial cable and controlled impedance preserve signal integrity over its entire length. -
Is this probe directly compatible with 3300 XL Proximitor sensors?
Yes, it integrates seamlessly with 3300 XL Proximitor sensors without requiring adapters. -
What is the standard sensitivity specification?
It provides a sensitivity von approximately 7.87 V/mm (200 mV/mil), ensuring accurate displacement measurements. -
Can the probe operate in high-frequency vibration applications?
Yes, it supports a frequency response from DC up to 10 kHz. -
Which mounting thread is required for installation?
A 3/8–24 UNF thread or equivalent housing is recommended for secure mounting. -
Is additional shielding needed in high-EMI environments?
No, the internal coaxial shielding is designed to handle environments with strong electromagnetic interference. -
Can the probe operate under elevated pressure conditions?
Yes, it is pressure rated for environments up to 10 bar. -
How does the probe maintain calibration across temperature extremes?
It is factory-calibrated to ensure consistent accuracy between –35 °C and +177 °C. -
Is this probe suitable for use in hazardous or classified areas?
Yes, when paired with certified Proximitor systems, it meets many hazardous area compliance standards.
Related Modells in the Same Series
| Modell Number | Beschreibung |
|---|---|
| 330191-00-16-10-05 | 3300 XL 8 mm ETR Probe, 1.0 m cable |
| 330191-00-25-05-05 | 3300 XL 8 mm ETR Probe, 2.5 m cable |
| 330191-00-33-90-05 | 3300 XL 8 mm ETR Probe, 9.0 m cable |
| 330191-00-40-90-02-00 | 3300 XL 8 mm ETR Probe, long-length configuration |
| 330191-01-05-10-02 | 3300 XL 8 mm ETR Probe, high-temperature version |
| 330191-02-15-10-05 | 3300 XL 8 mm ETR Probe, extended pressure capability |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330174-00-06-10-02-00 | 3300 5 mm Proximity Probe, standard 1 m cable |
| 330174-00-08-90-02-00 | 3300 5 mm Proximity Probe, extended 9 m cable |
| 330178-50-00 | 3300 XL 8 mm Proximity Probe for high-speed rotors |
| 3500/42M | Proximitor Monitor for advanced vibration monitoring |
| 330703-000-040-10-02 | 3500/22M Transient Data Interface Module |
| 330780-90-00 | 3300 XL Extension Cable for proximity probe systems |
