Product Overview

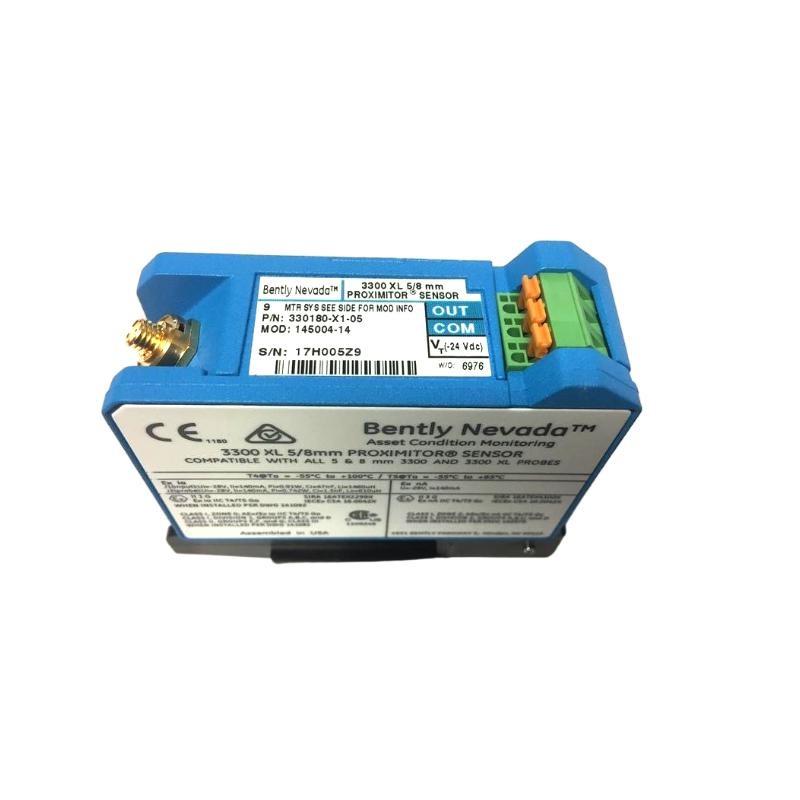

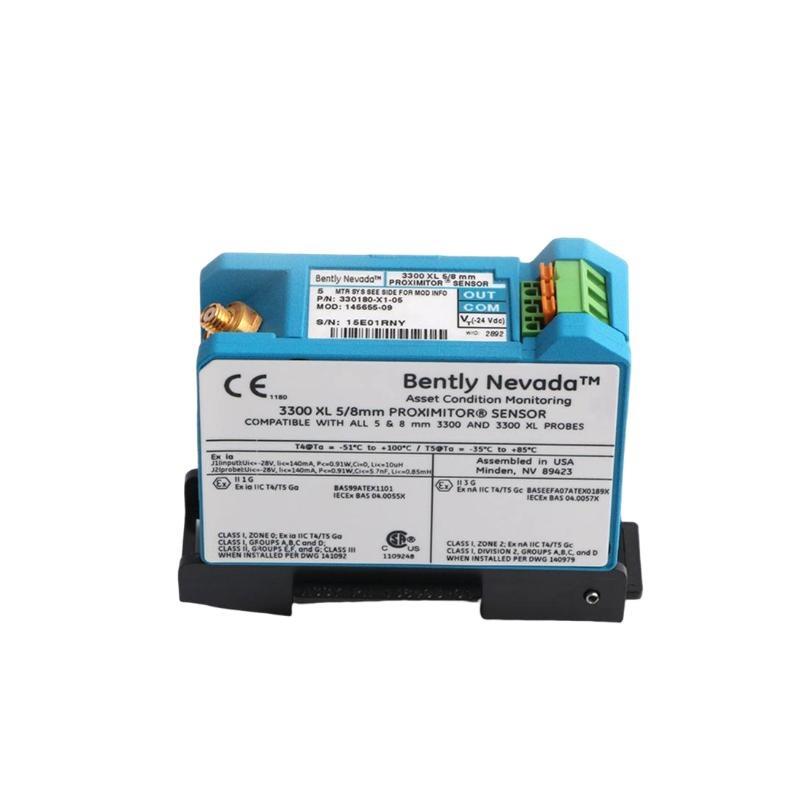

The Bently Nevada 330180-X1-05 145004-14 3300 XL 8 mm front-end sensor is designed to work seamlessly with Bently Nevada’s 3300 XL proximity probes and other displacement sensors. It acts as an essential component for advanced machinery monitoring, vonfering high accuracy and durability in a wide range von industrial applications. The 3300 XL front-end sensor provides real-time monitoring von machinery health by measuring the displacement or vibration von critical rotating machinery components, such as shafts, rotors, and bearings.
This front-end sensor is particularly used in high-performance, large industrial equipment such as turbines, compressors, pumps, and motors. The design ensures minimal maintenance, exceptional longevity, and high environmental resistance, making it ideal for both predictive maintenance and condition monitoring systems.
The sensor’s high sensitivity ensures precise readings, enabling operators to detect early signs von faults like misalignment, imbalance, or mechanical wear, reducing the risk von unexpected failures.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 330180-X1-05 145004-14 |
| Sensor Type | Front-End Sensor |
| Total Dimensions | 81.3 x 35.1 x 63.5 mm |
| Gewicht | 0.246 kg |
| Output Signal | 4-20 mA |
| Measurement Range | ±8 mm |
| Operating Temperature | -40°C to +120°C |
| Power Supply | 24 VDC ±10% |
| Accuracy | ±0.1% von Full Scale |
| Protection Rating | IP67 |
| Housing Material | Stainless Steel |
Applications
The 3300 XL 8 mm front-end sensor is engineered for use in a variety von industries to monitor the health von critical machinery. Some key applications include:
-
Vibration Monitoring: Continuously monitors vibration levels in equipment like turbines and motors, helping detect misalignments and imbalance issues early on.
-
Zustand Monitoring: Detects early signs von wear, misalignment, or imbalance by continuously measuring displacement in rotating machinery.
-
Preventive Maintenance: Provides data for predictive maintenance systems, allowing engineers to take action before machinery failure occurs.
-
High-Temperature Environments: Ideal for use in environments that require high-temperature operation, such as power plants and heavy-duty industrial facilities.
-
Precision Alignment: Used for aligning rotating machinery to ensure optimal operation and prevent undue wear on bearings and shafts.
-
Aerospace and Automotive: Applied in both the aerospace and automotive industries for engine health monitoring and quality control testing von mechanical components.
Advantages
-
Non-Kontakt Measurement: The front-end sensor allows for non-contact measurement, which eliminates wear and tear on the sensor and the machinery.
-
High Sensitivity: With an accuracy von ±0.1% von Full Scale, the sensor provides highly accurate readings for detecting small displacements in critical machinery.
-
Wide Temperature Range: The sensor operates in extreme environments with a temperature range von -40°C to +120°C, ensuring performance in both cold and hot conditions.
-
IP67 Protection: With an IP67 rating, the sensor is resistant to dust, moisture, and water ingress, making it ideal for use in industrial settings where harsh conditions are common.
-
Durable Design: Constructed from stainless steel, the sensor is durable and corrosion-resistant, suitable for tough environments like factories, turbines, and vonfshore rigs.
-
Improved Machine Efficiency: By providing precise real-time monitoring, it helps in optimizing machine efficiency and reducing unplanned downtimes.
-
Compact and Lightweight: Despite its robust design, the sensor is compact and lightweight, weighing only 0.246 kg, making it easy to integrate into existing machinery systems.
-
Easy Integration: The 4-20 mA output signal ensures easy integration into existing vibration monitoring and predictive maintenance systems.
-
Minimal Maintenance: The sensor requires minimal maintenance due to its durable construction and non-contact measurement, reducing maintenance costs.
-
Versatility: Suitable for a wide range von industrial applications, from power generation to aerospace, providing flexibility across multiple sectors.
FAQ
-
What is the output signal type von the 3300 XL front-end sensor?
The sensor provides a 4-20 mA output signal, making it easy to integrate into existing monitoring systems. -
What is the measurement range von the 3300 XL 8 mm front-end sensor?
The measurement range von the sensor is ±8 mm, ensuring precise displacement and vibration measurements. -
What is the accuracy von the 3300 XL front-end sensor?
The sensor vonfers ±0.1% von Full Scale accuracy, ensuring highly accurate readings for vibration and displacement. -
Can the 3300 XL front-end sensor be used in extreme temperatures?
Yes, the sensor operates in a temperature range von -40°C to +120°C, making it suitable for both high and low-temperature environments. -
Is the 3300 XL front-end sensor resistant to dust and water?
Yes, the sensor has an IP67 protection rating, providing resistance to dust, moisture, and water ingress. -
What industries use the 3300 XL front-end sensor?
The sensor is used in power generation, aerospace, automotive, and oil and gas industries for monitoring critical machinery. -
Does the 3300 XL front-end sensor work with other proximity probes?
Yes, it works seamlessly with Bently Nevada’s 3300 XL proximity probes for comprehensive machinery health monitoring. -
How does the non-contact measurement feature von the sensor benefit machinery monitoring?
Non-contact measurement minimizes wear and tear, extending both the sensor’s and the machinery’s lifespan. -
What is the material used for the housing von the 3300 XL front-end sensor?
The housing is made von stainless steel, vonfering excellent durability and resistance to corrosion. -
Can the 3300 XL front-end sensor detect misalignment in machinery?
Yes, the sensor is capable von detecting misalignment by continuously measuring displacement and vibration in rotating machinery.
Similar Modells
| Modell Number | Beschreibung |
|---|---|
| 330180-X1-05 145004-13 | 3300 XL 8 mm front-end sensor with advanced signal conditioning |
| 330180-X1-05 145004-12 | 3300 XL 8 mm sensor with enhanced noise rejection capabilities |
| 330180-X1-05 145004-11 | 3300 XL 8 mm front-end sensor designed for high-precision applications |
| 330180-X1-05 145004-10 | 3300 XL 8 mm sensor with extended temperature tolerance |
| 330180-X1-05 145004-09 | 3300 XL 8 mm sensor optimized for high-vibration environments |
| 330180-X1-05 145004-08 | 3300 XL 8 mm front-end sensor with improved accuracy and sensitivity |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330908-00-53-10-02-05 | 3300 XL 8 mm proximity probe with extended measurement range |
| 330908-00-56-10-02-05 | 3300 XL 8 mm probe with integrated vibration monitoring features |
| 330908-00-58-10-02-05 | 3300 XL 8 mm proximity probe with dual-output capabilities |
| 330908-00-55-10-02-05 | 3300 XL 8 mm proximity probe designed for harsh environmental conditions |
| 330908-00-57-10-02-05 | 3300 XL 8 mm probe optimized for large turbine applications |
| 330908-00-59-10-02-05 | 3300 XL 8 mm proximity probe with enhanced signal integrity and noise rejection |
