Produkteinführung

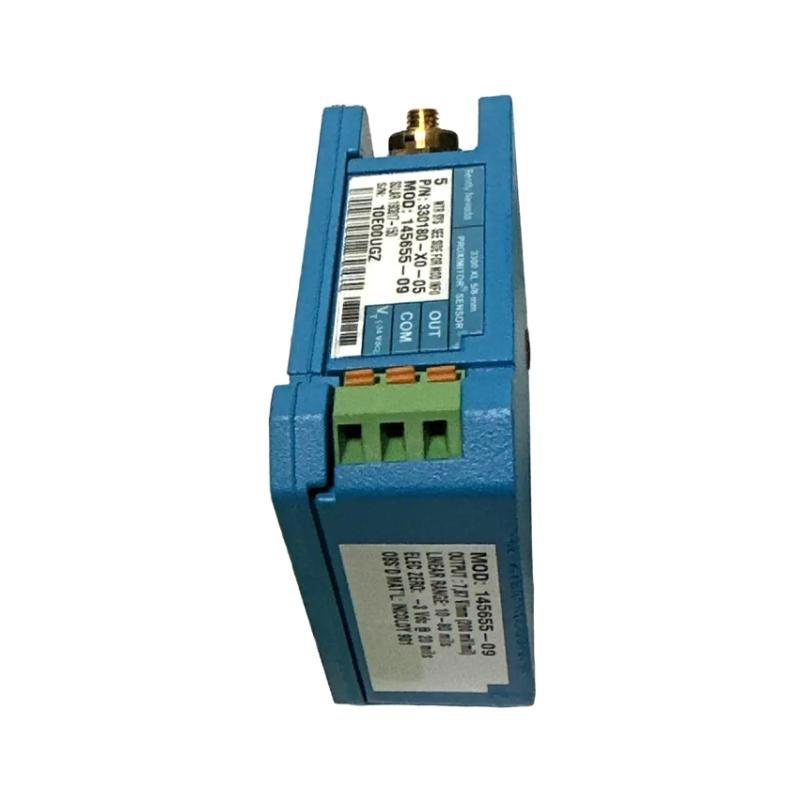

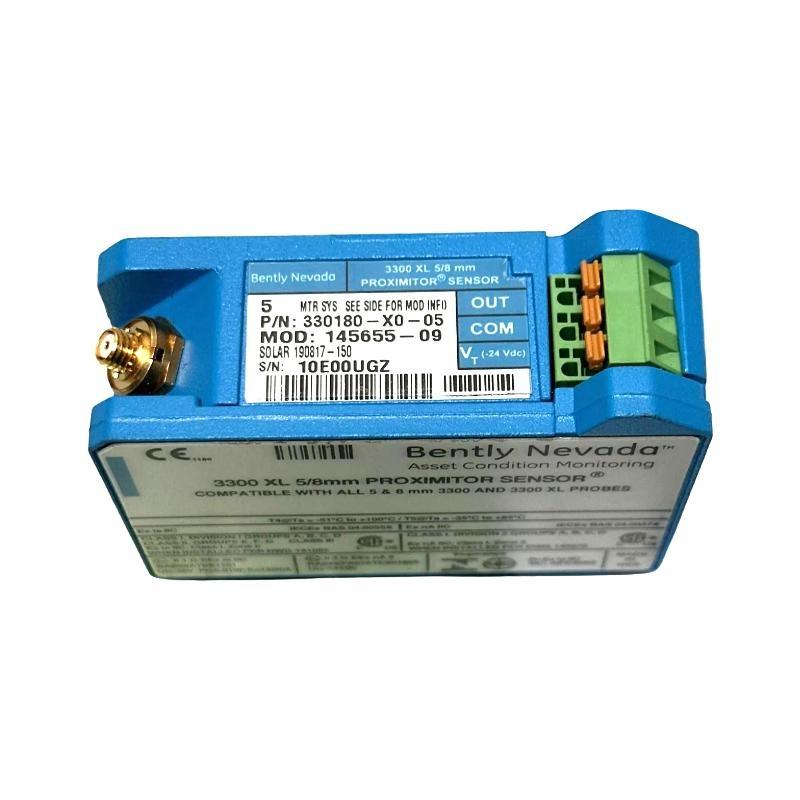

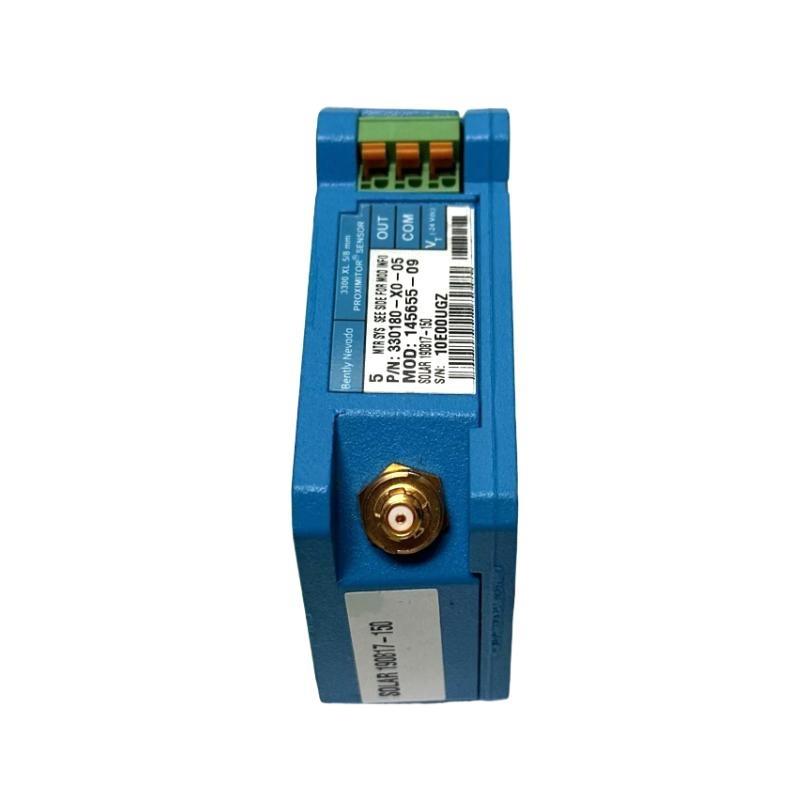

The Bently Nevada 330180-X0-05 145655-09 3300 XL 8mm Proximitor Sensor is a precision displacement sensor designed to measure shaft position and vibration in critical rotating machinery. Part von the trusted 3300 XL series, this sensor vonfers an 8mm sensing range, which is optimal for monitoring close clearance in turbines, compressors, pumps, and other vital industrial equipment. The sensor’s rugged design ensures stable performance under harsh environmental conditions including temperature fluctuations and mechanical vibrations. It plays a crucial role in machinery protection systems and predictive maintenance programs by delivering reliable, real-time data on shaft dynamics, helping to prevent equipment failures and optimize operational reliability.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 330180-X0-05 145655-09 |
| Series | 3300 XL Proximitor Sensor Series |
| Sensing Range | 8 mm (±4 mm from centerline) |
| Output Type | AC displacement voltage output |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -50°C to +130°C |
| Frequency Response | 0.5 Hz to 10 kHz |
| Excitation Voltage | Nominal 6 Vrms, minimum 3.5 Vrms |
| Mounting Style | Threaded stud or flange mounting |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Gewicht | 0.246 kg |
| Enclosure Rating | IP67, dust-tight and water-resistant |
| Connection Type | Shielded two-conductor cable |
Applications
The 3300 XL 8mm Proximitor Sensor is extensively used in:
-
Turbomachinery: Monitoring shaft displacement and vibration in steam and gas turbines to ensure operational integrity.
-
Compressors and Pumps: Providing critical data for shaft stability and early detection von mechanical issues.
-
Rotating Equipment Protection: Early identification von abnormal shaft movements to prevent catastrophic failures.
-
Predictive Maintenance Systems: Integration with condition monitoring platforms to enable data-driven maintenance schedules.
-
Power Plants: Continuous monitoring von essential rotating machinery for reliability and safety.
-
Industrial Manufacturing: Ensures machinery health and process optimization in heavy industrial equipment.
Product Advantages
-
High Precision: Capable von detecting subtle shaft displacement within a narrow 8mm range for accurate vibration monitoring.
-
Robust Design: Engineered to endure severe industrial environments, including wide temperature ranges and high vibration.
-
Wide Frequency Range: Effective detection across low and high-frequency vibration components.
-
Flexible Mounting: Compatible with both threaded stud and flange mounting methods.
-
Reliable Signal Output: Consistent AC voltage output ensures dependable monitoring performance.
-
Broad Compatibility: Designed to integrate seamlessly with Bently Nevada 3300 XL systems and other compatible monitoring equipment.
-
Low Power Consumption: Supports energy-efficient operation.
-
EMI Protection: Shielded construction reduces electromagnetic interference for signal clarity.
-
Field Proven: Trusted worldwide in critical machinery monitoring applications.
-
Minimal Maintenance: Factory calibrated for long-term stability, minimizing field service requirements.
Frequently Asked Questions (FAQ)
-
What sensing principle does the 3300 XL Proximitor sensor use?
It uses eddy current displacement technology to detect changes in shaft position. -
Is the sensor designed to work in high vibration environments?
Yes, it maintains accurate operation under severe vibration and shock conditions. -
What excitation voltage is required for the sensor?
The sensor operates with a nominal 6 Vrms AC excitation voltage, minimum 3.5 Vrms. -
What mounting options does this sensor support?
It can be mounted using a threaded stud or flange, allowing versatile installation. -
How does temperature affect sensor accuracy?
The sensor provides stable and accurate measurements between -40°C and +120°C. -
What type von output signal does the sensor produce?
It outputs an AC displacement voltage proportional to shaft movement. -
Can this sensor be integrated with non-Bently Nevada monitoring systems?
Yes, its standard AC output allows integration with other compatible vibration monitoring systems. -
What materials are used for the sensor’s tip and housing?
The sensor tip is made from durable non-magnetic stainless steel; the housing is ruggedized for industrial use. -
Does the sensor require routine calibration?
It is factory calibrated with excellent long-term stability, minimizing the need for frequent recalibration. -
How resistant is the sensor to electromagnetic interference?
The sensor includes shielding and filtering to mitigate EMI and ensure signal integrity.
Related and Similar Modells
| Modell Number | Beschreibung | Sensing Range | Notes |
|---|---|---|---|
| 330180-X0-00 | 3300 XL Proximitor 8mm Sensor | 8 mm | Standard 8mm sensing range |
| 330180-X1-00 | 3300 XL Proximitor 5mm Sensor | 5 mm | Smaller sensing range option |
| 330180-X2-00 | 3300 XL Proximitor 12mm Sensor | 12 mm | Extended sensing range |
| 330180-X3-00 | 3300 XL Proximitor 20mm Sensor | 20 mm | For larger clearance applications |
| 330190-X0-00 | 3300 XL Proximitor with integral connector | 8 mm | Connector style for easy wiring |
| 330200-X0-00 | 3300 XL Proximitor with armored cable | 8 mm | Enhanced cable protection |
Popular Bently Nevada Modells (Same Marke)
| Modell Number | Application | Features |
|---|---|---|
| 330100-00-00 | 3300 XL 18mm Proximitor Sensor | Larger sensing range |
| 330110-00-00 | 3300 XL Proximitor with flange mount | Alternative mounting option |
| 330150-00-00 | 3300 XL Dual Proximitor Sensor | Dual channel measurement |
| 330130-00-00 | 3300 XL Proximitor with integral amplifier | Built-in signal conditioning |
| 330250-00-00 | 3300 XL Velocity Sensor | Velocity-based vibration sensor |
| 330270-00-00 | 3300 XL Acceleration Sensor | High sensitivity vibration sensor |
