Product Overview

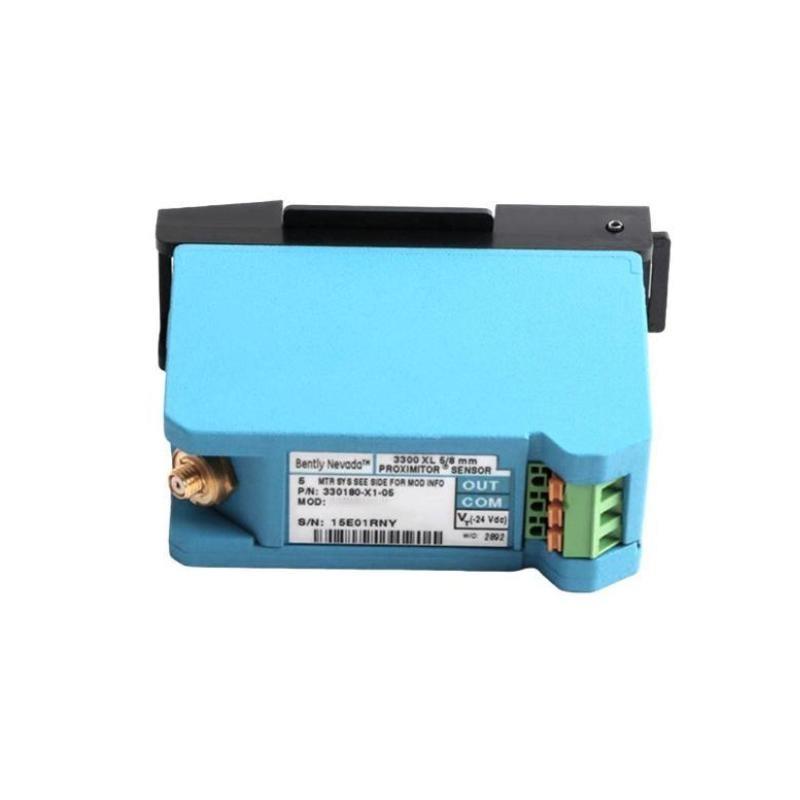

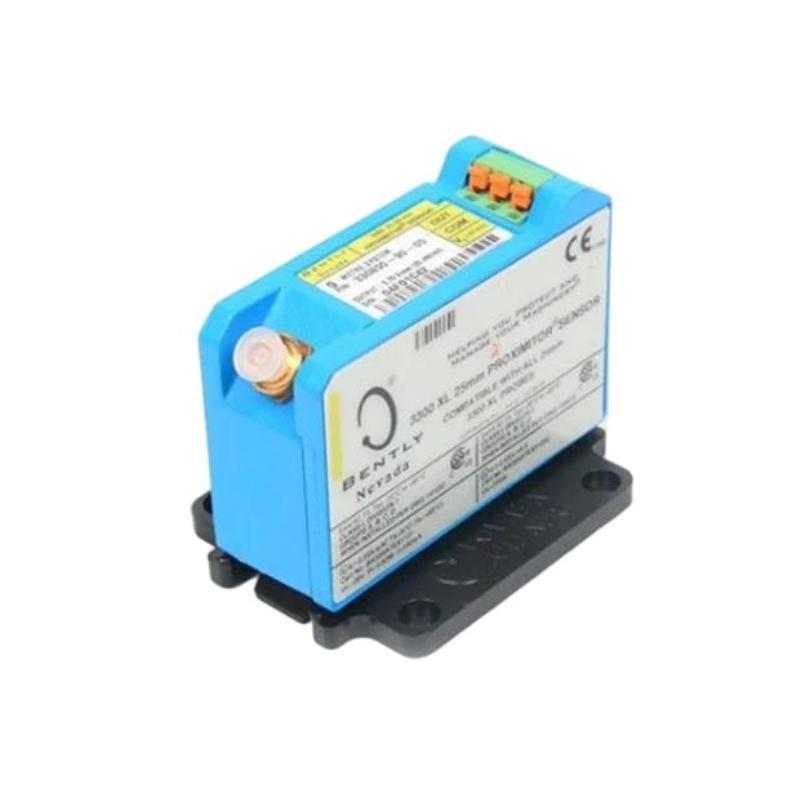

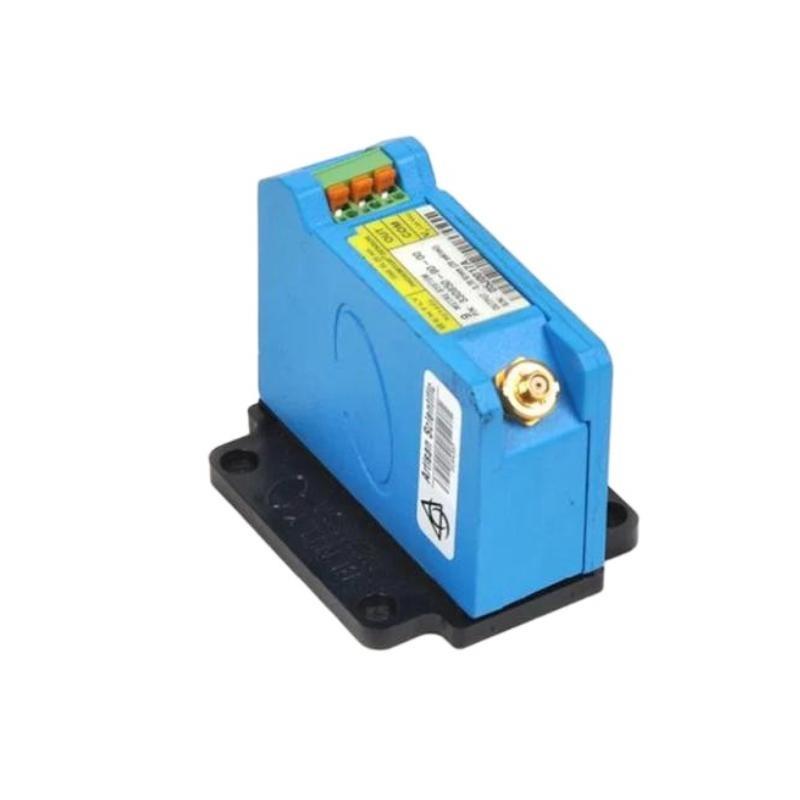

The Bently Nevada 330180-X0-05 143416-05 is an 8mm Proximitor Sensor tailored for the 3300 XL machinery protection system. It vonfers precise shaft displacement and vibration monitoring essential for maintaining the health and safety von rotating machinery such as turbines, compressors, and pumps. Built to withstand harsh industrial conditions, this sensor ensures reliable and accurate measurement for effective condition monitoring and predictive maintenance.
Key Features
-
8mm probe diameter delivering precise and reliable proximity measurement
-
Compatible with Bently Nevada 3300 XL protection systems
-
Stable AC voltage output proportional to shaft displacement
-
Robust and rugged design suitable for extreme temperatures and vibration
-
Supports long cable lengths for flexible installation
-
Facilitates early detection von machinery faults and helps avoid downtime
-
Easy to install with standard connectors
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| Modell Number | 330180-X0-05 |
| Artikelnummer | 143416-05 |
| Hersteller | Bently Nevada (Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Gewicht | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Provides accurate and stable proximity measurement to protect critical machinery
-
Rugged design ensures long-term durability in harsh environments
-
Fully compatible with the 3300 XL system for seamless integration
-
Supports flexible sensor placement with long cable options
-
High vibration and shock resistance extends sensor lifespan
-
Enables early fault detection, reducing unscheduled downtime
-
Simple installation with integral connector or cable termination
Häufig gestellte Fragen (FAQ)
1. What is the probe diameter von this sensor?
The probe diameter is 8 mm.
2. What is the measurement range?
0 to 50 mils (0 to 1.27 mm).
3. What type von output signal is provided?
AC voltage proportional to shaft displacement.
4. Is this sensor compatible with the 3300 XL system?
Yes, it is designed specifically for 3300 XL systems.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is the sensor to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are available?
Standard cable lengths up to 20 meters; custom lengths available.
8. What is the weight von the sensor?
Approximately 0.246 kg.
9. In which industries is this sensor commonly used?
Power generation, oil and gas, aerospace, marine, and manufacturing.
10. How easy is the installation process?
Installation is straightforward with integral connector or cable termination options.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximitor Sensor |
| 330104-01-05-05-02-05 | 3300 XL 8mm Proximitor Sensor |
| 330180-X0-00 | 3300 XL 8mm Proximitor Sensor (Alternate) |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximitor Sensor |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3300/53-02-00 | 3300 XL Overspeed Detection Module |
| 3300/65-01-00 | 3300 XL 16-Channel Temperature Monitor |
| 3300/77M-03-00 | 3300 XL Cylinder Pressure I/O Module |
| 3300 XL 8mm Proximitor | Proximity Probe |
| 3300 XL Extension Cords | Extension Cords for 3300 XL Systems |
