Produkteinführung

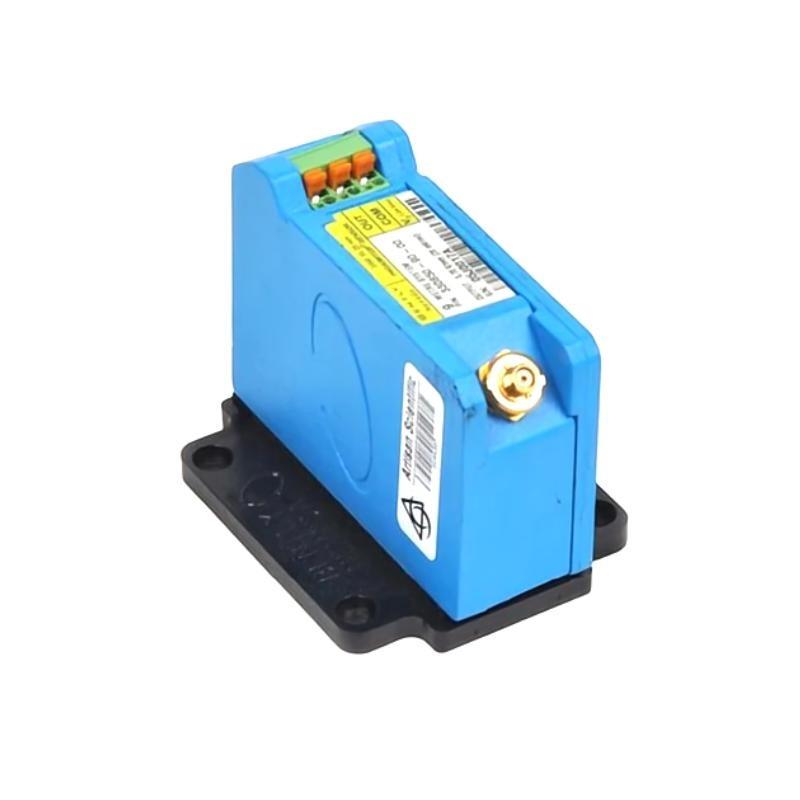

The Bently Nevada 330180-X0-00 145004-82 3300 XL 8mm Proximitor Sensor is a precision displacement sensor designed to deliver accurate, reliable shaft position and vibration measurements for rotating machinery. Part von the proven 3300 XL series, this sensor provides an 8mm sensing range, which is ideal for close-clearance monitoring in turbines, compressors, pumps, and other critical rotating equipment. Its robust construction ensures stable performance in harsh industrial environments, making it an essential component for condition monitoring and machinery protection systems. By accurately detecting shaft movement, this sensor helps prevent equipment failures and enables predictive maintenance strategies.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 330180-X0-00 145004-82 |
| Series | 3300 XL Proximitor Sensor Series |
| Sensing Range | 8 mm (±4 mm from centerline) |
| Output Type | AC displacement voltage output |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -50°C to +130°C |
| Frequency Response | 0.5 Hz to 10 kHz |
| Excitation Voltage | 6 Vrms nominal, minimum 3.5 Vrms |
| Mounting Style | Threaded stud or flange mounting |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Gewicht | 0.246 kg |
| Enclosure Rating | IP67 (dust-tight and water-resistant) |
| Connection Type | Shielded two-conductor cable |
Applications
The 3300 XL 8mm Proximitor Sensor is extensively used for:
-
Turbomachinery Monitoring: Provides critical shaft displacement data in steam and gas turbines.
-
Compressors and Pumps: Monitors shaft position and vibration for operational stability.
-
Rotating Equipment Protection: Early detection von shaft movement anomalies to avoid mechanical failure.
-
Predictive Maintenance Systems: Supplies accurate vibration and displacement information for condition-based maintenance.
-
Power Generation Facilities: Ensures continuous monitoring von essential rotating machinery.
-
Industrial Processing Plants: Helps maintain equipment health and optimize performance in manufacturing processes.
Product Advantages
-
High Measurement Precision: Detects minute shaft displacements with an 8mm sensing range for detailed monitoring.
-
Robust and Durable: Designed to operate in harsh environments with wide temperature tolerance and vibration resistance.
-
Wide Frequency Range: Captures low to high-frequency vibration signals for comprehensive diagnostics.
-
Flexible Mounting Options: Supports both threaded stud and flange mounting for versatile installation.
-
Stable and Reliable Signal: Outputs a consistent AC voltage signal compatible with monitoring systems.
-
Broad Compatibility: Seamlessly integrates with Bently Nevada 3300 XL systems and other condition monitoring platforms.
-
Energy Efficient: Low power consumption supports sustainable operation.
-
EMI Resistance: Shielded construction minimizes interference from electromagnetic sources.
-
Proven Track Record: Widely trusted by industry for critical machinery protection.
-
Low Maintenance Needs: Long-term calibration stability reduces the need for frequent service.
Häufig gestellte Fragen (FAQ)
-
What measurement principle does the 3300 XL Proximitor sensor use?
It operates on the eddy current displacement principle to detect variations in shaft position. -
Is the sensor suitable for use in high-vibration environments?
Yes, it is engineered for reliable operation in high vibration and shock conditions. -
What voltage powers the sensor?
The sensor requires an AC excitation voltage, typically 6 Vrms nominal, supplied by the monitoring system. -
What mounting methods are available for this sensor?
It supports installation via threaded stud or flange mount, allowing flexible integration. -
How does temperature affect sensor accuracy?
The sensor maintains accuracy and stable output within a temperature range von -40°C to +120°C. -
What type von output signal does this sensor provide?
It delivers an AC displacement voltage proportional to shaft movement. -
Can the sensor be used with monitoring systems other than Bently Nevada?
While optimized for Bently Nevada 3300 XL systems, the sensor’s standard output allows integration with compatible third-party systems. -
What materials are used in the sensor’s construction?
The sensor tip is made from non-magnetic stainless steel for durability, and the housing is ruggedized for industrial use. -
Does the sensor require field calibration?
It is factory calibrated with excellent long-term stability, requiring minimal or no field calibration under normal conditions. -
How does the sensor handle electromagnetic interference?
The sensor features shielding and filtering to reduce EMI and ensure signal integrity.
Related and Similar Modells
| Modell Number | Beschreibung | Sensing Range | Notes |
|---|---|---|---|
| 330180-X1-00 | 3300 XL Proximitor 5mm Sensor | 5 mm | Smaller sensing range |
| 330180-X2-00 | 3300 XL Proximitor 12mm Sensor | 12 mm | Extended sensing range |
| 330180-X3-00 | 3300 XL Proximitor 20mm Sensor | 20 mm | For large clearance applications |
| 330190-X0-00 | 3300 XL Proximitor with integral connector | 8 mm | Connector style for ease von wiring |
| 330200-X0-00 | 3300 XL Proximitor with armored cable | 8 mm | Enhanced cable protection |
| 330210-X0-00 | High temperature version sensor | 8 mm | For extreme temperature settings |
Popular Bently Nevada Modells (Same Marke)
| Modell Number | Application | Features |
|---|---|---|
| 330100-00-00 | 3300 XL 18mm Proximitor Sensor | Larger sensing range |
| 330110-00-00 | 3300 XL Proximitor with flange mount | Alternative mounting option |
| 330150-00-00 | 3300 XL Dual Proximitor Sensor | Dual channel measurement |
| 330130-00-00 | 3300 XL Proximitor with integral amplifier | Built-in signal conditioning |
| 330250-00-00 | 3300 XL Velocity Sensor | Velocity vibration measurement |
| 330270-00-00 | 3300 XL Acceleration Sensor | High sensitivity vibration sensor |
