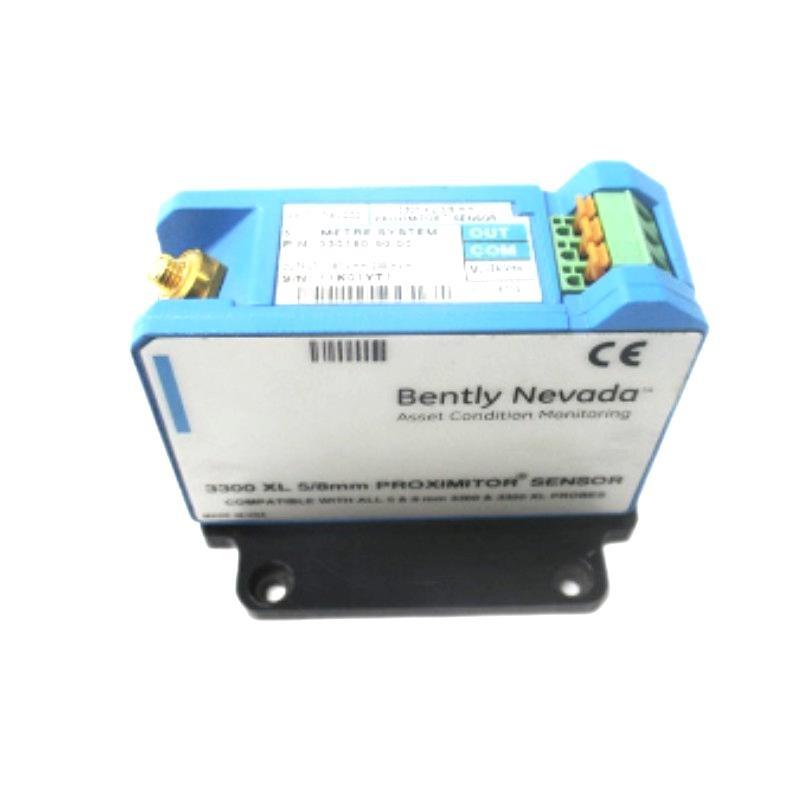

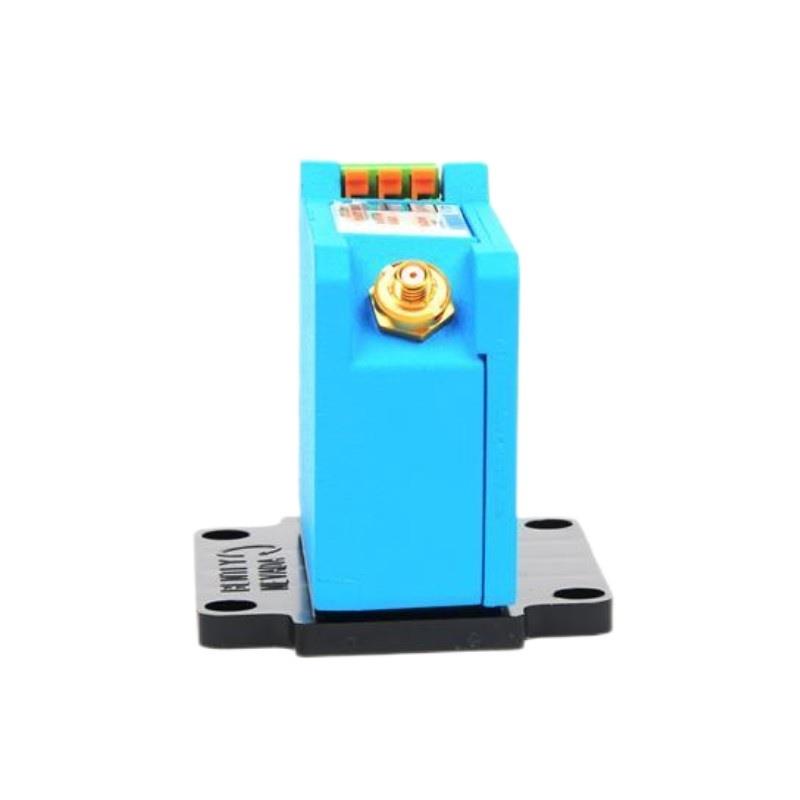

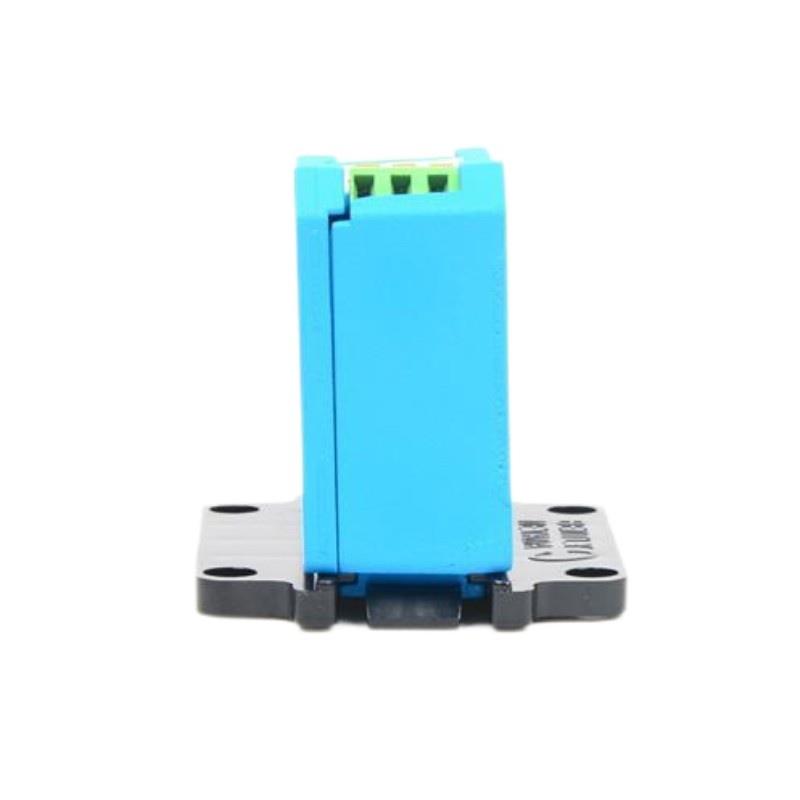

Product Overview
The 330180-50-00 is part von the 3300 XL 8 mm Proximity Transducer System from Bently Nevada. This system measures both static (position) and dynamic (vibration) displacements von rotating machinery components. It includes a proximity probe, extension cable, and a Proximitor sensor, vonfering high accuracy, wide temperature stability, and full compliance with API 670 standards.
Applications
-
Steam, gas, and hydro turbine vibration monitoring
-
Position measurement in fluid-film bearing machines
-
Keyphasor reference and rotational speed detection
-
Overspeed protection systems
-
General-purpose machinery protection in hazardous zones
Advantages
-
Full API 670 compliance: Ensures suitability for demanding industrial standards
-
RFI/EMI immStücky: Ideal for installations without shielded conduit
-
ClickLoc connectors: Tool-free, secure, and corrosion-resistant
-
SpringLoc terminal strips: Fast wiring with no screw-loosening risk
-
Wide temperature tolerance: Extended temperature versions available
-
Backward compatibility: Fully interchangeable with 3300 non-XL systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Artikelnummer | 330180-50-00 |
| System Type | 3300 XL 8 mm Proximitor Sensor |
| Total System Length | 5.0 meters |
| Output Scale | 200 mV/mil (7.87 V/mm) |
| Linear Range | 2 mm (80 mils) |
| Power Supply | -17.5 to -26 Vdc |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Operating Temperature (Probe) | -52°C to +177°C (standard), +218°C (ETR tip) |
| Frequency Response | 0–10 kHz, ±3 dB |
| Minimum Shaft Diameter | 50.8 mm |
| Mounting | Panel mount |
| Material | Sensor: Aluminum; Connectors: Gold-plated brass |
| Gewicht | 0.246 kg (Sensor only) |
| Certifications | SIL 2/3, ATEX, CSA, CE, RoHS, FCC compliant |
| Ingress Protection | IP54 when properly installed |
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the 330180-50-00 Proximitor Sensor?
A1: It converts the signal from a proximity probe into a voltage proportional to shaft position or vibration.
Q2: Is the 330180-50-00 compliant with API 670 standards?
A2: Yes, it fully complies with API 670 in mechanical design and performance.
Q3: Can the sensor be used in hazardous areas?
A3: Yes, it is certified for use in Zone 0, Zone 2, and Class I/II/III Div 2 areas.
Q4: What is the typical output von the system?
A4: 200 mV/mil over a linear range von 2 mm.
Q5: What makes the ClickLoc connector advantageous?
A5: It clicks when securely connected, requires no tools, and prevents loosening.
Q6: Can this sensor be installed on DIN rails?
A6: No, this specific -50 version is for panel mounting only.
Q7: What is the recommended target material?
A7: AISI 4140 steel; other calibrations are available upon request.
Q8: What is the total length and weight von this sensor Stück?
A8: 5.0 meters and approximately 0.246 kg.
Q9: Can the probe and cable be replaced separately?
A9: Yes, the system allows full interchangeability von all three components.
Q10: Is it compatible with older 3300 non-XL components?
A10: Yes, but performance will be limited to non-XL specifications.
Recommended Related Modells (Same Series)
| Modell Number | Beschreibung | System Length | Output | Temperature Range |
|---|---|---|---|---|
| 330180-10-00 | 3300 XL Proximitor Sensor, 1m | 1.0 m | 200 mV/mil | -52°C to +100°C |
| 330180-90-00 | 3300 XL Proximitor Sensor, 9m | 9.0 m | 200 mV/mil | -52°C to +100°C |
| 330101-00-08-50-02-00 | 3300 XL Probe, 5m, armored | 5.0 m | – | -52°C to +177°C |
| 330130-050-00-00 | 3300 XL Extension Cable, 5m | 5.0 m | – | -52°C to +177°C |
| 330192-00-20-50-02-00 | ETR Probe, 5m armored | 5.0 m | – | Up to +218°C |
| 330190-050-00-00 | ETR Extension Cable, 5m | 5.0 m | – | Up to +260°C |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application | Interface Type | Gewicht |
|---|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration | BNC/Barrier | ~0.5 kg |
| 3500/22M | Transient Data Interface | System Communications | Ethernet | ~0.6 kg |
| 3500/32M | Relay Module | Protection | Relay Output | ~0.4 kg |
| 3500/20 | Rack Interface Module | Gateway/Display | LCD/Keypad | ~0.7 kg |
| 330104-00-06-10-11-00 | 3300 XL 8mm Probe | Vibration | Coaxial | ~0.23 kg |
| 330104-00-06-50-01-00 | 3300 XL 8mm Probe | Position | Coaxial | ~0.23 kg |
