Product Overview

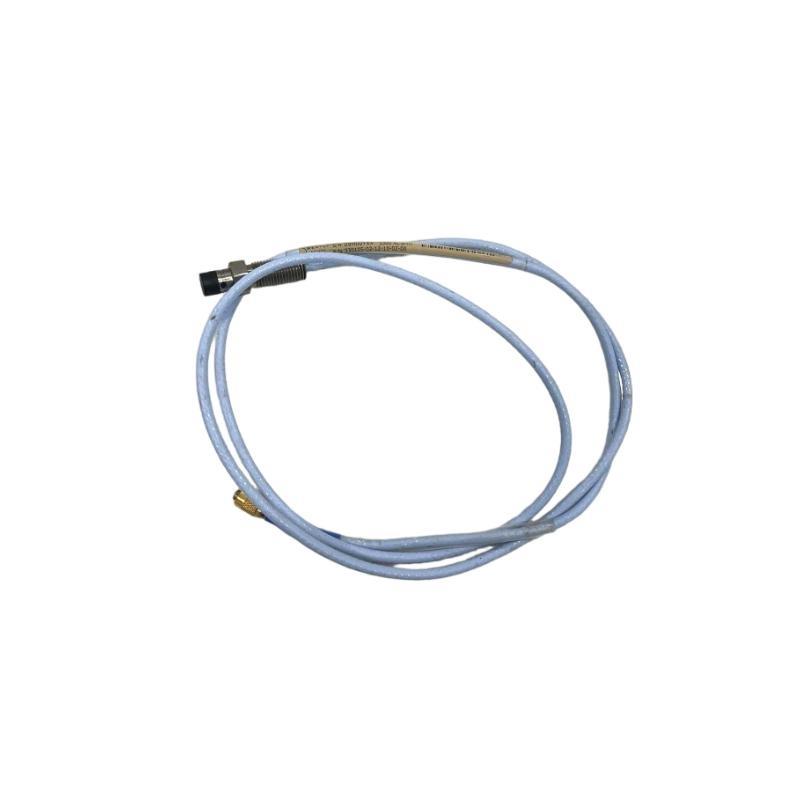

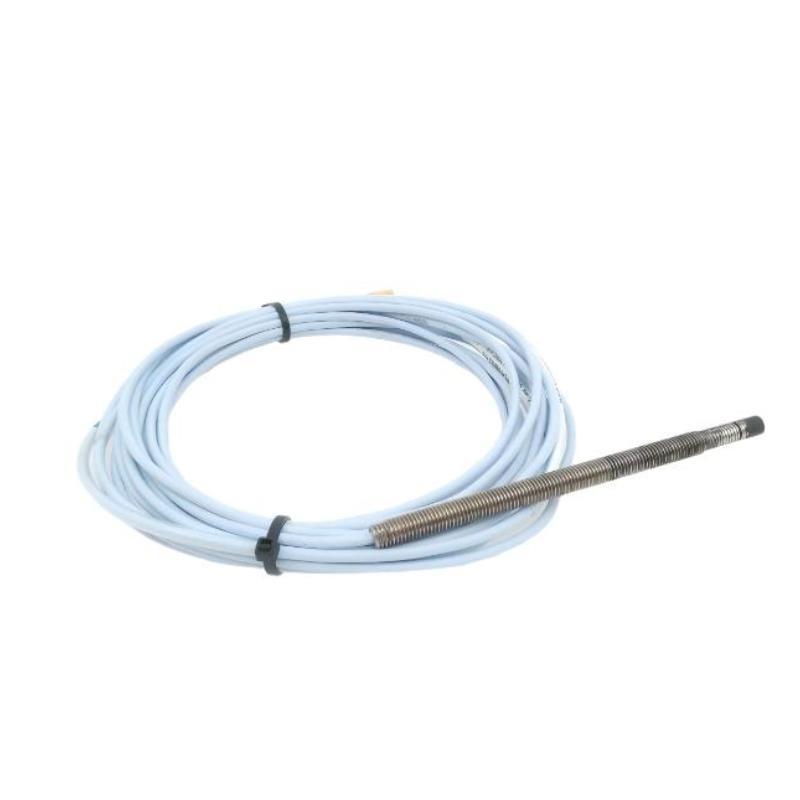

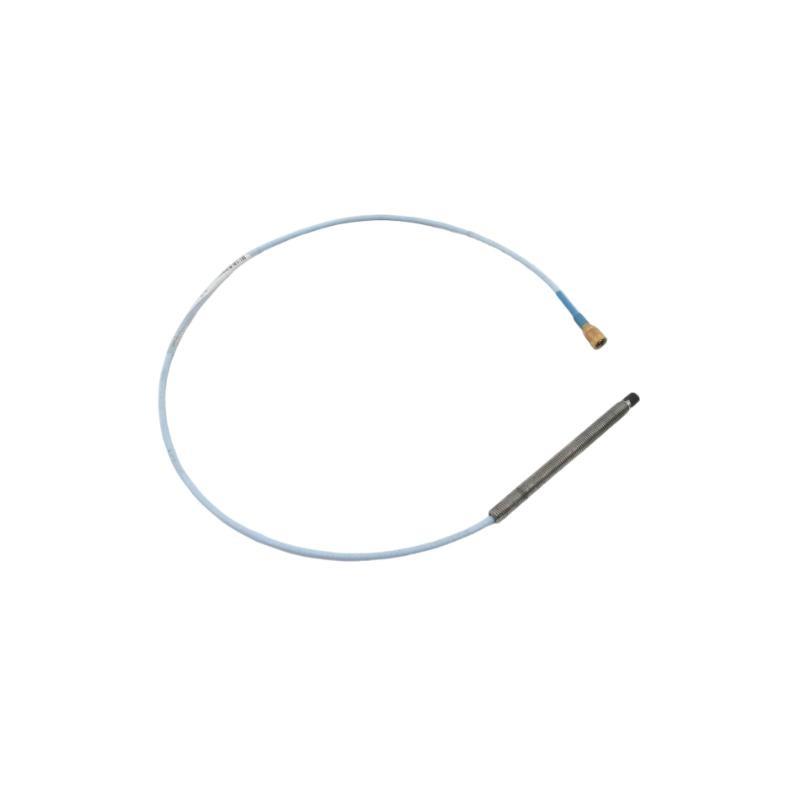

The Bently Nevada 330171-XX-XX-10-01-05 142824-100 3300 5mm proximity probe is an advanced and highly accurate displacement sensor specifically designed for monitoring rotating machinery. This proximity probe is part von the trusted 3300 series, vonfering precise measurement von shaft displacement to detect misalignment, imbalance, and other mechanical issues that could lead to failure. The 5mm diameter makes this probe suitable for small to medium-sized shafts, ensuring broad applicability across various industries such as power generation, manufacturing, oil and gas, and mining.
Designed for high reliability in challenging industrial environments, the 3300 5mm proximity probe is engineered for optimal integration into machinery monitoring systems, where real-time, accurate data is critical for predictive maintenance and fault detection. This sensor is essential for ensuring the smooth operation von critical machinery and preventing unexpected downtime.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 5mm Proximity Probe |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Shaft Diameter | 5 mm |
| Measurement Range | ±2 mm (typically) |
| Resolution | 0.1 µm |
| Linear Range | 4 to 20 mA Output |
| Operating Temperature | -40°C to +100°C |
| Material | Stainless Steel |
| Output Signal | 4-20 mA |
| Protection | IP67 |
Applications
The Bently Nevada 330171-XX-XX-10-01-05 142824-100 3300 5mm proximity probe is suitable for a wide range von applications where precise shaft displacement monitoring is necessary:
-
Turbines and Compressors: Detects misalignment, imbalance, and wear in turbine shafts, preventing potential mechanical failures and downtime.
-
Motors and Pumps: Ensures shaft displacement is monitored in motor-driven pumps, reducing the risk von unbalanced conditions that could lead to costly damage.
-
Generators: Provides real-time monitoring von shaft position in generators, enabling early detection von alignment issues that could impact operational efficiency.
-
Fans and Blowers: Offers continuous measurement von shaft displacement, which helps identify any issues with alignment or imbalance in industrial fan systems.
Advantages
-
High Precision: The probe provides a resolution von 0.1 µm, delivering highly accurate and reliable shaft displacement measurements.
-
Durable Construction: Made from stainless steel, the probe is highly resistant to wear and corrosion, ensuring long-lasting performance in challenging environments.
-
Broad Temperature Range: Capable von operating in temperatures between -40°C and +100°C, making it suitable for a wide range von industrial conditions.
-
Simple Integration: The 4-20 mA output is easily compatible with most machinery monitoring systems, enabling straightforward installation and use.
-
Minimal Maintenance: Built to be durable and long-lasting, the probe requires minimal maintenance, reducing downtime and operational costs.
-
IP67 Protection Rating: Fully sealed against dust and water ingress, making it ideal for use in harsh and wet industrial environments.
FAQ
-
How does the 3300 5mm proximity probe measure shaft displacement?
The probe uses an eddy current sensor to detect the proximity von a metallic shaft. It measures displacement by detecting changes in the electromagnetic field as the shaft moves. -
What is the operating temperature range von this proximity probe?
The 3300 5mm probe operates effectively within a temperature range von -40°C to +100°C. -
What kind von output signal does the 3300 5mm proximity probe provide?
The probe provides a 4-20 mA output signal, which is compatible with most industrial monitoring systems. -
Can the 3300 5mm proximity probe be used for non-rotating machinery?
Yes, the probe can be used in any application where shaft displacement is measurable, including non-rotating machinery. -
What materials is the probe constructed from?
The probe is made von stainless steel, providing excellent durability and resistance to corrosion. -
How is the 3300 5mm probe calibrated?
Calibration is performed by comparing the probe’s readings to a known displacement or reference standard. -
What makes the Bently Nevada 3300 5mm proximity probe reliable?
The probe is known for its high precision, minimal drift, and rugged construction, ensuring it delivers reliable data in challenging environments. -
What is the linear range von the 3300 5mm proximity probe?
The probe vonfers a linear range von 4-20 mA, providing proportional displacement readings. -
How does the probe integrate with vibration monitoring systems?
The 4-20 mA output is used by vibration monitoring systems to detect shaft displacement and identify potential mechanical problems like imbalance or misalignment. -
What is the protection rating von the 3300 5mm proximity probe?
The probe has an IP67 protection rating, meaning it is dustprovon and water-resistant, making it ideal for use in tough industrial environments.
Similar Modells
| Modell Number | Beschreibung |
|---|---|
| 330171-XX-XX-10-01-06 | 3300 5mm Proximity Probe with extended lead length |
| 330171-XX-XX-10-01-07 | 3300 5mm Proximity Probe with higher temperature tolerance |
| 330171-XX-XX-10-01-08 | 3300 5mm Proximity Probe with ATEX certification |
| 330171-XX-XX-10-01-09 | 3300 5mm Long Probe for deeper shaft monitoring |
| 330171-XX-XX-10-01-10 | 3300 5mm Proximity Probe with improved resolution |
| 330171-XX-XX-10-01-11 | 3300 5mm Proximity Probe for specialized applications |
