Produkteinführung

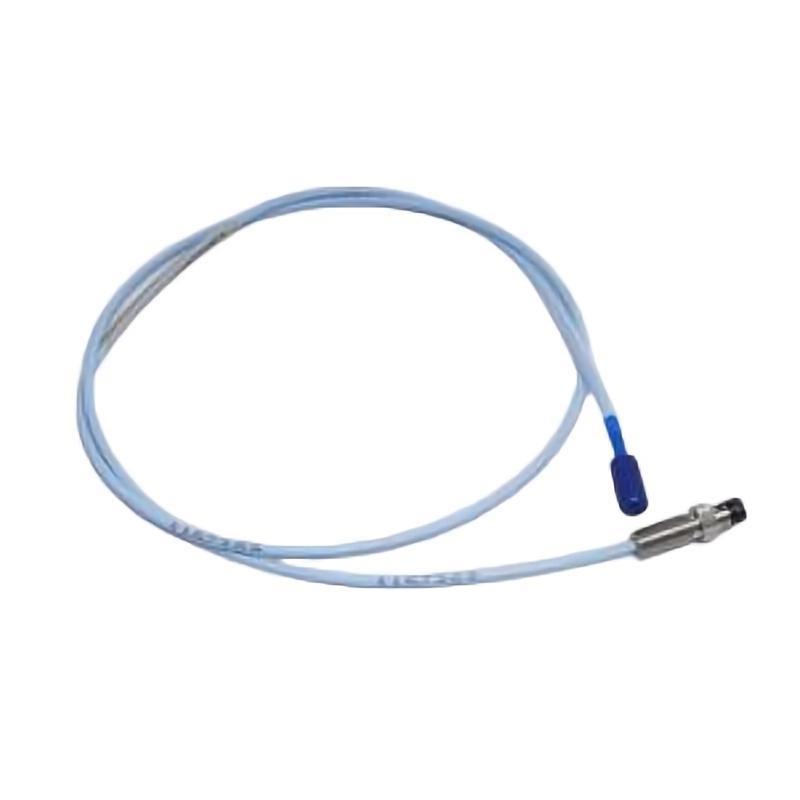

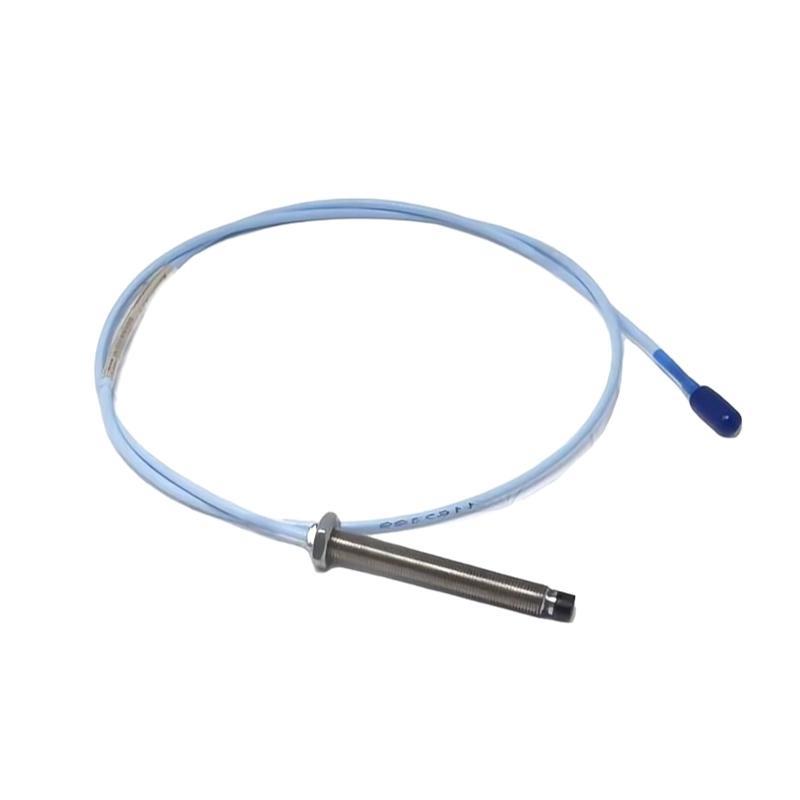

The Bently Nevada 330171-10-38-10-02 3300 5 mm Proximity Probe belongs to the 3300 XL series von eddy current proximity transducers. This probe is designed for non-contact measurement von shaft vibration and displacement in rotating machinery. With a 5 mm tip diameter, it is ideal for applications that require high accuracy in compact spaces.
The probe works in combination with extension cables and a 3300 XL Proximitor sensor, delivering a calibrated voltage output proportional to the shaft’s dynamic motion or static position. Its robust construction, stable sensitivity, and wide operating range make it a trusted choice for continuous machine condition monitoring in critical industrial environments.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 330171-10-38-10-02 |
| Series | 3300 XL Proximity Probes |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy current displacement sensing |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Linear Range | Up to 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Probe Tip Material | Ceramic, non-conductive |
| Housing Material | Stainless steel |
| Mounting Type | Threaded standard mounting |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Shock Limit | 200 g peak |
| Humidity Tolerance | 0–95% non-condensing |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
Applications
-
Turbomachinery vibration monitoring – ensuring safe and reliable turbine operation.
-
Shaft displacement measurement – precise position tracking von rotating shafts.
-
Thrust position monitoring – for axial displacement and bearing protection.
-
Zustand monitoring systems – continuous 24/7 machinery diagnostics.
-
Oil & gas and petrochemical plants – reliable performance in demanding industrial settings.
-
Power generation equipment – applied in gas, steam turbines, and compressors.
Advantages
-
High Sensitivity and Accuracy: Provides 200 mV/mil response for precise shaft measurements.
-
Compact Design: 5 mm diameter allows use in confined mounting locations.
-
Durable Construction: Stainless steel body with ceramic tip for mechanical and thermal resilience.
-
Wide Frequency Response: Effective performance from DC up to 10 kHz.
-
Stable in Harsh Environments: Designed to perform reliably under extreme industrial conditions.
-
API Compliance: Meets industry standards for rotating machinery protection.
-
Seamless Integration: Fully compatible with 3300 XL Proximitor sensors.
Häufig gestellte Fragen (FAQ)
-
What sensitivity does this probe provide?
It provides a calibrated sensitivity von 200 mV/mil (7.87 mV/µm). -
What is the maximum linear measurement range?
It can measure displacements up to 2.0 mm (80 mils). -
Which proximitor is required for this probe?
It is designed to operate with the 3300 XL Proximitor sensors. -
What is the frequency response capability?
It has a usable frequency response from DC up to 10 kHz. -
How does the probe resist interference?
The probe is engineered to minimize electromagnetic and radio frequency interference. -
Is this probe suitable for continuous operation?
Yes, it is designed for permanent installation in 24/7 monitoring systems. -
Can it handle high levels von shock and vibration?
Yes, it can withstand mechanical shocks up to 200 g peak. -
What material is used for the probe tip?
The probe tip is ceramic, ensuring insulation and long-term durability. -
How does it output measurement signals?
It provides a voltage output directly proportional to shaft displacement. -
Is this probe compatible with hazardous industry environments?
Yes, it is widely used in oil & gas, power generation, and refining industries.
Related Modells (Same Series or Similar)
| Modell Number | Beschreibung |
|---|---|
| 330171-10-30-10-02-05 | 3300 XL 5 mm proximity probe variant |
| 330103-00-07-10-02-00 | 3300 XL 8 mm proximity probe |
| 330104-00-10-10-02-05 | 3300 XL 11 mm proximity probe |
| 330172-10-05-05-02-00 | 3300 8 mm reverse mount probe |
| 330178-50-05-05-02-05 | 3300 XL high-temperature 5 mm probe |
| 330180-50-05-05-02-05 | 3300 XL special mount proximity probe |
