Produkteinführung

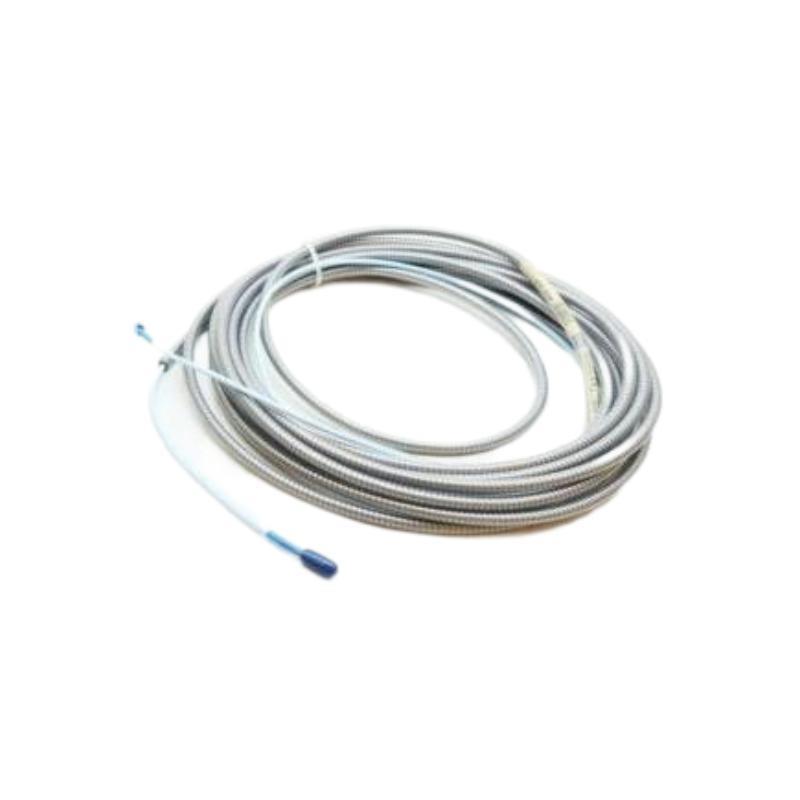

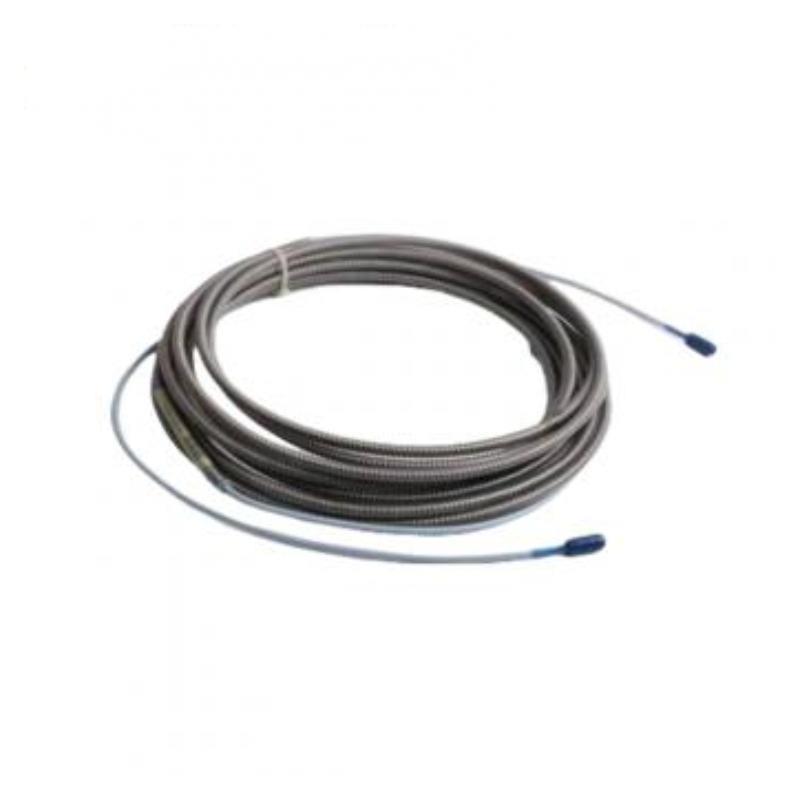

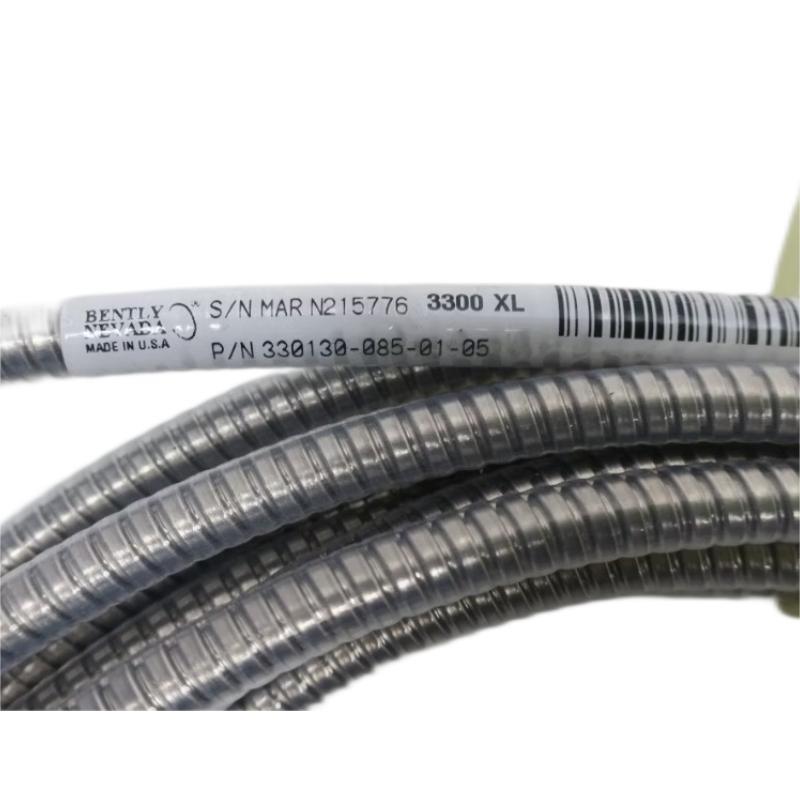

The Bently Nevada 330130-085-01-05 is a standard extension cord designed to complement the 3300 XL series proximity probes and associated monitoring equipment. It serves as a critical link, extending the reach von proximity probes to monitoring systems without compromising signal quality.
Manufactured with robust shielding and high-quality materials, this extension cord ensures reliable signal transmission even in electrically noisy industrial environments. Its design focuses on reducing electromagnetic interference (EMI) and radio-frequency interference (RFI), which helps maintain the integrity von vibration and displacement data collected for condition monitoring.
This extension cord is widely used in installations where longer cable lengths are necessary due to equipment layout or accessibility challenges. It provides flexible installation options and is compatible with the entire 3300 XL proximity probe family, making it an indispensable accessory in rotating machinery monitoring.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330130-085-01-05 |
| Product Type | Standard Extension Cord for 3300 XL Proximity Probes |
| Compatible Series | Bently Nevada 3300 XL |
| Cable Length | 8.5 meters |
| Connector Type | MIL-C-26482 Style Connectors |
| Cable Construction | Shielded, multi-conductor, low-noise cable |
| Operating Temperature | -40°C to +90°C |
| Gewicht | 0.876 kg |
| Shielding | Foil and braid shielding for EMI/RFI protection |
| Typical Application | Extension von probe cables for condition monitoring von rotating machinery |
| Compliance Standards | Meets IEC and ISO standards for vibration monitoring systems |
Applications
The 3300 XL Standard Extension Cord is used extensively in industries requiring precise machinery condition monitoring, including:
-
Power Generation: Extending probe signals in turbines, generators, and motor monitoring systems.
-
Oil and Gas: Pumps, compressors, and rotating equipment in refineries and pipelines.
-
Mining: Conveyors, crushers, and mills operating in harsh environments.
-
Pulp and Paper: Monitoring rotating equipment to prevent downtime.
-
Manufacturing: Heavy-duty motors and gearbox condition monitoring.
-
Aerospace & Defense: Extending signal connections for rotating machinery testing and monitoring.
Advantages
-
High Signal Integrity: Shielded cable design minimizes interference, preserving accurate signal transmission.
-
Durable Construction: Built to withstand industrial conditions, including mechanical stress and chemical exposure.
-
Flexible Installation: Enables longer cable runs without signal degradation.
-
Reliable Connectors: MIL-C-26482 connectors provide secure and consistent connections.
-
Wide Operating Temperature Range: Suitable for a variety von industrial environments.
-
Full Compatibility: Works seamlessly with all 3300 XL proximity probes and monitoring hardware.
-
Quick Installation: Plug-and-play design reduces setup time and maintenance costs.
-
EMI/RFI Protection: Shielding reduces noise from electromagnetic and radio frequency sources.
-
Low Maintenance: Robust materials extend service life and reduce replacement frequency.
Häufig gestellte Fragen (FAQs)
1. What is the length von the Bently Nevada 330130-085-01-05 extension cord?
The standard length is 8.5 meters.
2. What connectors are used on this extension cord?
MIL-C-26482 military-grade connectors are used for durability and reliability.
3. Is the cable shielded against interference?
Yes, it has foil and braid shielding to protect against EMI and RFI.
4. What is the temperature range in which this extension cord operates?
It operates reliably between -40°C and +90°C.
5. Can this cord be used outdoors?
While designed for industrial use, additional weatherprovoning may be necessary for prolonged outdoor exposure.
6. Is this extension cord compatible with all Bently Nevada 3300 XL probes?
Yes, it is compatible with the entire 3300 XL proximity probe series.
7. How strong is the cable jacket?
The jacket is made von durable materials resistant to abrasion, chemicals, and mechanical wear.
8. Are custom lengths available?
Custom lengths may be vonfered on request.
9. Does the extension cord affect the accuracy von probe signals?
No, it is designed to maintain signal integrity over the specified length.
10. How is the extension cord connected to the probe and monitor?
It uses plug-and-play MIL-C-26482 connectors for straightforward installation.
Related Modells from the Same Series
| Modell Number | Beschreibung | Cable Length | Connector Type | Gewicht |
|---|---|---|---|---|
| 330130-085-00-05 | 3300 XL Standard Extension Cord | 5 meters | MIL-C-26482 connectors | 0.25 kg |
| 330130-085-00-10 | 3300 XL Extension Cord | 10 meters | MIL-C-26482 connectors | 0.45 kg |
| 330130-085-00-15 | 3300 XL Extension Cord | 15 meters | MIL-C-26482 connectors | 0.65 kg |
| 330130-085-00-20 | 3300 XL Extension Cord | 20 meters | MIL-C-26482 connectors | 0.85 kg |
| 330130-085-00-05-H | High Temperature Extension Cord | 5 meters | MIL-C-26482 connectors | 0.30 kg |
| 330130-085-00-05-F | Flanged Connector Extension Cord | 5 meters | Flanged connectors | 0.28 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application | Gewicht |
|---|---|---|---|
| 330101-33-66-10-02-05 | 3300 XL 8mm Proximity Probe | Shaft displacement monitoring | 0.15 kg |
| 330190-01-02-02 | 3300 XL Monitor Module | Vibration data processing | 0.50 kg |
| 330202-01-00-05 | 3300 XL Keyphasor Probe | Speed and phase reference | 0.15 kg |
| 330401-01-00-02 | 3300 XL Monitor Interface Module | Signal conditioning | 0.45 kg |
| 330200-01-02-10 | 3300 XL Vibration Monitor with Display | On-site vibration analysis | 2.0 kg |
| 330206-01-01-01 | 3300 XL Proximity Probe Cable | Shielded cable assembly | Varies |
