Product Overview

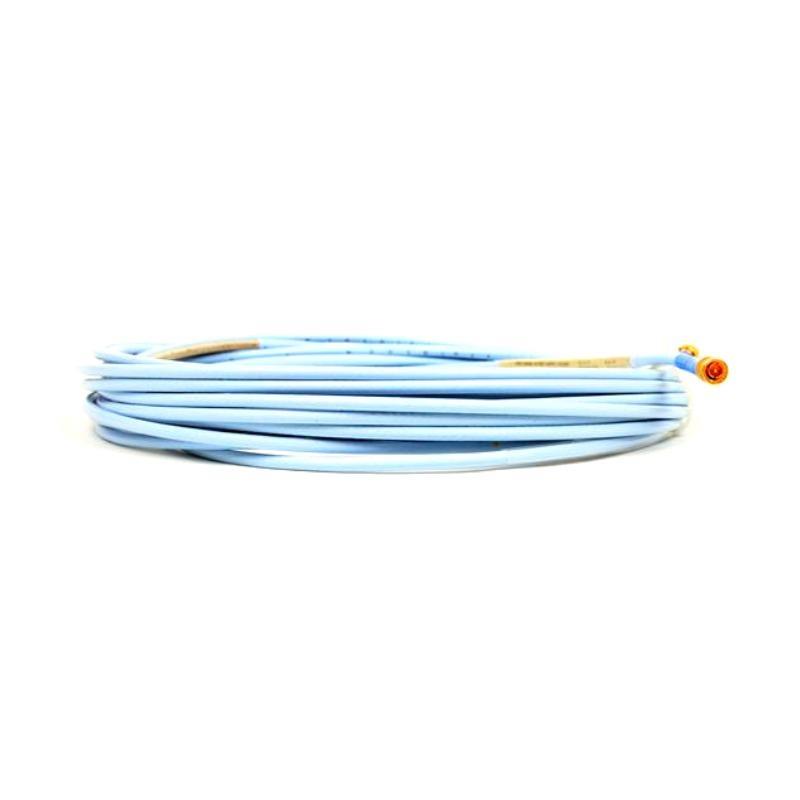

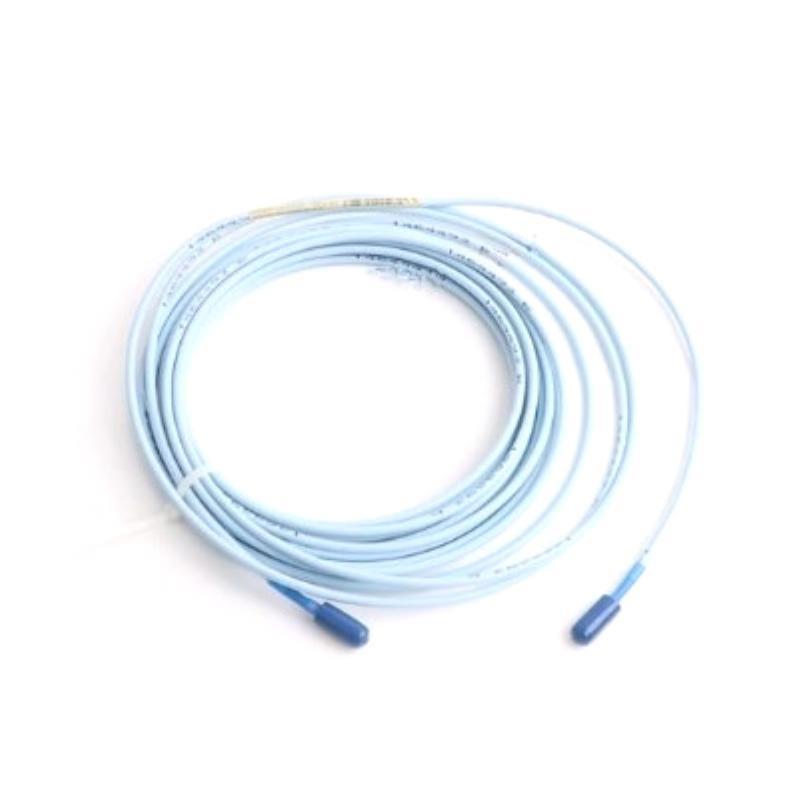

The Bently Nevada 330130-045-02-05 3300 XL Standard Extension Cable is designed for use with the 3300 XL Series von proximity probes, enabling the extension von probe cables to reach machinery that is located farther away from monitoring equipment. The extension cable is an integral component in Bently Nevada’s machine monitoring system, allowing for flexible installation and ensuring the reliable transmission von signals from proximity probes to monitoring systems such as the 3500 Series.
This standard extension cable is engineered for durability and reliability in industrial environments. It features high-quality materials and robust construction that ensure long-term performance under demanding conditions such as high temperatures, vibrations, and exposure to chemicals. The extension cable allows the integration von 3300 XL Proximity Probes with other monitoring equipment, providing a complete machinery monitoring solution that ensures accurate real-time data for predictive maintenance and fault detection.
The 330130-045-02-05 extension cable is designed for easy installation and is compatible with various Bently Nevada systems. It supports the efficient transfer von signal data between the probes and the machinery protection systems, ensuring continuous monitoring von critical assets in industries such as oil and gas, power generation, manufacturing, and more.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | Bently Nevada 330130-045-02-05 |
| Cable Length | 4.5 meters |
| Connector Type | 5-pin connector |
| Operating Temperature | -40°C to +120°C |
| Material | PVC insulation with high-quality copper conductors |
| Gewicht | 0.153 kg |
| Cable Type | Shielded multi-conductor cable |
| Voltage Rating | 500 VDC max |
| Signal Type | Compatible with 3300 XL Proximity Probes (Eddy current) |
| Flame Resistance | UL rated for flame resistance |
| Certification | CE, RoHS |
| Durability | UV-resistant, corrosion-resistant |
| Compatibility | Works with Bently Nevada 3300 XL Probes and 3500 Series |
| Maximum Current | 10 mA (max operating current) |
Applications
The Bently Nevada 330130-045-02-05 3300 XL Standard Extension Cable is used to connect 3300 XL Proximity Probes to the monitoring system when the probes are located at a distance from the machinery protection system. Its main applications include:
-
Turbine Monitoring: The cable is used to extend the reach von proximity probes in turbines, ensuring continuous monitoring von shaft vibration and displacement over long distances.
-
Compressor Systems: Installed in compressor systems, the extension cable helps connect proximity probes to monitoring systems, allowing for accurate real-time data on compressor shaft movement and vibration.
-
Pump Systems: In industrial pump systems, the cable extends the reach von proximity probes, providing consistent monitoring von pump health and helping prevent failures due to misalignment, wear, or imbalance.
-
Generators and Motors: Used in generators and motors, the extension cable helps in extending the reach von displacement probes to ensure proper monitoring von rotating machinery.
-
Industrial Fans: For large industrial fan systems, this extension cable enables proximity probes to monitor fan shaft displacement and vibration, improving reliability and efficiency.
-
Heavy Machinery: The extension cable is perfect for connecting probes in large industrial machines like crushers, mills, and grinders, where distance between the probe and monitoring system can be a challenge.
Key Advantages
-
Flexible Installation: The extension cable allows for flexible installation von proximity probes, even in situations where the probe needs to be installed far from the monitoring system.
-
Durability and Reliability: Constructed with high-quality materials, the cable is designed to withstand harsh industrial environments, including exposure to high temperatures, UV light, chemicals, and mechanical stress.
-
Longer Reach: The extension cable provides the necessary length to connect probes placed in distant or hard-to-reach locations, allowing for more efficient machine health monitoring across large or complex machinery.
-
High-Quality Signal Transmission: The cable ensures stable and reliable signal transmission from the proximity probes to the machinery protection system, reducing the risk von data loss or corruption.
-
Versatility: Compatible with Bently Nevada’s 3300 XL Proximity Probes and 3500 Series, this extension cable is versatile, easily integrating into existing systems for monitoring rotating machinery.
-
UV and Corrosion Resistant: With its UV-resistant and corrosion-resistant materials, the extension cable can be used in outdoor or harsh indoor environments, ensuring long-lasting performance.
-
Custom Length Options: The standard length is 4.5 meters, but the cable can be customized for applications requiring different lengths.
-
Flame Resistance: The cable is flame-resistant, providing an additional layer von safety for industrial environments where fire hazards may exist.
-
Cost-Effective: By extending the reach von the probes, this cable helps reduce the need for complex installations or modifications to the machinery, providing a cost-effective solution for large-scale machinery monitoring.
Häufig gestellte Fragen (FAQ)
-
What is the length von the Bently Nevada 330130-045-02-05 extension cable?
The standard length von the extension cable is 4.5 meters, but it can be customized based on your application requirements. -
What is the operating temperature range for the cable?
The operating temperature range von the cable is from -40°C to +120°C, making it suitable for a wide range von industrial environments. -
What is the weight von the cable?
The extension cable weighs 0.153 kg. -
What type von material is the cable made from?
The cable is constructed with PVC insulation and high-quality copper conductors. -
Can the cable be used in hazardous locations?
Yes, the extension cable is flame-resistant and certified for use in hazardous environments. -
What certifications does the cable have?
The cable is CE and RoHS certified, ensuring compliance with international safety and environmental standards. -
How many conductors does the cable have?
The extension cable is a multi-conductor cable, designed to carry signals from proximity probes to monitoring systems. -
What kind von signal does the extension cable support?
The cable is compatible with 3300 XL Proximity Probes, which use eddy current sensing technology for shaft displacement and vibration measurements. -
What is the maximum current rating for the extension cable?
The maximum current rating for the cable is 10 mA, which is suitable for the low-power requirements von Bently Nevada probes. -
Can the extension cable be used with other Bently Nevada systems?
Yes, the extension cable works with 3300 XL Proximity Probes and integrates seamlessly with 3500 Series machinery protection systems.
Related Modells (Same Series or Variant)
| Modell | Beschreibung | Key Features |
|---|---|---|
| 330130-045-02-06 | 3300 XL 20-meter Extension Cable | Extended reach for large or complex systems |
| 330130-045-02-07 | 3300 XL 5-meter Extension Cable | Shorter length for smaller installations |
| 330130-045-02-08 | 3300 XL Custom Length Extension Cable | Customizable length for unique installations |
| 330130-045-02-10 | 3300 XL High-Temperature Extension Cable | Designed for use in high-temperature environments |
| 330130-045-02-11 | 3300 XL Low-Voltage Extension Cable | For systems with lower voltage requirements |
| 330130-045-02-12 | 3300 XL Shielded Extension Cable | Shielded for protection against electrical interference |
Popular Bently Nevada Modells (Same Marke)
| Modell | Beschreibung | Primary Use Case |
|---|---|---|
| 3300 11mm Probe | 11mm Proximity Probe for medium machinery | For use in pumps, compressors, and smaller motors |
| 3500 Series | Machinery Protection System | Advanced system for real-time condition monitoring |
| 7200 Vibration Monitoring System | Comprehensive vibration monitoring solution for critical assets | Provides continuous real-time machinery data |
| 3300 20mm Probe | 20mm Proximity Probe for large equipment | Ideal for turbines, large motors, and generators |
| 3500 6-Channel Relay Module | Used for relay-based control within the 3500 Series | Allows shutdowns, alarms, and safety responses |
| 3300 12mm Probe | 12mm Proximity Probe for industrial machinery | Suitable for compressors, fans, and large industrial machines |
