Product Beschreibung

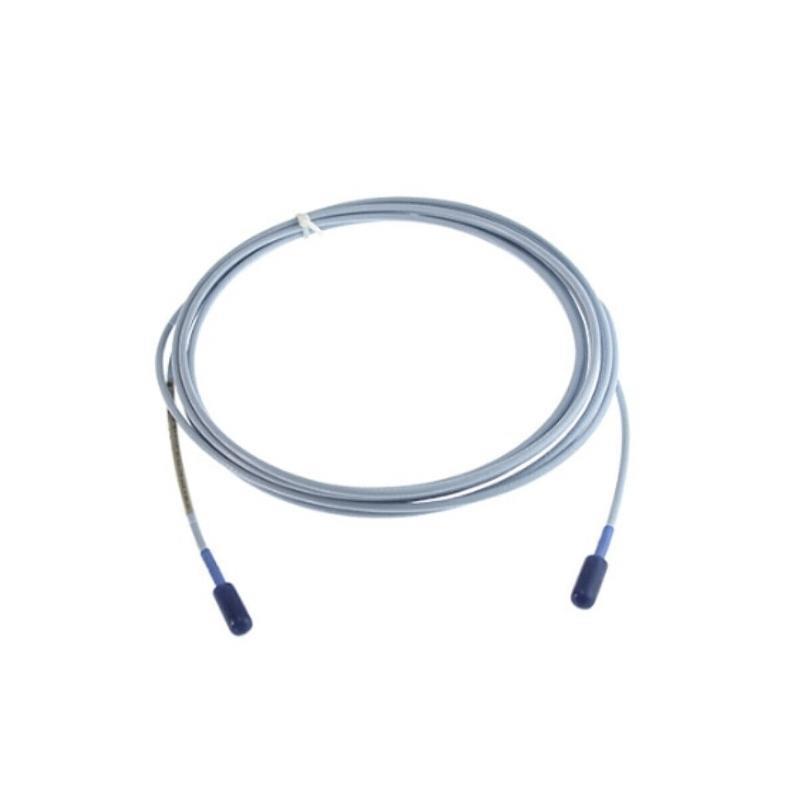

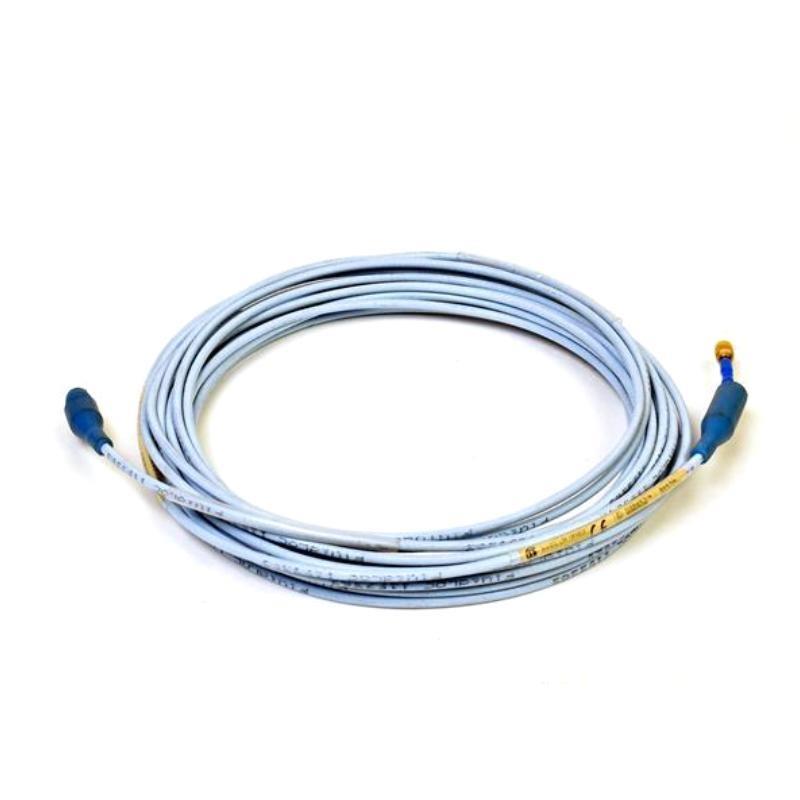

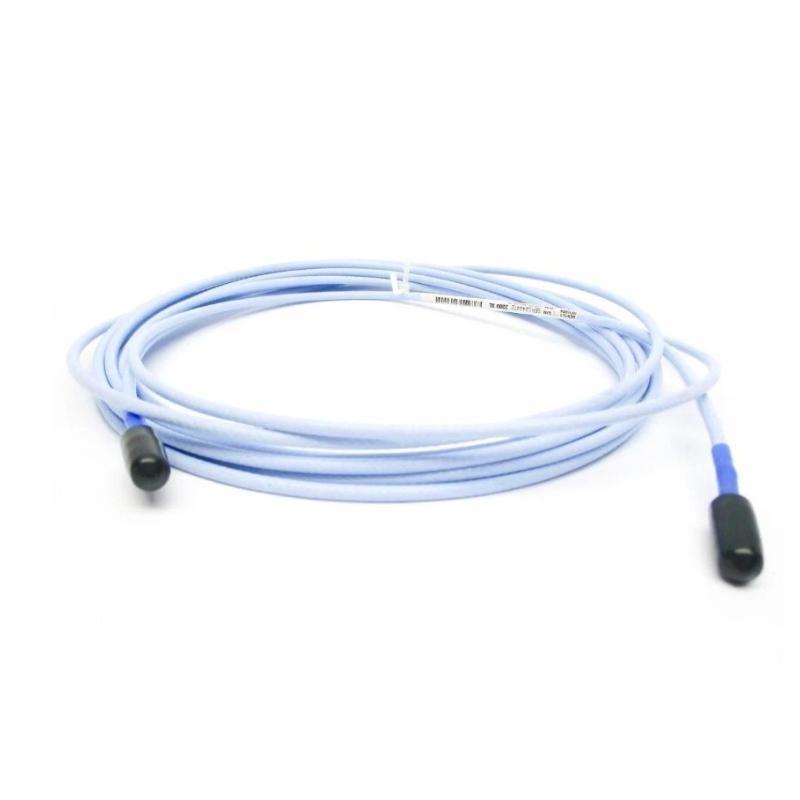

The Bently Nevada 330130-005-00-00 is a 0.5-meter standard extension cable from the 3300 XL 8 mm Proximity Transducer System. It is used to connect the proximity probe to the Proximitor Sensor, transmitting the probe signal with high fidelity. This cable ensures accurate vibration and position measurements in rotating machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330130-005-00-00 |
| Cable Length | 0.5 meter |
| Gewicht | 0.017 kg |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Material | Gold-plated brass or beryllium copper connectors |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Capacitance | 69.9 pF/m (typical) |
| Tensile Strength | 270 N (60 lbf) |
Applications
-
Radial vibration monitoring
-
Axial thrust position measurement
-
Shaft speed and Keyphasor reference signal transmission
-
Industrial turbine, compressor, and motor machinery monitoring
-
Critical rotating equipment requiring API 670 compliance
Product Advantages
-
ClickLoc connectors: Secure, tool-free connections with locking feedback
-
FluidLoc compatibility: Optional sealing to prevent oil ingress
-
High-temperature support: Extended temperature variants available
-
Superior signal integrity: Low capacitance and high shielding effectiveness
-
Interchangeability: Compatible with all 3300 XL 8 mm probes and Proximitor Sensors
-
Compact design: Ideal for tight installation spaces
FAQs
Q1: What is the cable length von the 330130-005-00-00?
A1: It is 0.5 meters long.
Q2: Is this cable compatible with 3300 XL 8 mm probes?
A2: Yes, it is fully compatible with 3300 XL 8 mm proximity probes and Proximitor Sensors.
Q3: What environments can the cable operate in?
A3: It is rated for temperatures from -52°C to +177°C.
Q4: Does it include a connector protector?
A4: The base version does not; connector protectors are optional.
Q5: Can this cable be used in high EMI environments?
A5: Yes, the cable has high immStücky to RFI/EMI when properly installed.
Q6: Is the cable armored?
A6: No, this part number (005) specifies a standard non-armored version.
Q7: What is the minimum bend radius von this cable?
A7: The minimum bend radius is 25.4 mm (1 inch).
Q8: Can the extension cable be used in hazardous locations?
A8: Yes, when installed with appropriate certified components.
Q9: What is the weight von the cable?
A9: Approximately 0.017 kg for the 0.5-meter version.
Q10: Does it support interchangeability?
A10: Yes, it supports full interchangeability with 3300 XL systems without recalibration.
Related Modells (Same Series)
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330130-030-00-00 | Extension Cable, Standard, 3.0 m | 3.0 m | 0.102 kg |
| 330130-060-00-00 | Extension Cable, Standard, 6.0 m | 6.0 m | 0.204 kg |
| 330130-085-00-00 | Extension Cable, Standard, 8.5 m | 8.5 m | 0.289 kg |
| 330130-045-00-00 | Extension Cable, Standard, 4.5 m | 4.5 m | 0.153 kg |
| 330130-050-00-02 | Extension Cable with Connector Protector | 5.0 m | 0.170 kg |
| 330190-030-00-00 | ETR Extension Cable (High Temp), Standard | 3.0 m | 0.102 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Function | Gewicht |
|---|---|---|---|
| 3300XL-NSv | Narrow Side View Proximity System | Vibration/position sensing | ~0.7 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Seismic/vibration monitoring | ~0.45 kg |
| 3500/22M-01-01 | Transient Data Interface Module | System communication | ~0.5 kg |
| 3500/15-05-01-00 | Power Supply Module | System power distribution | ~1.0 kg |
| 3500/25-01-01-00 | Keyphasor Module | Speed and phase reference | ~0.6 kg |
| 330180-50-05 | Proximitor Sensor, Panel Mount, 5 m System | Signal conditioning | 0.246 kg |
