Product Overview

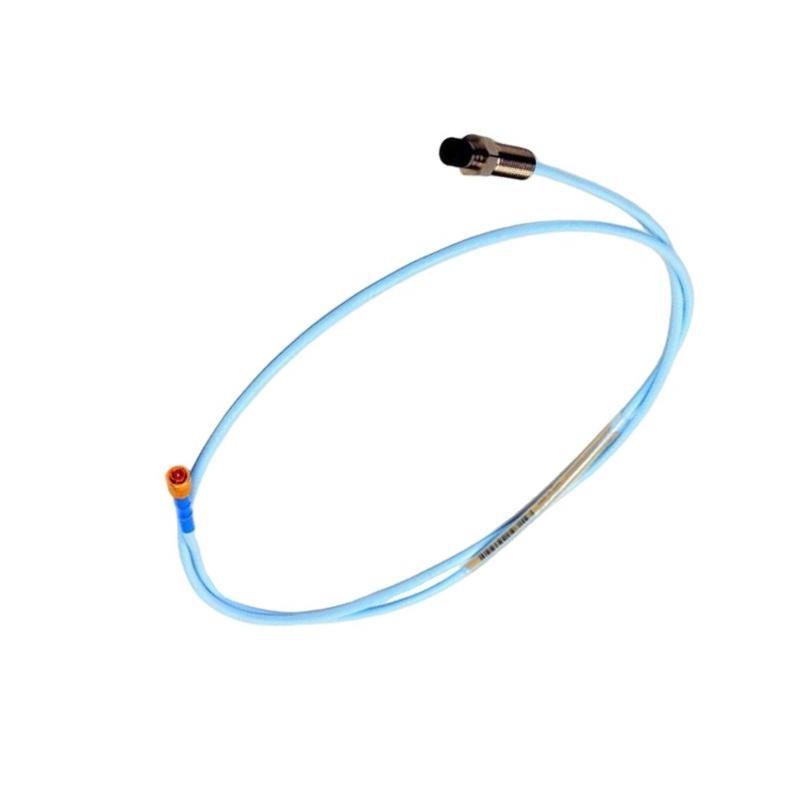

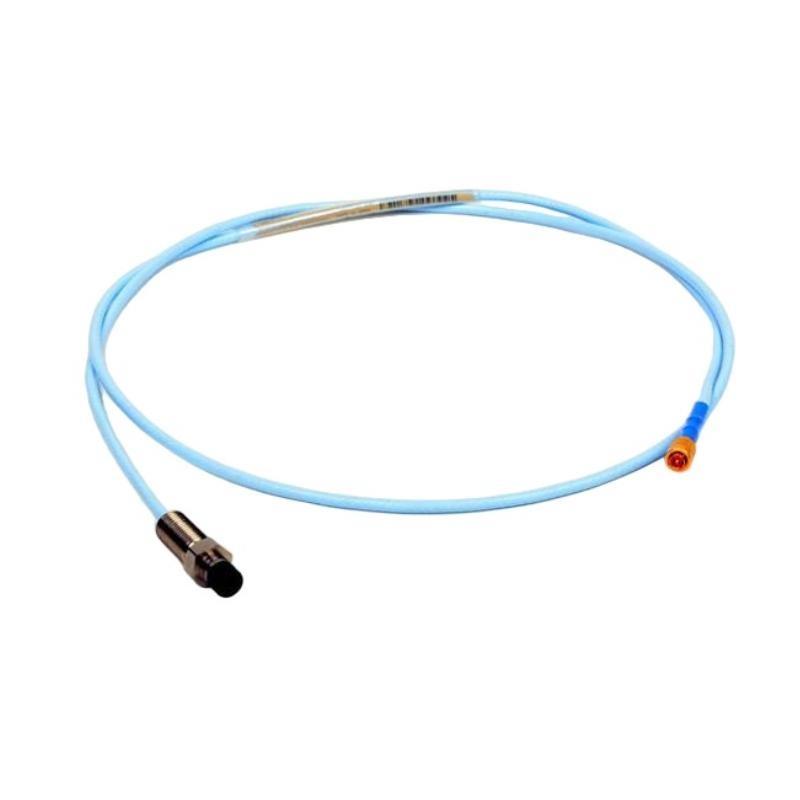

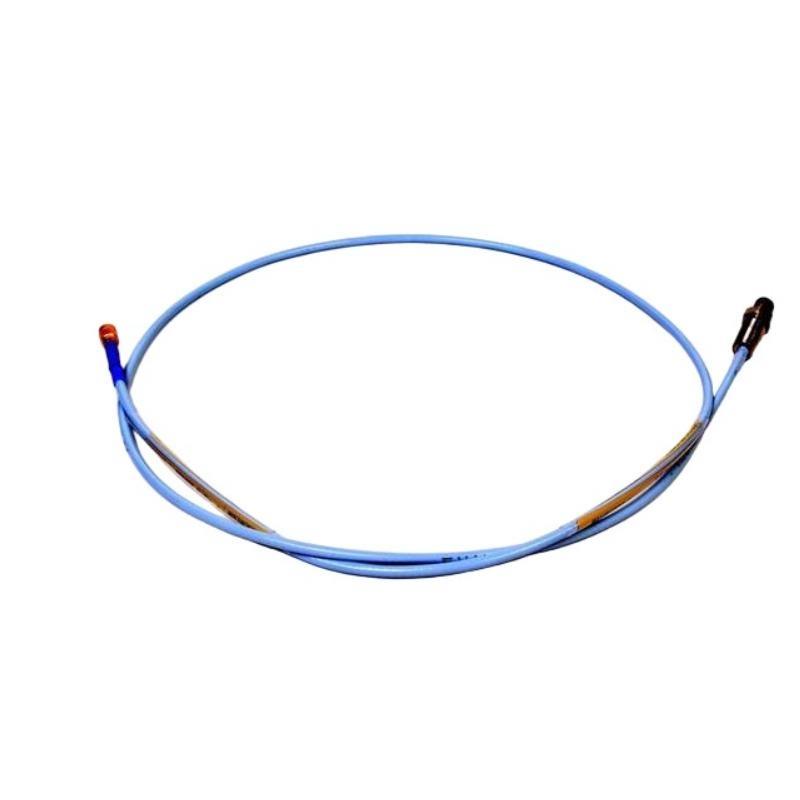

The Bently Nevada 330105-20-12-10-02-00 3300 XL 8 mm Reverse Mount Probe is a specialized eddy-current displacement sensor designed for monitoring shaft position and vibration in rotating machinery where reverse mounting is required. Part von the trusted 3300 XL series, this probe features an 8 mm diameter and rugged stainless steel construction to ensure reliable operation in demanding industrial environments.
The reverse mount design allows installation in applications with space constraints or specific mounting requirements, providing flexibility without sacrificing measurement accuracy. This probe is ideal for use in turbines, compressors, pumps, and motors in power generation and industrial process plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330105-20-12-10-02-00 |
| Series | 3300 XL |
| Probe Type | Eddy-Current Reverse Mount Displacement Probe |
| Probe Diameter | 8 mm |
| Dimensions | Total Length : 1.0 meter |
| Mounting Style | Reverse mount |
| Connector Type | MS Connector |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Frequency Response | DC to 20 kHz |
| Target Material | Conductive metals |
| Sensitivity | Approx. 10 mV/mil (0.394 mV/µm) |
| Gewicht | 0.323 kg |
| Housing Material | Stainless Steel |
| Environmental Protection | IP67 |
Applications
Common applications include:
-
Shaft displacement and vibration monitoring in turbines, compressors, and generators with reverse mount installation needs
-
Zustand monitoring for pumps and motors in tight or restricted spaces
-
Machinery protection in power plants, petrochemical, and manufacturing industries
-
Early detection von equipment faults to improve reliability and reduce downtime
-
Integration with Bently Nevada 3300 series machinery protection systems
Advantages
-
Reverse Mount Design: Enables installation in applications with limited space or unique mounting orientations.
-
Durable and Reliable: Stainless steel housing with IP67 protection withstands harsh environments.
-
Accurate Measurements: Eddy-current technology provides precise displacement and vibration data.
-
Wide Operating Range: Suitable for temperatures from -40°C to +120°C.
-
Easy Installation: Threaded body and MS connector facilitate quick and secure mounting.
-
System Compatibility: Fully compatible with Bently Nevada 3300 and 3500 series systems.
Häufig gestellte Fragen (FAQ)
-
What is a reverse mount probe?
A probe designed to be installed in the opposite orientation compared to standard probes, useful for space constraints. -
What are the probe dimensions?
Probe length is 12 mm with an 8 mm diameter. -
How long is the cable?
Cable length is 1 meters. -
What temperature range can this probe operate in?
From -40°C to +120°C. -
What kind von materials can the probe detect?
Conductive metals such as steel and aluminum. -
Is the probe environmentally protected?
Yes, it has an IP67 rating for dust and water resistance. -
What is the frequency response von the probe?
DC to 20 kHz. -
How is the probe mounted?
It uses a threaded reverse mount design. -
What maintenance does the probe require?
Minimal maintenance with routine inspection recommended. -
Is this probe compatible with other systems?
Primarily designed for Bently Nevada systems but may work with others supporting similar connectors.
