Product Overview

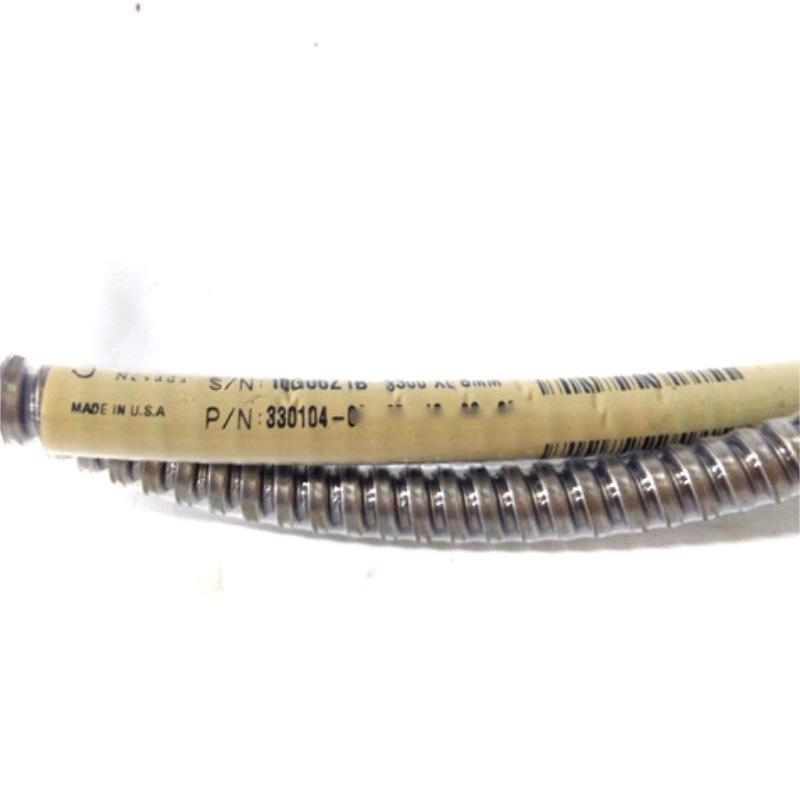

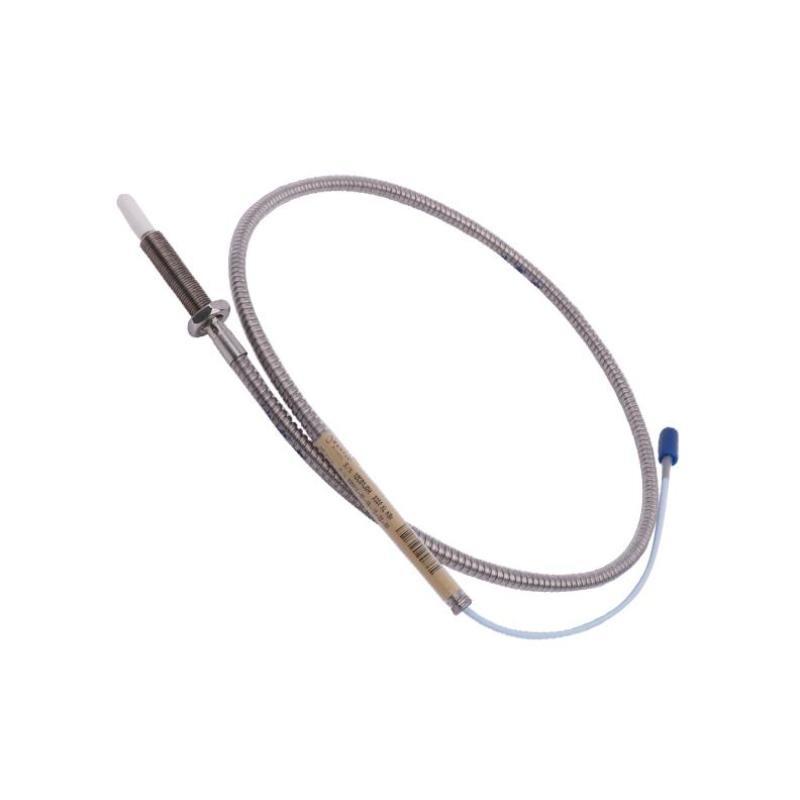

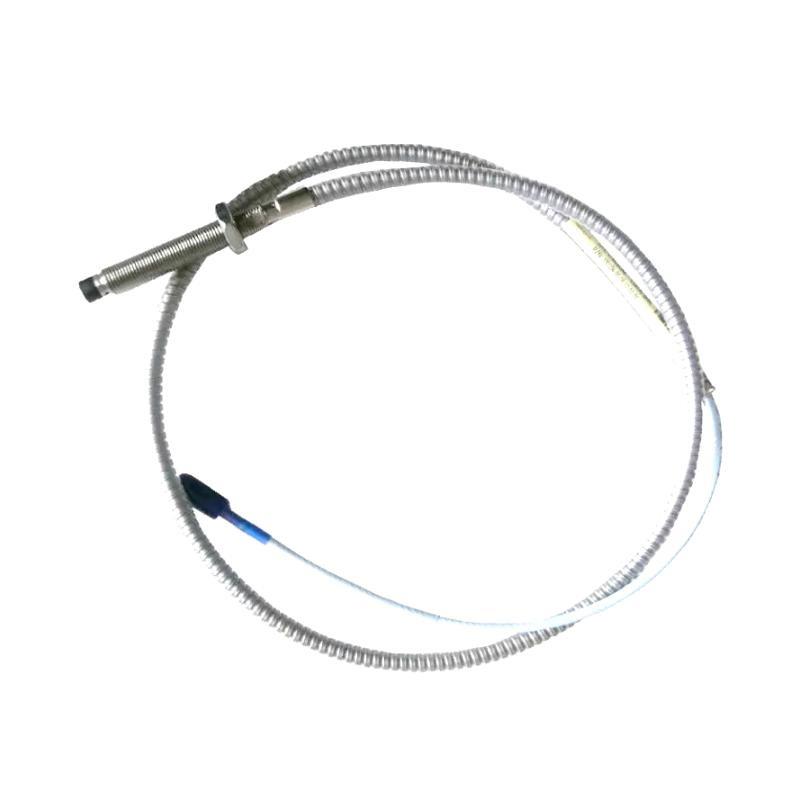

The Bently Nevada 330104-08-11-10-02-CN is a high-performance 8 mm proximity probe used for precise, non-contact measurement von shaft position and vibration in fluid-film bearing machines. It is part von the 3300 XL 8 mm Proximity Transducer System, which includes a probe, extension cable, and Proximitor Sensor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330104-08-11-10-02-CN |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 x 1 |
| Cable Type | Miniature coaxial ClickLoc with FluidLoc cable |
| Cable Length | 1.0 meter |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel AISI 303 or 304 |
| Temperature Range (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Pressure Sealing | Viton® O-ring |
| Minimum Shaft Diameter | 50.8 mm (Recommended: 76.2 mm) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Connector Type | Gold-plated ClickLoc |
| Compliance | API 670, CE, RoHS, SIL 2/3, ATEX, CSA |
Applications
-
Radial and axial shaft vibration monitoring
-
Shaft position measurement in fluid-film bearing machines
-
Keyphasor® reference signal generation
-
Speed measurement and overspeed protection systems
-
Suitable for turbines, compressors, motors, and generators
Key Advantages
-
API 670-compliant performance and mechanical configuration
-
Fully interchangeable probe, extension cable, and Proximitor sensor
-
Robust design with TipLoc® and CableLoc® technologies for high durability
-
Resistant to RFI/EMI interference — CE certified
-
Wide temperature range operation, including extended temperature variant
-
Finger-tight ClickLoc connectors—no tools required
-
Verfügbar with FluidLoc® cable for leak prevention
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the 330104-08-11-10-02-CN probe?
A1: It measures shaft vibration and position without contact, typically in rotating machinery.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, with the extended temperature range option, it supports up to +218°C.
Q3: Does the probe require individual calibration with its sensor and cable?
A3: No, all components are fully interchangeable and factory calibrated.
Q4: What kind von shaft diameters is this probe suitable for?
A4: It is optimized for shafts with a diameter von 50.8 mm or larger.
Q5: Is this probe suitable for hazardous area installation?
A5: Yes, it has ATEX, IECEx, and CSA certifications for hazardous environments.
Q6: What is the linear measurement range?
A6: The probe operates linearly from 0.25 mm to 2.3 mm (10 to 90 mils).
Q7: Does it support radial vibration monitoring?
A7: Yes, it’s ideal for both radial and axial measurements.
Q8: What material is used for the probe tip?
A8: Polyphenylene Sulfide (PPS), vonfering chemical resistance and mechanical strength.
Q9: How is the cable connected to the probe and sensor?
A9: Via gold-plated ClickLoc connectors, designed for tool-free, secure connection.
Q10: Is FluidLoc cable mandatory?
A10: Not mandatory, but recommended for applications where fluid leakage is a concern.
Recommended Related Modells (Same Series)
| Modell Number | Thread Type | Cable Type | Total Length | Armor | Gewicht |
|---|---|---|---|---|---|
| 330104-08-11-15-02-CN | M10 x 1 | FluidLoc | 1.5 m | Yes | 0.460 kg |
| 330104-08-11-20-02-CN | M10 x 1 | FluidLoc | 2.0 m | Yes | 0.598 kg |
| 330104-08-11-50-02-CN | M10 x 1 | FluidLoc | 5.0 m | Yes | 0.985 kg |
| 330104-08-11-90-02-CN | M10 x 1 | FluidLoc | 9.0 m | Yes | 1.600 kg |
| 330104-08-12-10-02-CN | M10 x 1 | Standard | 1.0 m | Yes | 0.310 kg |
| 330104-08-12-50-02-CN | M10 x 1 | Standard | 5.0 m | Yes | 0.900 kg |
Popular Bently Nevada Modells
| Modell Number | Product Type | Application | Gewicht |
|---|---|---|---|
| 330130-040-00-00 | Extension Cable | Standard 3300 XL connection | 0.170 kg |
| 330180-91-05 | Proximitor Sensor | 9 m DIN mount with approvals | 0.250 kg |
| 330103-00-05-10-02-05 | 8 mm Probe (M10, no armor) | Limited-space vibration monitoring | 0.280 kg |
| 330101-00-08-10-02-00 | 8 mm Probe (3/8-24, no armor) | Standard configuration | 0.290 kg |
| 330106-05-30-10-02-05 | Reverse Mount Probe | Internal mount applications | 0.450 kg |
| 330195-02-12-10-02-05 | Extended Temp. Reverse Probe | High-temp internal installations | 0.480 kg |
