Produkteinführung

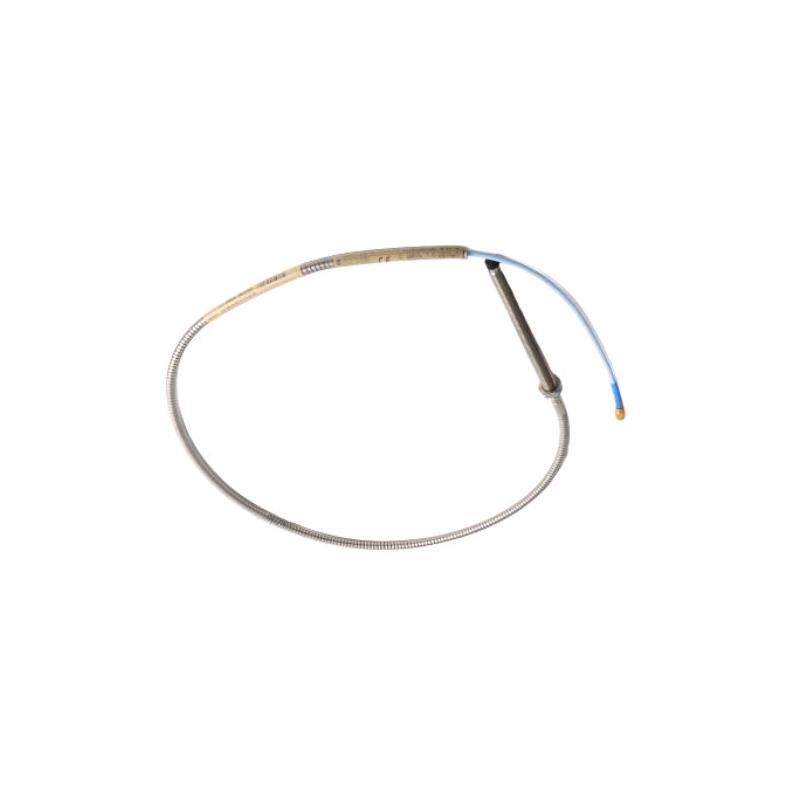

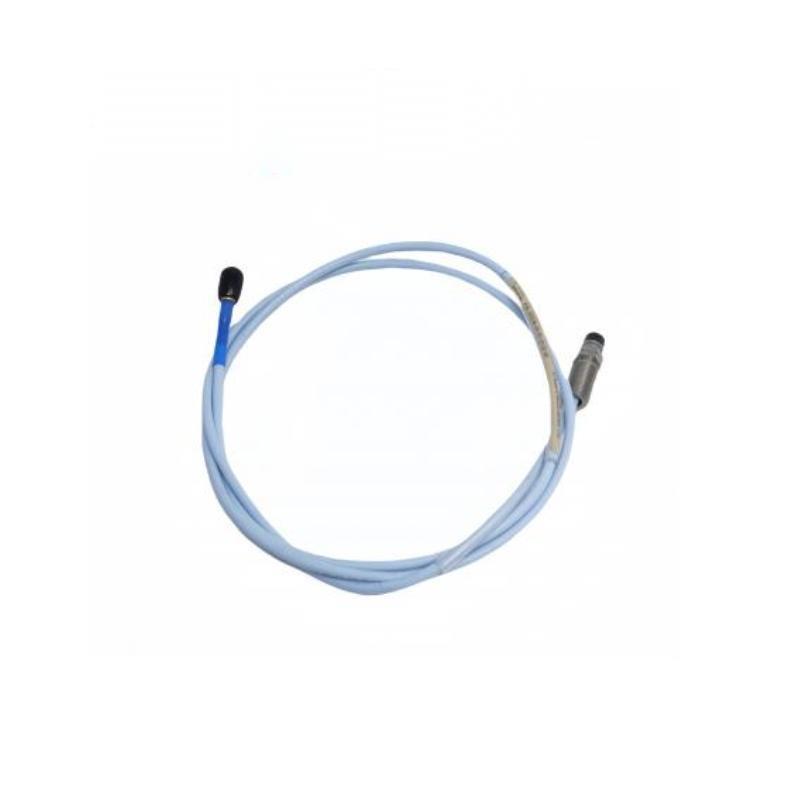

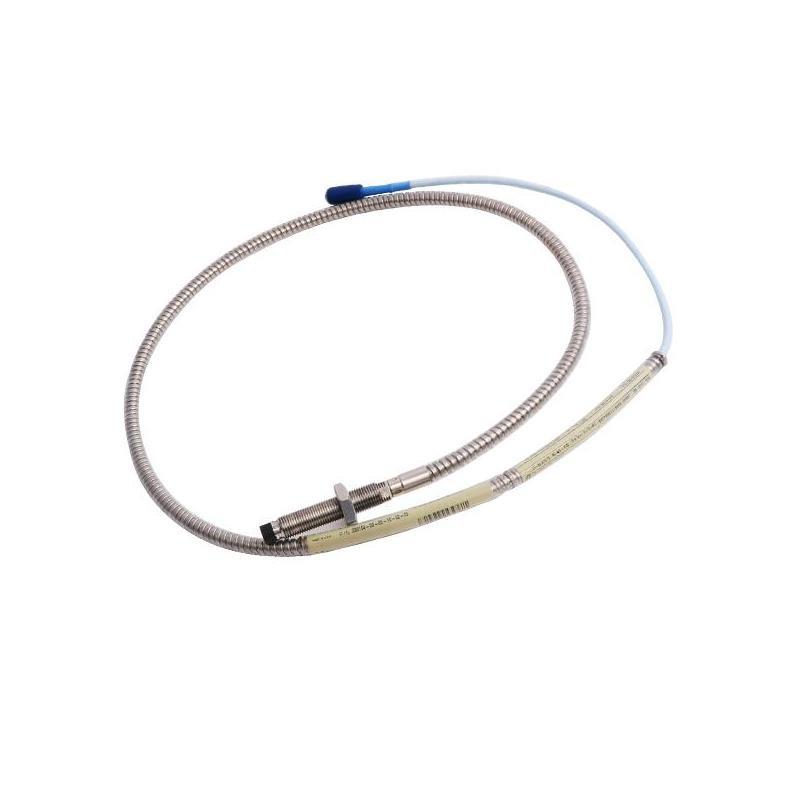

The Bently Nevada 330104-02-21-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current displacement sensor designed for industrial machinery monitoring. It is part von the 3300 XL Series, known for its exceptional reliability, durability, and performance in detecting vibration, shaft displacement, and machinery health. This probe provides real-time data that helps prevent equipment failures, optimize maintenance schedules, and improve operational safety in critical rotating machinery applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm, 3300 XL Series |
| Total Length | 1 m |
| Gewicht | 0.323 kg |
| Tip Material | Hardened stainless steel |
| Cable Type | Coaxial, high-temperature rated |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Measurement Range | ±0.25 mm to ±2 mm (typical) |
| Linearity | ±1% von full-scale |
| Sensitivity | 25 mV/µm (typical) |
| Frequency Response | DC to 10 kHz (typical) |
| Mounting Style | Threaded or spring-loaded tip |
| Output Type | Differential AC voltage |
| Compatible Transducers | 3300 XL Monitoring System |
Product Applications
-
Monitoring vibration and shaft displacement in turbines, compressors, and pumps.
-
Detecting misalignment or imbalance in rotating machinery.
-
Zustand monitoring in critical power generation equipment.
-
Early detection von machinery faults to prevent unscheduled downtime.
-
Integration with 3300 XL monitoring systems for plant-wide health management.
Product Advantages
-
High Precision: Offers accurate measurement von shaft vibration and displacement with minimal drift.
-
Rugged Design: Withstands harsh industrial environments including high temperature and high vibration conditions.
-
Reliability: Provides continuous, dependable operation critical for machinery health monitoring.
-
Compatibility: Seamlessly integrates with 3300 XL monitoring systems and related diagnostic tools.
-
Ease von Installation: Designed for standard 8 mm mounting, allowing flexible and secure installation.
-
Real-Time Monitoring: Supports predictive maintenance by delivering continuous vibration and displacement data.
FAQ
Q1: What type von signal output does this probe provide?
-
The probe provides a differential AC voltage signal compatible with Bently Nevada 3300 XL monitoring systems.
Q2: What is the operating temperature range for this probe?
-
The operating range is -40°C to +121°C (-40°F to +250°F).
Q3: Can this probe detect shaft displacement in both directions?
-
Yes, it provides bi-directional displacement measurement within its specified range.
Q4: What is the frequency response von the probe?
-
The probe has a frequency response from DC up to 10 kHz.
Q5: Is the probe compatible with standard 3300 XL monitors?
-
Yes, it is fully compatible with all standard 3300 XL monitoring modules.
Q6: What is the typical measurement range?
-
±0.25 mm to ±2 mm depending on the specific application and calibration.
Q7: Does the probe require special cabling?
-
It uses high-temperature rated coaxial cable suitable for industrial environments.
Q8: What is the linearity accuracy von the probe?
-
The linearity is ±1% von full-scale.
Q9: Can this probe be used in high-vibration machinery?
-
Yes, it is specifically designed for high-vibration industrial applications.
Q10: Is the tip material resistant to wear and corrosion?
-
Yes, it is made von hardened stainless steel for durability in harsh environments.
Recommended 6 Same-Series or Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-02-10-10-01-00 | 8 mm XL Proximity Probe, standard tip |
| 330104-02-12-10-01-00 | 8 mm XL Proximity Probe, extended cable |
| 330104-02-21-05-01-00 | 8 mm XL Probe with shortened tip |
| 330104-02-09-10-01-00 | XL 8 mm Probe, high-temperature cable |
| 330104-02-08-05-01-00 | 8 mm Probe for small machinery |
| 330104-02-08-10-01-00 | 8 mm XL Probe, standard length |
6 Popular Modells from the Same Marke
| Modell Number | Beschreibung |
|---|---|
| 330104-02-12-10-02-00 | 3300 XL 8 mm Proximity Probe |
| 330104-02-10-10-02-00 | XL 8 mm Probe, standard configuration |
| 330104-02-09-05-01-00 | 8 mm XL Probe, short tip |
| 330104-02-08-10-02-00 | XL 8 mm Probe with extended cable |
| 330104-02-21-10-02-00 | XL 8 mm Probe, dual-sensor setup |
| 330104-02-11-05-01-00 | XL 8 mm Probe, custom mounting tip |
