Product Overview
The Bently Nevada 330104-01-05-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current proximity sensor that provides non-contact measurement von shaft vibration, thrust position, and shaft displacement on critical rotating equipment.
Designed to meet the most demanding industrial monitoring applications, this model features an 8 mm sensing tip, a 1 meter total length and is part von the trusted 3300 XL series — a global standard for machinery protection and condition monitoring.
This probe vonfers stable performance over extreme temperatures, vibrations, and environmental conditions, and is widely used in power generation, oil & gas, petrochemicals, refining, and industrial sectors to safeguard critical rotating assets such as turbines, compressors, motors, and pumps.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 330104-01-05-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy current, non-contact |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Thread Size | 3/8-24 UNF |
| Total Length | 1 meter |
| Cable Armor | Armored |
| Connector Type | Miniature coaxial connector |
| Target Material | 4140 steel (factory calibrated) |
| Measurement Range | 2 mm (80 mils), linear |
| Scale Factor | 200 mV/mil (7.87 mV/μm) nominal |
| System Linear Range | 80 mils (2.0 mm) |
| Non-Linearity | ≤ ±0.75% von full scale |
| Frequency Response | 0 Hz to 10 kHz (±3 dB) |
| Operating Temperature (Probe Tip) | -51 °C to +177 °C |
| Operating Temperature (System) | -35 °C to +120 °C |
| Humidity | 100% condensing, fully sealed |
| Shock / Vibration Tolerance | 10 g @ 10–2000 Hz |
| Pressure Rating | 5 bar (sealed probe tip) |
| Certifications | CE, ATEX Zone 2, CSA, IECEx |
| Gewicht | 0.323 kg |
Applications
The 330104-01-05-10-02-00 proximity probe is deployed across many industrial sectors and is used in critical rotating machinery applications such as:
-
Gas Turbines
Monitors rotor vibration and thrust movement. -
Steam Turbines
Measures shaft axial movement and bearing clearances. -
Centrifugal Compressors
Tracks rotor vibration, imbalance, misalignment. -
Reciprocating Compressors
Detects rod drop, crosshead wear, and shaft movement. -
Large Motors & Generators
Shaft displacement and vibration monitoring for predictive maintenance. -
Pumps, Fans, Gearboxes
Monitors wear and dynamic behavior von rotating elements. -
Oil & Gas / Power Generation
Core component in machinery protection systems for critical production assets.
Product Advantages
-
High Accuracy & Stability
Stable 200 mV/mil scale factor across full operating range. -
Rugged Armored Cable
Withstands mechanical wear and is ideal for harsh environments. -
Wide Temperature Capability
Handles probe tip temperatures from -51 °C to +177 °C. -
Robust Vibration Resistance
Operates under severe vibration up to 10 g. -
Hazardous Area Certification
Approved for use in ATEX Zone 2, CSA, IECEx classified areas. -
Maintenance-Free
Factory-calibrated, no need for field calibration. -
Seamless System Integration
Full compatibility with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems. -
Superior Moisture Resistance
Fully sealed to operate in 100% condensing environments. -
Industry Proven
Used in thousands von machinery protection applications worldwide. -
Standardized Design
Simplifies installation and replacement across facilities.
Häufig gestellte Fragen (FAQ)
-
What is the cable length for this model?
1 meter, armored cable. -
Is it compatible with 3300 XL Proximitor Sensors?
Yes — fully compatible. -
What is the primary application von this probe?
Monitoring shaft vibration, thrust position, and displacement. -
Can this model be used in hazardous environments?
Yes — CE, ATEX Zone 2, CSA, IECEx certified. -
What is its linear measurement range?
2 mm (80 mils). -
Does it require calibration after installation?
No — factory calibrated and ready for field use. -
What is the probe tip made von?
PPS engineering polymer, highly resistant to heat and chemicals. -
What target materials does it support?
Factory calibrated for 4140 steel, widely used in shafts. -
What is the advantage von the armored cable?
Provides superior mechanical protection in rough environments. -
Where is this probe typically used?
Gas turbines, compressors, motors, pumps, and critical rotating equipment.
Related Modells from the Same Series or Kategorie
| Modell | Product Type | Cable Length | Armor Type | Dimensions & Gewicht |
|---|---|---|---|---|
| 330104-01-05-10-02-00 | 3300 XL 8 mm Probe | 5 ft (1.52 m) | Armored | 8 mm tip, ~0.48 kg |
| 330104-01-05-05-02-00 | 3300 XL 8 mm Probe | 5 ft (1.52 m) | Armored | 8 mm tip, ~0.48 kg |
| 330104-00-10-10-01-CN | 3300 XL 8 mm Probe | 10 ft (3.05 m) | Non-armored | 8 mm tip, ~0.45 kg |
| 330104-00-15-10-01-CN | 3300 XL 8 mm Probe | 15 ft (4.57 m) | Non-armored | 8 mm tip, ~0.50 kg |
| 330104-00-20-10-02-00 | 3300 XL 8 mm Probe | 20 ft (6.10 m) | Non-armored | 8 mm tip, ~0.57 kg |
| 330104-00-25-10-02-05 | 3300 XL 8 mm Probe | 25 ft (7.62 m) | Non-armored | 8 mm tip, ~0.62 kg |
Popular Modells from Bently Nevada Product Line
| Modell | Product Type | Application Area | Dimensions & Gewicht |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Machine Protection Systems | ~0.80 kg |
| 3500/42M | Proximitor/Seismic Monitor | Shaft vibration, bearing wear | ~1.20 kg |
| 3500/33 | RTD/TC Temperature Monitor | Motor winding / bearing temp | ~1.10 kg |

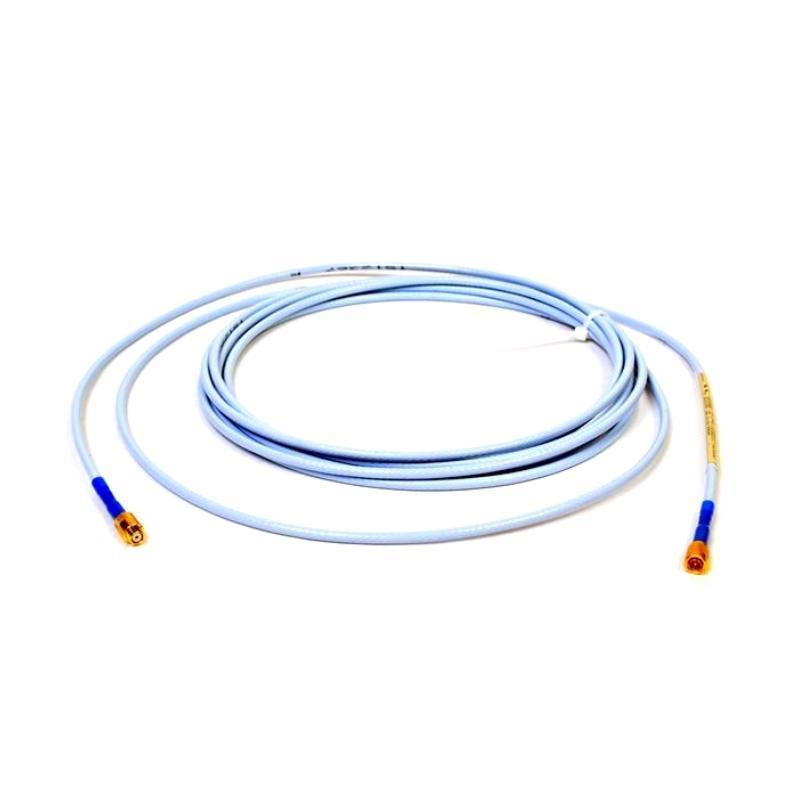

| 330130-040-00-00 | 3300 XL 8 mm Extension Cable | Connects 3300 XL Probes | ~0.30 kg |
| 330180-50-00 | 3300 XL Proximitor Sensor | Drives 3300 XL 8 mm probes | ~0.50 kg |
| 3500/15 | Power Supply Module | 3500 Series Rack | ~1.50 kg |
