Product Overview

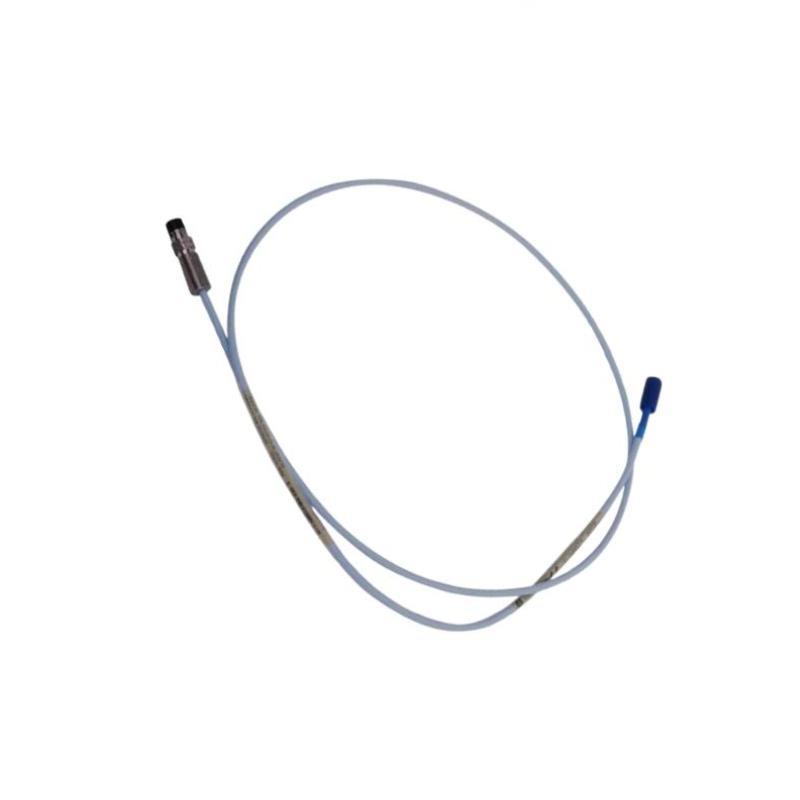

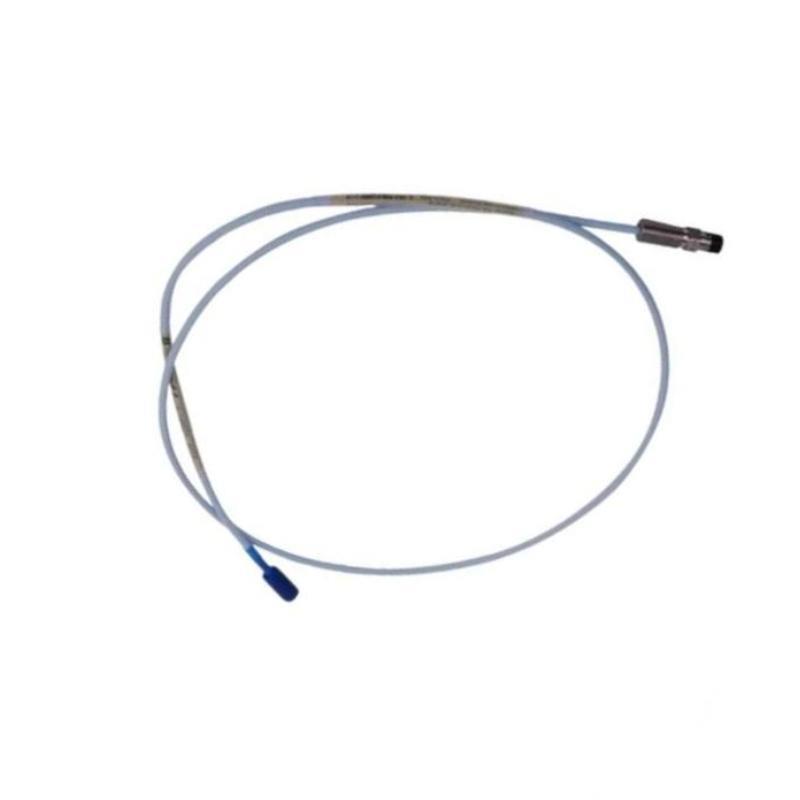

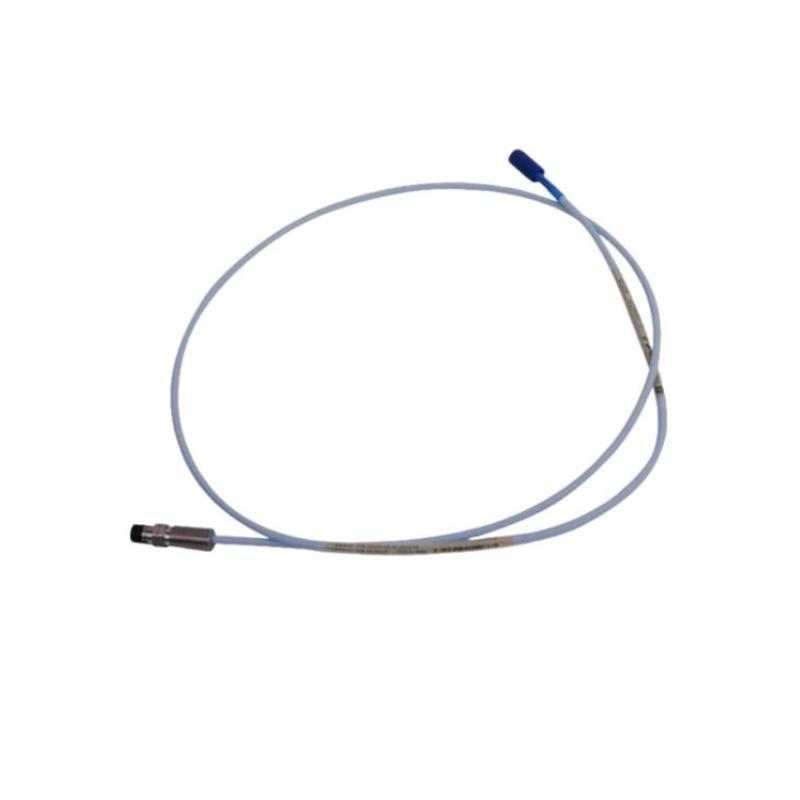

The Bently Nevada 330104-00-24-05-02-00 proximity probe belongs to the proven 3300 XL 8 mm series von non-contact sensors widely used in industrial condition monitoring and machinery protection systems. Utilizing eddy current technology, this probe accurately measures shaft vibration and position, helping operators detect early mechanical faults before they escalate.
Constructed to endure harsh industrial environments, the probe features a hermetically sealed tip and robust body, ensuring long-term operational stability. It is designed for easy integration with 3300 XL extension cables and Proximitor sensors, making it an ideal choice for turbines, compressors, pumps, and other critical rotating equipment.
Key Features
-
Eddy current-based non-contact displacement and vibration measurement
-
Integral coaxial cable for noise-resistant signal transmission
-
Threaded probe body (3/8-24 UNF) for secure and precise mounting
-
Hermetically sealed probe tip for contamination resistance
-
Wide operating temperature range suitable for severe conditions
-
Compatible with Bently Nevada 3300 XL Proximitor sensors and cables
-
High tolerance to shock and vibration stresses
-
EMI/RFI immune for stable performance in electrically noisy environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330104-00-24-05-02-00 |
| Series | 3300 XL 8 mm |
| Sensing Principle | Eddy current (non-contact) |
| Target Material | Conductive metals (e.g., 4140 steel) |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.07 mm (±2.8 mils) within linear range |
| Output Voltage | -200 mV/mil (nominal) |
| Power Supply | Via 3300 XL Proximitor Sensor |
| Connector Type | Male Microdot coaxial |
| Cable Length | 0.5 meters |
| Thread Size | 3/8-24 UNF-2A |
| Mounting Method | Threaded probe body |
| Environmental Sealing | Hermetically sealed probe tip |
| Operating Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Shock Survivability | 5000 g peak |
| Vibration Survivability | 20 g, 10–2000 Hz sinusoidal |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Ingress Protection | IP67 |
| Dimensions | Total Length : 0.5 meter |
| Gewicht | 0.161 kg |
Industry Applications
-
Power Generation: Turbines, generators, and auxiliary machinery vibration monitoring
-
Oil & Gas: Compressors, pumps, and drilling machinery condition protection
-
Petrochemical: High-speed rotating equipment in refinery plants
-
Steel & Mining: Mills, crushers, and motor shaft vibration analysis
-
Marine & Offshore: Ship propulsion and engine monitoring
-
Pulp & Paper: Rollers and rotary equipment vibration measurement
-
General Industrial Machinery: Broad condition monitoring and fault detection
Product Advantages
-
Accurate and Reliable: Provides precise vibration and displacement data crucial for maintenance decisions
-
Durable Construction: Hermetic sealing and rugged materials extend probe life
-
Seamless Integration: Designed to fit within the Bently Nevada 3300 XL sensor ecosystem
-
Resistant to Noise: Effective shielding against electromagnetic interference
-
Low Maintenance: Factory calibrated and designed for minimal servicing
-
Compact Design: Suitable for installation in confined spaces
-
High Shock and Vibration Tolerance: Performs well in demanding industrial environments
-
Wide Operating Temperature: Operates reliably from sub-zero to high temperatures
-
Proven Technology: Trusted by industries worldwide for machinery protection
-
Cost Effective: Enables early fault detection to reduce downtime and repair costs
Häufig gestellte Fragen (FAQ)
-
What does the 330104-00-24-05-02-00 probe measure?
Non-contact shaft displacement and vibration using eddy current technology. -
Is the cable integral or detachable?
It comes with a 2.4-meter integral coaxial cable. -
What is the operating temperature range?
-35°C to +177°C (-31°F to +351°F). -
What type von mounting does this probe use?
Threaded mounting with 3/8-24 UNF thread. -
Is it compatible with other proximity sensor systems?
It is specifically designed for Bently Nevada 3300 XL systems. -
What is the linear measurement range?
2 mm (80 mils). -
Does it require regular calibration?
Factory calibrated; recalibration is typically unnecessary unless conditions change. -
Is it suitable for hazardous environments?
Depends on overall system certification; probe itself is rugged. -
What kind von target materials can it measure?
Conductive metals, typically steel alloys. -
What is the approximate weight?
Approximately 0.161 kg.
Related Modules
| Modell Number | Beschreibung |
|---|---|
| 330104-00-05-10-02-00 | 8 mm Proximity Probe, 5 m integral cable |
| 330104-00-12-10-02-05 | 8 mm Proximity Probe, 12 m integral cable |
| 330104-00-18-10-02-05 | 8 mm Proximity Probe, 18 m integral cable |
| 330104-01-05-50-02-00 | Armored 8 mm Proximity Probe, 5 m cable |
| 330104-01-08-50-01-CN | 8 mm Proximity Probe, armored, 8 m cable, CN version |
| 330101-00-14-10-02-05 | Alternative 8 mm Proximity Probe with smaller thread |
Popular Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/22M | Transient Data Interface Module for 3500 Series |
| 330130-080-00-00 | 3300 XL Extension Cable (8 m) |
| 330180-91-05 | 3300 XL Extension Cable with connectors |
| 330500-02-00 | Velocity Transducer for vibration measurement |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3300 XL 25 mm | Large gap proximity probe system for axial thrust position |
