Product Overview

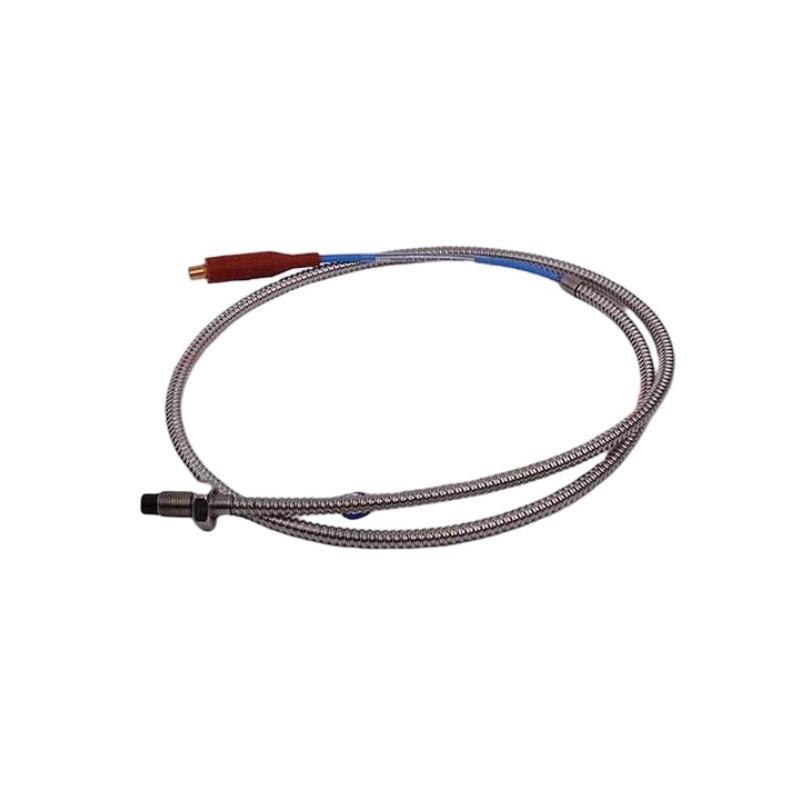

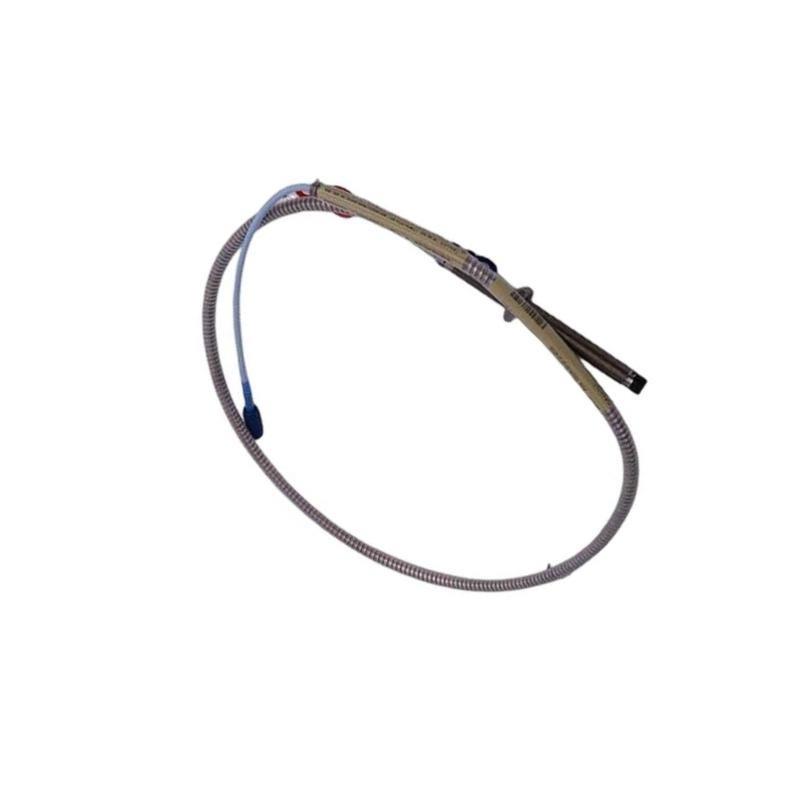

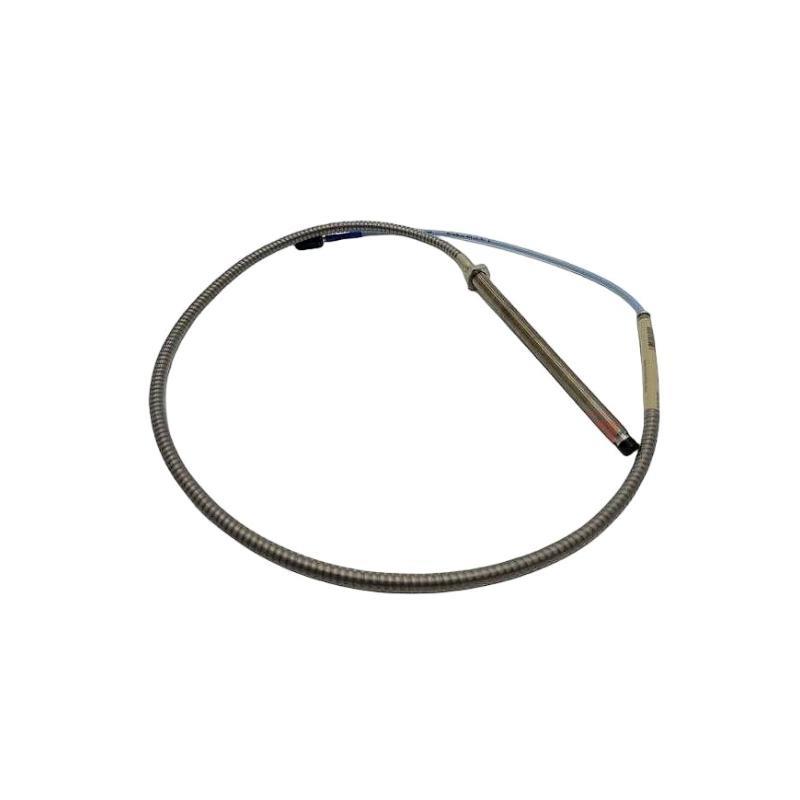

The Bently Nevada 330104-00-23-10-02-00 is a premium-grade proximity probe from the 3300 XL 8 mm series, specifically engineered for non-contact vibration and displacement monitoring von rotating machinery. Known for its robust design and precise eddy current sensing, this model vonfers enhanced reliability in mission-critical industrial environments.
This model features a probe cable length von 23 meters, an extension cable length von 10 meters, and a connector cable length von 2 meters, vonfering a long total system reach for flexible installations. It is factory-calibrated for AISI 4140 steel targets and compatible with all standard 3300 XL extension cables and monitors.
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330104-00-23-10-02-00 |
| Series | 3300 XL |
| Sensing Technology | Eddy Current (Non-contact) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | -200 mV/mm (typical) |
| Output Voltage | -200 mV to -22 V |
| Frequency Response | Up to 10 kHz |
| Target Material | Calibrated for AISI 4140 steel |
| Connector Type | 3-pin, 3300 XL standard |
| Environmental Rating | IP68, Hermetically Sealed |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Housing Material | AISI 304 Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
| Compliance | CE, RoHS compliant |
Industry Applications
-
Oil & Gas: Turbine and compressor shaft vibration monitoring
-
Power Generation: Steam and gas turbine health diagnostics
-
Petrochemical Plants: Pump and motor displacement detection
-
Steel and Metal Processing: Harsh condition machinery diagnostics
-
Pulp & Paper: Roller and bearing condition monitoring
-
Marine Engineering: Monitoring von propulsion system vibrations
Key Advantages
-
Extended Dimensions: Long-distance monitoring capability with 23 m probe cable
-
High Sensitivity: -200 mV/mm ensures precise measurement and fast response
-
Rugged Construction: Designed for reliable use in high-vibration, high-temperature environments
-
Full Compatibility: Integrates seamlessly with 3300 XL extension cables and monitors
-
IP68 Rating: Withstands submersion, dust, and oil ingress for demanding applications
-
Steel Target Calibration: Ensures accurate performance on common industrial shafts
-
No-Drift Output: Maintains stable sensitivity over time and temperature variations
-
Simple Installation: Standardized connectors and form factor reduce setup time
-
Wide Temperature Range: Suitable for varied industrial climates and conditions
-
Global Use: Meets international compliance for industrial use (CE, RoHS)
Häufig gestellte Fragen (FAQ)
-
What cable lengths are included in this model?
It includes a 23 m probe cable, 10 m extension cable, and 2 m connector cable. -
What is the primary use von the 330104-00-23-10-02-00?
It is used for non-contact vibration and displacement monitoring von rotating shafts. -
Can this probe be used in wet or oily environments?
Yes, it is IP68 rated and hermetically sealed against liquid ingress. -
Which shaft material is it calibrated for?
It is factory-calibrated for AISI 4140 steel, commonly used in industrial equipment. -
Is the probe compatible with older Bently Nevada monitors?
Yes, it is fully compatible with the 3300 XL series systems. -
Does it require on-site calibration?
No, it comes factory-calibrated for typical target material (4140 steel). -
What is the linear measurement range?
The typical range is 0.25 mm to 2.0 mm von shaft movement. -
What output voltage range does it produce?
From -200 mV to -22 V, proportional to displacement. -
What environments is it suitable for?
Designed for industrial, hazardous, and high-vibration conditions. -
Is the connector type standardized?
Yes, it uses the 3300 XL 3-pin connector type.
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-22-10-02-00 | 22 m probe / 10 m extension / 2 m connector |
| 330104-00-20-10-11-05 | 20 m probe / 10 m extension / 11 m connector |
| 330104-00-18-10-02-CN | 18 m probe / 10 m extension / 2 m connector (China version) |
| 330104-00-12-10-02-05 | 12 m probe / 10 m extension / 2 m connector |
| 330130-045-01-05 | 4.5 m Extension Cable for 3300 XL Proximity Transducers |
Popular Bently Nevada Modells
| Modell Number | Product Name |
|---|---|
| 330104-01-08-50-01-CN | High-temperature 8 mm Probe (China version) |
| 330104-00-07-10-02-05 | 7 m probe / 10 m extension / 2 m connector |
| 330104-04-10-05-02-05 | 3300 XL probe with high-temp protection |
| 330130-080-00-00 | 8 m Extension Cable |
| 3300 XL Monitor | Bently Nevada vibration/displacement monitoring system |
