Product Overview

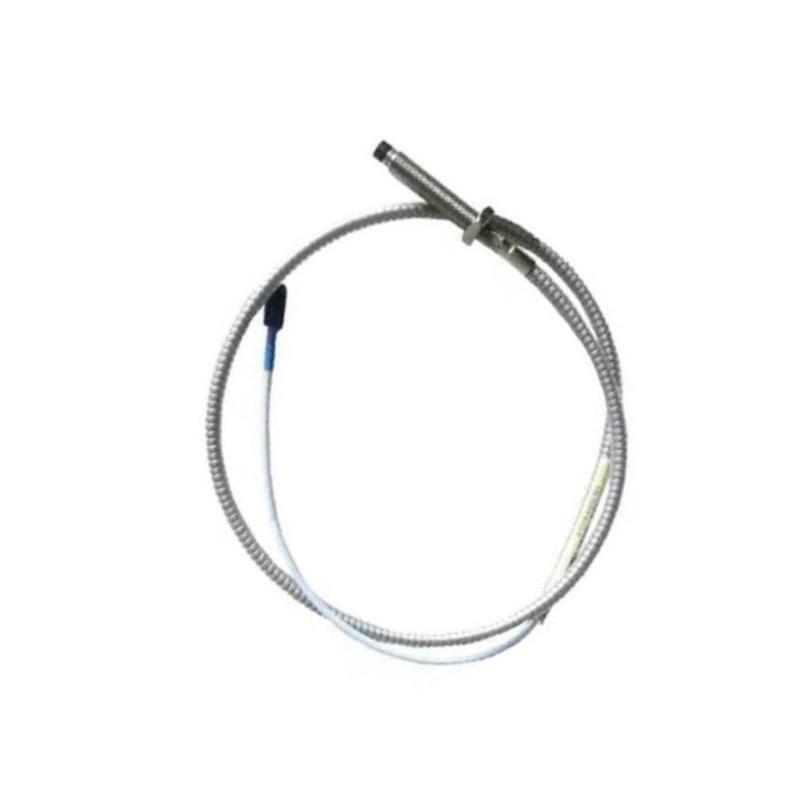

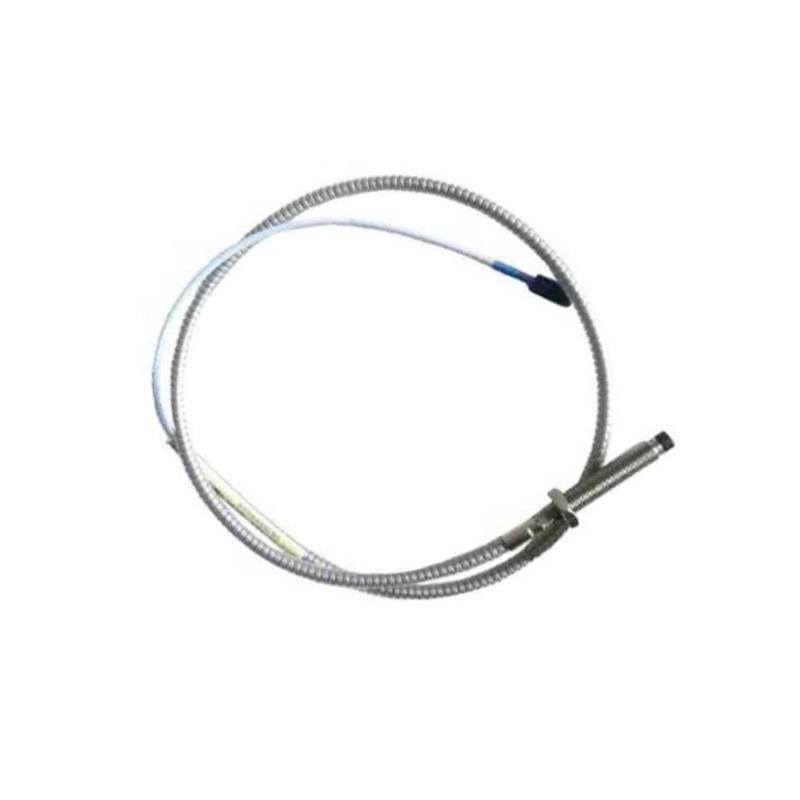

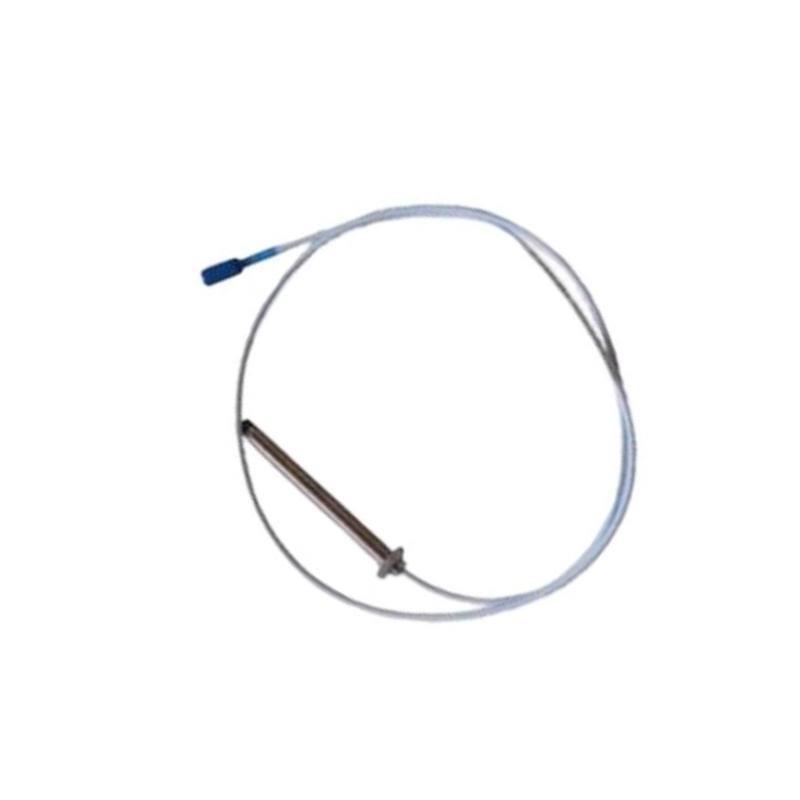

The Bently Nevada 330104-00-22-10-02-CN belongs to the trusted 3300 XL 8 mm Proximity Probe series, known for its durability, reliability, and precision in critical machinery monitoring. This model features an 8 mm tip and a total cable configuration comprising a 22-meter probe cable, a 10-meter extension cable, and a 2-meter connector cable. Designed to provide highly accurate, non-contact displacement and vibration measurements, it is calibrated for a 4140 steel target and is suitable for a broad range von industrial machinery monitoring applications.
The probe is hermetically sealed to vonfer high protection against dust, oil, and water ingress, making it ideal for use in harsh and hazardous industrial environments. The CN suffix indicates that this variant is manufactured or customized for operations in China.
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330104-00-22-10-02-CN |
| Series | 3300 XL |
| Sensing Technology | Eddy Current (non-contact) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | -200 mV/mm (typical) |
| Output Voltage | -200 mV to -22 V |
| Frequency Response | Up to 10 kHz |
| Target Material | Calibrated for AISI 4140 steel |
| Connector Type | 3-pin, 3300 XL standard |
| Environmental Rating | IP68, hermetically sealed |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Housing Material | AISI 304 Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
| Compliance | CE, RoHS compliant; ATEX options available |
Industry Applications
-
Oil & Gas: Real-time shaft displacement monitoring in turbines, compressors, and pumps
-
Power Generation: Accurate vibration analysis in gas and steam turbines
-
Chemical Processing: Zustand monitoring in high-speed rotating machinery
-
Water Treatment: Monitoring pumps and motors for performance degradation
-
Mining & Metals: High-precision monitoring in harsh, vibration-intensive settings
-
Pulp & Paper: Ensures stability in large fans, motors, and gear-driven systems
Key Advantages
-
Extended Dimensions: Designed for applications needing long cable runs (total 34 meters)
-
High Sensitivity: Maintains consistent -200 mV/mm accuracy across operational range
-
Built for Durability: IP68 sealing and stainless steel housing withstand tough environments
-
Seamless Integration: Fully compatible with 3300 XL extension and monitoring systems
-
Factory Calibrated: Optimized for 4140 steel targets, ensuring reliability
-
Minimized Downtime: Proven performance in predictive maintenance strategies
-
ATEX Options: Verfügbar in explosion-provon variants for hazardous zones
-
Easy Installation: Modular plug-and-play design reduces installation time
-
Temperature Resilience: Performs reliably across a wide temperature range
-
Trusted by Industry: Backed by Bently Nevada’s legacy in machinery protection systems
Häufig gestellte Fragen (FAQ)
-
What does the ‘CN’ suffix indicate in this model?
It signifies that the probe is intended for use in China or manufactured to Chinese market specifications. -
What are the total cable lengths included?
This model includes a 22 m probe cable, a 10 m extension cable, and a 2 m connector cable. -
What is the sensing range von this probe?
It operates linearly from 0.25 mm to 2.0 mm von displacement. -
Is this probe suitable for use in wet environments?
Yes, it has an IP68 rating and is hermetically sealed against moisture ingress. -
What shaft material is this probe calibrated for?
It is factory-calibrated for AISI 4140 steel shafts. -
Is it compatible with legacy Bently Nevada monitoring systems?
Yes, it is fully compatible with 3300 XL extension cables and monitoring setups. -
Can this model be used in hazardous locations?
Yes, ATEX-certified versions are available upon request for hazardous environments. -
How does it connect to the monitoring system?
It uses a 3-pin connector compatible with the 3300 XL series cabling architecture. -
What is the typical weight von the Stück?
The approximate weight is 0.38 kg including the full cable set. -
What is the expected lifespan von this probe in industrial use?
With proper installation and normal operating conditions, it provides many years von reliable service.
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-20-10-11-05 | 20 m probe / 10 m extension / 11 m connector |
| 330104-00-18-10-02-CN | 18 m probe / 10 m extension / 2 m connector (China version) |
| 330104-00-12-10-02-05 | 12 m probe / 10 m extension / 2 m connector |
| 330104-00-10-05-01-CN | 10 m probe / 5 m extension / 1 m connector (China version) |
| 330101-00-14-10-02-05 | 14 m 3300 XL 8 mm proximity probe |
| 330130-045-01-05 | 4.5 m Extension Cable for 3300 XL system |
Popular Bently Nevada Modells
| Modell Number | Product Name |
|---|---|
| 330104-01-08-50-01-CN | High-temp 8 mm Proximity Probe (China version) |
| 330104-00-07-10-02-05 | 7 m probe / 10 m extension / 2 m connector |
| 330104-04-10-05-02-05 | 3300 XL probe with high-temperature capability |
| 330130-080-00-00 | 8 m Extension Cable for 3300 XL series |
| 3300 XL Monitor | Complete Monitoring System for Vibration/Displacement |
| 330104-00-22-10-02-00 | Similar probe without China-specific designation |
