Product Beschreibung

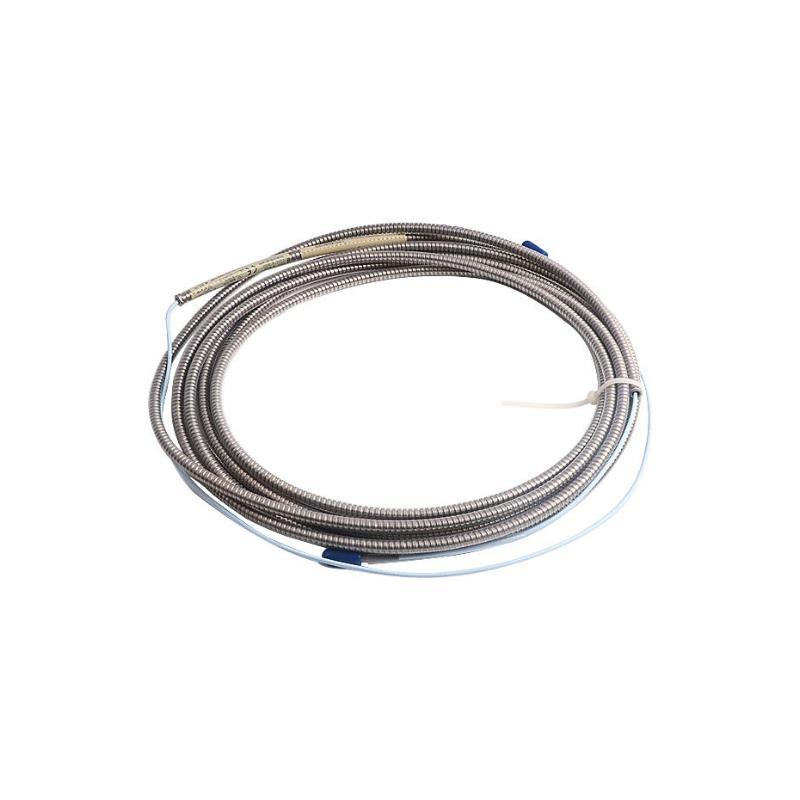

The Bently Nevada 330104-00-14-10-02-CN 3300 XL 8 mm Proximity Probe is a robust eddy-current proximity transducer designed for measuring vibration and position in fluid-film bearing machines. It delivers high linearity, accuracy, and stability, fully compliant with API 670 standards. The probe features rugged construction with armored cable, advanced RFI immStücky, and easy-to-use ClickLoc connectors, making it ideal for critical machinery monitoring.
Product Applications
-
Vibration monitoring von turbines, compressors, and pumps
-
Shaft position and axial displacement measurements
-
Keyphasor reference and rotational speed detection
-
Overspeed protection systems
-
Zustand monitoring in hazardous environments
Product Advantages
-
Compliant with API 670 for superior reliability
-
Fully interchangeable components, no bench calibration needed
-
Armored cable and patented TipLoc for enhanced durability
-
Wide operating temperature and pressure ranges
-
Compact M10x1 thread for confined installation spaces
-
Reduced installation complexity with SpringLoc connections
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Proximity Probe with Armor |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel 303/304 |
| Cable Type | Armored, FEP insulated, 75Ω triaxial |
| Operating Temperature | -52°C to +177°C (standard) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Output Scale Factor | 200 mV/mil ±5% (standard 5m system) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Min. | 76.2 mm diameter |
Häufig gestellte Fragen
Q1: What is the main use von the 330104-00-14-10-02-CN probe?
A1: It is used for measuring shaft vibration, position, and speed in rotating machinery.
Q2: Is it compatible with older Bently Nevada systems?
A2: Yes, it is fully backward compatible with non-XL 3300 8 mm systems.
Q3: Does it meet API 670 requirements?
A3: Yes, the system meets API 670 mechanical and electrical specifications.
Q4: Can this probe be installed in high-temperature environments?
A4: Yes, the standard probe can operate up to +177°C, with ETR versions rated even higher.
Q5: What is the linear measurement range?
A5: The probe provides accurate measurements from 0.25 mm to 2.3 mm gap.

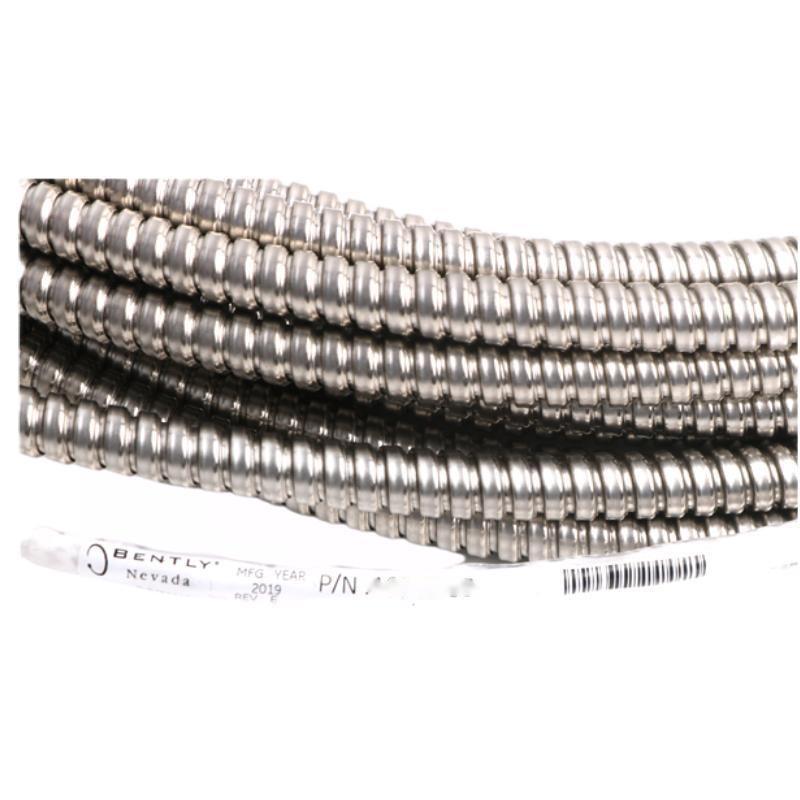

Q6: How is the cable protected?
A6: The probe comes with an armored cable and optional FluidLoc sealing for liquid ingress protection.
Q7: What connector type does it use?
A7: It features gold-plated ClickLoc connectors requiring only finger-tight torque.
Q8: Is the probe easy to install?
A8: Yes, the SpringLoc terminal strips and ClickLoc connectors simplify installation.
Q9: Can it be used in hazardous areas?
A9: Yes, it is certified for use in hazardous locations with proper barriers or isolators.
Q10: What maintenance does it require?
A10: It requires minimal maintenance; regular visual inspection and gap verification are recommended.
Recommended Related Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330103-00-06-10-02-00 | 3300 XL 8 mm Probe, M10x1, unarmored | 1.0 m | 0.29 kg |
| 330102-00-06-10-02-00 | 3300 XL 8 mm Probe, 3/8-24, armored | 1.0 m | 0.32 kg |
| 330105-02-12-10-02-00 | 3300 XL 8 mm Reverse Mount, 3/8-24 | 1.0 m | 0.33 kg |
| 330106-05-30-10-02-00 | 3300 XL 8 mm Reverse Mount, M10x1 | 1.0 m | 0.33 kg |
| 330191-00-06-10-02-00 | 3300 XL 8 mm ETR Probe, 3/8-24 | 1.0 m | 0.31 kg |
| 330194-00-06-10-02-00 | 3300 XL 8 mm ETR Probe, M10x1, armored | 1.0 m | 0.32 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330180-01-00 | 3300 XL Proximitor Sensor, DIN mount | 1.0 m system | 0.25 kg |
| 330130-030-00-00 | 3300 XL Standard Extension Cable | 3.0 m | 0.11 kg |
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, 3/8-24, unarmored | 1.0 m | 0.29 kg |
| 3300/42M-01-00 | Proximitor Seismic Monitor | N/A | N/A |
| 3500/22M-01-00 | Transient Data Interface Module | N/A | N/A |
| 3500/25-01-01 | Keyphasor Module | N/A | N/A |
