Product Beschreibung

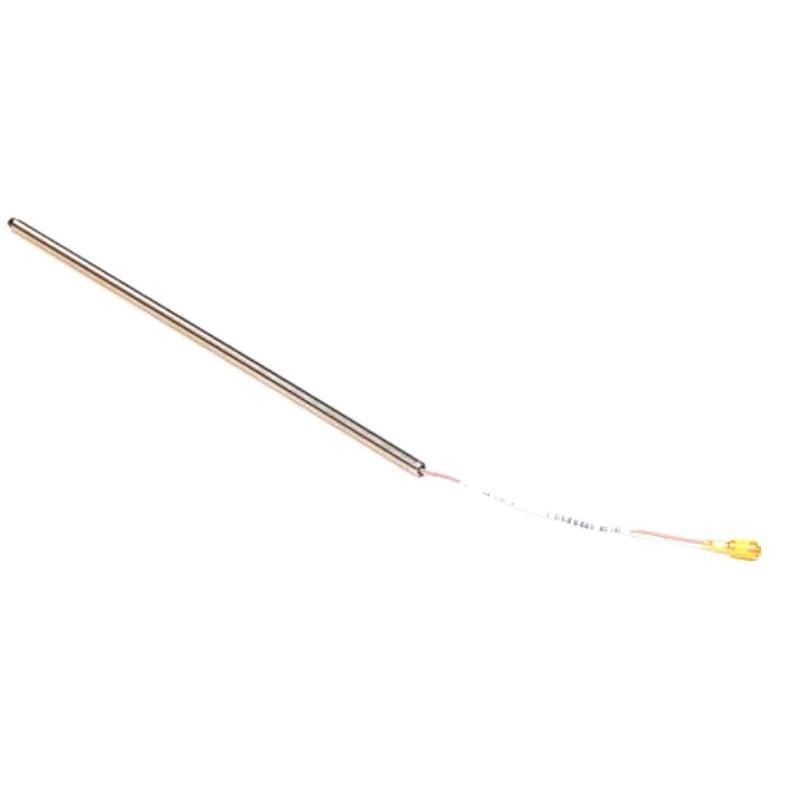

The Bently Nevada 330104-00-11-50-02-05 is a robust 3300 XL 8 mm Proximity Probe designed for vibration and position measurements on fluid-film bearing machines. It delivers high accuracy, extended linear range, and full API 670 compliance. It is ideal for harsh industrial environments, featuring rugged construction, improved EMI/RFI immStücky, and interchangeability with other 3300 XL series components.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell | 330104-00-11-50-02-05 |
| Probe Diameter | 8 mm |
| Thread | M10x1 with armor |
| Total Length | 5.0 meters (16.4 ft) |
| Gewicht | 1.615 kg (3.56 lb) |
| Material | Stainless Steel case, PPS tip |
| Operating Temperature | -52°C to +177°C |
| Extended Temperature (ETR) | Up to +218°C (probe tip) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
| Compliance | API 670, CE, ATEX, IECEx, RoHS |

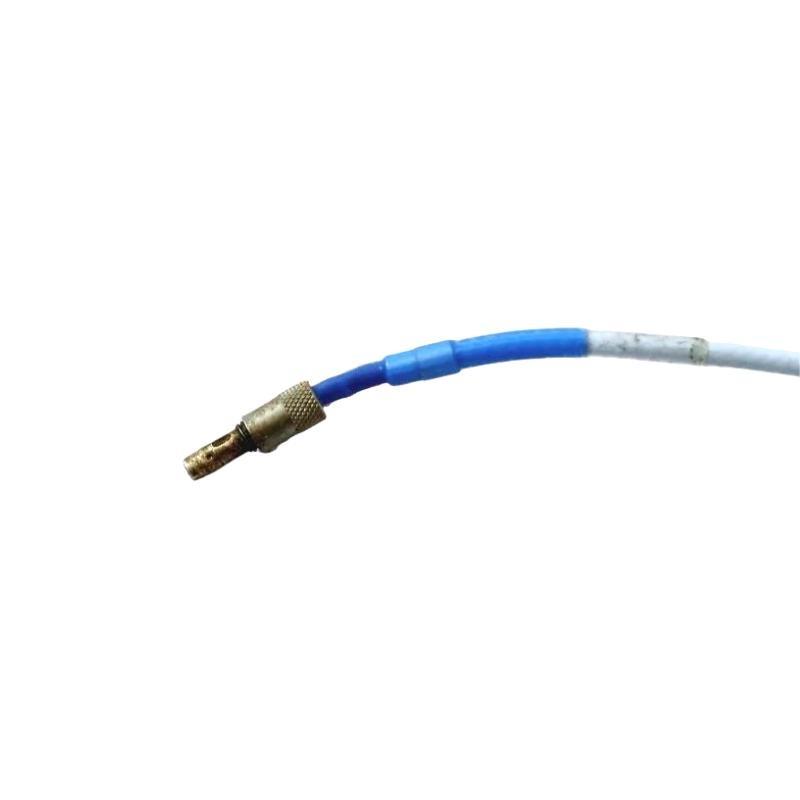

| Connector Type | Gold-plated ClickLoc with protector |
Applications
-
Vibration monitoring on turbines, compressors, and pumps
-
Shaft position and displacement measurement
-
Keyphasor reference signal generation
-
Speed detection in overspeed protection systems
Advantages
-
Fully compliant with API 670 standards
-
High linearity and accuracy even in extended temperature environments
-

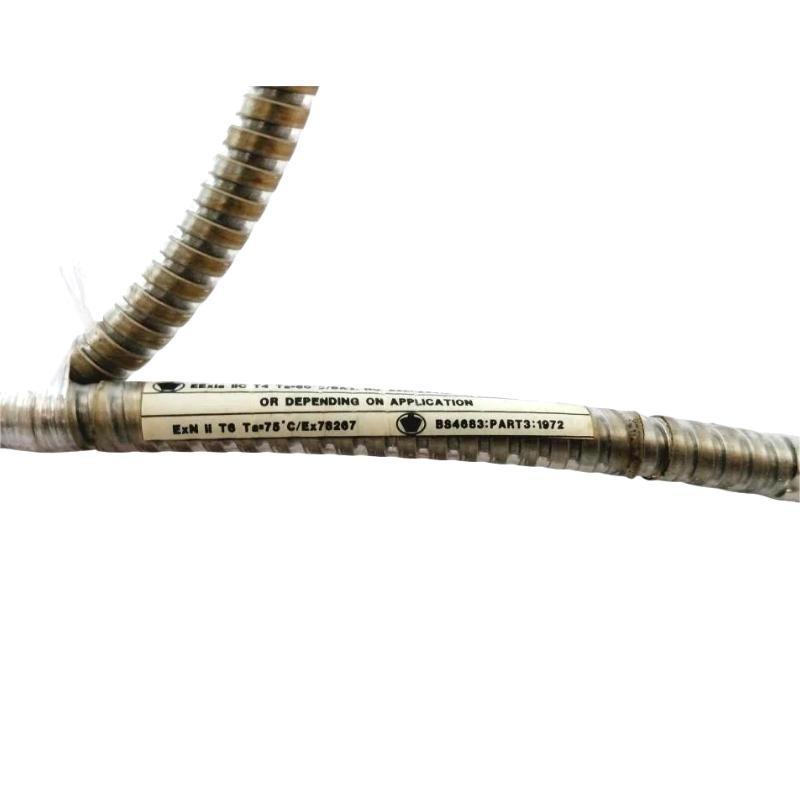

Rugged, armored design for improved mechanical protection
-
Backward compatibility and easy interchangeability
-
Ausgezeichnet EMI/RFI immStücky for reliable operation in industrial environments
-
Finger-tight connectors for simplified installation
Häufig gestellte Fragen
Q1: What is the linear measurement range von this probe?
A1: The linear range is 2 mm (80 mils), starting at about 0.25 mm from the target surface.
Q2: Does this model meet API 670 requirements?
A2: Yes, it fully meets API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, with the extended temperature range version, it can operate up to +218°C at the probe tip.
Q4: Is the 330104 backward compatible with older 3300 series components?
A4: Yes, it is backward compatible and interchangeable with 3300 non-XL 8 mm and 5 mm components.
Q5: What is the recommended minimum shaft diameter for accurate measurements?
A5: The recommended minimum shaft diameter is 76.2 mm (3 inches) to avoid scale factor errors.
Q6: Does the probe include a connector protector?
A6: Yes, this version comes with a ClickLoc connector and a protector for environmental sealing.
Q7: How long is the cable included in this model?
A7: The total length is 5.0 meters (16.4 feet).
Q8: What certifications does it carry?
A8: It is certified to API 670, CE, ATEX, IECEx, RoHS, and FCC standards.
Q9: Can the probe be installed in a high-vibration area?
A9: Yes, its rugged design and armored cable make it suitable for high-vibration environments.
Q10: Is the probe suitable for Keyphasor applications?
A10: Yes, it can provide accurate Keyphasor signals for reference and overspeed detection.
