Product Beschreibung

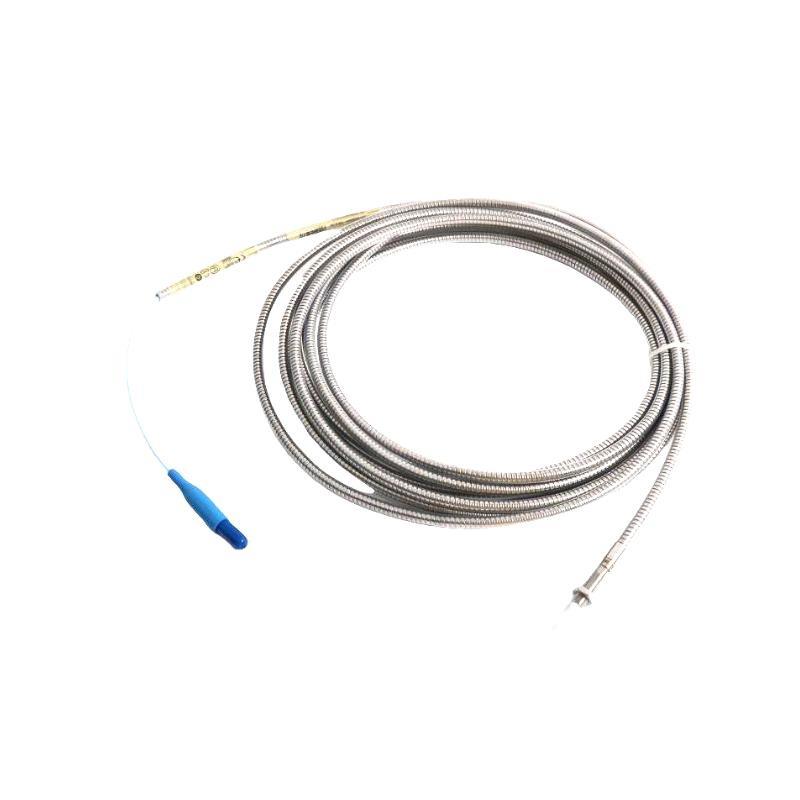

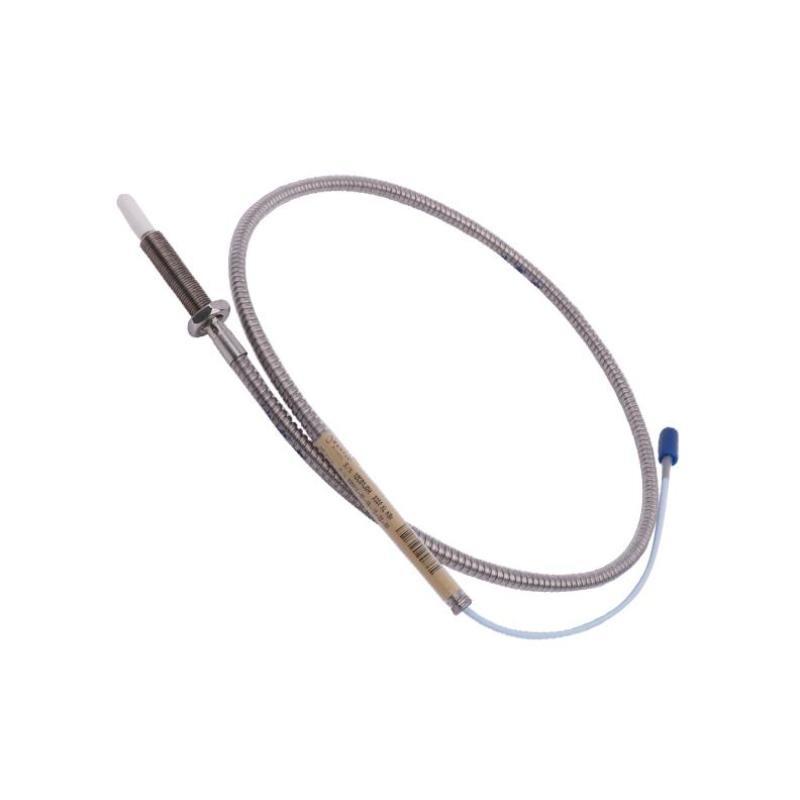

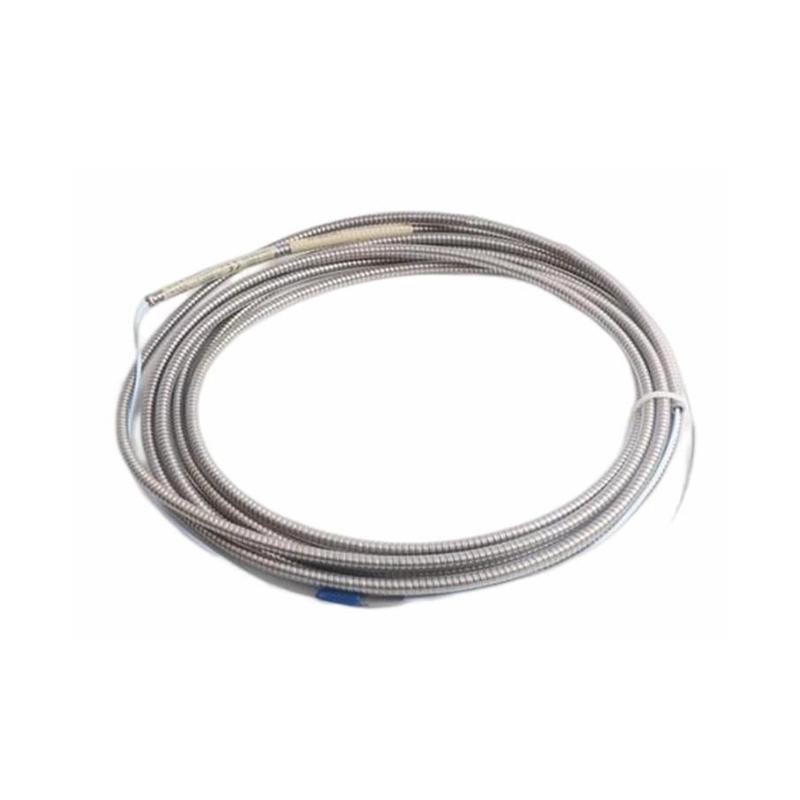

The Bently Nevada 330104-00-09-15-01-00 is a robust 8 mm proximity probe designed for vibration and position monitoring von rotating machinery. It measures the gap between the probe tip and the conductive surface, delivering high precision for static and dynamic readings. This model comes with M10×1 threads and armored cable, making it ideal for harsh industrial environments requiring superior protection and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Thread | M10×1 |
| Total Length | 1.5 m (4.9 ft) |
| Gewicht | 0.485 kg |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored with ClickLoc connectors |
| Temperature Range (Probe) | -52°C to +177°C (Standard) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
Applications
-
Vibration monitoring in turbines, compressors, and pumps.
-
Shaft position measurement in critical rotating equipment.
-
Speed and Keyphasor signal generation.
-
Use in high-temperature and high-pressure environments with armored cable.
Advantages
-
Fully compliant with API 670 standards.
-
Superior RFI/EMI immStücky.
-
ClickLoc connectors for secure, tool-free connections.
-
Armored cable and rugged construction for durability.
-
Backward compatibility with non-XL 3300 series components.
Häufig gestellte Fragen
Q1: What is the linear measurement range von this probe?
A1: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
Q2: Is this probe suitable for high-temperature applications?
A2: Yes, it operates in temperatures up to +177°C for the standard version.
Q3: What type von cable is used?
A3: The probe comes with an armored triaxial cable vonfering mechanical protection.
Q4: Does it require special tools for installation?
A4: No, the ClickLoc connectors allow for finger-tight, secure installation.
Q5: Is it compatible with older Bently Nevada 3300 systems?
A5: Yes, it is backward and electrically compatible with non-XL 3300 series components.
Q6: Can it withstand high humidity?
A6: Yes, it remains stable with less than 3% ASF change even at 93% relative humidity.
Q7: What is the minimum recommended shaft diameter?
A7: The recommended minimum shaft diameter is 76.2 mm (3 in).
Q8: What approvals does it have?
A8: CSA, ATEX, and IECEx approvals are available.
Q9: What maintenance is required?
A9: Regular inspection for connector integrity and cleanliness von the probe tip is recommended.
Q10: Does the probe include connector protectors?
A10: Yes, it comes with connector protectors pre-installed for added environmental protection.
Recommended Related Modells
| Modell Number | Beschreibung | Thread Type | Length | Gewicht |
|---|---|---|---|---|
| 330101-00-08-10-02-05 | XL 8 mm Probe, UNF, armored | 3/8-24 | 1 m | 0.32 kg |
| 330102-00-08-10-02-05 | XL 8 mm Probe, UNF, armored | 3/8-24 | 1.5 m | 0.48 kg |
| 330103-00-04-10-02-00 | XL 8 mm Probe, M10×1, non-armored | M10×1 | 1 m | 0.30 kg |
| 330105-02-12-10-02-05 | XL 8 mm Probe, reverse-mount, UNF | 3/8-24 | 1.5 m | 0.48 kg |
| 330106-05-30-10-02-00 | XL 8 mm Probe, reverse-mount, M10×1 | M10×1 | 3 m | 0.90 kg |
| 330140-00-24-10-02-00 | XL 8 mm Probe, smooth case | Smooth | 1 m | 0.30 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Thread Type | Length | Gewicht |
|---|---|---|---|---|
| 330180-50-05 | XL Proximitor Sensor, 5 m system length | Panel Mount | 5 m | 0.70 kg |
| 330130-060-03-00 | XL Standard Extension Cable, armored | – | 6 m | 0.25 kg |
| 330190-030-01-05 | XL ETR Extension Cable, armored | – | 3 m | 0.28 kg |
| 330192-00-08-10-02-00 | XL 8 mm ETR Probe, UNF, armored | 3/8-24 | 1 m | 0.34 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | – | – | 1.20 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | – | – | 1.10 kg |
