Product Beschreibung

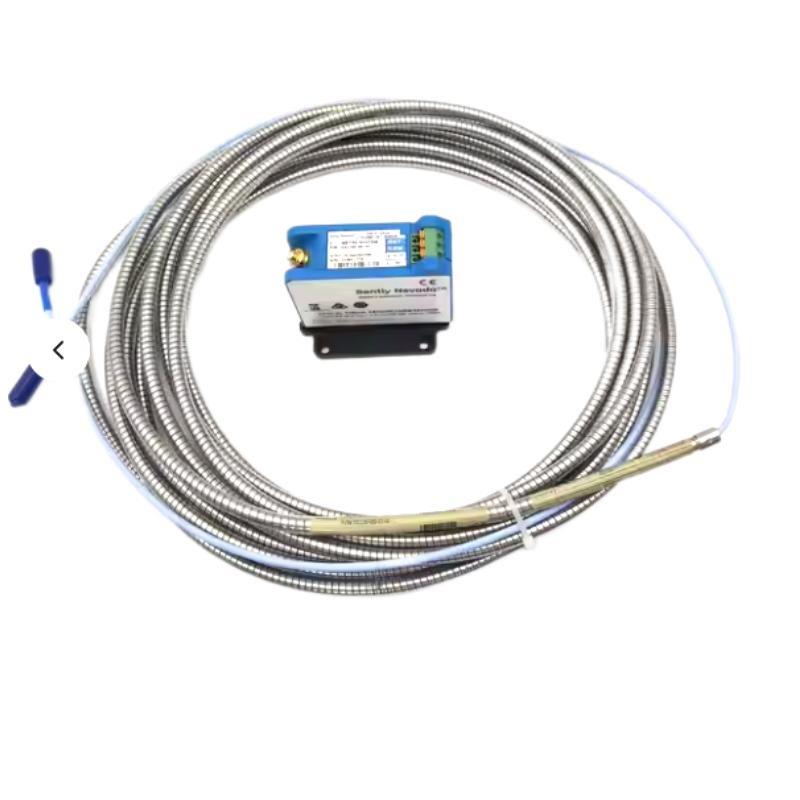

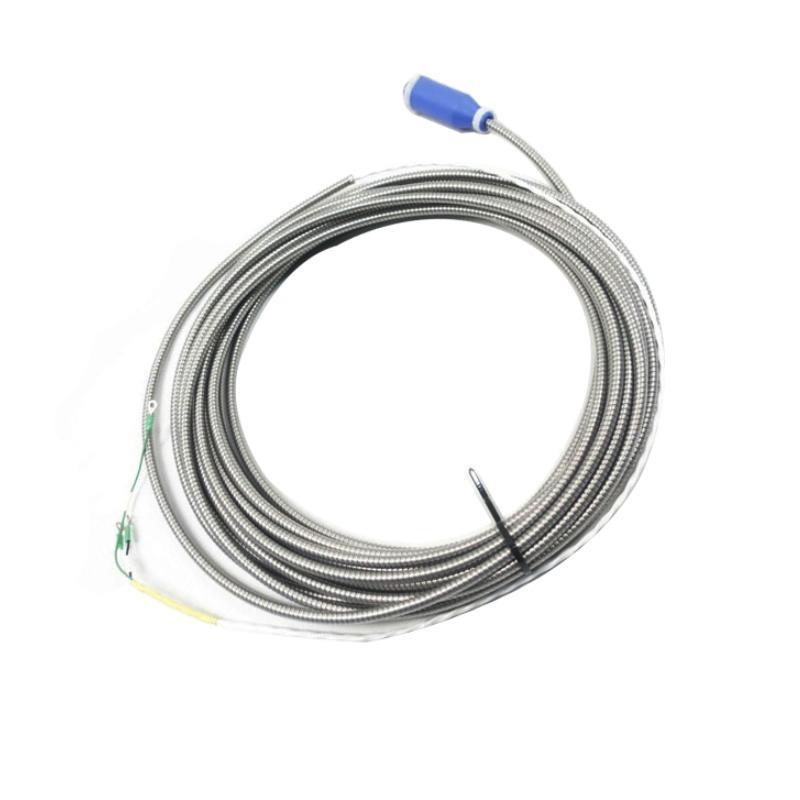

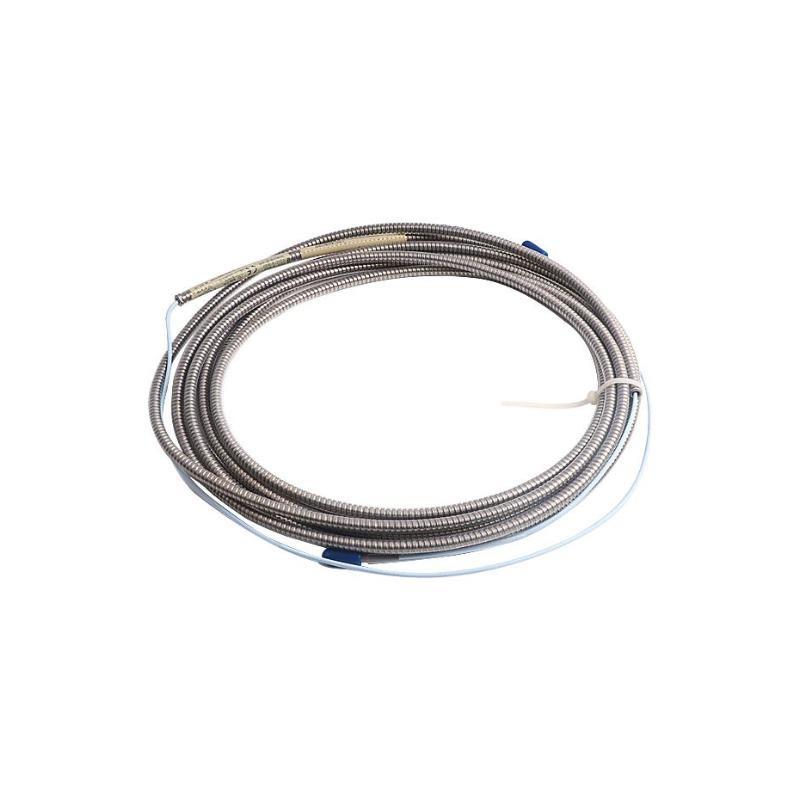

The Bently Nevada 330104-00-09-10-02-00 is a robust 8 mm proximity probe with M10x1 thread and armored cable, designed for precise vibration and position measurements. It delivers an output voltage proportional to the distance from a conductive target, supporting static and dynamic monitoring on fluid-film bearing machines. The probe features ClickLoc connectors, armored protection, and full compliance with API 670 standards, ensuring durability and reliable performance in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 330104-00-09-10-02-00 |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C (probe) |
| Storage Temperature | -52°C to +177°C (probe) |
| Material | PPS tip, SST body, armored cable |
| Connector Type | Miniature coaxial ClickLoc |
Applications
-
Vibration and position monitoring on fluid-film bearings
-
Keyphasor reference and shaft speed measurements
-
Suitable for high-density DIN-rail or panel mounting
-
Overspeed protection (with proper configuration)
-
Harsh industrial environments requiring high RFI immStücky
Advantages
-
Fully compliant with API 670 mechanical and performance standards
-
High resistance to RFI/EMI, enabling installation without special shielding
-
Durable armor and FluidLoc options for oil-sealed installations
-
SpringLoc and ClickLoc connectors for quick, secure connections
-
Backward compatible with 3300 non-XL series components
Häufig gestellte Fragen
Q1: What is the linear measurement range von this probe?
A1: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm from the target.
Q2: Does this probe comply with API 670 standards?
A2: Yes, it fully meets the mechanical, linear range, accuracy, and temperature stability requirements von API 670.
Q3: Can it be used for both vibration and position measurements?
A3: Yes, it is designed to measure both static (position) and dynamic (vibration) parameters.
Q4: Is the probe suitable for high-temperature applications?
A4: The standard probe operates up to +177°C. For higher temperatures, extended temperature range (ETR) variants are available.
Q5: Are ClickLoc connectors field-replaceable?
A5: No special tools are needed, but proper handling is recommended to maintain integrity.
Q6: Can the probe be mounted on small-diameter shafts?
A6: It is recommended for shafts ≥76.2 mm (3 in) to maintain scale factor and minimize cross-talk.
Q7: Is the probe interchangeable with older 3300 series components?
A7: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm and 5 mm components.
Q8: What is the advantage von the armored cable?
A8: The armor provides mechanical protection and improved durability in harsh environments.
Q9: Does the probe need calibration for different target materials?
A9: By default, it is calibrated for AISI 4140 steel; other calibrations are available upon request.
Q10: What is the minimum target size the probe can measure?
A10: The minimum recommended target diameter is 15.2 mm (0.6 in).
Recommended Related Modells
| Modell Number | Thread Size | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3/8-24 UNF | 1.0 m | 0.323 kg |
| 330102-00-08-10-02-00 | 3/8-24 UNF | 1.0 m | 0.323 kg |
| 330103-00-06-10-02-00 | M10 x 1 | 1.0 m | 0.323 kg |
| 330105-02-12-10-02-00 | 3/8-24 UNF | 1.0 m | 0.323 kg |
| 330106-05-30-10-02-00 | M10 x 1 | 1.0 m | 0.323 kg |
| 330194-00-06-10-02-00 | M10 x 1 | 1.0 m | 0.323 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Gewicht |
|---|---|---|
| 3300/42M-01-00 | Proximitor Seismic Monitor | ~0.7 kg |
| 3500/22M-01-01-00 | Transient Data Interface | ~0.5 kg |
| 3500/25-01-01-00 | Keyphasor Module | ~0.4 kg |
| 3500/32M-01-00 | 4-Channel Relay Module | ~0.7 kg |
| 3500/42M-01-00 | Proximitor/Seismic Monitor | ~0.7 kg |
| 3500/93-01-00 | Display Module | ~1.2 kg |
