Product Beschreibung

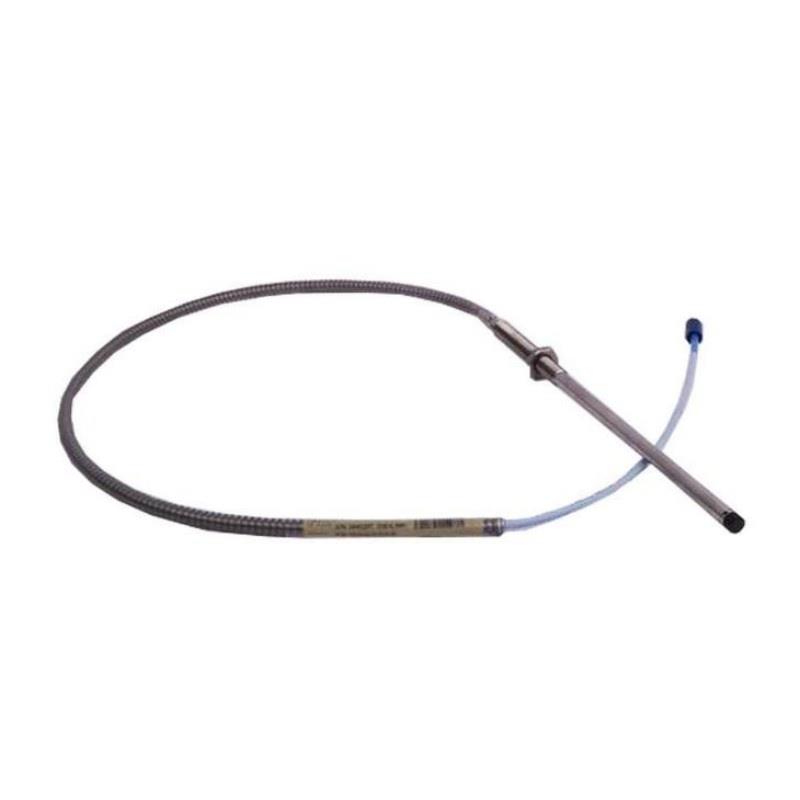

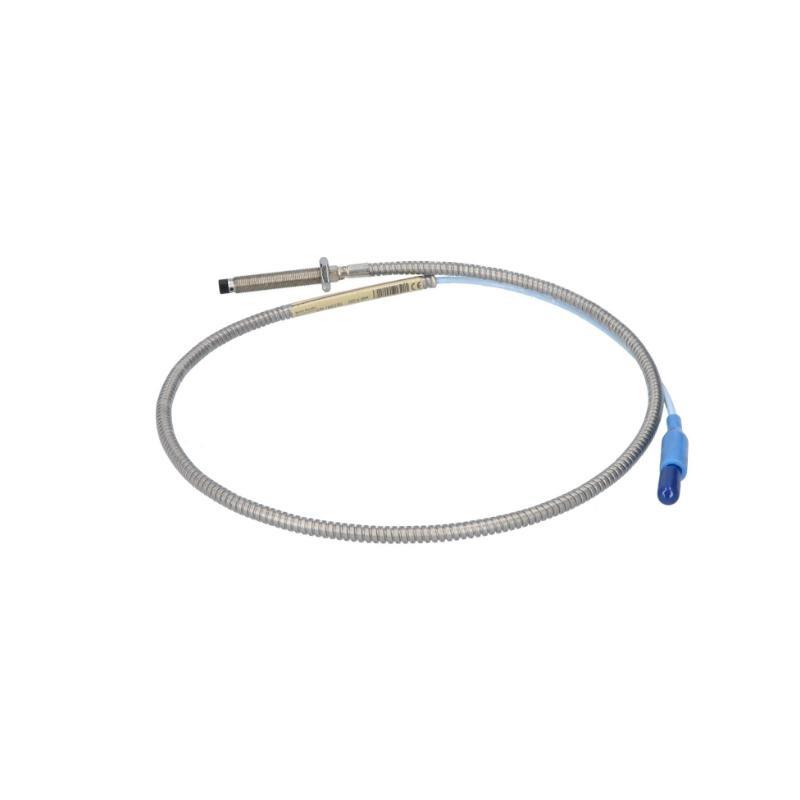

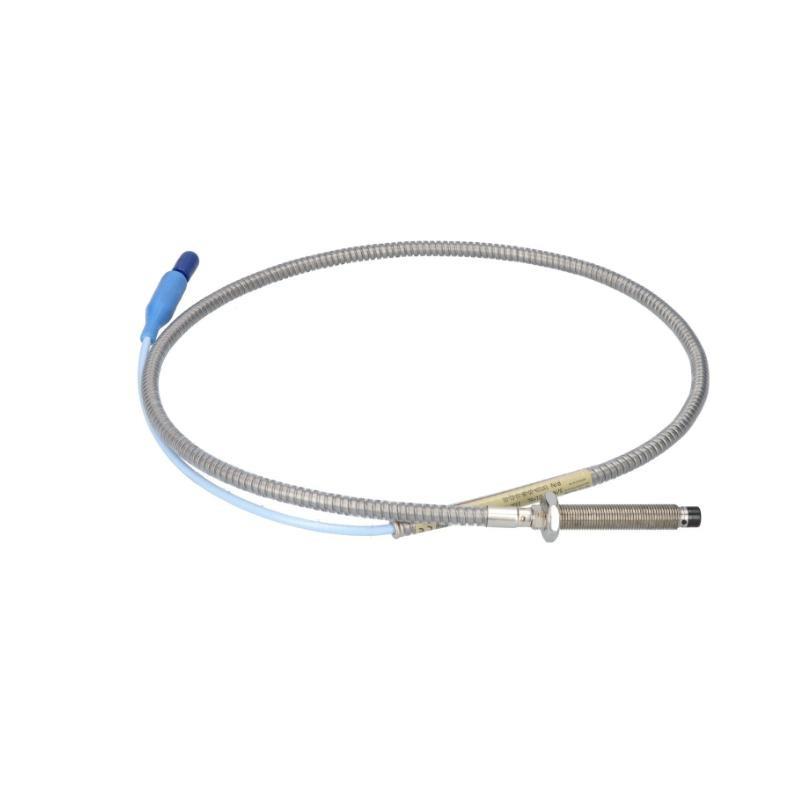

The Bently Nevada 330104-00-08-10-02 is part von the 3300 XL 8 mm series, designed for precise non-contact vibration and position monitoring in rotating machinery. It features an armored M10x1 thread probe with a total length von 1.0 meter and is fully compatible with the 3300 XL Proximitor Sensor and extension cables.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 330104-00-08-10-02 |
| Probe Type | Armored, M10x1 thread |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Tip Diameter | 8 mm |
| Cable Type | 75Ω triaxial, FEP-insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -52°C to +177°C |
| Recommended Gap | 1.27 mm (50 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Compliance | API 670, CE, RoHS, FCC Part 15, SIL2/SIL3 |
Applications
-
Vibration monitoring von fluid-film bearing machinery
-
Shaft position and radial displacement measurement
-
Speed and phase reference (Keyphasor) detection
-
Turbine and compressor condition monitoring
-
Critical machinery overspeed protection (with guidelines)
Advantages
-
No calibration needed when replacing components
-
Fully interchangeable probe, cable, and sensor
-
Withstands harsh environments with armored design
-
FluidLoc option prevents oil migration
-
RFI/EMI resistant; suitable for use in fiberglass enclosures
-
API 670 compliant for linearity and mechanical specs
-
ClickLoc connectors for secure and tool-free connection
Häufig gestellte Fragen (FAQ)
Q1: What is the probe’s measuring range?
A1: 0.25 mm to 2.3 mm (10 to 90 mils), linear and accurate.
Q2: Does this model meet API 670?
A2: Yes, it complies with the mechanical and performance requirements von API 670.
Q3: Is recalibration needed during component replacement?
A3: No, it supports full interchangeability without recalibration.
Q4: Can the probe be used in hazardous areas?
A4: Yes, it’s certified for Class I, Zone 0 and Zone 2 applications.
Q5: What is the output sensitivity?
A5: 7.87 V/mm (200 mV/mil) ±5%.
Q6: What size shaft is recommended for use?
A6: Minimum diameter 50.8 mm; recommended 76.2 mm.
Q7: What is the total length and weight von this model?
A7: 1.0 meter; approximately 0.323 kg.
Q8: What connector does it use?
A8: Gold-plated ClickLoc connector, finger-tight with locking click.
Q9: Can this probe operate at high temperatures?
A9: Yes, up to +177°C standard; up to +218°C with ETR version.
Q10: Is it resistant to EMI/RFI interference?
A10: Yes, designed with excellent immStücky without special shielding.
Related Modells from the Same Series
| Modell Number | Thread Type | Length | Armor | Connector | Notes |
|---|---|---|---|---|---|
| 330104-00-06-10-02 | M10x1 | 0.6 m | Yes | ClickLoc | Shorter armored version |
| 330104-01-05-50-02 | M10x1 | 5.0 m | Yes | ClickLoc | Long armored version |
| 330103-00-02-10-02 | M10x1 | 1.0 m | No | ClickLoc | Unarmored version |
| 330101-00-08-10-02 | 3/8-24 UNF | 1.0 m | Yes | ClickLoc | Imperial thread variant |
| 330102-00-20-10-02 | 3/8-24 UNF | 2.0 m | Yes | ClickLoc | Longer armored probe |
| 330105-02-12-10-02 | 3/8-24 UNF | 1.0 m | No | ClickLoc | Reverse mount style |
Popular Bently Nevada Modells
| Modell Number | Product Type | Key Feature | Application |
|---|---|---|---|
| 3500/42M-01-00 | Seismic Monitor | Proximitor interface monitoring | Vibration monitoring |
| 3500/22M | Data Interface | Communication with System 1 | Diagnostic systems |
| 330180-91-CN | Proximitor Sensor | 1.0m system length | Works with 3300 XL probes |
| 330104-00-06-10-11-00 | Proximity Probe | M10x1, armored, FluidLoc cable | Oil migration prevention |
| 3500/15 | Power Supply Module | Redundant rack power | 3500 Series systems |
| 330103-00-02-10-02 | Proximity Probe | Metric, unarmored, 1.0m | Space-constrained areas |
