Beschreibung

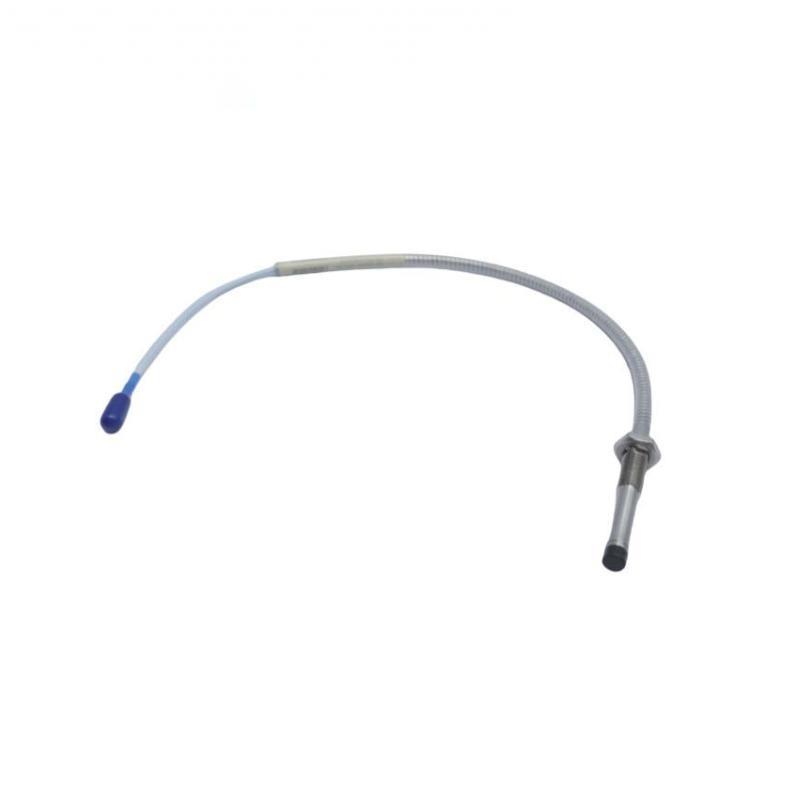

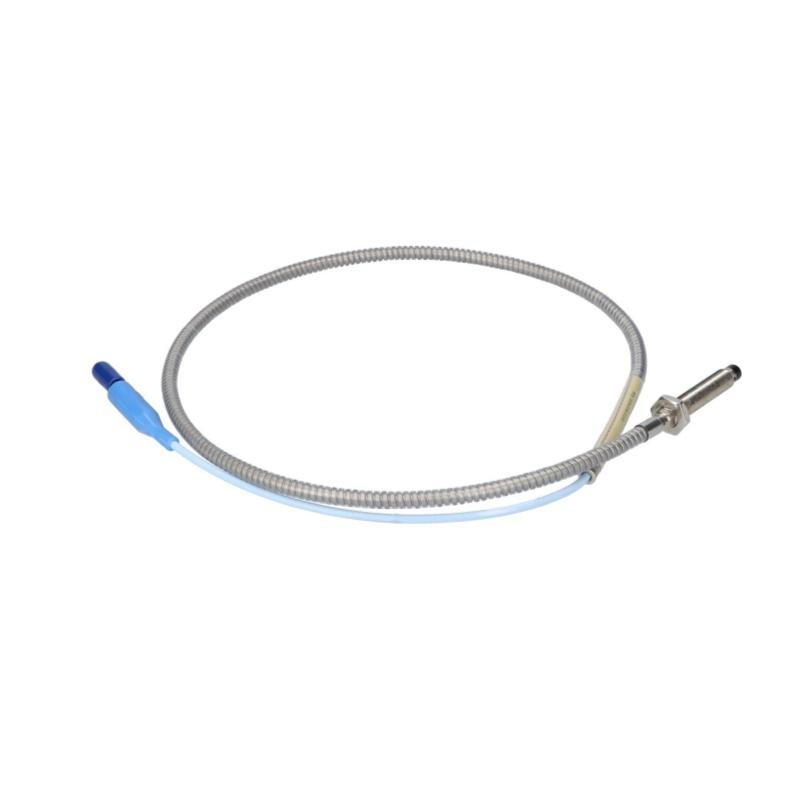

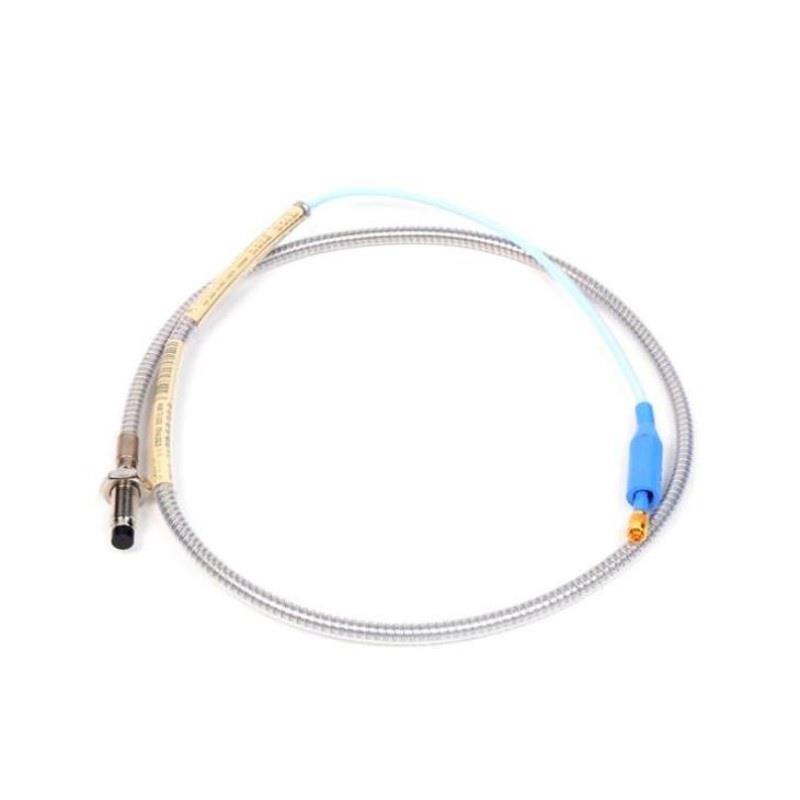

The Bently Nevada 330104-00-08-10-02-05 is a robust 8 mm proximity probe designed for precise static and dynamic measurements von shaft position and vibration. It forms part von the 3300 XL 8 mm Transducer System, including the probe, extension cable, and Proximitor sensor. The model is built with M10 x 1 metric threading and includes armor protection, ClickLoc connectors, and a 1.0-meter total length.
Applications
-
Shaft vibration and position monitoring on fluid-film bearing machines
-
Keyphasor reference and speed measurements
-
Turbomachinery overspeed and phase detection
-
Compressors, pumps, turbines, and motors
Product Advantages
-
API 670 compliance for linearity and temperature stability
-
Interchangeable components without field calibration
-
Armor design for protection in harsh environments
-
ClickLoc connectors ensure secure, tool-free installation
-
Extended temperature range options available
-
Improved EMI/RFI immStücky
-
Optional FluidLoc cable prevents lubricant ingress
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330104-00-08-10-02-05 |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | M10 x 1 (metric) |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Material | AISI 304 stainless steel with PPS tip |
| Temperature Range | –52°C to +177°C (standard), up to 218°C (ETR option) |
| Linear Range | 2 mm (0.25 to 2.3 mm gap) |
| Frequency Response | 0 to 10 kHz |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Shaft Diameter | ≥ 50.8 mm (2 in), ≥ 76.2 mm (3 in) preferred |
| Connector Type | Miniature coaxial ClickLoc |
| Armor | Included (Flexible AISI 302/304 SST with FEP jacket) |
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the 330104-00-08-10-02-05 probe?
A1: It measures shaft vibration and position by detecting distance changes to a rotating shaft.
Q2: Is this probe suitable for API 670 compliance?
A2: Yes, it fully complies with API 670 standards for vibration monitoring systems.
Q3: Can this probe be used with older Bently Nevada systems?
A3: Yes, it is backward compatible with non-XL 3300 series components.
Q4: What is the recommended gap voltage for installation?
A4: Approximately –9 Vdc, equating to a 1.27 mm (50 mil) gap.
Q5: What environments can this probe withstand?
A5: It is rated from –52°C to +177°C and is resistant to oil ingress when FluidLoc cable is used.
Q6: Does it require calibration before use?
A6: No, components are factory calibrated and fully interchangeable.
Q7: What’s the benefit von ClickLoc connectors?
A7: They provide secure, tool-free connections with a locking click.
Q8: Can I use this probe for high-speed turbines?
A8: Yes, it supports speed and Keyphasor measurements.
Q9: What is the probe cable’s pull strength?
A9: 330 N (75 lbf) due to the patented CableLoc design.
Q10: How does the armor help?
A10: It shields the cable from mechanical and environmental damage.
Related Bently Nevada 3300 XL Series Modells
| Modell Number | Thread Type | Total Length | Armor | Temp Range |
|---|---|---|---|---|
| 330101-00-08-10-02-05 | 3/8-24 UNF | 1.0 m | Yes | Std |
| 330103-00-04-10-02-00 | M10 x 1 | 1.0 m | No | Std |
| 330105-02-12-10-02-05 | 3/8-24 UNF | 1.0 m | No | Std |
| 330106-05-30-10-02-00 | M10 x 1 (Reverse) | 1.0 m | No | Std |
| 330192-00-08-10-02-05 | 3/8-24 UNF | 1.0 m | Yes | ETR |
| 330194-00-06-10-02-00 | M10 x 1 | 1.0 m | Yes | ETR |
Popular Bently Nevada Modells
| Modell Number | Product Type | Beschreibung | Gewicht | Length |
|---|---|---|---|---|
| 330104-00-08-10-02-05 | Proximity Probe | M10x1 armored probe with ClickLoc, 1m | 0.323 kg | 1.0 m |
| 330180-50-05 | Proximitor Sensor | Panel mount, 5m system | 0.246 kg | – |
| 330130-030-00-05 | Extension Cable | Standard 3.0 m with approvals | ~0.034 kg | 3.0 m |
| 3500/42M-01-00 | Proximitor Monitor Module | Vibration monitoring for radial/axial motion | – | – |
| 3500/22M-01-01-00 | Transient Data Interface | Zustand monitoring interface | – | – |
| 3500/15-05-01-00 | Power Supply Module | Universal 120/240 VAC | – | – |
