Beschreibung

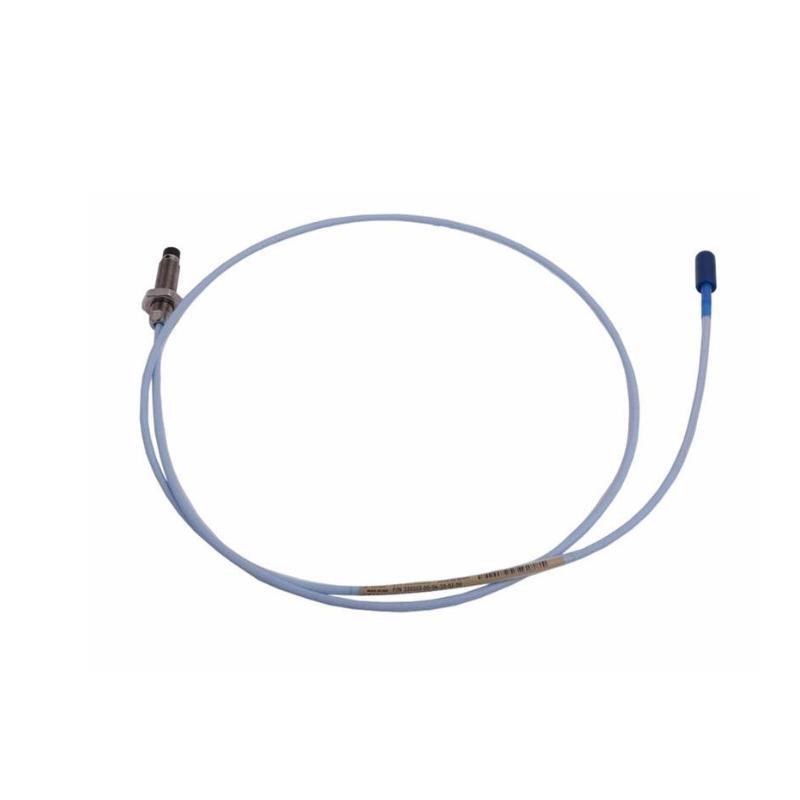

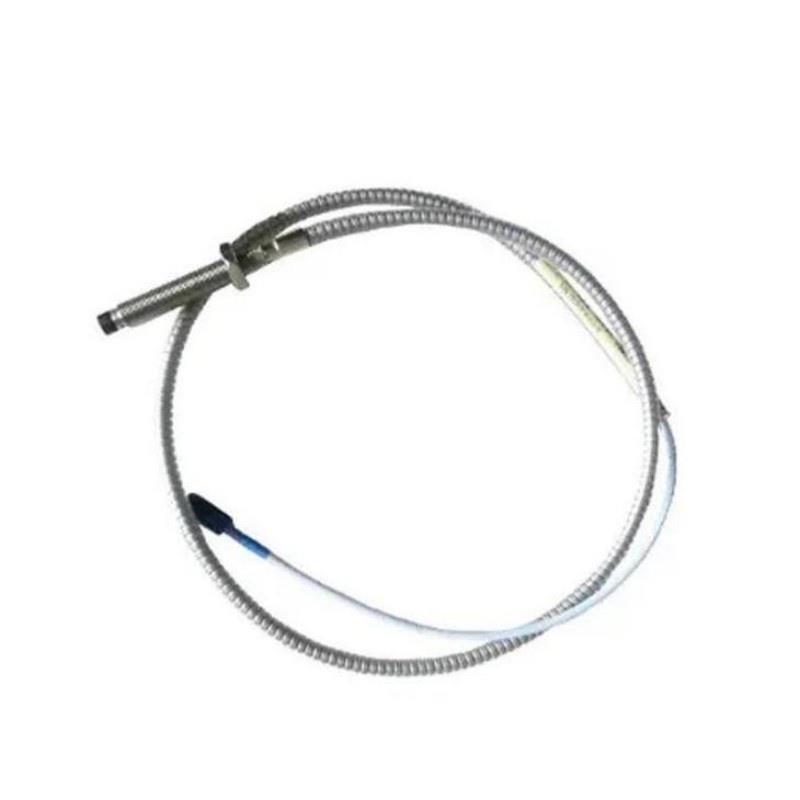

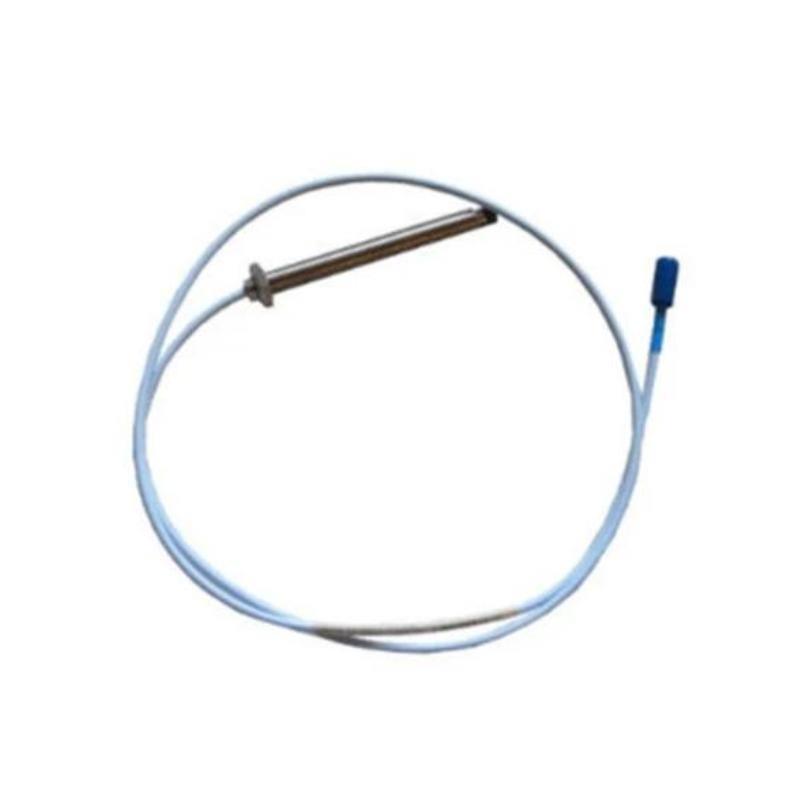

The Bently Nevada 330104-00-08-05-02-05 is part von the 3300 XL 8 mm Proximity Transducer System. This probe is engineered for precise non-contact vibration and position measurements, optimized for rotating machinery using fluid-film bearings. It includes enhanced armor protection, ClickLoc connectors, and a 0.5-meter cable for robust and accurate data transmission.
Applications
-
Radial and axial shaft vibration monitoring
-
Thrust position measurements
-
Keyphasor® speed and phase reference signals
-
Overspeed detection (with precautions)
-
Turbine and compressor monitoring
Advantages
-
Fully complies with API 670 standards
-
Interchangeable with legacy 3300 systems (5 mm & 8 mm)
-
ClickLoc connectors ensure secure and tool-free connection
-
Armor protected for harsh industrial environments
-
Resistant to EMI/RFI, suitable for high-density installations
-
No need for field calibration when using matched system components
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 330104-00-08-05-02-05 |
| System Type | 3300 XL 8 mm Proximity Probe |
| Probe Thread | M10 x 1 |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored, Standard FEP Insulated Triaxial Cable |
| Output Sensitivity | 200 mV/mil ±5% (7.87 V/mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0–10 kHz |
| Operating Temperature | –52°C to +177°C |
| Pressure Sealing | Viton® O-ring pressure sealed |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Recommended Gap Setting | 1.27 mm (50 mils), –9 VDC |
| Minimum Shaft Diameter | 50.8 mm |
| Cable Bend Radius | Min. 25.4 mm |
FAQ
Q1: Is this probe compliant with API 670?
A1: Yes, it fully complies with API 670 mechanical and performance requirements.
Q2: Can it be used with older non-XL 3300 systems?
A2: Yes, it is backward compatible with 3300 5 mm and 8 mm system components.
Q3: What environments is this probe suitable for?
A3: Harsh environments including high EMI/RFI and temperature ranges up to 177°C.
Q4: Does the probe require calibration?
A4: No calibration is needed if used with matching 3300 XL components.
Q5: Is the cable oil resistant?
A5: Yes, with the FluidLoc option, it can prevent fluid leakage along the cable.
Q6: What is the minimum shaft size recommended?
A6: Minimum 50.8 mm diameter; 76.2 mm is preferred for optimal accuracy.
Q7: What is the benefit von the ClickLoc connector?
A7: Ensures secure, tool-free, finger-tight connections with a built-in click lock.
Q8: Can this probe handle pressure differentials?
A8: Yes, it has a Viton® O-ring designed to seal pressure between the tip and case.
Q9: How is the connector protected from the environment?
A9: Includes a connector protector and optional silicone sealing tape.
Q10: Can it be mounted on a DIN rail?
A10: The Proximitor sensor (not the probe itself) supports DIN rail and panel mounting.
Related Modells in the Same Series
| Modell Number | Thread Type | Armor | Total Length | Cable Type |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | M10 x 1 | No | 1.0 m | Standard |
| 330104-01-05-50-02-00 | M10 x 1 | Yes | 5.0 m | Standard |
| 330101-00-08-05-02-05 | 3/8-24 UNF | Yes | 0.5 m | Standard |
| 330101-00-08-10-02-05 | 3/8-24 UNF | Yes | 1.0 m | Standard |
| 330101-00-12-10-02-05 | 3/8-24 UNF | Yes | 1.0 m | FluidLoc |
| 330106-05-30-10-02-05 | M10 x 1 | Yes | 1.0 m | Standard |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Key Feature | Gewicht |
|---|---|---|---|
| 330104-00-08-05-02-05 | 8 mm Probe, M10 x 1, Armor, 0.5 m | ClickLoc Connector, API 670 Compliant | 0.162 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5 m, Panel Mount | RFI ImmStücky, Panel Mount | 0.246 kg |
| 330130-030-00-00 | 3 m Standard Extension Cable | FEP Shielded, Standard Probe Cable | ~0.102 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitors 4 Channels von Vibration | ~0.5 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | Zustand Monitoring & System Interface | ~0.7 kg |
| 3500/15-05-01-00 | Power Supply Module | Universal AC Power Input | ~0.9 kg |
