Product Overview

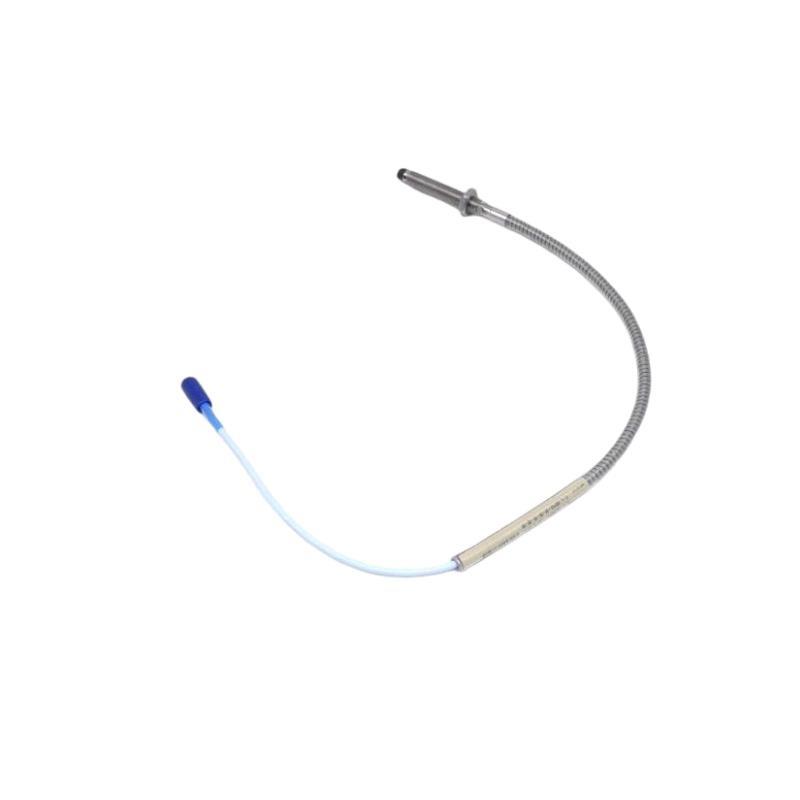

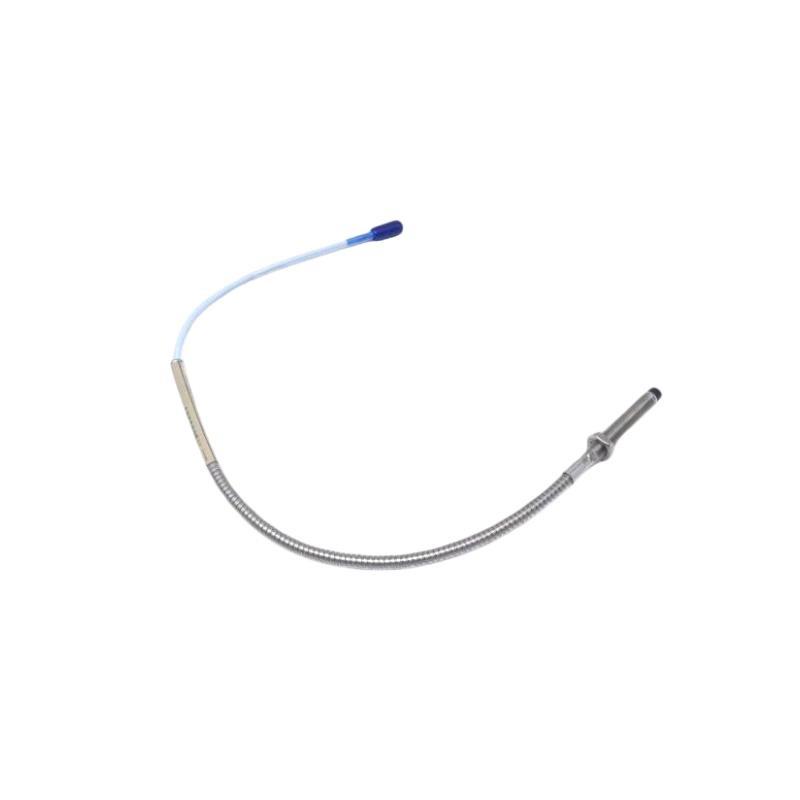

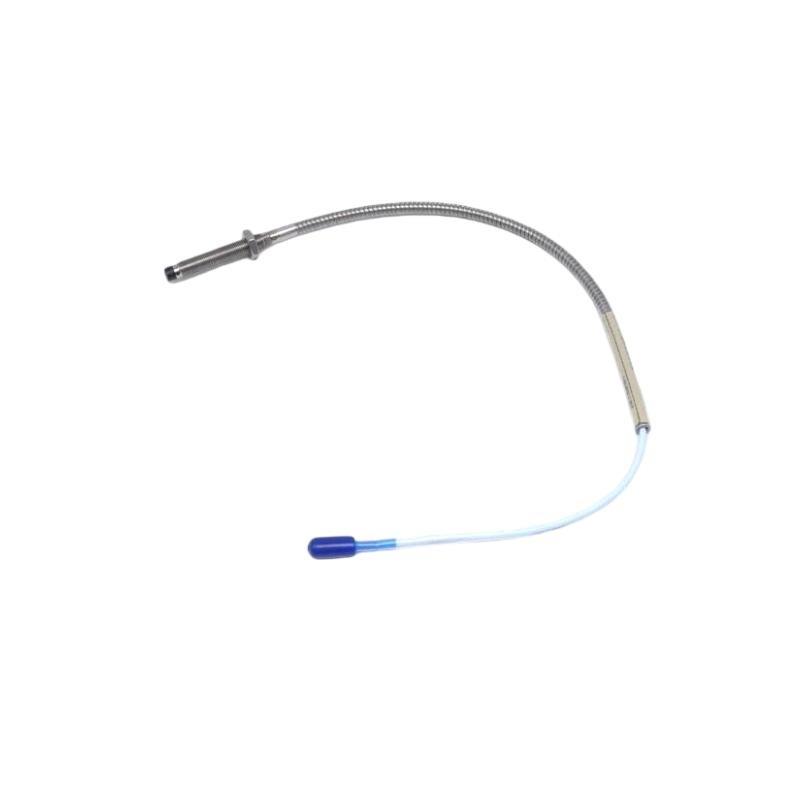

The Bently Nevada 330104-00-07-05-02-05 3300 XL 8 mm proximity probe (metric version) is a high-precision sensor designed for measuring shaft displacement in rotating machinery. This proximity probe is part von the trusted 3300 XL series, renowned for its accuracy, durability, and performance in demanding industrial applications. With a 8 mm diameter and a metric design, this probe ensures the optimal monitoring von machinery conditions, preventing faults and enhancing operational safety. It is suitable for a wide range von industries, including power generation, oil and gas, and heavy machinery.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe (Metric Version) |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
| Shaft Diameter | 8 mm |
| Measurement Range | ±2 mm (typically) |
| Resolution | 0.1 µm |
| Linear Range | 4 to 20 mA Output |
| Operating Temperature | -40°C to +100°C |
| Material | Stainless Steel |
| Output Signal | 4-20 mA |
| Protection | IP67 |
Applications
The Bently Nevada 330104-00-07-05-02-05 proximity probe is ideal for critical machinery monitoring, providing accurate and real-time displacement measurements. Its typical applications include:
-
Turbines and Compressors: For monitoring shaft conditions and preventing failures due to misalignment or imbalance.
-
Motors and Pumps: Ensures proper shaft positioning and detects any movement anomalies that could lead to mechanical damage.
-
Generators: Used to monitor the shaft displacement in generators, helping to predict maintenance needs and reduce unexpected downtime.
-
Industrial Fans and Blowers: Provides critical data for early detection von wear or shaft misalignment in high-speed applications.
Advantages
-
High Precision and Accuracy: The 3300 XL probe vonfers a resolution von 0.1 µm, ensuring reliable and precise measurements for high-speed machinery.
-
Durable Construction: Made from stainless steel, the probe is resistant to wear and corrosion, making it suitable for harsh environments.
-
Wide Temperature Range: With the ability to operate from -40°C to +100°C, this probe is versatile enough for a variety von industrial environments.
-
Simple Integration: The 4-20 mA output signal allows easy integration into existing monitoring systems, ensuring real-time feedback.
-
Low Maintenance: Designed for minimal upkeep, it reduces downtime and maintenance costs, which enhances overall operational efficiency.
-
IP67 Protection Rating: Fully sealed against dust and water, ensuring consistent performance even in the harshest conditions.
FAQ
-
How does the 3300 XL 8 mm proximity probe measure shaft displacement?
It uses an eddy current sensor to detect changes in the electromagnetic field as the shaft moves, providing displacement data. -
What is the operating temperature range?
The probe operates from -40°C to +100°C. -
What output signal does the probe provide?
The probe outputs a 4-20 mA signal. -
Can it be used for non-rotating machinery?
Yes, it can be used in applications where shaft displacement is measurable. -
What materials is the probe made from?
It is made von stainless steel, ensuring durability. -
How is the probe calibrated?
Calibration is done by comparing the probe’s readings with a known displacement standard. -
Why is the 3300 XL series reliable?
It is durable, precise, and minimizes drift over time. -
What is the linear range von the probe?
The linear range is 4-20 mA. -
How does the probe integrate with vibration monitoring systems?
The 4-20 mA output is used by monitoring systems to detect shaft displacement. -
What is the protection rating?
The probe has an IP67 protection rating, meaning it is dustprovon and water-resistant.
Similar Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-07-05-02-06 | 3300 XL 8 mm Proximity Probe (Metric Version) with extended lead length |
| 330104-00-07-05-02-07 | 3300 XL 8 mm Proximity Probe (Metric Version) for higher temperature tolerance |
| 330104-00-07-05-02-08 | 3300 XL 8 mm Proximity Probe (Metric Version) with ATEX certification |
| 330104-00-07-05-02-09 | 3300 XL 8 mm Long Probe (Metric Version) for deeper shaft monitoring |
| 330104-00-07-05-02-10 | 3300 XL 8 mm Proximity Probe (Metric Version) with improved resolution |
| 330104-00-07-05-02-11 | 3300 XL 8 mm Proximity Probe (Metric Version) for specialized applications |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-07-05-02-05 | 3300 XL 8 mm Proximity Probe (Metric Version) |
| 330101-02-21-10-01-00 | 3300 XL 8 mm Proximity Probe |
| 330101-02-21-10-01-12 | 3300 XL 8 mm Proximity Probe with extended lead length |
| 330101-02-21-10-01-18 | 3300 XL 8 mm Proximity Probe with enhanced durability |
| 330101-02-21-10-01-20 | 3300 XL 8 mm Proximity Probe with higher resolution |
| 330101-02-21-10-01-22 | 3300 XL 8 mm Proximity Probe with improved temperature resistance |
