Product Overview

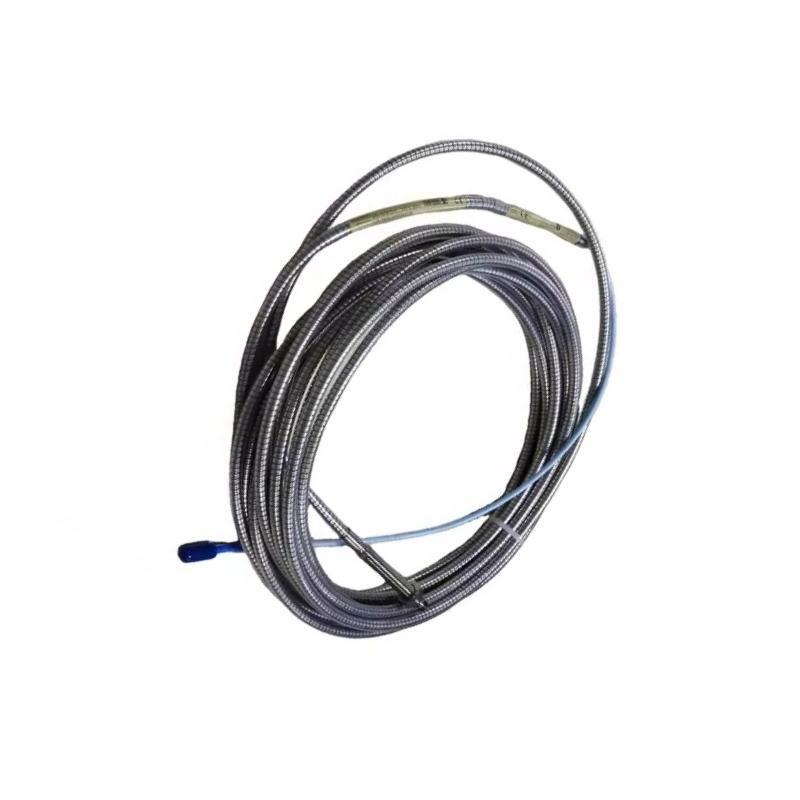

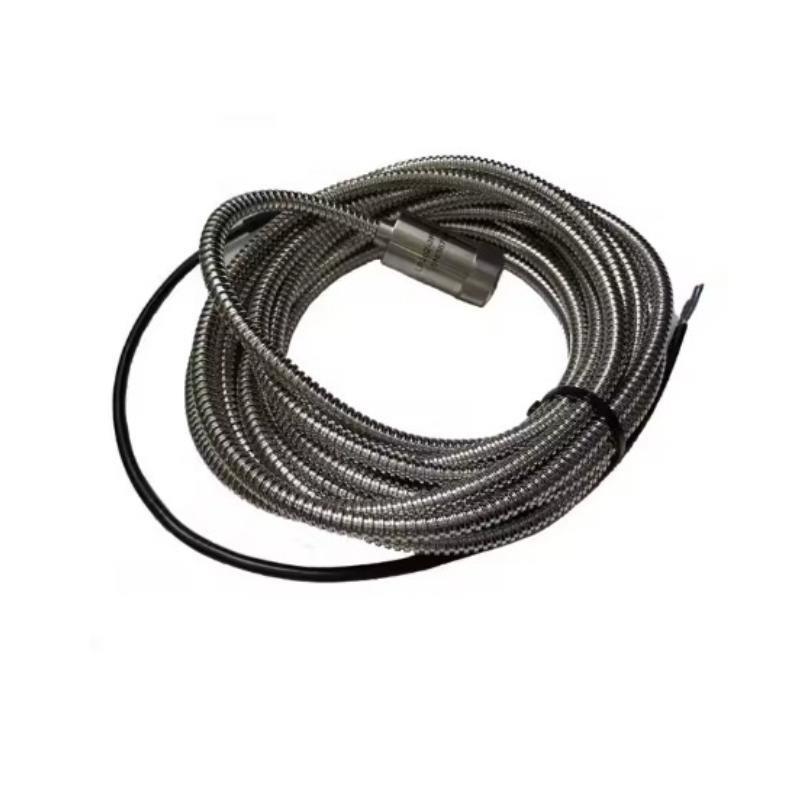

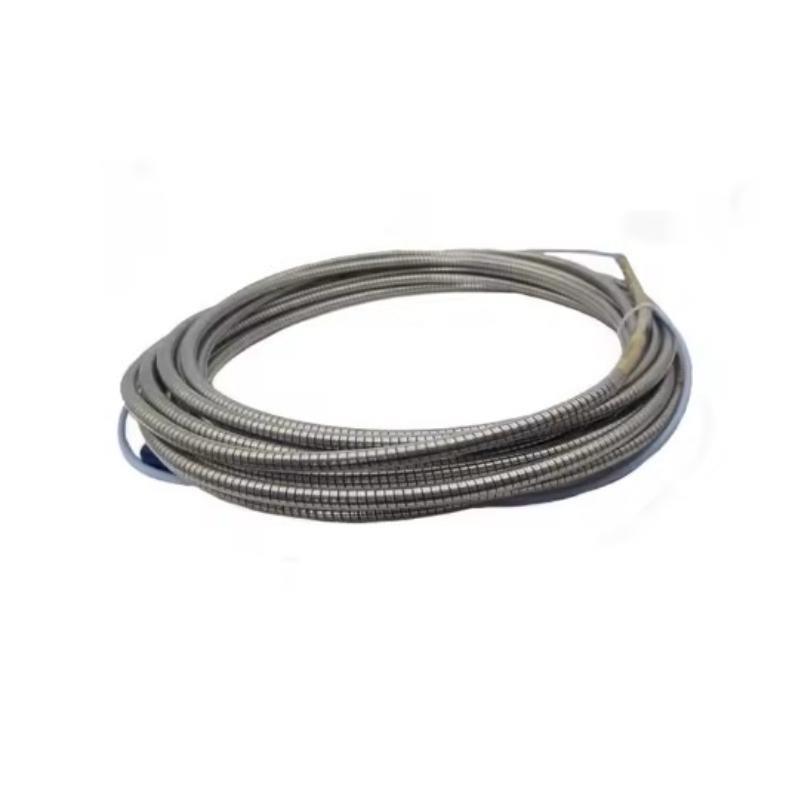

The Bently Nevada 330104-00-06-90-02-00 is a precision 8 mm proximity probe from the 3300 XL series designed for accurate vibration and shaft position monitoring in critical rotating machinery. This model, manufactured by Baker Hughes, features a 6-foot (1.83 meters) cable with molded miniature coaxial connector, making it suitable for medium-length installations.
Built to withstand demanding industrial environments, the probe combines a corrosion-resistant stainless steel body with a durable polyphenylene sulfide (PPS) tip. Its advanced shielding provides excellent immStücky to electromagnetic and radio-frequency interference, ensuring stable and reliable signal output. The probe is fully compatible with the Bently Nevada 3300 XL Proximitor® system, adhering to API 670 machinery protection standards.
Key Features
-
8 mm probe tip diameter for precise sensing
-
6-foot (1.83 m) molded miniature coaxial cable for flexible installation
-
Stainless steel construction for enhanced corrosion resistance
-
Superior EMI/RFI shielding for signal integrity
-
Reverse polarity and overvoltage protection
-
IP68 rated for dust and water ingress protection
-
Compliant with API 670 machinery protection standards
-
CE and RoHS certified for worldwide regulatory compliance
Technical Specifications
| Item | Specification |
|---|---|
| Product Modell | 330104-00-06-90-02-00 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 6 feet (1.83 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| Gewicht | 2.907 kg |
| Dimensions | Total Length : 9.0 meters |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and drive trains
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion machinery
-
General rotating machinery condition monitoring
Product Advantages
-
Rugged and corrosion-resistant design for harsh industrial environments
-
High precision and stable signal output with factory calibration
-
Flexible 6-foot cable length for diverse installation needs
-
Ausgezeichnet EMI/RFI shielding reduces noise interference
-
IP68 rating ensures reliable operation in wet and dusty conditions
-
Compliance with API 670 machinery protection standards
-
Supports predictive maintenance and reduces unexpected downtime
-
Seamless integration with Bently Nevada 3300 XL systems
-
Simplifies installation and maintenance via standardized connectors
-
Backed by Baker Hughes’ global technical support and service
Häufig gestellte Fragen (FAQ)
-
What cable length does this probe have?
It has a 6-foot (1.83 meter) molded miniature coaxial cable. -
Is this probe compatible with the 3300 XL system?
Yes, it is fully compatible with all 3300 XL components. -
What is the sensing range?
0.5 to 2.0 mm (20 to 80 mils). -
Can it operate in harsh conditions?
Yes, designed for extreme temperature, vibration, and moisture. -
What connector type is used?
Molded miniature coaxial connector. -
What ingress protection rating does it have?
IP68 – dust-tight and water-resistant. -
Does it meet industry standards?
Yes, API 670 compliance. -
Is factory calibration included?
Yes, with recommended field verification. -
What materials are used?
Stainless steel body and PPS tip. -
Are custom cable lengths available?
Yes, upon manufacturer request.
