Product Overview

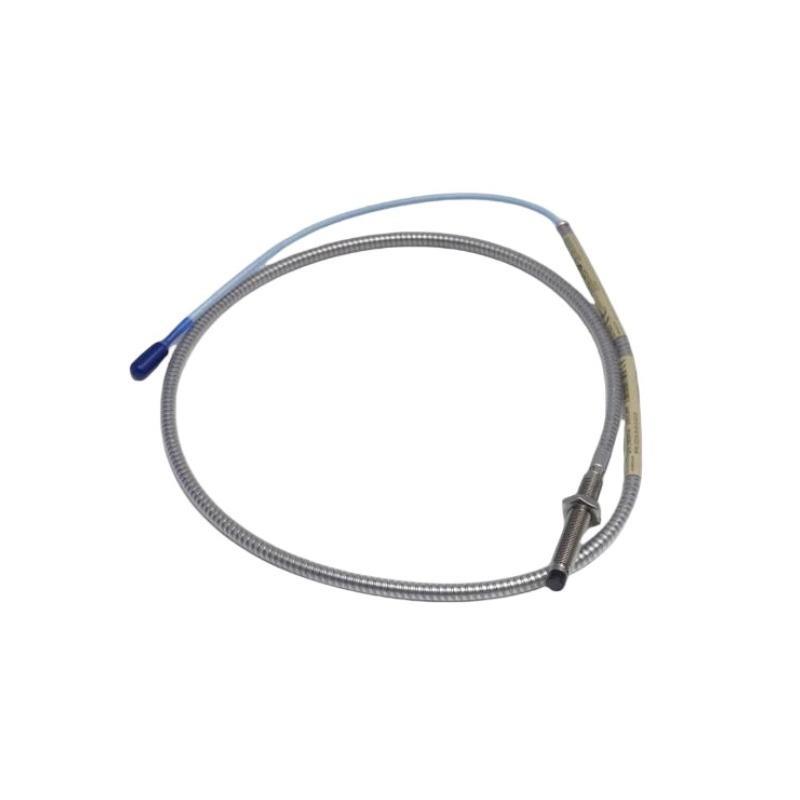

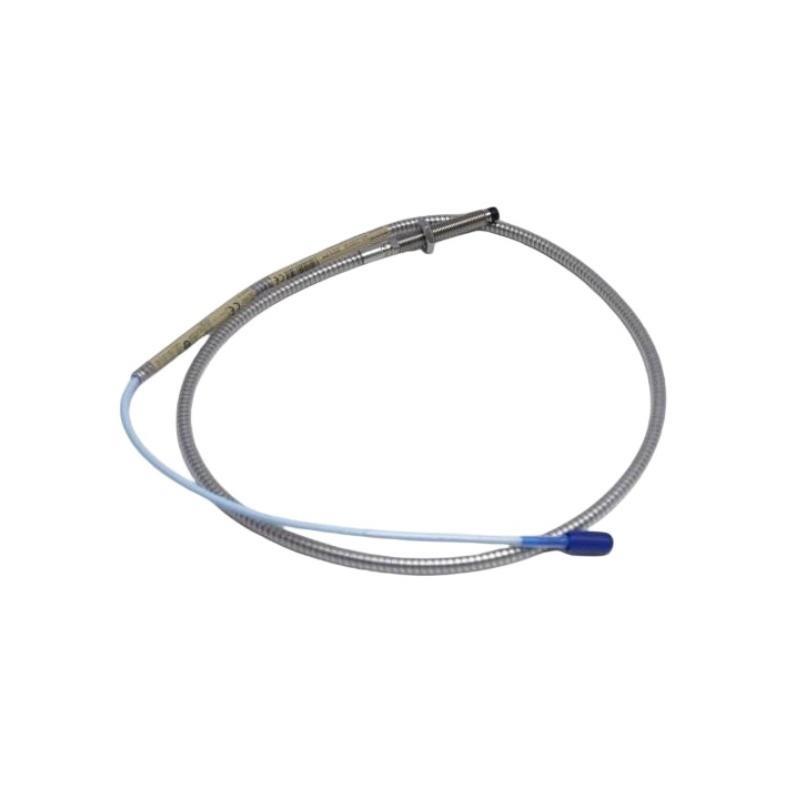

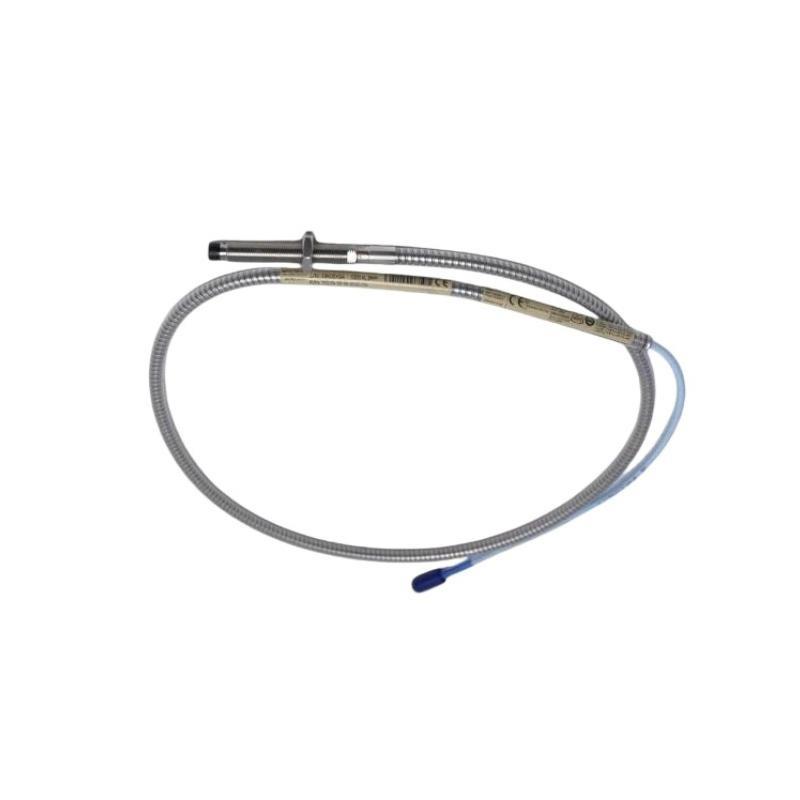

The Bently Nevada 330104-00-06-10-02-CN is a premium 8 mm proximity probe from the trusted 3300 XL series designed for accurate and continuous monitoring von shaft vibration and position in critical rotating machinery. Manufactured by Baker Hughes, this model features a 6-foot (1.83 meters) cable length with a molded miniature coaxial connector, ideal for medium-range installations requiring reliable and noise-free signal transmission.
Constructed with a corrosion-resistant stainless steel body and a durable polyphenylene sulfide (PPS) tip, this probe is engineered to withstand harsh industrial environments while providing precise measurement data. It is fully compatible with the Bently Nevada 3300 XL Proximitor® sensor system, supporting machinery protection and condition monitoring per API 670 standards.
Key Features
-
8 mm probe tip diameter for high-precision sensing
-
6-foot (1.83 m) molded miniature coaxial cable for flexible installation
-
Stainless steel probe body providing corrosion and wear resistance
-
Advanced EMI/RFI shielding ensures signal integrity
-
Reverse polarity and overvoltage protection features
-
IP68 rating for dust and water ingress protection
-
Compliance with API 670 machinery protection standards
-
CE and RoHS certified for global market acceptance
Technical Specifications
| Item | Specification |
|---|---|
| Product Modell | 330104-00-06-10-02-CN |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 6 feet (1.83 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| Gewicht | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and transmission systems
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion machinery
-
General rotating machinery vibration and position monitoring
Product Advantages
-
Durable design withstands harsh environmental conditions
-
High precision and stable output with factory calibration
-
Flexible 6-foot cable length for versatile installation
-
Superior EMI/RFI shielding reduces signal noise interference
-
IP68 rating suitable for wet and dusty environments
-
Meets internationally recognized API 670 machinery protection standards
-
Enables effective predictive maintenance and reduced downtime
-
Seamless integration with Bently Nevada 3300 XL systems
-
Easy installation and maintenance with standardized connectors
-
Supported by Baker Hughes’ global service and technical support
Häufig gestellte Fragen (FAQ)
-
What is the cable length von this probe?
It has a 6-foot (1.83 meter) molded miniature coaxial cable. -
Is this probe compatible with the 3300 XL system?
Yes, it is fully compatible with all 3300 XL components. -
What is the sensing range von this probe?
The sensing range is 0.5 to 2.0 mm (20 to 80 mils). -
Can this probe be used in harsh environments?
Yes, it is designed to withstand extreme temperatures, vibration, and moisture. -
What type von connector does it use?
A molded miniature coaxial connector. -
What ingress protection rating does it have?
IP68, providing dust and water resistance. -
Does it comply with industry standards?
Yes, it meets API 670 machinery protection standards. -
Is calibration needed before installation?
Factory calibration is standard; field verification is recommended. -
What materials are used in the probe construction?
Stainless steel body and polyphenylene sulfide (PPS) tip. -
Are custom cable lengths available?
Custom cable lengths can be requested from the manufacturer.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-03-10-02-00 | 3 ft cable length probe |
| 330104-00-04-10-02-00 | 4 ft cable length probe |
| 330104-00-05-10-02-05 | 5 ft cable length probe |
| 330104-00-10-10-02-05 | 10 ft cable length probe with armored cable |
| 330103-00-06-10-02-CN | Similar 6 ft cable length 3300 XL probe |
| 330104-00-15-10-02-CN | 15 ft cable length probe |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330105-02-12-05-02-00 | 3300 XL Proximitor Sensor |
| 330104-00-10-10-02-05 | 10 ft extension cable for 3300 XL systems |
| 330130-045-00-05 | Standard 4.5 m extension cable |
| 3500/22M-01-01-00 | 3500 Series Communication Gateway Module |
| 3500/42M-01-00 | 3500 Series Vibration Monitor Module |
| 330180-91-00 | DIN rail mountable Proximitor Sensor |
