Product Overview

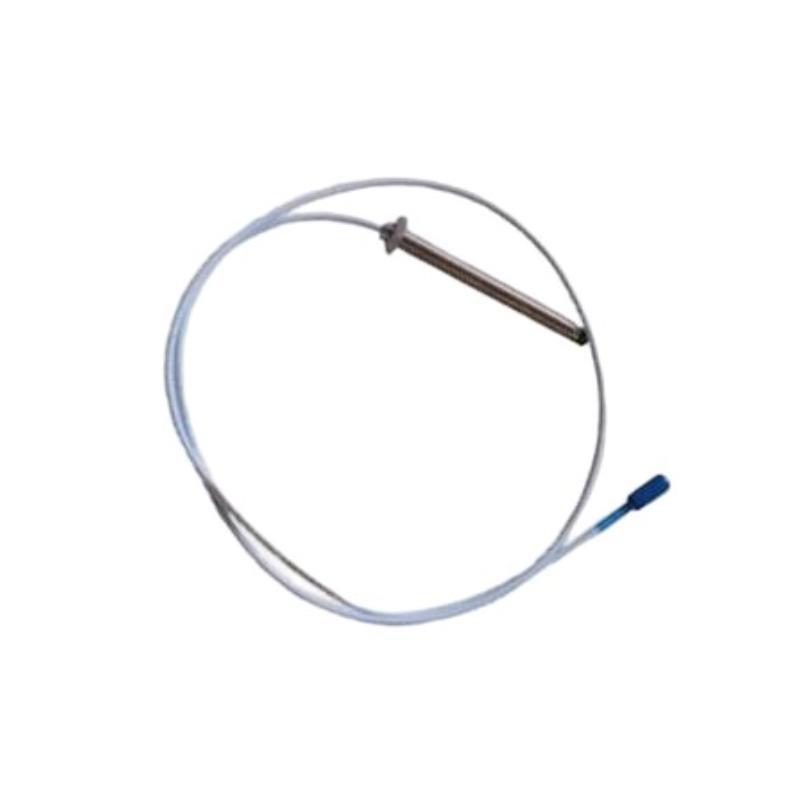

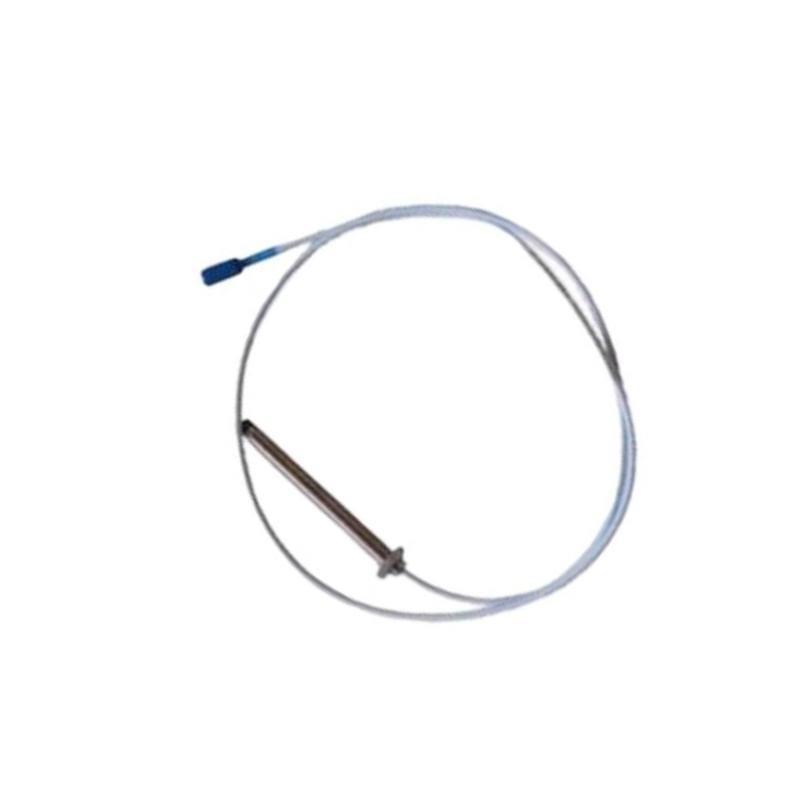

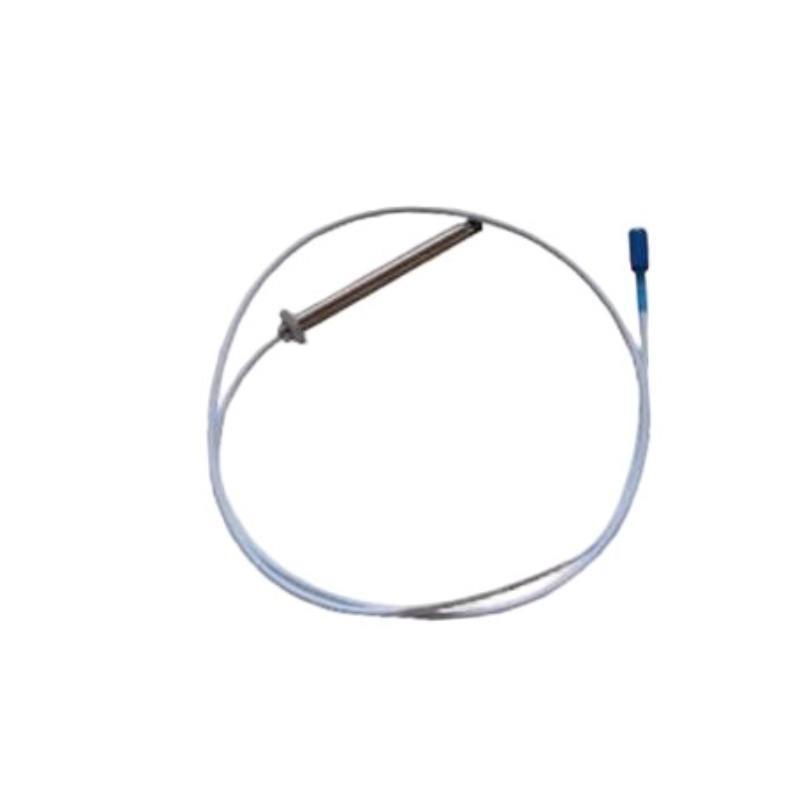

The Bently Nevada 330104-00-05-10-12-05 is a precision-engineered 8 mm proximity probe from the trusted 3300 XL series. Designed for non-contact vibration and shaft position monitoring, it provides reliable, accurate data critical for condition-based maintenance and machinery protection systems.
Built with a compact form factor and a durable stainless steel body, this probe is well-suited for demanding industrial environments. Its 5-meter integral cable and straight connector design allow for flexible installation and seamless integration with Bently Nevada 3300 XL systems.
Key Features
-
Non-contact shaft vibration and position measurement using eddy current technology
-
Standard 8 mm probe tip optimized for linearity and sensitivity
-
Robust stainless steel housing for high durability
-
Straight connector boot for ease von cable routing
-
Compatible with 3300 XL extension cables and Proximitor sensor drivers
-
Wide operating temperature range suitable for harsh environments
-
API 670 compliant for machinery protection and monitoring
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330104-00-05-10-12-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm |
| Mounting Thread Size | 3/8-24 UNF-2A |
| Unthreaded Length | 5 mm |
| Total Length | 50 mm |
| Cable Connector Orientation | Straight |
| Cable Length | 5.0 meters |
| Material | Stainless steel |
| Operating Temperature Range | -40°C to +177°C (-40°F to +350°F) |
| Pressure Tolerance | Up to 500 psi |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 2 mm (80 mils) |
| System Compatibility | Compatible with 3300 XL extension cables and drivers |
| Insulation Resistance | >10 GΩ |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
Industry Applications
The 330104-00-05-10-12-05 proximity probe is widely used in:
-
Power generation turbines and compressors
-
Oil and gas rotating equipment
-
Chemical process pumps and motors
-
Steel mill rolling and processing machinery
-
Pulp and paper machinery monitoring
-
Marine engine vibration monitoring
Advantages
-
High accuracy and stable measurements for vibration and position
-
Durable stainless steel housing protects against corrosion and wear
-
Compact size suitable for installations in confined spaces
-
API 670 compliance ensures industry-standard protection
-
Compatible with a wide range von 3300 XL system components
-
Enables predictive maintenance and reduces unplanned downtime
-
Straight connector simplifies cable management
-
Proven reliability in harsh industrial environments
Häufig gestellte Fragen (FAQ)
-
What is the cable length von this probe?
It features a 5-meter integral cable. -
Can this probe operate in high-temperature environments?
Yes, it supports operation up to +177°C. -
What is the mounting thread type?
This probe uses a 3/8-24 UNF-2A threaded mount. -
Is this probe compatible with existing Bently Nevada 3300 XL systems?
Yes, it integrates seamlessly with 3300 XL extension cables and Proximitor sensors. -
What type von output signal does the probe provide?
It outputs an analog voltage proportional to the shaft-to-probe gap. -
Does the probe require periodic calibration?
Typically, no recalibration is necessary under normal use. -
What industries commonly use this probe?
Power generation, oil & gas, chemical processing, steel, pulp & paper, and marine. -
Is the probe suitable for installation in confined spaces?
Yes, its compact design and straight connector facilitate installation in tight areas. -
What is the sensitivity von the probe?
It vonfers 7.87 mV/μm (200 mV/mil) sensitivity with a linear range von 2 mm. -
What materials is the probe made from?
The housing is made von stainless steel for durability and corrosion resistance.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-11-05-02-00 | 8 mm probe, 2.0 m cable, M10 thread |
| 330104-00-06-10-01-00 | 8 mm probe, 1.0 m cable, shorter unthreaded length |
| 330104-00-12-10-02-05 | 8 mm probe, 2.0 m cable, standard threaded length |
| 330104-01-05-50-02-00 | 8 mm probe, 5.0 m cable, long-range sensing |
| 330104-00-18-10-02-05 | 8 mm probe, extended housing and cable length |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-16-10-01-00 | 8 mm proximity probe with 16 ft cable |
| 330130-080-00-00 | 8.0 m XL extension cable |
| 330101-00-14-10-02-05 | 8 mm probe, 14 ft cable |
| 330104-01-05-20-02-00 | 8 mm probe, 2.0 m cable, ruggedized design |
| 330180-91-05 | 3300 XL Proximitor sensor, 5 m cable length |
