Product Overview

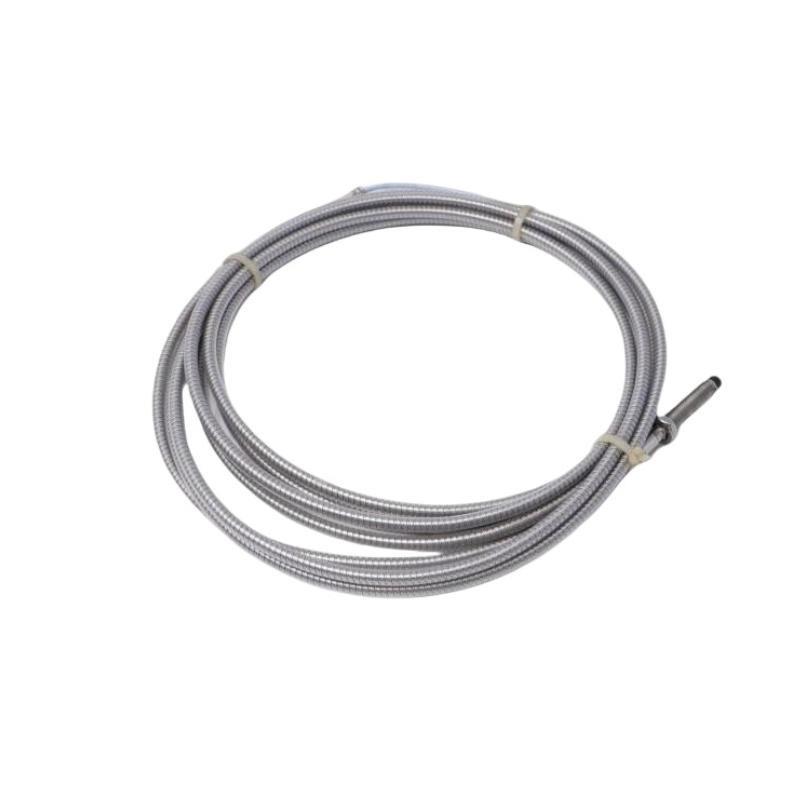

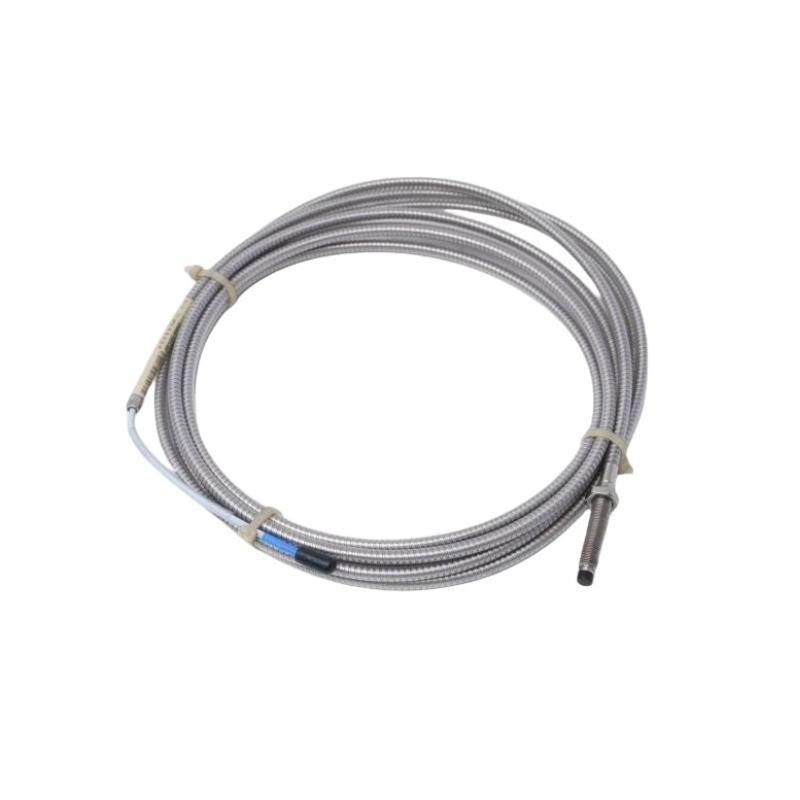

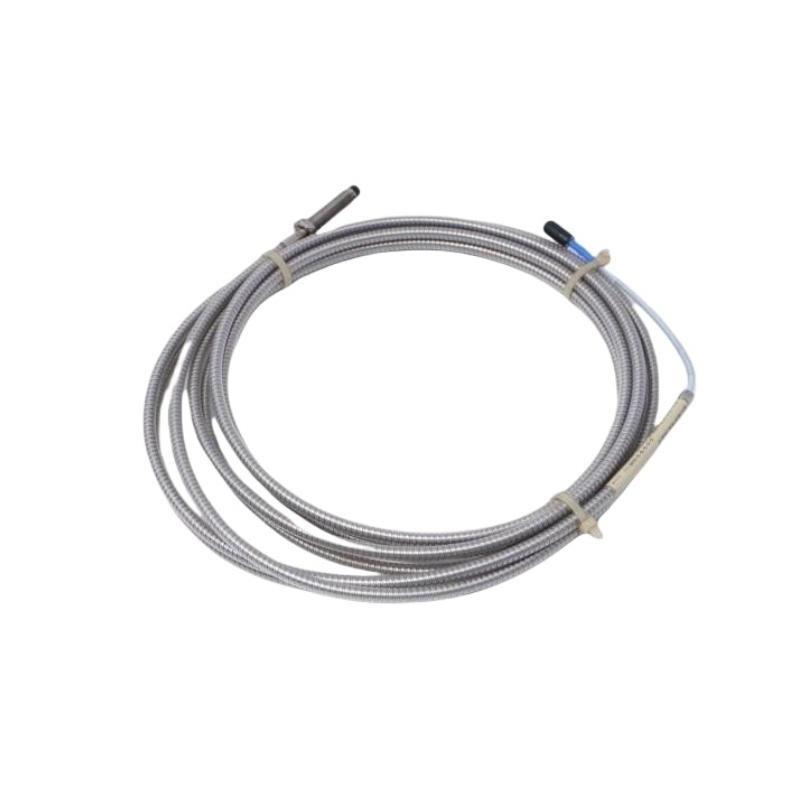

The Bently Nevada 330104-00-04-50-02-05 is a high-performance 8 mm proximity probe from the 3300 XL series, designed for precise vibration and shaft position monitoring in critical rotating machinery. Manufactured by Baker Hughes, this model features a 4-foot (1.22 meters) cable length with a molded miniature coaxial connector, making it suitable for various industrial applications requiring short cable runs.
Engineered for durability and accuracy, the probe’s stainless steel body and polyphenylene sulfide (PPS) tip provide excellent resistance to harsh environments, while its advanced electromagnetic shielding ensures signal integrity. Fully compatible with 3300 XL Proximitor® sensor systems, this probe supports reliable machinery protection and condition monitoring under API 670 standards.
Key Features
-
8 mm probe tip diameter optimized for precise sensing
-
4-foot (1.22 m) molded miniature coaxial cable for easy installation
-
Corrosion-resistant stainless steel construction
-
High resistance to electromagnetic interference (EMI/RFI)
-
Reverse polarity and overvoltage protection
-
IP68-rated for protection against dust and water ingress
-
API 670 machinery protection standard compliant
-
CE and RoHS certifications for global regulatory compliance
Technical Specifications
| Item | Specification |
|---|---|
| Product Modell | 330104-00-04-50-02-05 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 4 feet (1.22 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| Gewicht | 1.615 kg |
| Dimensions | Total Length: 5.0 meters |
Industry Applications
-
Steam, gas, and hydraulic turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and drive trains
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion systems
-
General rotating machinery condition monitoring
Product Advantages
-
Rugged and corrosion-resistant design ensures long service life
-
High precision and stable signal output with factory-matched components
-
Flexible 4-foot cable length supports various installation scenarios
-
Ausgezeichnet EMI/RFI shielding minimizes measurement noise
-
IP68 rating provides protection in harsh and wet environments
-
Complies with internationally recognized API 670 standards
-
Enables predictive maintenance and reduces unexpected downtime
-
Fully compatible with Bently Nevada 3300 XL monitoring systems
-
Simplifies installation and maintenance through standard connectors
-
Supported by Baker Hughes’ global technical service network
Häufig gestellte Fragen (FAQ)
-
What is the cable length von this proximity probe?
It has a 4-foot (1.22 meter) molded miniature coaxial cable. -
Is this probe compatible with the full 3300 XL system?
Yes, it integrates seamlessly with all 3300 XL Proximitor® sensors and components. -
What sensing range does this probe provide?
It measures in the range von 0.5 to 2.0 mm (20 to 80 mils). -
Can the probe be used in harsh environments?
Yes, it is designed for extreme temperatures, vibration, moisture, and dust. -
What connector type is used?
Molded miniature coaxial connector. -
What ingress protection rating does it have?
IP68, meaning it is dust-tight and protected against continuous water immersion. -
Does this probe meet any industry standards?
Yes, it complies with API 670 machinery protection standards. -
Is factory calibration included?
Yes, factory calibration is standard, but field verification is recommended. -
What materials are used in the probe?
Stainless steel for the probe body and polyphenylene sulfide (PPS) for the tip. -
Are custom cable lengths available?
Custom lengths may be available upon special order from Baker Hughes.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-03-50-02-00 | 3 ft cable length probe |
| 330104-00-05-50-02-00 | 5 ft cable length probe |
| 330104-00-10-50-02-05 | 10 ft cable length probe with armored cable |
| 330103-00-04-50-02-05 | Similar 4 ft cable length 3300 XL probe |
| 330104-00-15-50-02-CN | 15 ft cable length probe |
| 330104-00-20-50-02-00 | 20 ft cable length probe |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330105-02-12-05-02-00 | 3300 XL Proximitor Sensor |
| 330104-00-10-50-02-05 | 10 ft extension cable for 3300 XL systems |
| 330130-045-00-05 | Standard 4.5 m extension cable |
| 3500/22M-01-01-00 | 3500 Series Communication Gateway Module |
| 3500/42M-01-00 | 3500 Series Vibration Monitor Module |
| 330180-91-00 | DIN rail mountable Proximitor Sensor |
