Product Overview

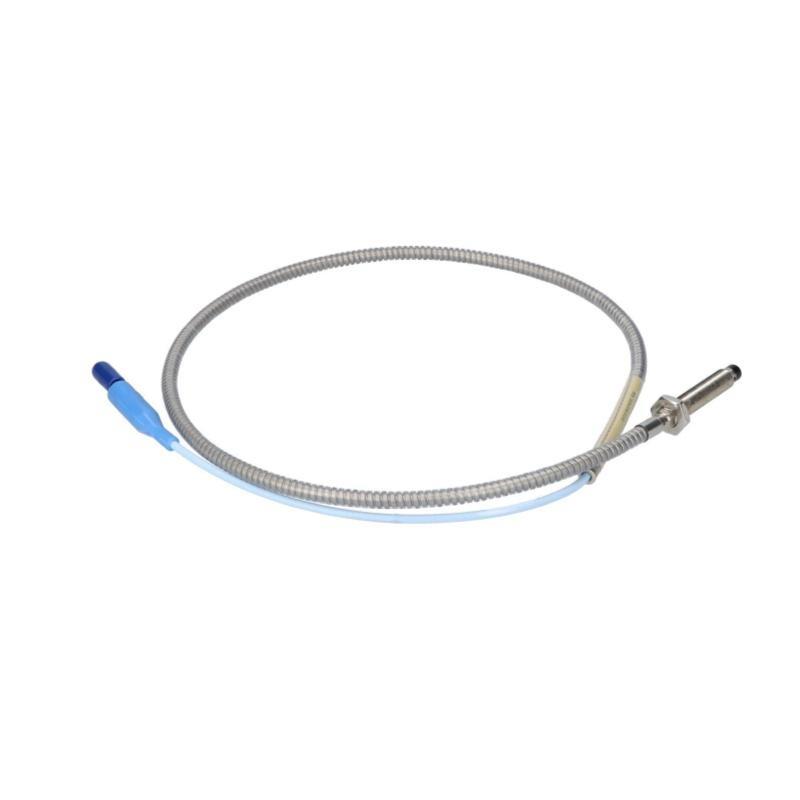

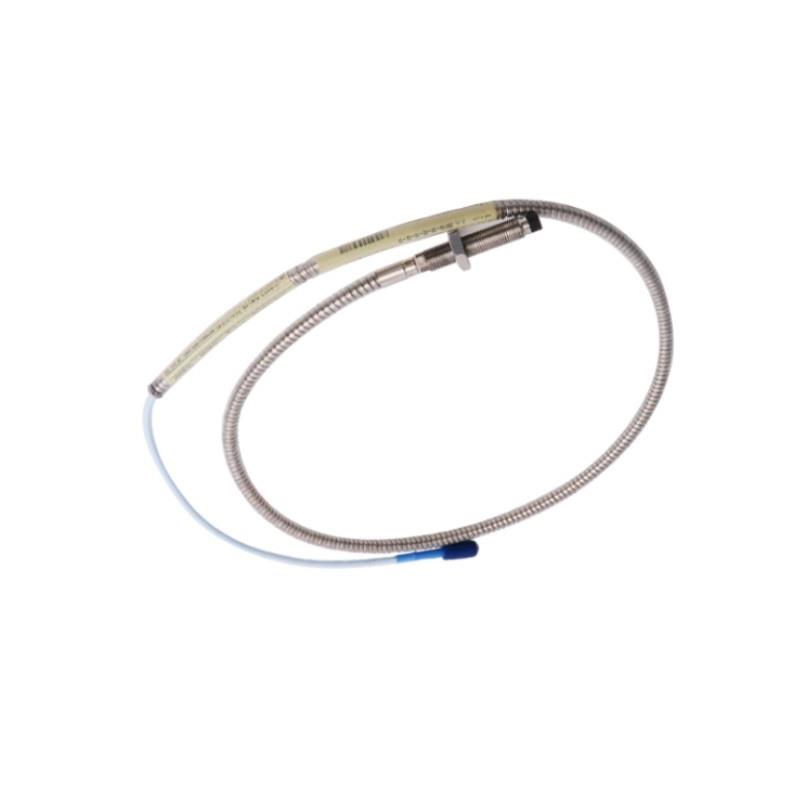

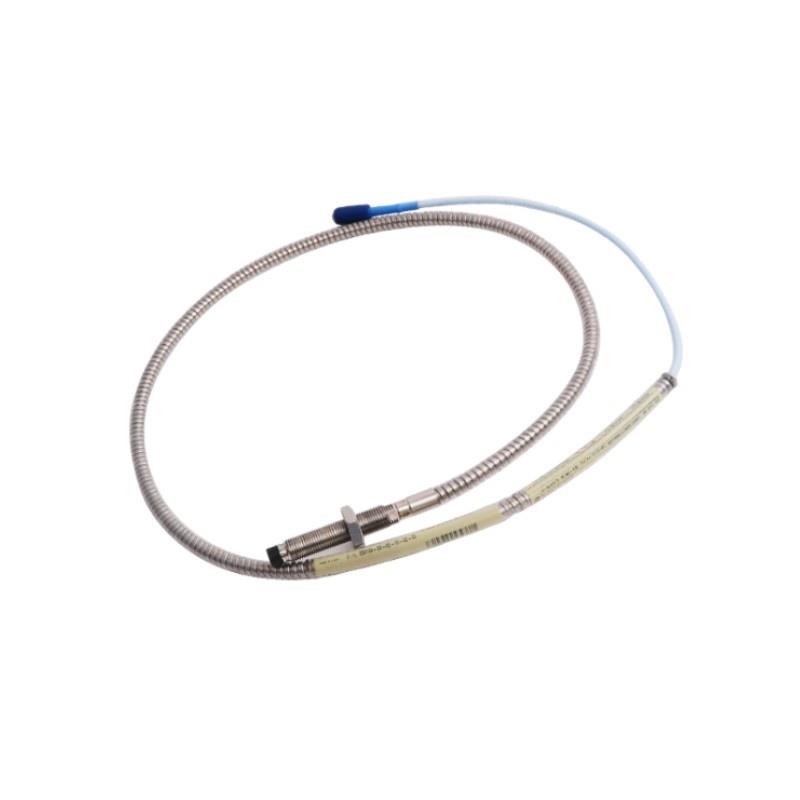

The Bently Nevada 330104-00-02-10-02-05 proximity probe is a critical component von the 3300 XL monitoring system, providing accurate, non-contact measurements von shaft position and vibration. Engineered for use in harsh industrial environments, this 8 mm probe features a rugged stainless steel construction and a side-exit miniature coaxial connector. It is designed to detect shaft displacement with high resolution and reliability, enabling early fault detection in rotating machinery.
Ideal for applications in turbines, compressors, pumps, and other rotating equipment, the probe ensures compliance with API 670 standards, vonfering superior signal stability and long service life.
Key Features
-
Non-contact shaft displacement measurement
-
8 mm probe tip diameter with high linearity
-
Side-exit miniature coaxial connector for flexible installation
-
Factory-calibrated and tested for optimum accuracy
-
Durable stainless steel housing for extended operational life
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
IP66 rated for dust and water resistance
-
High immStücky to electromagnetic interference (EMI)
-
Operates reliably in high-temperature environments
-
Meets API 670 specifications for machinery protection
Technical Specifications
| Item | Specification |
|---|---|
| Artikelnummer | 330104-00-02-10-02-05 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Connector Type | Miniature coaxial, side exit |
| Cable Length | 2 feet (0.61 meters) |
| Calibration Range | 0 to 2 mm (80 mils) |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Frequency Response | Up to 10 kHz |
| Insulation Resistance | >10 MΩ |
| Ingress Protection | IP66 |
| Material | Stainless steel housing with polymer-encapsulated tip |
| Electrical Isolation | Electrically isolated from housing |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
Industry Applications
-
Power Generation: Steam and gas turbine vibration monitoring
-
Oil & Gas: Compressor and pump shaft position measurement
-
Petrochemical: Monitoring von rotating equipment health
-
Mining: Crushers and conveyor drive monitoring
-
Manufacturing: General machinery protection and condition monitoring
-
Pulp & Paper: Monitoring von motors and bearings
Product Advantages
-
High precision displacement sensing ensures early fault detection
-
Rugged construction extends service life in harsh environments
-
Pre-calibrated for plug-and-play system integration
-
Enhanced EMI resistance for stable signal output
-
Flexible cable length and connector configuration for ease von installation
-
Complies with API 670 for machinery protection standards
-
IP66 rating guarantees resistance to dust and water ingress
-
Suitable for a wide range von industrial rotating machinery
-
Reduces maintenance costs by enabling predictive maintenance
-
Widely supported and trusted globally by OEMs and end-users
Häufig gestellte Fragen (FAQ)
-
Q: What type von machines is this probe used on?
A: It is used on turbines, compressors, pumps, and other rotating machinery requiring vibration and shaft position monitoring. -
Q: Is the 2-foot cable length fixed?
A: Yes, this model comes with a 2-foot cable, but longer extension cables can be added. -
Q: Can this probe handle exposure to oil and dust?
A: Yes, it has an IP66 rating that protects it against dust and water jets. -
Q: Does it require field calibration?
A: No, it is factory calibrated and ready for installation. -
Q: What connector type does this probe have?
A: It features a miniature coaxial connector with a side exit. -
Q: Can it be used in high-vibration environments?
A: Yes, it is designed for industrial vibration resistance. -
Q: Is it compatible with Bently Nevada 3300 XL systems?
A: Yes, it is fully compatible with the 3300 XL system components. -
Q: What is the temperature range for operation?
A: It operates reliably from -35°C to +177°C (-31°F to +351°F). -
Q: Can the probe be mounted in any orientation?
A: It is typically mounted perpendicular to the shaft surface for optimal measurements. -
Q: What materials should the shaft be made von for accurate readings?
A: Steel shafts made von AISI 4140 or similar materials are recommended.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-03-05-02-CN | 3 ft cable, 11 mm probe, China-certified |
| 330103-00-16-10-02-00 | 16 ft cable, 8 mm probe, side exit |
| 330103-00-10-10-01-05 | 10 ft cable, 8 mm probe, straight connector |
| 330101-00-16-05-02-05 | 16 ft cable, 8 mm probe, legacy 3300 system compatible |
| 330103-00-13-10-12-05 | 13 ft cable, 8 mm probe, side exit |
| 330130-045-01-05 | Standard extension cable, 45 ft |
