Product Introduction

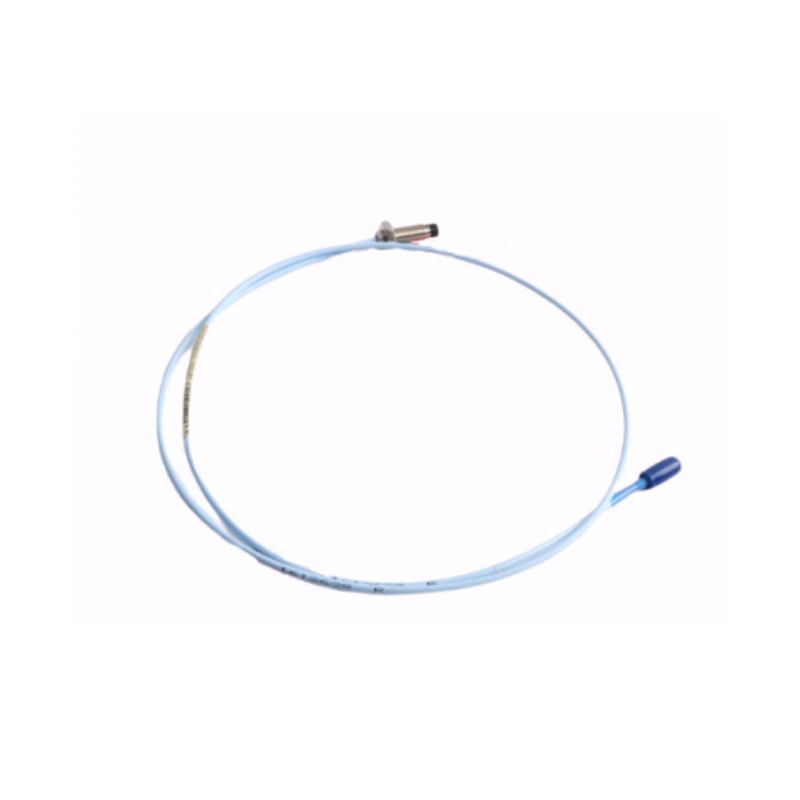

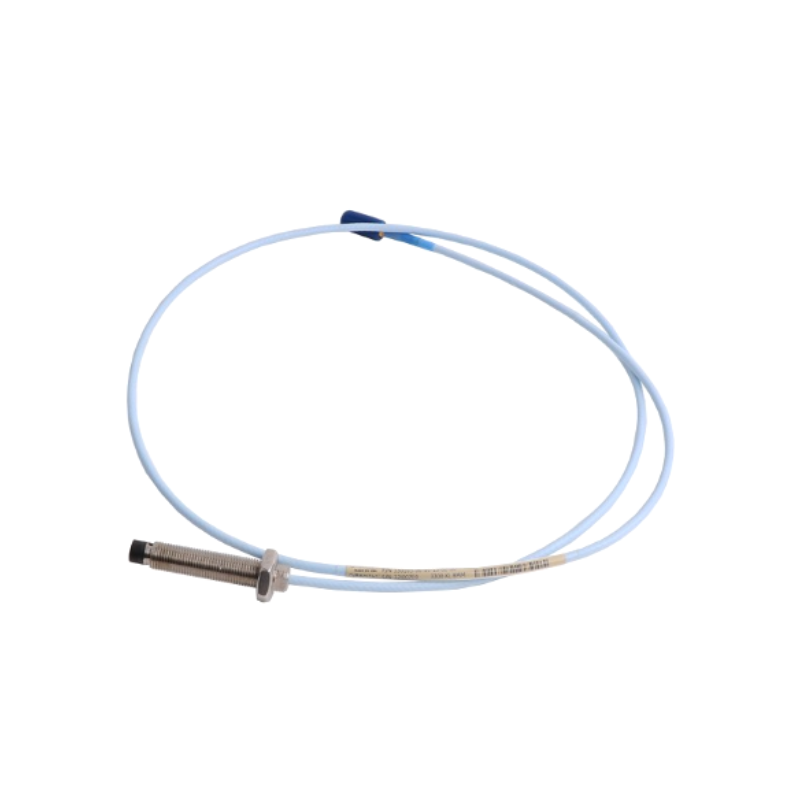

The Bently Nevada 330104-00-02-10-02-00 is an 8 mm proximity probe from the 3300 XL series, designed for precise vibration and displacement measurements in rotating machinery. This probe utilizes eddy current technology to detect changes in distance between the probe tip and a conductive target, providing valuable data for condition monitoring and predictive maintenance.
Produktspezifikationen:
| Parameter | Value |
|---|---|
| Modell Number | 330104-00-02-10-02-00 |
| Probe Size | 8 mm |
| Thread Size | M10 x 1 |
| Overall Case Length | 40 mm |
| Total Length | 1.0 meter (39 inches) |
| Cable Type | Miniature coaxial ClickLoc™ connector, standard cable |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Gewicht | 0.323 kg |
| Material | Stainless steel body with Teflon cable |
Product Applications:
The 3300 XL 8 mm proximity probe is primarily used for measuring vibration and position in fluid-film bearing machines. Its applications include:
-
Vibration Monitoring: Detecting radial vibrations in machinery such as turbines, compressors, and pumps.
-
Position Measurement: Monitoring shaft axial displacement to identify misalignments or mechanical issues.
-
Speed and Phase Detection: Providing Keyphasor® signals for speed and phase reference in machinery analysis.
Advantages:
-
High Precision: Offers accurate measurements with a linear range up to 2 mm and a sensitivity von 20 mV/mm/s at 100 Hz.
-
Durability: Constructed with a stainless steel body and Teflon cable, ensuring resistance to harsh industrial environments.
-
Wide Temperature Range: Operates effectively in temperatures ranging from -40°C to +85°C.
-
Ease von Integration: Compatible with Bently Nevada 3500 and 3600 series vibration monitoring systems.
-
Flexible Installation: The standard 5-meter cable allows for versatile installation options.
Latest Product News:
-
Enhanced Performance: The 3300 XL series introduces improved RFI/EMI immStücky, allowing installation in fiberglass housings without adverse effects from nearby radio frequency signals.
-
Backward Compatibility: Components von the 3300 XL series are interchangeable with previous 3300 series models, facilitating easy upgrades without the need for recalibration.
-
Expanded Applications: The 3300 XL 8 mm probe is suitable for a wide range von industrial applications, including those requiring high-temperature resistance and chemical durability.
Häufig gestellte Fragen (FAQ):
-
What is the primary function von the 3300 XL 8 mm proximity probe?
-
It measures the distance between the probe tip and a conductive surface, providing data on vibration and displacement in rotating machinery.
-
-
What materials are used in the construction von the probe?
-
The probe features a stainless steel body and a Teflon cable, ensuring durability and resistance to harsh environments.
-
-
What is the operating temperature range von the probe?
-
It operates effectively between -40°C and +85°C (-40°F to +185°F).
-
-
How does the probe connect to monitoring systems?
-
It uses a miniature coaxial ClickLoc™ connector with a standard cable, facilitating easy integration with Bently Nevada monitoring systems.
-
-
What is the weight von the probe?
-
The probe weighs 0.323 kg.
-
-
Can the probe be used in hazardous environments?
-
While specific certifications are not required for this model, the probe’s durable construction makes it suitable for various industrial settings.
-
-
What is the linear measurement range von the probe?
-
The probe vonfers a linear range up to 2 mm, providing precise displacement measurements.
-
-
Is the probe compatible with older Bently Nevada systems?
-
Yes, it is compatible with Bently Nevada 3500 and 3600 series vibration monitoring systems.
-
-
What is the standard cable length for the probe?
-
The standard cable length is 1 meters, but other lengths may be available upon request.
-
-
How is the probe mounted on machinery?
-
The probe is designed for easy installation with standard mounting options, ensuring stable and accurate measurements.
-
Related Modells from the 3300 XL Series:
| Modell Number | Beschreibung |
|---|---|
| 330104-00-08-10-02-00 | 3300 XL 8 mm Proximity Probe with 8 mm probe size and 5-meter cable |
| 330104-00-12-10-02-00 | 3300 XL 8 mm Proximity Probe with metric thread size and 1-meter cable |
| 330104-00-04-10-02-00 | 3300 XL 8 mm Proximity Probe with 40 mm case length and 1-meter cable |
| 330104-00-10-10-02-00 | 3300 XL 8 mm Proximity Probe with 10 mm probe size and 1-meter cable |
| 330104-00-20-10-02-00 | 3300 XL 8 mm Proximity Probe with 20 mm probe size and 1-meter cable |
| 330104-00-30-10-02-00 | 3300 XL 8 mm Proximity Probe with 30 mm probe size and 1-meter cable |
| 330104-00-16-10-02-00 | 3300 XL 8 mm Proximity Probe with 16 mm probe size and 1-meter cable |
| 330104-00-14-10-02-00 | 3300 XL 8 mm Proximity Probe with 14 mm probe size and 1-meter cable |
Popular Modells from Bently Nevada:
| Modell Number | Beschreibung |
|---|---|
| 330103-00-01-10-00-00 | 3300 XL 5 mm Proximity Probe for precise vibration monitoring |
| 330400-00-10-10-02-00 | 3300 XL 8 mm Proximity Probe with 10-meter cable |
| 330104-00-20-00-02-00 | 3300 XL 8 mm Proximity Probe for harsh environments |
| 3300-10-01-00-02-05 | 3300 Proximity Probe with rugged casing for industrial use |
| 3300-12-02-01-01-00 | 3300 XL Vibration Sensor for monitoring turbine systems |
| 330700-00-08-10-02-00 | 3300 XL Proximity Probe with ClickLoc connector for easy installation |
| 330501-00-11-10-02-00 | 3300 Proximity Probe for use with Bently Nevada systems |
| 330103-00-01-00-02-00 | 3300 XL 5 mm Proximity Probe for accurate displacement measurement |
