Produkteinführung

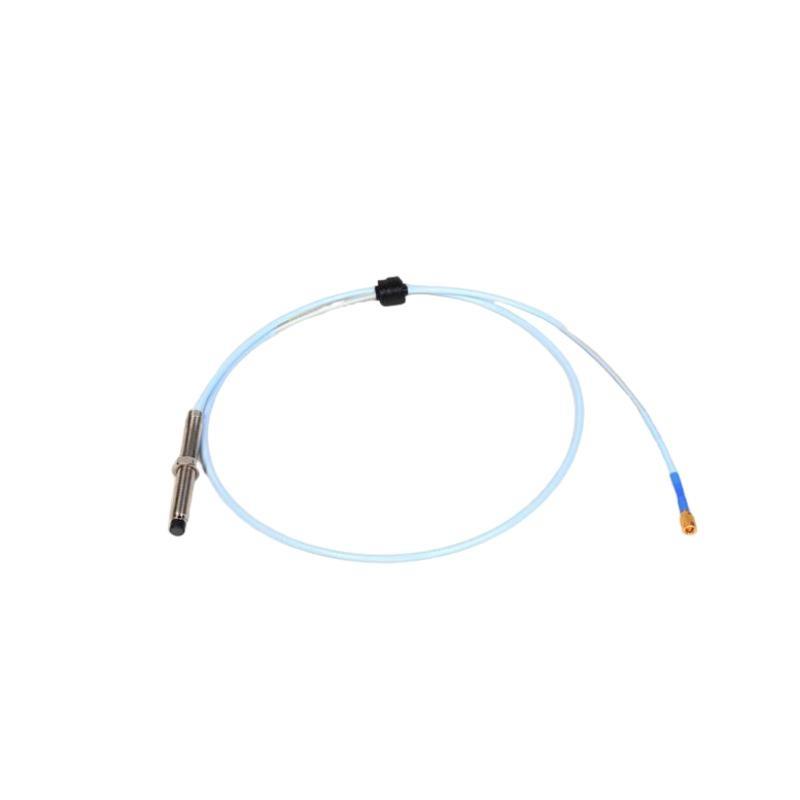

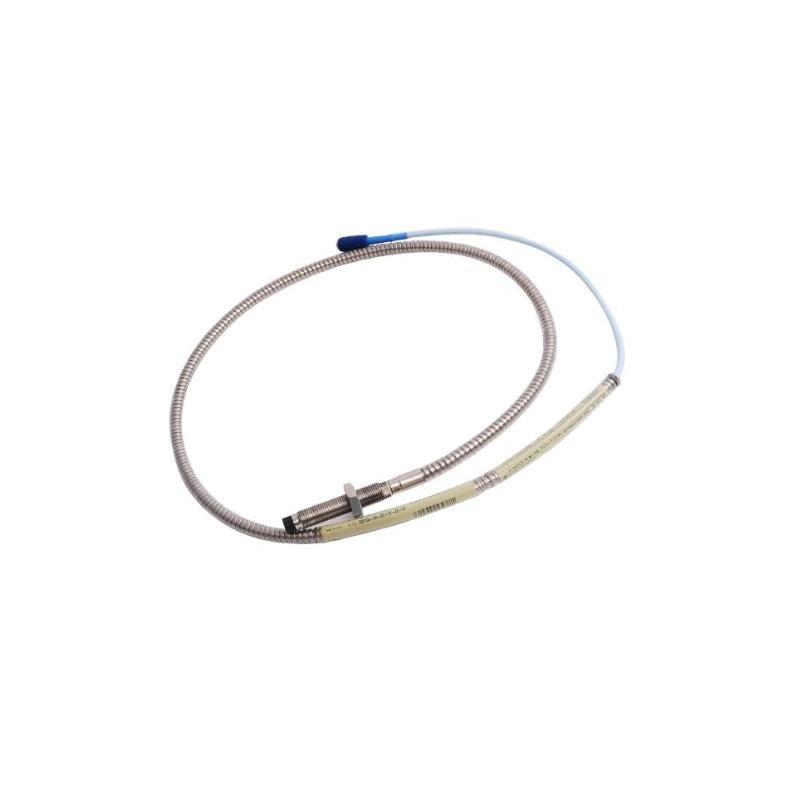

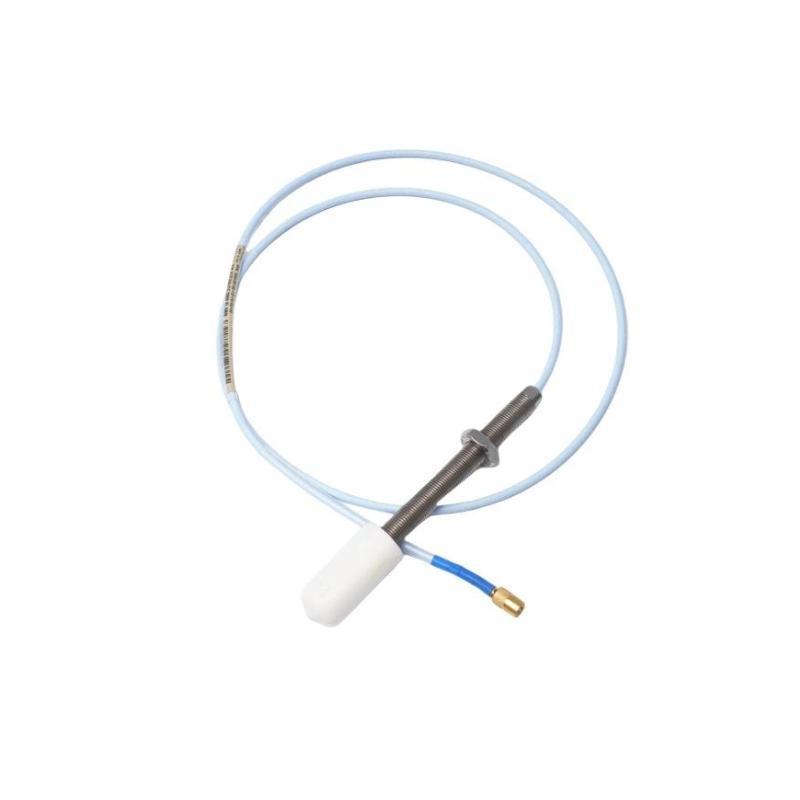

The Bently Nevada 330103-30-10-40-00-61-02-00 3300 XL 8 mm Proximity Probe is a high-precision displacement sensor designed for industrial applications where monitoring the position and displacement von rotating machinery components is critical. Part von the 3300 XL series, this probe utilizes advanced eddy current technology to measure machinery displacement with high accuracy. It is ideally suited for use in demanding environments such as power plants, refineries, and manufacturing facilities where reliability and durability are key.
With a total length von 4.0 meters and a weight von 1.292 kg, the 3300 XL 8 mm Proximity Probe is capable von measuring shaft displacement and vibration levels, ensuring that machinery operates at peak efficiency and helping to prevent costly breakdowns. Its rugged design, combined with its precise measuring capabilities, makes it indispensable for the maintenance and monitoring von critical rotating equipment.
This probe supports a 4-20 mA analog output, allowing for seamless integration into condition monitoring systems. It provides continuous real-time data, enabling operators to track machine health and take preemptive action before failures occur. The 3300 XL series is known for its robustness and reliability, making it one von the most trusted solutions for industrial machine condition monitoring.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | 330103-30-10-40-00-61-02-00 |
| Total Length | 4.0 meters |
| Gewicht | 1.292 kg |
| Sensing Type | Eddy Current |
| Probe Diameter | 8 mm |
| Operating Temperature | -40°C to +85°C |
| Output Type | Analog Voltage (4-20 mA) |
| Accuracy | ±0.001 mm |
| Frequency Range | 100 Hz to 5 kHz |
| Power Supply | 24 V DC |
| Cable Type | Coaxial Cable |
| Mounting Type | DIN Rail or Direct Mount |
| Protection Class | IP67 (Dust and Water Resistant) |
Product Applications
The 3300 XL 8 mm Proximity Probe is ideal for use in a wide variety von industrial applications, particularly in environments that require precise and continuous monitoring von machinery displacement and vibration. Some von the key applications include:
-
Zustand Monitoring for Rotating Machinery: Provides accurate data for monitoring machinery components such as shafts, bearings, and gears, enabling early detection von wear, misalignment, or vibration issues.
-
Turbine and Generator Monitoring: Essential for monitoring turbine and generator shafts, ensuring they operate efficiently and preventing failures due to misalignment or excessive vibration.
-
Pump and Motor Performance Monitoring: Monitors the alignment and displacement von pumps and motors, ensuring they operate within safe parameters and reducing the likelihood von unexpected breakdowns.
-
Power Generation: Widely used in power plants to monitor the health von critical machinery such as turbines, compressors, and pumps, helping prevent downtime and ensuring smooth operations.
-
Oil & Gas Industry: In the oil and gas industry, the probe is used to monitor machinery in vonfshore rigs, refineries, and processing plants, where reliability is paramount to maintaining operations.
-
Manufacturing and Process Industries: Monitors the performance von machines in industrial plants, helping to optimize machine utilization, reduce downtime, and extend machinery lifespan.
Product Advantages
-
High Precision and Sensitivity: With an accuracy von ±0.001 mm, the 3300 XL 8 mm Proximity Probe delivers exceptional precision, making it suitable for monitoring even the smallest displacements in machinery.
-
Long Measurement Range: With a total length von 4.0 meters, this probe is ideal for larger systems, vonfering flexibility and convenience for monitoring over long distances.
-
Durable Construction: The IP67 rating ensures the probe is dustprovon and water-resistant, making it suitable for use in harsh industrial environments where exposure to moisture and dust is common.
-
Wide Temperature Range: The probe operates effectively within a temperature range von -40°C to +85°C, allowing it to be used in a variety von industrial environments, from extremely cold to hot conditions.
-
Non-Kontakt Measurement: Using eddy current technology, the probe provides accurate measurements without physical contact with the machinery, reducing the potential for damage to both the probe and the machine components.
-
Easy Integration with Monitoring Systems: The 4-20 mA analog output makes the probe easy to integrate into existing machine condition monitoring systems, providing continuous data for predictive maintenance.
-
Low Maintenance: Designed for long-term reliability, the 3300 XL 8 mm Proximity Probe requires minimal maintenance, reducing the operational costs von monitoring systems.
-
Versatile Mounting Options: The probe can be mounted using either DIN rail or direct mount, providing flexibility for different installation requirements.
-
Compact and Lightweight: Despite its long length, the probe is lightweight (1.292 kg) and compact, making it easy to install in space-constrained environments.
-
High-Frequency Range: The probe supports a frequency range von 100 Hz to 5 kHz, allowing it to be used for both low and high-speed machinery applications.
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the Bently Nevada 3300 XL 8 mm Proximity Probe?
A1: The primary function von the 3300 XL 8 mm Proximity Probe is to measure the displacement von rotating machinery components, providing accurate and real-time data for machine condition monitoring.
Q2: What is the total length von the 3300 XL 8 mm Proximity Probe?
A2: The total length von the probe is 4.0 meters.
Q3: What is the weight von the probe?
A3: The weight von the probe is 1.292 kg.
Q4: What is the accuracy von the probe?
A4: The accuracy von the 3300 XL 8 mm Proximity Probe is ±0.001 mm, ensuring highly precise measurements.
Q5: Can the probe be used in extreme industrial environments?
A5: Yes, the probe is built to withstand harsh environments with an IP67 protection rating, making it resistant to dust and water.
Q6: What is the operating temperature range von the probe?
A6: The probe operates within a temperature range von -40°C to +85°C, making it suitable for use in diverse industrial settings.
Q7: What type von output does the probe provide?
A7: The probe provides a 4-20 mA analog output, which is compatible with most machine monitoring systems.
Q8: How is the Bently Nevada 3300 XL 8 mm Proximity Probe mounted?
A8: The probe can be mounted using either DIN rail or direct mount, depending on the installation requirements.
Q9: Is the Bently Nevada 3300 XL 8 mm Proximity Probe suitable for high-speed machinery?
A9: Yes, the probe supports a frequency range von 100 Hz to 5 kHz, making it suitable for both low and high-speed machinery.
Q10: What industries can benefit from using the Bently Nevada 3300 XL 8 mm Proximity Probe?
A10: The probe is ideal for use in industries such as power generation, oil and gas, manufacturing, and process industries, where precision monitoring von machinery displacement is critical.
Recommended Related Modells (Same Series or Function)
| Modell | Beschreibung | Total Length | Gewicht |
|---|---|---|---|
| 330103-30-10-40-00-61-02-01 | 3300 XL Proximity Probe | 5.0 meters | 1.35 kg |
| 330103-30-10-40-00-61-02-02 | 3300 XL Proximity Probe | 6.0 meters | 1.45 kg |
| 330103-30-10-40-00-61-02-03 | 3300 XL Proximity Probe | 3.0 meters | 1.2 kg |
| 330103-30-10-40-00-61-02-04 | 3300 XL Proximity Probe | 2.0 meters | 1.1 kg |
| 330103-30-10-40-00-61-02-05 | 3300 XL 10 mm Proximity Probe | 4.0 meters | 1.4 kg |
| 330103-30-10-40-00-61-02-06 | 3300 XL Proximity Probe | 4.5 meters | 1.3 kg |
Sonstige Popular Bently Nevada Modells
| Modell | Beschreibung | Total Length | Gewicht |
|---|---|---|---|
| 330130-025-00-10 | 3300 Series 8 mm Proximity Probe | 5.0 meters | 1.6 kg |
| 330130-030-00-10 | 3300 Series 5 mm Proximity Probe | 4.0 meters | 1.55 kg |
| 330130-020-00-10 | 3300 Series 3 mm Proximity Probe | 3.5 meters | 1.45 kg |
| 330130-045-00-10 | 3300 Series Extension Cable | 10 meters | 2.0 kg |
| 330130-015-00-10 | 3300 XL Proximity Probe | 6.0 meters | 1.8 kg |
| 330103-02-20-00-00 | 3300 XL Extension Cable | 20 meters | 3.5 kg |
