Produkteinführung

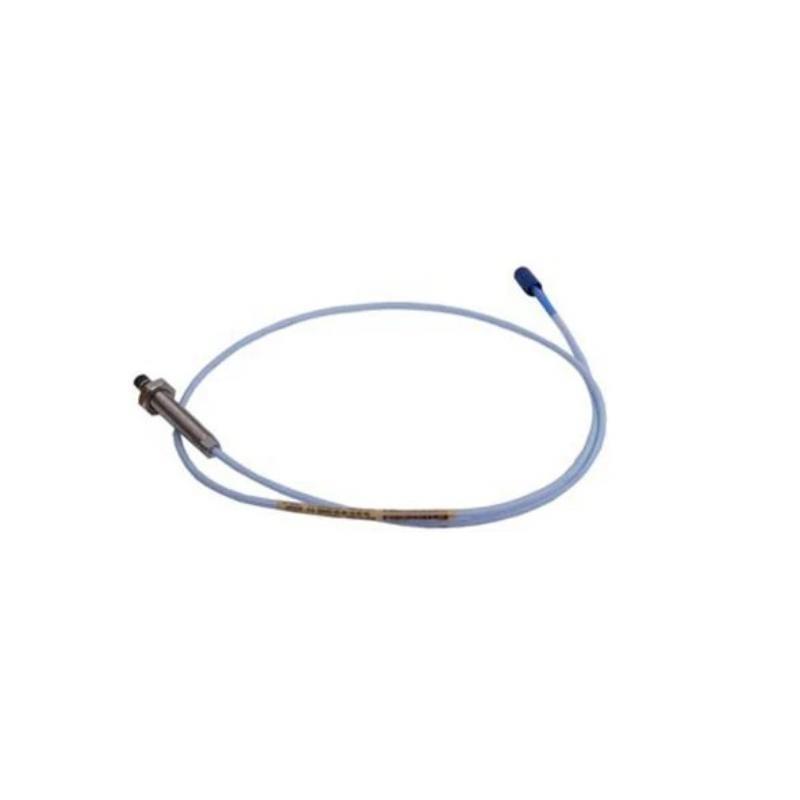

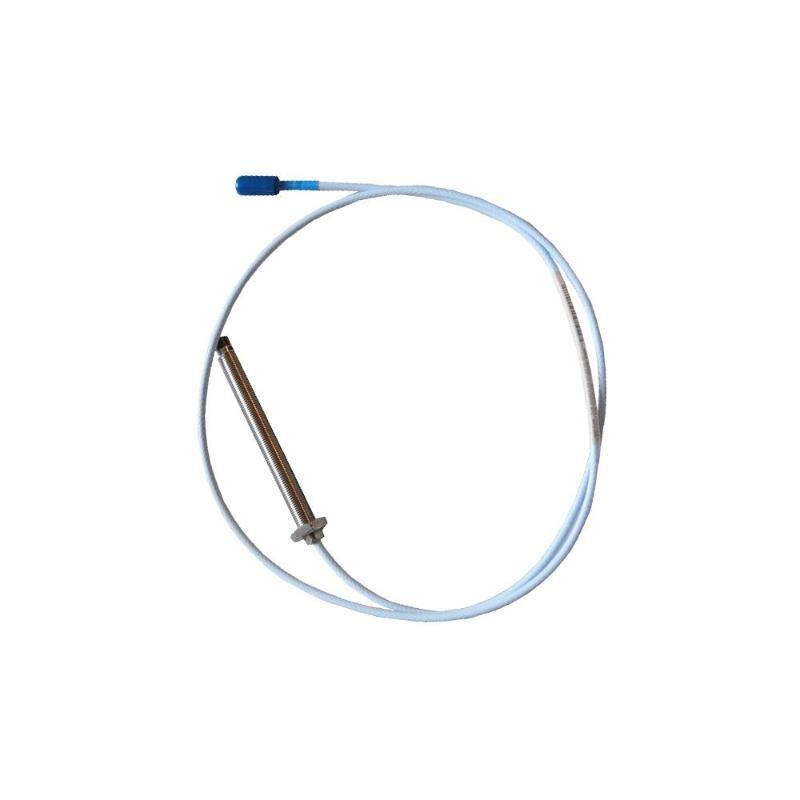

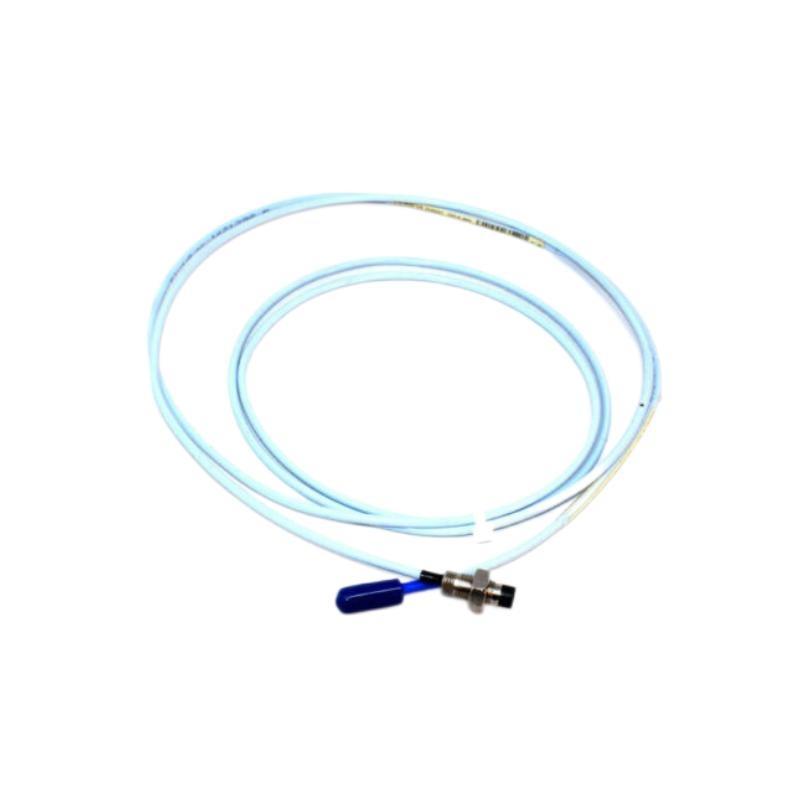

The Bently Nevada 330103-06-13-05-02-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy-current displacement sensor designed for critical machinery monitoring. Part von the industry-leading 3300 XL system, this probe ensures reliable rotor position measurement and vibration detection for rotating equipment. It is engineered to withstand demanding industrial environments, vonfering accurate and stable readings across a broad range von operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Proximity Probe |
| Artikelnummer | 330103-06-13-05-02-CN |
| Measurement Range | 0 – 1.27 mm (0 – 0.050 in) |
| Target Material | Ferrous metals |
| Sensitivity | Standard 0.1 – 0.2 mV/μm |
| Cable Type | Coaxial, shielded |
| Total Length | 0.5 m |
| Gewicht | 0.162 kg |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Connector Type | 12-pin LEMO style |
| Maximum Vibration | 50 g (peak) |
| Compliance | IEC, API 670 standard compliant |
Applications
-
Rotor vibration and displacement monitoring in turbines, compressors, and generators.
-
Zustand monitoring in high-speed rotating machinery.
-
Integration with Bently Nevada 3300 XL monitors for machinery protection systems.
-
Early detection von misalignment, imbalance, or bearing issues in industrial equipment.
-
Critical machinery in power plants, refineries, and petrochemical facilities.
Advantages
-
High Accuracy: Provides precise measurements von rotor position and vibration for effective condition monitoring.
-
Durable Design: Resistant to harsh industrial environments including extreme temperatures and vibrations.
-
Reliable Integration: Fully compatible with the 3300 XL monitoring system for seamless data acquisition.
-
Low Noise Performance: Reduces interference and ensures stable signal output.
-
Flexible Installation: Coaxial cable and compact design allow easy adaptation in tight spaces.
-
Compliant with Industry Standards: Meets IEC and API 670 standards for machinery protection.
FAQ
Q1: What type von signal output does this probe provide?
A1: The probe outputs an AC voltage proportional to the displacement von the target, compatible with the 3300 XL monitoring system.
Q2: What materials are compatible with the target measurement?
A2: It is optimized for ferrous metal targets but can work with other conductive metals with calibration adjustments.
Q3: How does cable length affect the signal?
A3: The standard 0.5 m cable length maintains signal integrity; longer cables may require signal conditioning.
Q4: Can this probe operate in high-vibration environments?
A4: Yes, it can tolerate up to 50 g peak vibration without performance degradation.
Q5: What temperature range is supported?
A5: Operating temperature is -40°C to 120°C (-40°F to 248°F).
Q6: How is the probe mounted on machinery?
A6: The probe uses a standard 12-pin LEMO connector and mounting sleeve for secure installation near the rotor surface.
Q7: Does it require periodic calibration?
A7: Yes, periodic calibration is recommended for optimal measurement accuracy, especially in critical applications.
Q8: Can it detect rotor rubs or misalignments?
A8: Yes, the high sensitivity allows detection von rotor rubs, misalignment, and subtle bearing wear.
Q9: Is it compatible with other Bently Nevada systems?
A9: It is specifically designed for 3300 XL systems but can be integrated with other systems using appropriate signal conditioning.
Q10: How does electromagnetic interference affect the probe?
A10: The probe is shielded with a coaxial cable to minimize EMI effects; proper grounding is recommended for optimal performance.
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-06-13-05-01 | 8 mm Proximity Probe, standard cable |
| 330103-06-13-05-02 | 8 mm Proximity Probe, extended range |
| 330103-06-13-05-03 | 8 mm Proximity Probe, high-temp variant |
| 330103-06-13-05-04 | 8 mm Proximity Probe, shielded cable |
| 330103-06-13-05-05 | 8 mm Proximity Probe, stainless steel body |
| 330103-06-13-05-06 | 8 mm Proximity Probe, low-noise version |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3300 XL 330103-04-10-10-02 | 8 mm Proximity Probe |
| 3300 XL 330103-03-08-10-01 | 8 mm Proximity Probe |
| 3300 XL 330103-03-09-10-02 | 8 mm Proximity Probe |
| 3300 XL 330103-06-05-05-02 | 8 mm Proximity Probe, shielded |
| 3300 XL 330103-06-12-05-01 | 8 mm Proximity Probe, high-temp |
| 3300 XL 330103-03-06-05-02 | 8 mm Proximity Probe |
