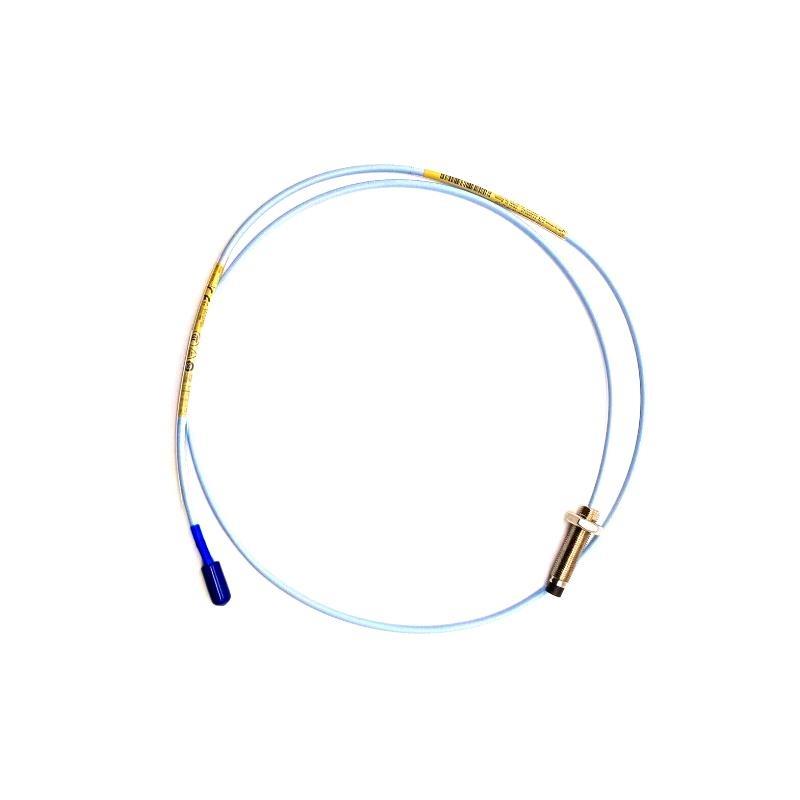

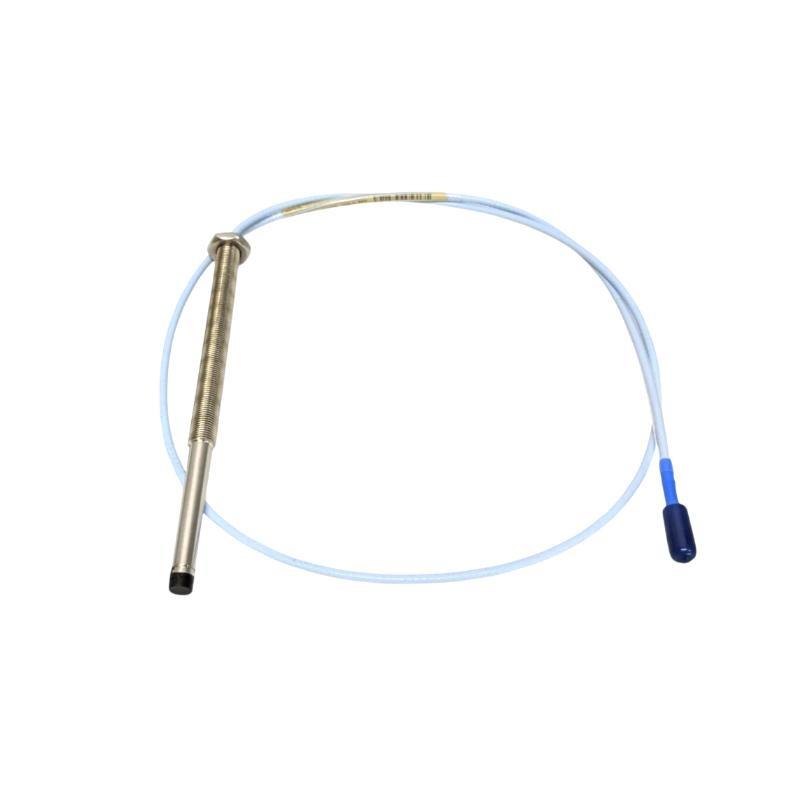

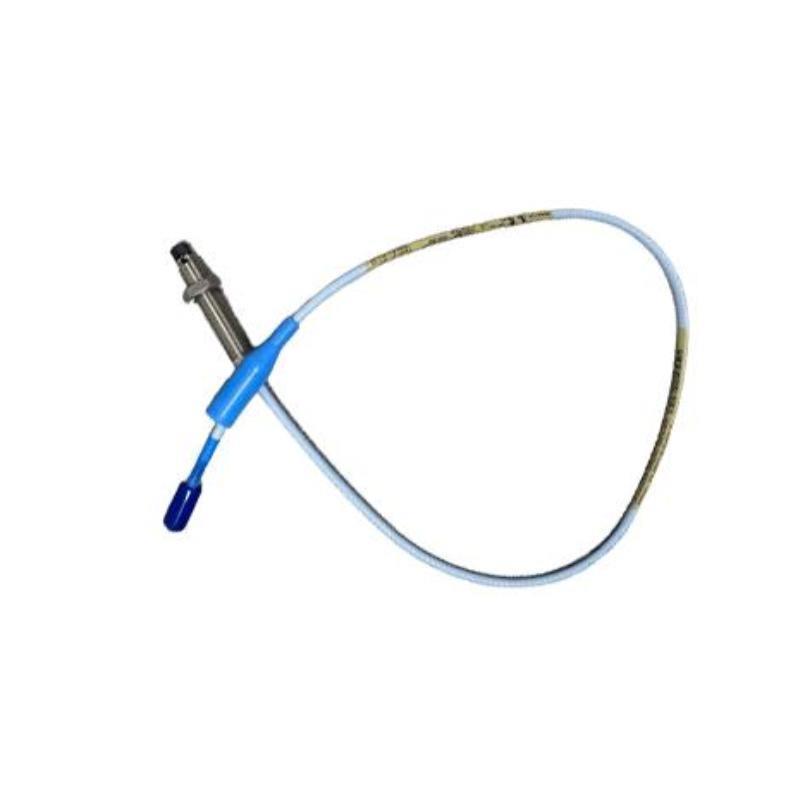

The Bently Nevada 330103-06-10-10-02-RU is part von the 3300 XL 8 mm Proximity Probe family, engineered for precise shaft vibration and position measurement in critical rotating machinery. Designed with an M10 × 1 thread and enhanced XL technology, it ensures long-term reliability under harsh industrial environments. Its rugged construction and compliance with API 670 standards make it a preferred choice for turbine, compressor, and pump monitoring applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 330103-06-10-10-02-RU |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Size | M10 × 1 |
| Case Length (Unthreaded) | 60 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc connector |
| Regulatory Code | RU – Russian compliance |
| Gewicht | 0.323 kg |
| Total Length | 1.0 m |
| Temperature Range | -35 °C to +177 °C |
| Compliance | API 670, CE, and regional standards |
| Features | TipLoc tip bonding, CableLoc strength, RFI/EMI immStücky, ClickLoc |
Applications
-
Monitoring shaft vibration and displacement in turbines, compressors, pumps, and gearboxes.
-
Providing Keyphasor® reference signals for speed and phase measurements.
-
Ensuring machine protection and diagnostics in compliance with API 670 standards.
-
Suitable for use in harsh environments with high temperature, electromagnetic noise, and mechanical stress.
Advantages
-
Enhanced Durability: TipLoc and CableLoc technologies ensure mechanical robustness and extended lifespan.
-
Secure Connections: ClickLoc connectors provide quick, reliable, tool-free installation.
-
High Accuracy: Linear output for both static and dynamic measurements.
-
Wide Compatibility: Backward compatible with earlier 3300-series components.
-
Compliance: Meets global industrial monitoring standards, including API 670.
-
Optimized for Reliability: RFI/EMI immStücky ensures stable performance in electrically noisy environments.
FAQ
Q1: What is the primary function von the 330103-06-10-10-02-RU probe?
A1: It measures shaft position and vibration using eddy-current sensing technology, essential for machine protection and condition monitoring.
Q2: What does the “RU” suffix indicate?
A2: The “RU” designation indicates compliance with Russian technical and regulatory requirements.
Q3: Is this probe compatible with earlier Bently Nevada 3300 series components?
A3: Yes, it is backward compatible; however, overall performance will be limited to the lowest-rated component in the system.
Q4: What Proximitor sensor is recommended with this probe?
A4: The 3300 XL Proximitor sensor is designed for use with 330103 series probes, ensuring full system accuracy.
Q5: Can this probe be used for Keyphasor® applications?
A5: Yes, it is widely used for Keyphasor reference in speed and phase measurements.
Q6: What is the linear measurement range von the 3300 XL 8 mm probe system?
A6: It provides a linear range von approximately 2 mm (80 mils), meeting API 670 requirements.
Q7: What environments can this probe operate in?
A7: It operates in harsh industrial conditions with wide temperature ranges, high mechanical stress, and strong electromagnetic fields.
Q8: How is cable reliability ensured?
A8: The CableLoc technology provides high pull strength (up to 330 N), preventing disconnection under stress.
Q9: Does the probe require special tools for installation?
A9: No, the ClickLoc connector allows tool-free, secure finger-tight installation.
Q10: What industries typically use this probe?
A10: Oil & gas, petrochemical, power generation, and heavy manufacturing industries rely on it for rotating equipment monitoring.
Related Modells (Same Series)
| Modell Number | Beschreibung | Cable Length | Gewicht |
|---|---|---|---|
| 330103-00-06-10-02-00 | 8 mm probe, M10 × 1, 60 mm case, 1.0 m cable | 1.0 m | 0.323 kg |
| 330103-00-08-10-02-00 | 8 mm probe, M10 × 1, 80 mm case, 1.0 m cable | 1.0 m | 0.335 kg |
| 330104-00-06-10-02-00 | 8 mm probe with armor, 60 mm case, 1.0 m cable | 1.0 m | 0.350 kg |
| 330104-00-08-10-02-00 | 8 mm armored probe, 80 mm case, 1.0 m cable | 1.0 m | 0.360 kg |
| 330180-91-00 | 3300 XL Proximitor sensor, DIN rail mounting | N/A | 0.210 kg |
| 330130-080-00-00 | 8 mm Extension Cable, standard ClickLoc | 5.0 m | 0.420 kg |
Popular Bently Nevada Modells
| Modell Number | Product Type | Application | Gewicht |
|---|---|---|---|
| 330101-00-12-10-02-00 | 5 mm XL Proximity Probe | Tight-space vibration measurement | 0.280 kg |
| 3500/22M | Transient Data Interface Module | Machinery monitoring systems | 0.450 kg |
| 3500/42M | Proximitor/Seismic Monitor | Vibration and position monitoring | 0.500 kg |
| 3500/92 | Communication Gateway | System networking and integration | 0.400 kg |
| 3300-NSv | Non-contact NSv proximity probe system | Small shaft and slow speed machines | 0.250 kg |
| 3500/15 | Power Supply Module | Powering monitoring racks | 0.550 kg |
