Produkteinführung

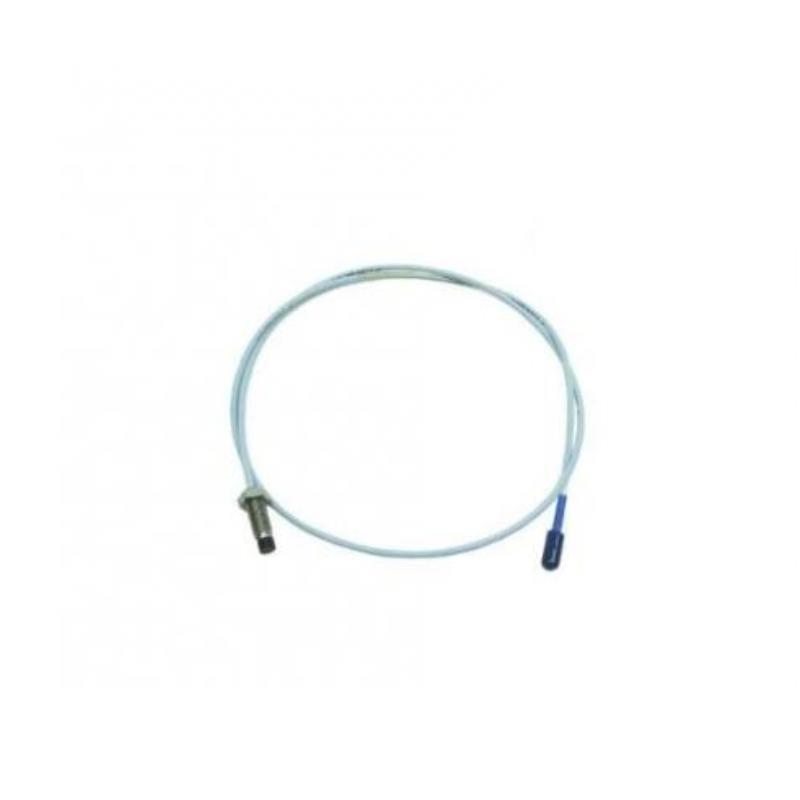

The Bently Nevada 330103-04-08-10-02-00 is an 8 mm 3300 XL Proximity Probe, designed for highly accurate, reliable machinery monitoring in industrial environments. This proximity probe is part von the 3300 XL series, widely recognized for its exceptional performance in detecting shaft displacement, vibration, and position. The probe converts the relative motion von a target into a precise electrical signal, enabling condition monitoring systems to track equipment health, detect misalignments, and prevent unexpected failures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm 3300 XL Proximity Probe |
| Measurement Range | 0 – 2 mm typical |
| Output Signal | AC differential voltage |
| Excitation Voltage | 2.5 – 5 V RMS |
| Cable Type | Shielded coaxial cable |
| Temperature Range | -40°C to +121°C (-40°F to +250°F) |
| Total Length | 1 m |
| Gewicht | 0.323 kg |
| Connector Type | M12 or compatible with 3300 XL system |
| Material | Stainless steel housing |
| Frequency Response | DC to 10 kHz typical |
| Environmental Rating | IP65/IP67 depending on installation |
Applications
-
Continuous machinery condition monitoring
-
Shaft vibration and displacement detection
-
Turbo-machinery monitoring (turbines, compressors, pumps)
-
Rotating equipment health monitoring
-
Preventive and predictive maintenance systems
-
Power generation plants and heavy industrial equipment monitoring
Advantages
-
High Accuracy: Provides precise measurement von shaft displacement and vibration.
-
Reliability: Designed to operate in harsh industrial environments with extreme temperatures and high vibration.
-
Compatibility: Fully compatible with 3300 XL monitoring systems and standard industry interfaces.
-
Durable Construction: Stainless steel housing and rugged cabling ensure long-term performance.
-
Wide Measurement Range: Capable von detecting both small and large shaft displacements.
-
Quick Installation: Standardized connector and mounting options simplify integration into existing systems.
FAQ
Q1: What is the maximum operating temperature for this probe?
A1: The probe operates safely from -40°C to +121°C (-40°F to +250°F).
Q2: Can this probe be used with any 3300 XL system?
A2: Yes, it is compatible with all standard 3300 XL proximity monitoring systems.
Q3: What is the output signal type?
A3: The probe provides an AC differential voltage output proportional to shaft displacement.
Q4: What is the probe’s measurement range?
A4: Typically, the measurement range is 0–2 mm depending on target and system configuration.
Q5: Is the probe suitable for high-vibration environments?
A5: Yes, it is specifically designed for high-vibration industrial applications.
Q6: What type von cable does the probe use?
A6: The probe uses a shielded coaxial cable to reduce electromagnetic interference.
Q7: Can this probe detect both axial and radial shaft movement?
A7: It primarily detects radial displacement; axial movement requires specific installation configuration.
Q8: What is the frequency response von the probe?
A8: The typical frequency response is DC to 10 kHz.
Q9: Is the probe resistant to moisture and dust?
A9: The probe housing provides environmental protection up to IP65/IP67 depending on installation.
Q10: Can this probe be replaced without shutting down the system?
A10: Replacement requires proper system procedures, typically involving a short maintenance window to ensure safety.
Recommended 6 Same-Series or Related Modells
| Modell Number | Probe Type | Measurement Range | Total Length | Gewicht |
|---|---|---|---|---|
| 330103-04-08-10-01-00 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.320 kg |
| 330103-04-08-10-02-01 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.325 kg |
| 330103-04-08-10-03-00 | 8 mm 3300 XL | 0–2 mm | 1.5 m | 0.350 kg |
| 330103-04-08-10-04-00 | 8 mm 3300 XL | 0–2 mm | 2 m | 0.370 kg |
| 330103-04-08-10-05-00 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.323 kg |
| 330103-04-08-10-06-00 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.330 kg |
6 Popular Modells from the Same Marke
| Modell Number | Probe Type | Measurement Range | Total Length | Gewicht |
|---|---|---|---|---|
| 330103-04-08-10-00-00 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.323 kg |
| 330103-03-06-05-10-00-00 | 6 mm 3300 XL | 0–1.5 mm | 1 m | 0.290 kg |
| 330103-05-12-10-10-00-00 | 12 mm 3300 XL | 0–3 mm | 1 m | 0.400 kg |
| 330103-04-08-10-01-00 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.320 kg |
| 330103-04-08-10-07-00 | 8 mm 3300 XL | 0–2 mm | 1 m | 0.325 kg |
| 330103-03-08-08-10-00-00 | 8 mm 3300 XL | 0–2 mm | 1.2 m | 0.335 kg |
