Product Overview

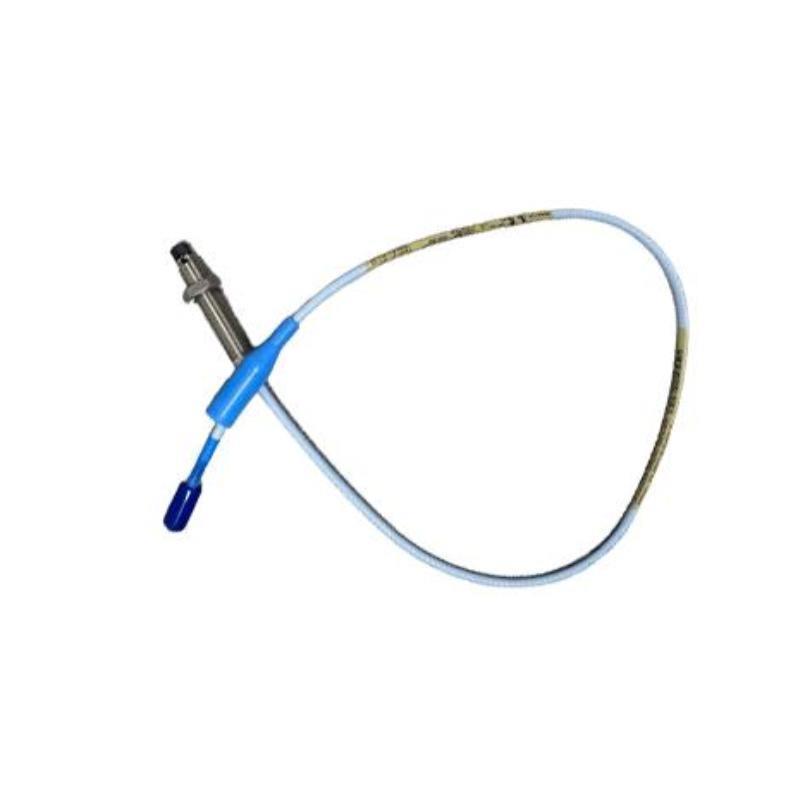

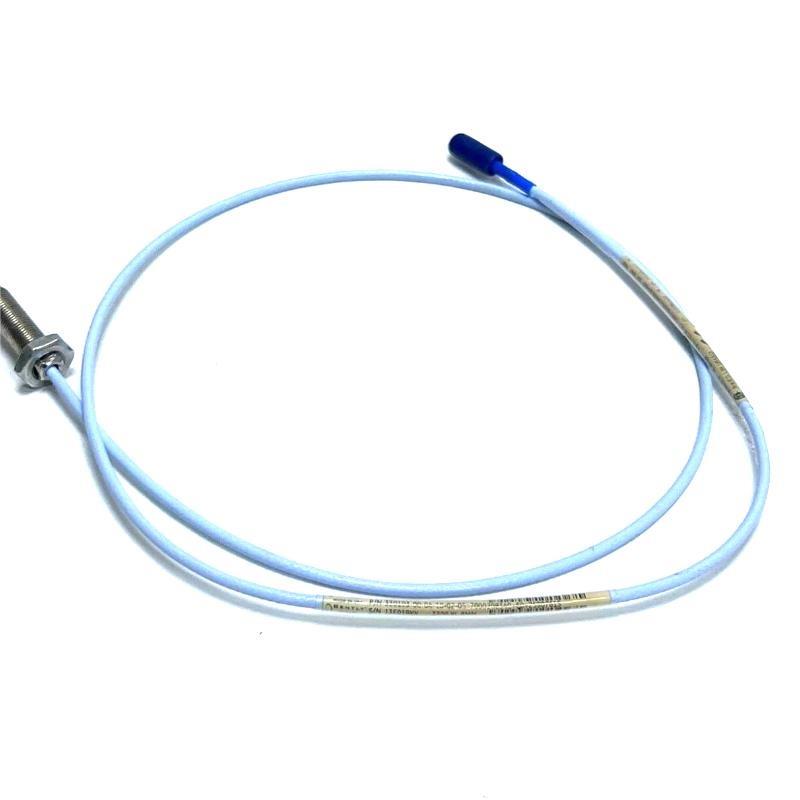

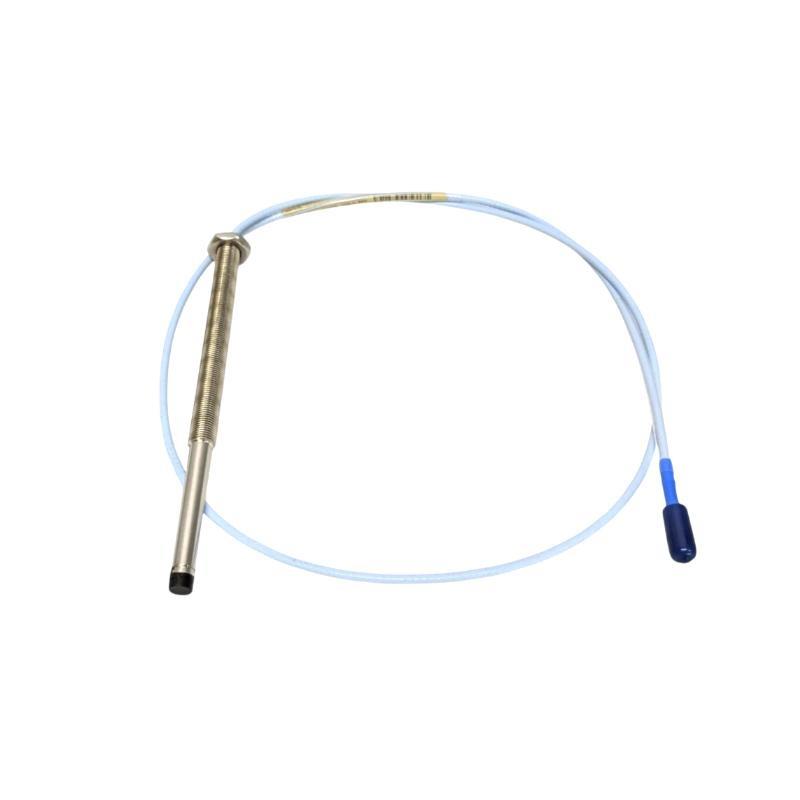

The Bently Nevada 330103-00-19-10-12-RU is a high-precision 8 mm proximity probe in the 3300 XL series, designed for industrial vibration and position monitoring. The probe is robustly constructed with a stainless steel case and a PPS tip, ensuring long-term durability and stability under harsh operational conditions. It integrates seamlessly with 3300 XL monitoring systems for reliable performance in critical machinery applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Thread Type | M10 × 1 (metric) |
| Unthreaded Length | 0 mm |
| Overall Case Length | 190 mm |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Connector Type | Miniature coaxial ClickLoc® |
| Cable Type | FluidLoc® cable |
| Linear Range | ~2.3 mm |
| Activation Threshold | 0.25 mm |
| Optimal Gap | 1.27 mm at -9 VDC |
| Resistance | 7.59 ± 0.5 Ω at 25°C |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
Applications
-
Vibration monitoring von fluid-film bearing machines
-
Position measurement in rotating equipment
-
Keyphasor® reference and speed sensing
-
Industrial machinery condition monitoring requiring high precision
Advantages
-
High durability in harsh industrial environments due to stainless steel casing and PPS tip
-
Reliable signal integrity via FluidLoc® cable and ClickLoc® connector
-
Compliance with API 670 standards for accuracy and stability
-
Interchangeable with other 3300 XL system components without recalibration
-
Compact and lightweight design suitable for dense industrial installations
FAQ
1. What is the optimal gap for this probe?
The optimal gap is 1.27 mm (50 mils) at -9 VDC.
2. What is the linear measurement range?
The linear range is approximately 2.3 mm.
3. What materials are used in the probe tip and case?
The probe tip is made von PPS, and the case is stainless steel (AISI 303/304).
4. Can this probe be used in high-vibration environments?
Yes, it is designed to withstand harsh industrial conditions and high vibration.
5. What type von connector does the probe use?
It uses a miniature coaxial ClickLoc® connector for secure connections.
6. What is the activation threshold von the probe?
The activation threshold is 0.25 mm.
7. Is this probe compatible with other 3300 XL components?
Yes, it is fully interchangeable within the 3300 XL system.
8. What is the total length and weight von the probe?
Total length is 1.0 meter, and weight is 0.323 kg.
9. What type von cable is used?
A FluidLoc® cable is used to maintain signal integrity and durability.
10. Does this probe meet any industrial standards?
Yes, it complies with API 670 (4th Edition) for mechanical configuration, linear range, and temperature stability.
Related 3300 XL Modells
| Modell | Thread Type | Linear Range | Total Length | Gewicht |
|---|---|---|---|---|
| 330103-00-06-10-11-00 | M10 × 1 | 2.3 mm | 1.0 m | 0.323 kg |
| 330103-00-06-50-01-00 | M10 × 1 | 2.3 mm | 1.0 m | 0.323 kg |
| 330103-00-08-10-02-00 | M10 × 1 | 2.3 mm | 1.0 m | 0.323 kg |
| 330104-00-06-10-11-00 | M10 × 1 | 2.3 mm | 1.0 m | 0.323 kg |
| 330104-00-06-50-01-00 | M10 × 1 | 2.3 mm | 1.0 m | 0.323 kg |
| 330180-91-CN | M10 × 1 | 2.3 mm | 1.0 m | 0.323 kg |
Popular Bently Nevada Modells
| Modell | Function | Linear Range | Total Length | Gewicht |
|---|---|---|---|---|
| 3300 XL 8 mm Proximitor Sensor | Position monitoring | 2.3 mm | 1.0 m | 0.323 kg |
| 3300 XL 5 mm Proximity Probe | Vibration sensing | 1.27 mm | 0.8 m | 0.290 kg |
| 3300 XL 12 mm Proximity Probe | Vibration sensing | 3.0 mm | 1.2 m | 0.350 kg |
| 3300 XL 8 mm Keyphasor® Probe | Speed sensing | 2.3 mm | 1.0 m | 0.323 kg |
| 3500/72 Vibration Monitor | System interface | N/A | N/A | N/A |
| 3500/55 Monitor | Vibration & position | N/A | N/A | N/A |
