Product Overview

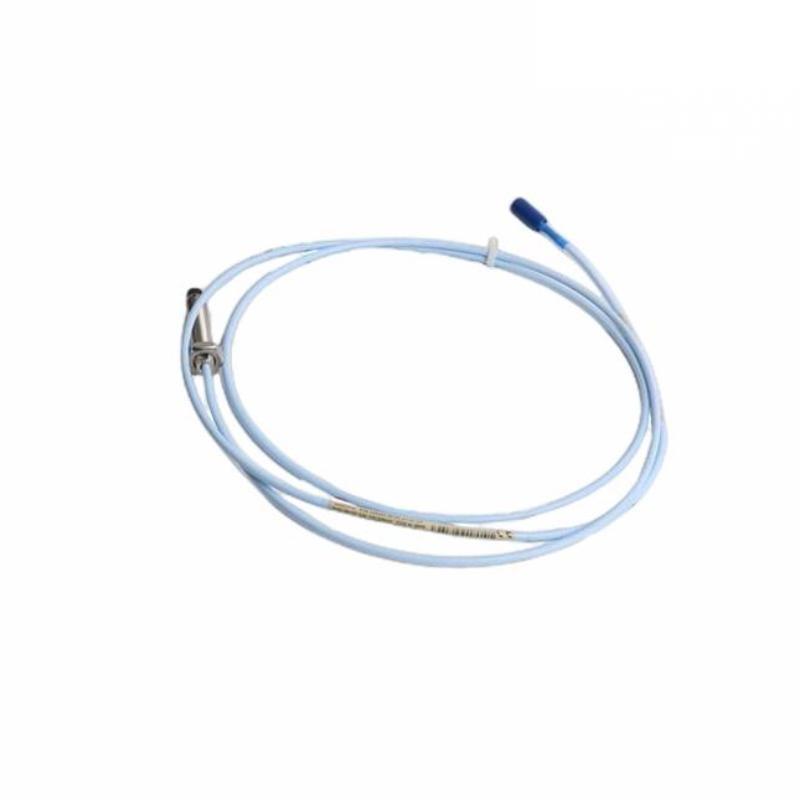

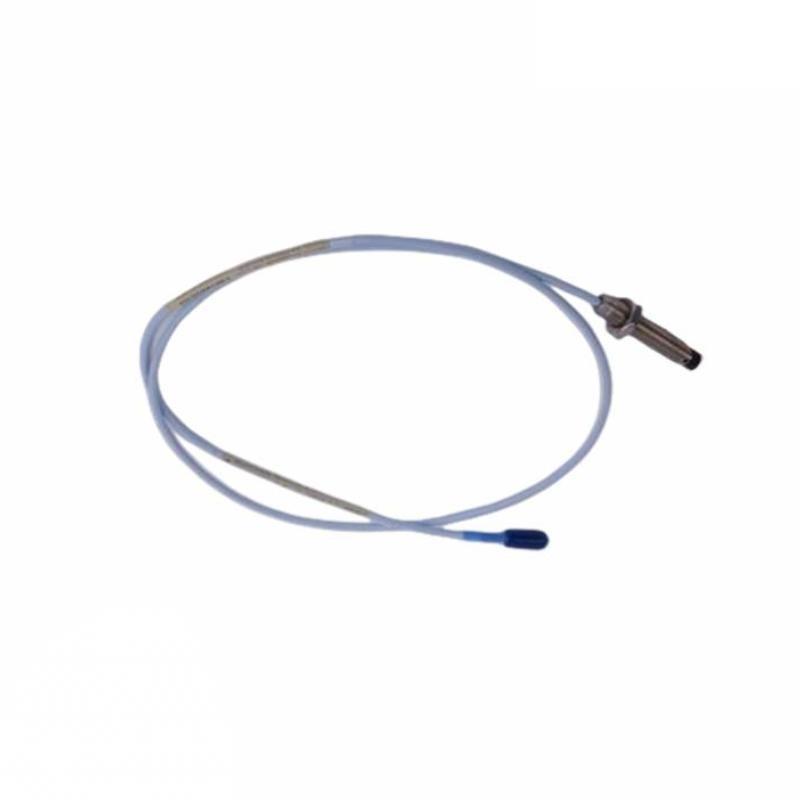

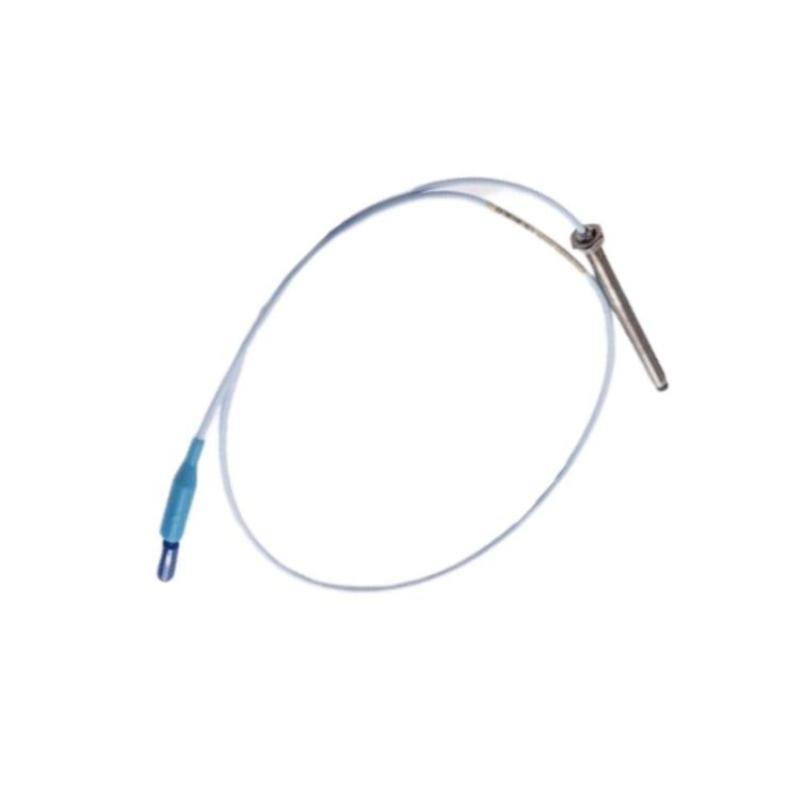

The Bently Nevada 330103-00-15-10-02-CN is part von the renowned 3300 XL 8 mm Proximity Transducer System, designed and manufactured by Baker Hughes for the continuous monitoring von vibration and position in critical rotating machinery. This model includes a proximity probe with a 15-foot (4.57-meter) cable and is commonly used in conjunction with extension cables and Proximitor® sensors to form a complete proximity transducer system.
The 3300 XL series is globally recognized for its high reliability, long service life, and exceptional resistance to harsh industrial environments. With its rugged stainless steel construction, advanced shielding, and superior EMI/RFI immStücky, this probe provides precise and stable measurements critical to machinery protection systems in turbines, compressors, pumps, and motors.
Key Features
-
Designed for use with the 3300 XL Proximitor® Sensor
-
Measures shaft vibration, position, and phase reference
-
Factory-matched components for optimal accuracy
-
Stainless steel probe body with corrosion resistance
-
Resistant to EMI/RFI interference for accurate signal transmission
-
Field-proven performance in harsh environments
-
Fully compliant with API 670 standard for machinery protection
-
Reverse-polarity and over-voltage protected
-
CE Marked and RoHS compliant
Technical Specifications
| Item | Specification |
|---|---|
| Product Modell | 330103-00-15-10-02-CN |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 2 mm (80 mils) nominal |
| Probe Tip Diameter | 8 mm |
| Cable Length | 15 feet (4.57 meters) |
| Connector Type | Miniature coaxial connector (M12, molded) |
| Material – Probe Body | AISI 303 stainless steel |
| Material – Probe Tip | Polyphenylene sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (based on configuration) |
| Linear Range | 0.5 to 2.0 mm (20 to 80 mils) |
| System Accuracy | ±5% von full scale when used with matching extension and driver |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Operating Temperature | -35°C to +177°C (probe) |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g pk, 10–2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine |
| Environmental Rating | IP68 (probe only, fully submerged) |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
| Compliance | API 670, CE, RoHS |
Industry Applications
Bently Nevada’s 330103-00-15-10-02-CN Proximity Probe is ideal for real-time monitoring and protection in various high-speed and high-value rotating assets:
-
Steam and Gas Turbines
-
Centrifugal Compressors
-
Electric Motors
-
Pumps and Fans
-
Gearboxes and Generators
-
Hydraulic Turbines
-
Critical Process Machinery in Oil & Gas, Power Generation, and Petrochemical Industries
Product Advantages
-
Exceptional Durability: Designed for long-term operation in high-temperature, high-vibration, and chemically aggressive environments
-
High Accuracy: Factory-matched system ensures precise measurements with minimal drift
-
Versatile Mounting: Verfügbar in multiple thread types for various installation needs
-
Signal Integrity: Robust cable and connector design minimizes noise interference
-
Maintenance Friendly: Compatible with existing 3300 XL systems; easy replacement and calibration
-
API 670 Compliance: Meets industry standards for condition monitoring and protection
-
Wide Operating Range: Performs reliably across wide temperature and pressure conditions
-
Global Support: Backed by Bently Nevada’s technical expertise and global service network
-
Certified Quality: CE and RoHS certified for use in regulated markets
-
Reduced Downtime: Enables predictive maintenance strategies, reducing unplanned outages
Häufig gestellte Fragen (FAQ)
-
What is the function von the 330103-00-15-10-02-CN probe?
It measures shaft vibration, position, and speed in rotating machinery for condition monitoring. -
What does the ’15’ in the part number signify?
It refers to the probe’s cable length: 15 feet (4.57 meters). -
Is this probe compatible with all Proximitor sensors?
It is compatible with the 3300 XL Proximitor® Sensor von the same series and system. -
Can this probe be submerged in liquid?
Yes, the probe is IP68 rated and suitable for full submersion in non-corrosive liquids. -
Does the probe include the extension cable or driver?
No, this model includes the probe only; extension cable and driver are sold separately. -
Is calibration required before use?
Factory-matched systems require minimal calibration; field verification is recommended. -
What materials are used in the probe construction?
Stainless steel body and PPS (polyphenylene sulfide) tip. -
Can this probe operate in hazardous locations?
With proper system configuration and approvals, it can be used in classified areas. -
Is the connector removable or molded?
This model features a molded M12-style connector for enhanced durability. -
How do I identify the correct matching driver and extension cable?
Match cable length and part numbers exactly as per factory pairing (see product documentation or contact support).
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-05-10-02-00 | 5 ft probe, standard 8 mm tip |
| 330103-00-10-10-02-05 | 10 ft probe, armored cable |
| 330103-00-20-10-02-00 | 20 ft probe for deep mounting |
| 330103-00-15-10-01-00 | 15 ft probe, standard US thread |
| 330103-00-16-10-02-CN | 16 ft probe, China-specific variant |
| 330103-00-18-10-02-CN | 18 ft probe, extra length for large equipment setups |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330104-00-10-10-02-05 | Extension cable, 10 ft, 3300 XL series |
| 330105-02-12-05-02-00 | 3300 XL Proximitor Sensor, standard output |
| 330130-045-00-05 | XL Standard Extension Cable, 4.5 m |
| 330180-91-00 | DIN rail mountable Proximitor Sensor |
| 3500/22M-01-01-00 | 3500 Series Communication Gateway Module |
| 3500/42M-01-00 | 3500 Series Vibration Monitor Module |
