Produkteinführung

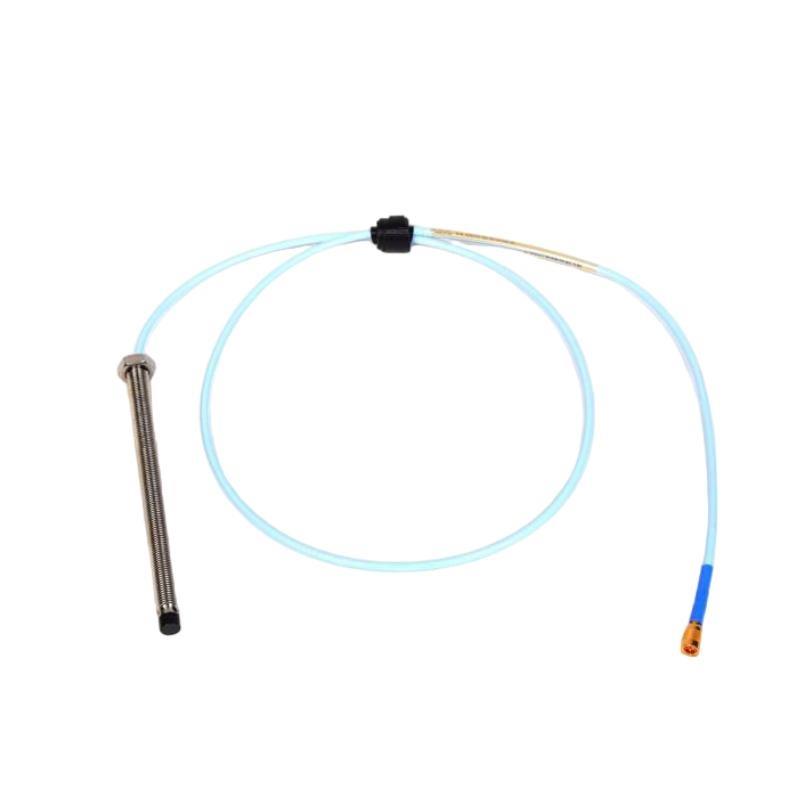

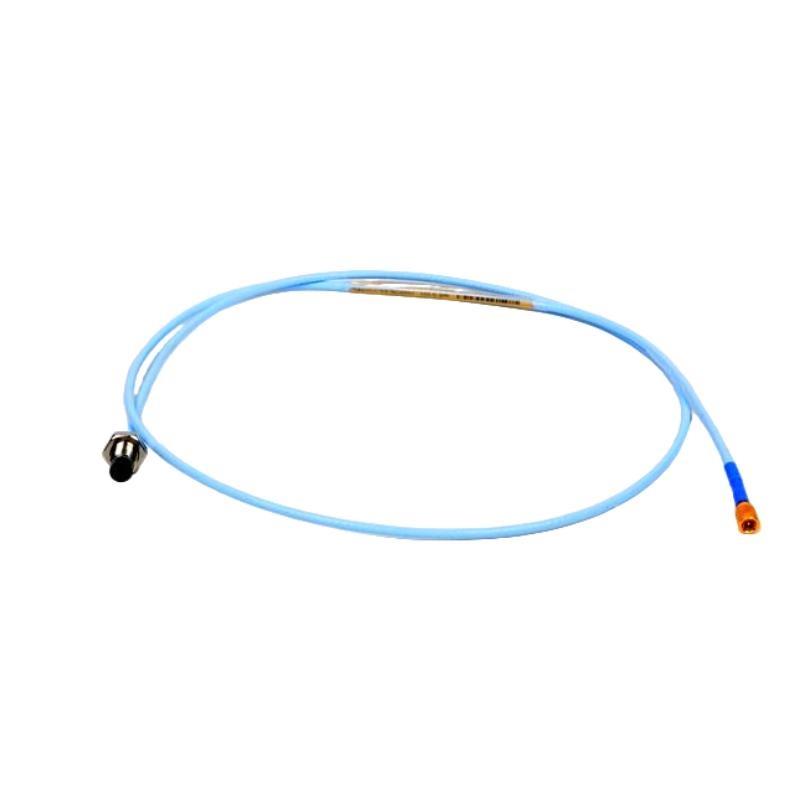

The Bently Nevada 330103-00-10-05-01-00 3300 XL 8mm Proximity Probe is part von the globally trusted 3300 XL series, known for delivering precise, reliable, and durable performance in vibration and position monitoring. Designed for continuous machinery protection, these proximity probes measure shaft vibration and relative position, enabling predictive maintenance and preventing equipment failure.
Built on Bently Nevada’s decades von expertise in machinery diagnostics, the 3300 XL 8mm probes feature robust construction, exceptional environmental protection, and superior signal stability across temperature ranges. This model, with its specific cable length and connector configuration, is suitable for a broad array von industrial applications, including turbines, compressors, pumps, motors, and gearboxes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Hersteller | Bently Nevada (a Baker Hughes company) |
| Modell Number | 330103-00-10-05-01-00 |
| Product Series | 3300 XL 8mm Proximity Probes |
| Sensor Type | Eddy current proximity transducer |
| Measuring Range | 0 to 2 mm (80 mils), linear range |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Connector Type | Miniature coaxial connector |
| Operating Temperature Range | -35 °C to +177 °C |
| Storage Temperature | -50 °C to +200 °C |
| Environmental Sealing | IP68, fully sealed |
| Electrical Isolation | > 10 MΩ at 500 Vdc |
| Gewicht | 0.161 kg |
| Compliance | CE, RoHS, ATEX/IECEx (certain configurations) |
Applications
-
Steam and Gas Turbines: Continuous monitoring von shaft vibration and radial position to avoid catastrophic failure.
-
Compressors: Measurement von rotor position and vibration for efficiency optimization.
-
Pumps: Early detection von imbalance, misalignment, or bearing wear.
-
Motors and Generators: Monitoring shaft dynamics to safeguard mechanical integrity.
-
Gearboxes: Identifying misalignment and gear mesh anomalies.
-
Industrial Fans and Blowers: Detecting excessive vibration and resonance conditions.
Advantages
-
High Accuracy: Provides consistent and precise vibration and position measurements across a wide range von applications.
-
Robust Environmental Protection: IP68-rated sealing ensures long-term reliability in harsh environments (dust, oil, moisture).
-
Stable Signal Output: Maintains accuracy across broad temperature fluctuations.
-
Proven Compatibility: Fully compatible with Bently Nevada 3300 XL series monitors, extension cables, and drivers.
-
Durable Construction: Engineered to withstand industrial vibration, chemical exposure, and thermal stress.
-
Flexible Installation: Verfügbar in various lengths and connector configurations for easy field integration.
-
Global Support: Backed by Bently Nevada’s global network von service and technical expertise.
-
Long Service Life: Designed for years von maintenance-free operation, reducing lifecycle costs.
-
Certified for Hazardous Areas: Verfügbar with ATEX/IECEx certification options for use in explosive environments.
-
Broad Industry Acceptance: Trusted and specified in thousands von critical installations worldwide.
FAQ (Häufig gestellte Fragen)
-
What is the primary function von the Bently Nevada 3300 XL 8mm Proximity Probe?
It detects shaft vibration and axial or radial displacement to protect critical rotating machinery. -
How is the linear range von this probe determined?
The probe itself measures a linear range von 2 mm (80 mils), calibrated with the matching extension cable and Proximitor sensor. -
What kind von machines typically use the 3300 XL 8mm probe?
Steam turbines, gas turbines, compressors, motors, pumps, and gearboxes in power plants, oil & gas, and other industrial sectors. -
What connector type is supplied with the 330103-00-10-05-01-00 model?
It comes with a pre-attached miniature coaxial connector for fast connection to extension cables. -
Can this probe operate in submerged or outdoor environments?
Yes, with its IP68 rating, it is suitable for fully submerged or outdoor industrial environments. -
Is the probe resistant to vibration during installation on machinery?
Absolutely — it is designed for mounting on rotating equipment exposed to high vibration, without signal degradation. -
What are the temperature limits for operating this probe?
It operates from -35 °C to +177 °C, making it suitable for a wide range von industrial conditions. -
How vonten does the probe need maintenance or recalibration?
The probe is engineered for long-term reliability with minimal need for recalibration — routine system checks during scheduled maintenance are typically sufficient. -
Is this proximity probe certified for use in explosive atmospheres?
Yes, certain configurations von the 3300 XL series can be ordered with ATEX/IECEx certifications for use in hazardous environments. -
Does the probe require a specific Proximitor sensor to operate correctly?
Yes — for proper calibration and accuracy, it must be paired with the corresponding 3300 XL Proximitor sensor and extension cable as specified in Bently Nevada system design guidelines.
Related Modells (Same Series or Related Einheits)
| Modell Number | Beschreibung |
|---|---|
| 330103-00-12-05-01-00 | 12 ft cable version von the 8mm proximity probe |
| 330103-00-05-05-01-00 | 5 ft cable version |
| 330104-00-10-05-01-00 | 11mm XL proximity probe, 10 ft cable |
| 330130-040-00-00 | 3300 XL 8mm extension cable, 4 m |
| 3300 XL NSv | Narrow-gap probe for small shaft applications |
| 330101-00-10-10-02-00 | 5 mm probe version von the XL series |
Popular Bently Nevada Modells (Same Marke)
| Modell Number | Functionality / Product Beschreibung |
|---|---|
| 3500/22M | Transient Data Interface (3500 series rack) |
| 3500/42M | Proximitor / Seismic Monitor Module |
| 3500/32M | 4-channel Relay Module |
| 330500 | Velocity Sensor |
| 330780-91-05 | Accelerometer |
| 330104-00-10-10-02-00 | 11mm Proximity Probe with 10 ft cable |
