Product Beschreibung

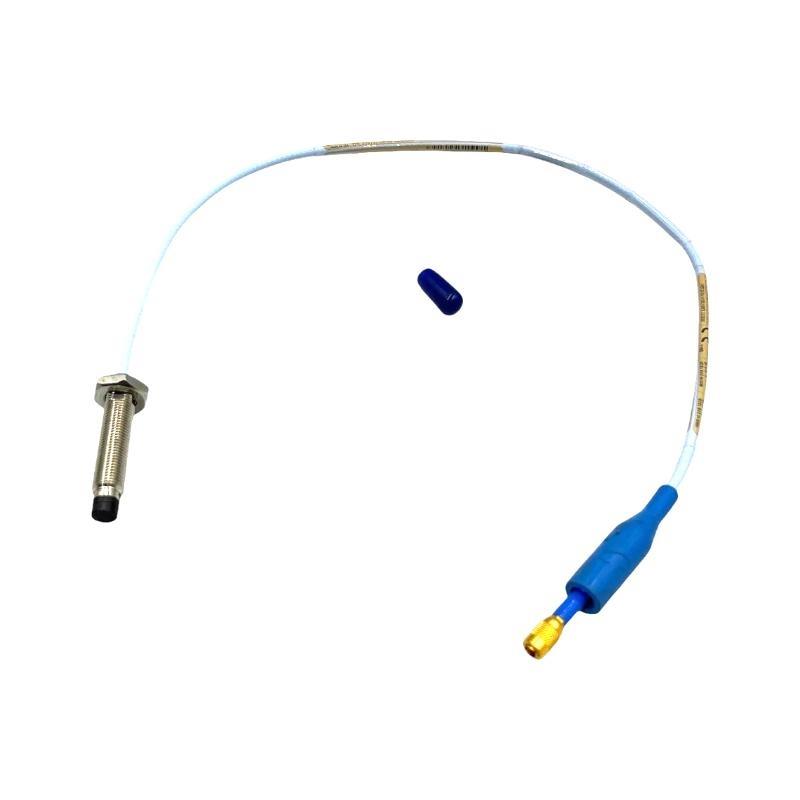

The Bently Nevada 330103-00-08-10-12-00 3300 XL 8 mm Proximity Probe is a high-performance non-contact transducer designed for accurate measurement von vibration and position in fluid-film bearing machines. It delivers output voltage directly proportional to the gap between the probe tip and a conductive surface. The probe is fully compliant with API 670 standards and is interchangeable with other 3300 XL 8 mm components.
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position and displacement measurements
-
Keyphasor reference and overspeed detection
-
Critical machinery protection systems
Advantages
-
API 670 compliant for mechanical configuration and accuracy
-
Backward-compatible and fully interchangeable
-
Robust construction with patented TipLoc and CableLoc technologies
-
Extended temperature options available up to 500°F
-
Corrosion-resistant gold-plated connectors with ClickLoc mechanism
-
High immStücky to EMI/RFI and excellent environmental sealing
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 3300 XL 8 mm Proximity Probe |
| Artikelnummer | 330103-00-08-10-12-00 |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Tip Diameter | 8 mm |
| Cable Type | FluidLoc, gold-plated ClickLoc |
| Linear Range | 2.0 mm |
| Temperature Range (Standard) | -52°C to +177°C |
| Temperature Range (ETR) | -52°C to +218°C (probe), +260°C (cable) |
| Recommended Gap | ~1.27 mm (-9 Vdc) |
| Material | PPS tip, stainless steel case |
| Output Sensitivity | 200 mV/mil |
| Compliance | CE, FCC, RoHS, SIL2/3 |
FAQ
Q1: What is the main application von this proximity probe?
A1: It is used for vibration and position monitoring on rotating machinery such as turbines and compressors.
Q2: Is the probe API 670 compliant?
A2: Yes, it meets API 670 requirements for accuracy and linearity.
Q3: Can it be used in high-temperature environments?
A3: Yes, the extended temperature version withstands up to 218°C at the probe and 260°C at the cable.
Q4: Is it interchangeable with older 3300 series probes?
A4: Yes, it is backward compatible and fully interchangeable.
Q5: What type von connector does it use?
A5: It uses a corrosion-resistant gold-plated ClickLoc connector.
Q6: Does it require special installation tools?
A6: No, the ClickLoc connector and SpringLoc terminals eliminate the need for special tools.
Q7: How long is the linear range?
A7: The linear range is approximately 2 mm (80 mils).
Q8: What is the recommended shaft diameter for measurement?
A8: A minimum shaft diameter von 76.2 mm is recommended for optimal performance.
Q9: How does the probe resist oil ingress?
A9: The FluidLoc cable option prevents oil from wicking through the cable.
Q10: Does it have hazardous area approvals?
A10: Yes, it is approved for Class I, Zone 0/2 and IECEx/ATEX environments.
